Kyosho 1/28 Mini-Z 4x4 Jeep Wrangler Unlimited Rubicon with Interco Tires Bright White (KYO32536W)
$179.99
1/28 Scale
Palm sized micro crawler
Ready To Run
Fully assembled with transmitter
130 Motor
High torque brushed motor
5.4 km/h
Adjustable low trail speed
Steel Chassis
Rigid ladder frame design
Super Swamper
High traction interco tires
In Stock
Micro Trail ConquerorUnmatched scale realism in palm size
Experience authentic off-road driving with the Kyosho 1/28 Mini-Z 4x4 Jeep Wrangler Unlimited Rubicon, a micro RC crawler built for serious trail performance. Designed on the rugged MX-01 ladder frame chassis, this 4x4 micro crawler truck delivers unprecedented balance, flex, and scale detail. It provides enthusiasts with a premium mini RC vehicle that excels across indoor obstacle courses and outdoor terrain alike.
Miniature Scale EngineeringAuthentic Jeep styling paired with capable crawler dynamics
The Kyosho 1/28 Mini-Z 4x4 Jeep Wrangler Unlimited Rubicon brings iconic 4x4 capability to a compact scale. Featuring solid front and rear axles equipped with metal ring and pinion gears, a protective slipper clutch, and aggressive Interco Super Swamper LTB tires, this micro truck overcomes tough obstacles effortlessly. Driven by a high-torque 130 class brushed motor and regulated by the included Syncro KT-531P 2.4GHz radio system, it offers ultra-precise speed control required for technical rock crawling. From the signature front grille to the dark grey accents and detailed hardtop, the Mini-Z 4x4 Jeep Rubicon sets a benchmark for micro RC scale models.
Technical BenchmarksFull chassis dimensions and performance specifications
Completion Level
Ready-To-Run
Scale
1/28
Vehicle Type
Micro RC Rock Crawler
Chassis
MX-01 Steel Vertical Ladder Frame
Drivetrain
4WD Shaft Driven
Motor Type
130 Class Brushed Motor

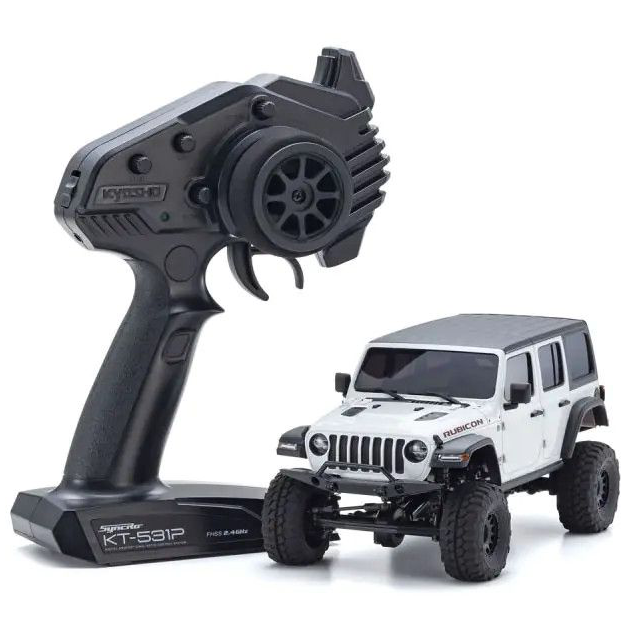

Radio
Syncro KT-531P 2.4GHz Transmitter
Top Speed
Approx. 2.7km/h to 5.4km/h
Overall Length
197.3mm
Product Width
87.3mm
Product Height
89.1mm
Product Weight
234g (excl. battery) (weight)
Wheelbase
120mm
Tread
F/R 72.7mm
Tire Diameter
42.0mm
Tire Width
14.3mm
Gear Ratio
55.44:1 / 46.20:1 / 39.60:1 / 34.65:1 / 30.80:1 / 27.72:1
Pinion
10T, 12T, 14T, 16T, 18T, 20T Included
Battery Type
4 x AAA Batteries (chassis) (battery)
Recommended Battery
4 x AAA Alkaline or NiMH
Running Time
Approx. 60 minutes
Trail-Tough ComponentryHigh performance hardware engineered for rock crawling

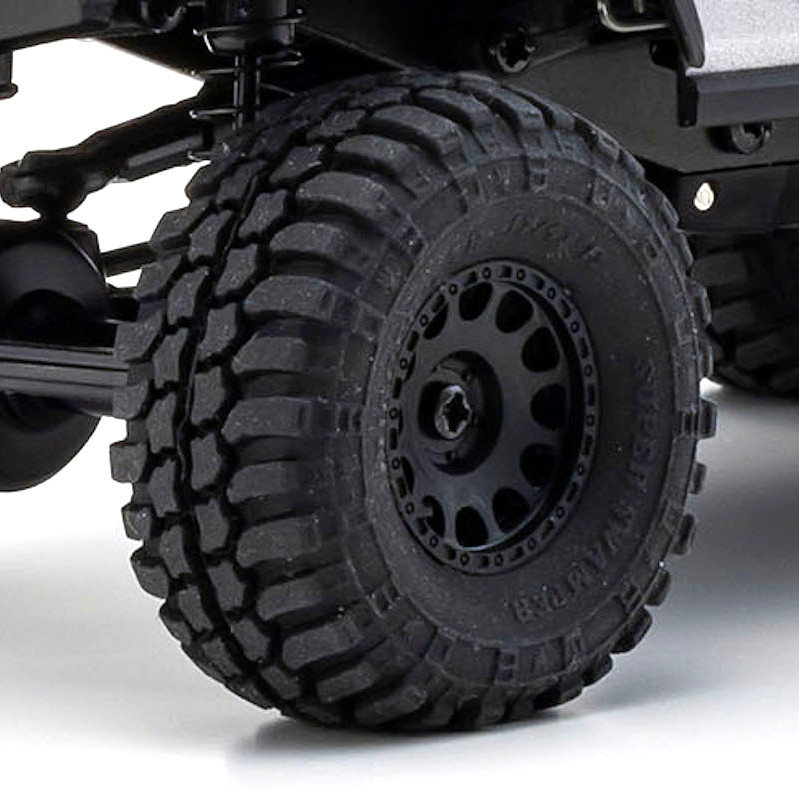

Fat Interco TiresAggressive Super Swamper LTB tires paired with scale wheels

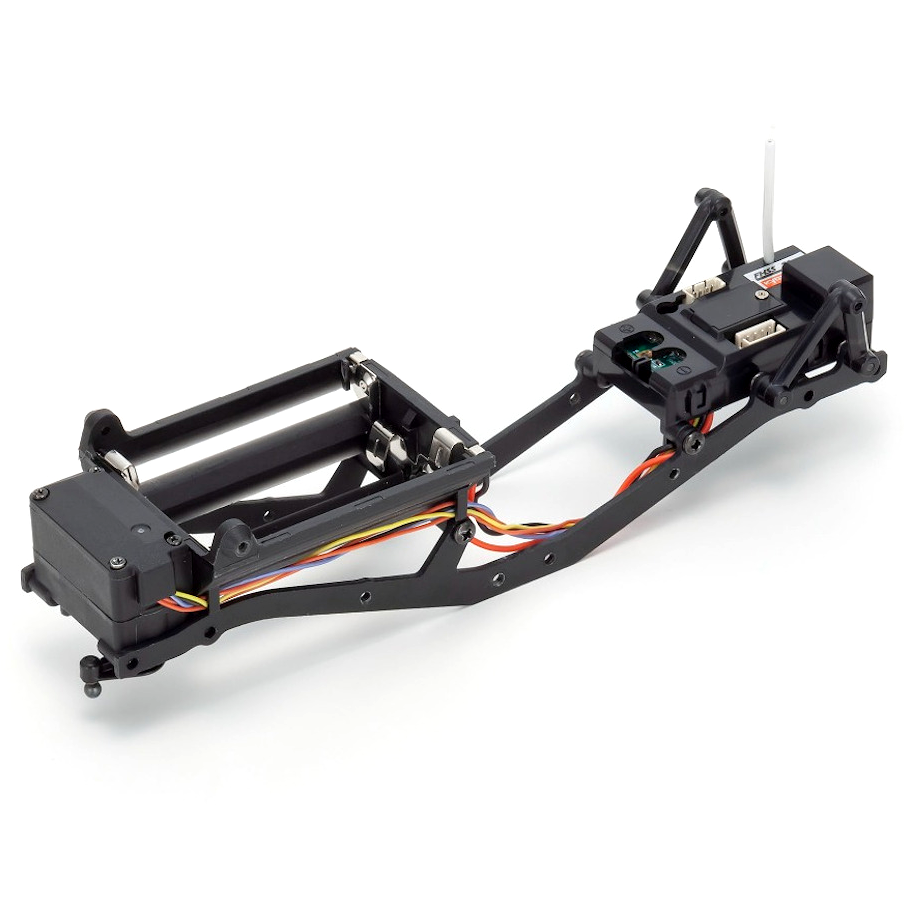

Steel Ladder FrameRigid vertical plate frame balances stiffness and terrain flex

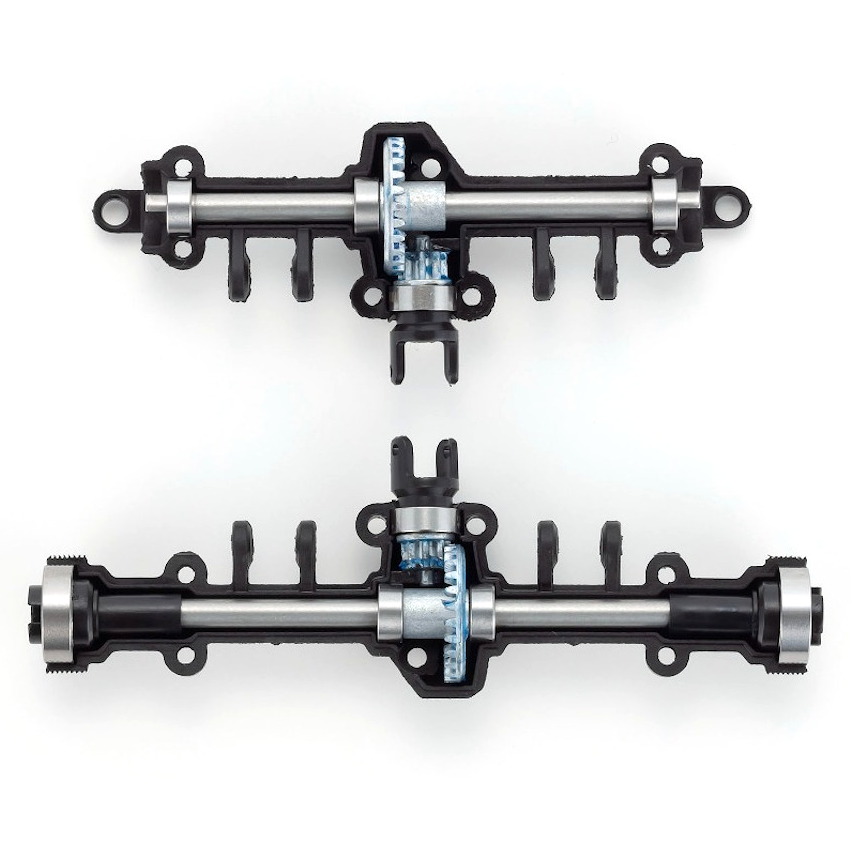

Metal Geared AxlesSolid axles feature durable metal ring and pinion gears

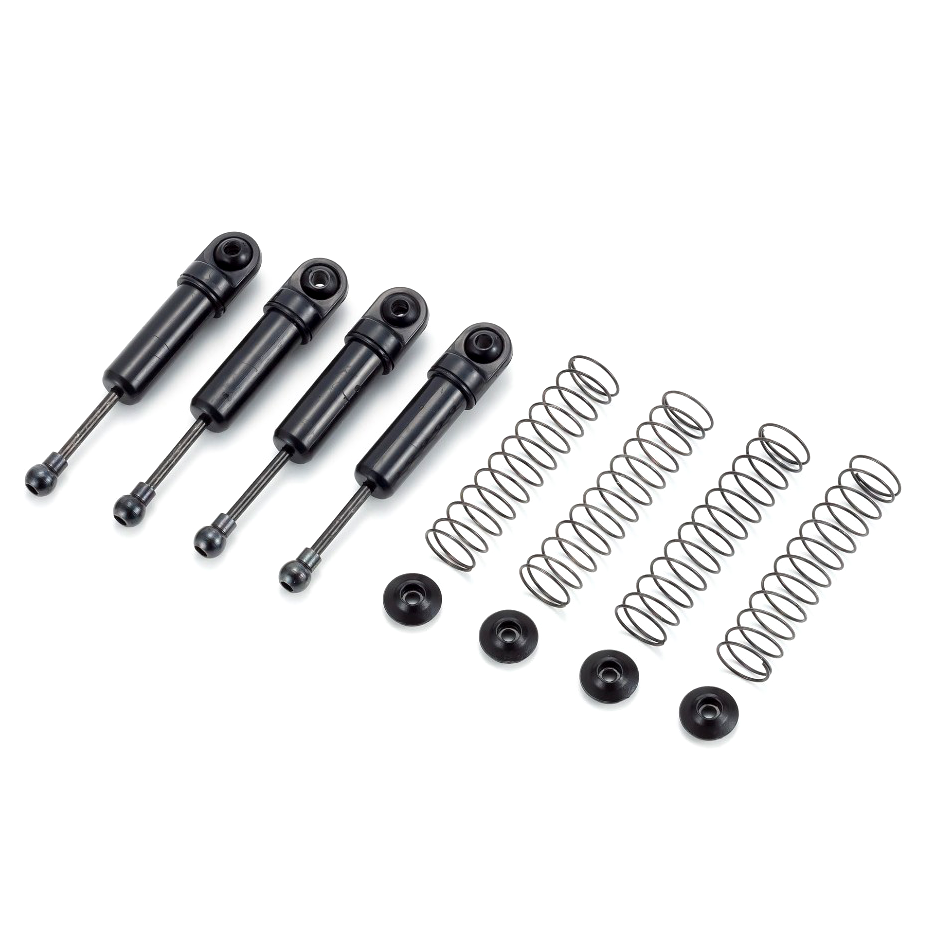

Coil-Over ShocksEquipped with 360-degree spring retainers to keep springs positioned

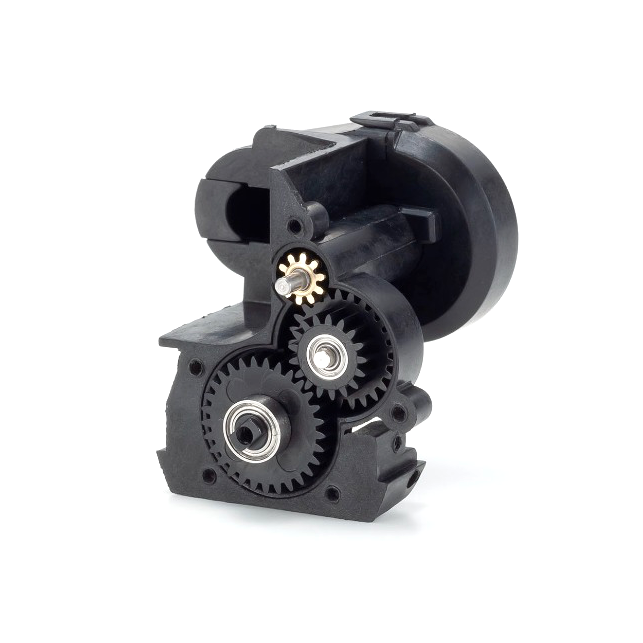

Adjustable GearboxMolded covers, full ball bearings, and adjustable gear mesh

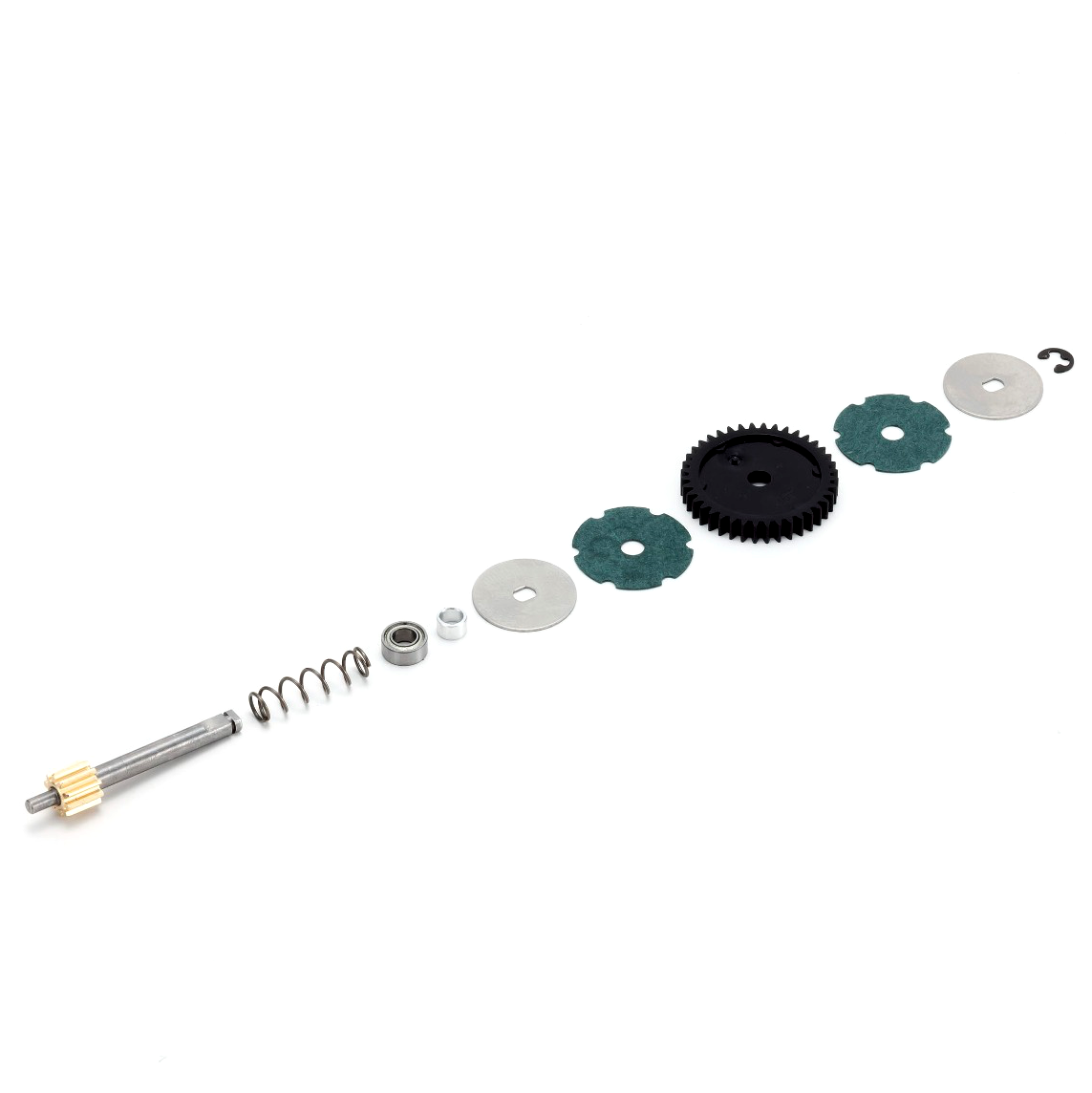

Slipper Clutch ProtectionStandard slipper clutch with metal shaft safeguards drivetrain

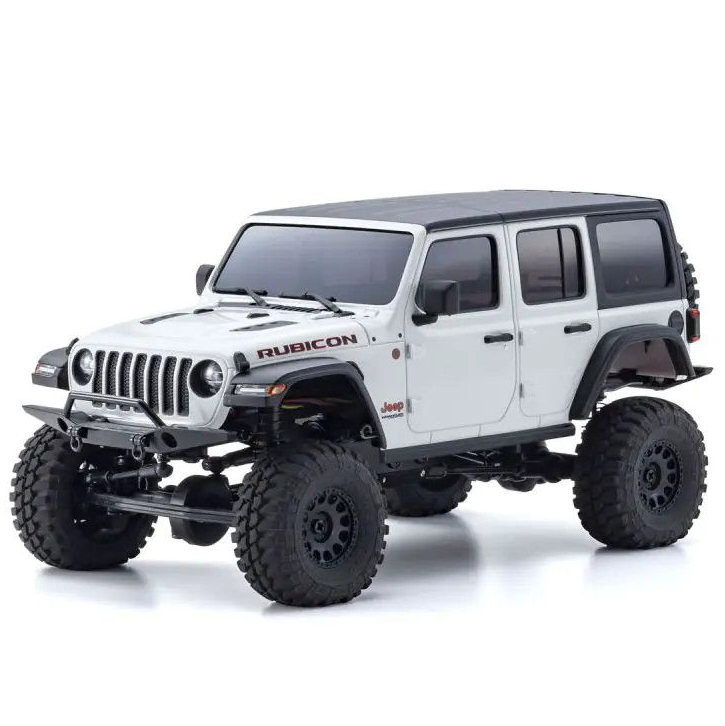

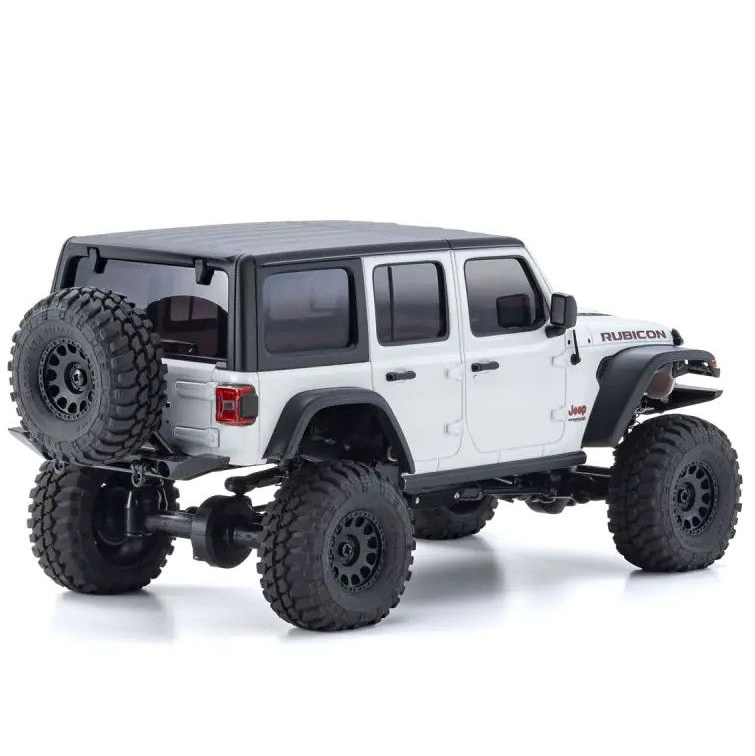

Detailed Hardtop BodyFactory-painted Jeep Wrangler Rubicon body with fine scale accents
Frequently Asked QuestionsEverything you need to know
What batteries are needed to run the Kyosho 1/28 Mini-Z 4x4 Jeep Wrangler Unlimited Rubicon?
The Kyosho 1/28 Mini-Z 4x4 Jeep Wrangler Unlimited Rubicon requires eight AAA batteries in total: four AAA batteries (alkaline or NiMH) for the vehicle chassis and four AAA batteries for the Syncro KT-531P transmitter.
Is the Kyosho 1/28 Mini-Z 4x4 Jeep Wrangler Unlimited Rubicon suitable for indoor use?
Yes, the 1/28 micro scale size makes the Kyosho 1/28 Mini-Z 4x4 Jeep Wrangler Unlimited Rubicon perfect for indoor crawling on desk setups, cushions, and custom mini obstacle courses.
Does the Kyosho 1/28 Mini-Z 4x4 Jeep Wrangler Unlimited Rubicon come fully assembled?
Yes, it comes completely factory-assembled as a Ready-To-Run set, including a factory-painted detailed hardtop body and 2.4GHz radio system.
Can I adjust the top speed on the Kyosho 1/28 Mini-Z 4x4 Jeep Wrangler Unlimited Rubicon?
Yes, the included set of pinion gears (10T through 20T) allows you to adjust the gear ratios to favor higher low-end torque for crawling or higher speed up to 5.4 km/h.
