1/5th Servo, BEAST 2000 w/ Aluminum Horns
$449.00
Skip to product information
Only 1 Left!
1/5th Servo, BEAST 2000 w/ Aluminum Horns
$449.00
Monster Torque
Up to 2000 oz-in
Submarine Seal
7 Point Waterproof System
1/5 Scale Ready
Heavy Duty Large Scale
High Voltage
3S and 4S Compatible
Magnetic Sensor
Ultra Precise Angle Tracking
Metal Gear Train
Smooth 5 Ball Bearings
In Stock
Unmatched Monster PowerExtreme Torque for 1/5 Scale Rigs
Dominate the most demanding off-road terrain with the high-performance REEFS BEAST 2000 Servo with Aluminum Horns. Engineered specifically for heavy-duty 1/5 scale RC vehicles, this high-voltage steering monster delivers an astonishing 2000 oz-in of torque at 16.8V. Featuring submarine waterproof protection and a precision magnetic angle sensor, it represents the absolute pinnacle of strength and reliability for large-scale RC car upgrades.
Built For Brutal BashesAdvanced Engineering Meets Raw Capability
The REEFS BEAST 2000 Servo with Aluminum Horns sets a new standard for high-torque 1/5 scale RC servos. Capable of handling direct 3S and 4S LiPo power (7.4V to 16.8V range), this unit utilizes a magnetic angle sensor and 5 internal ball bearings to deliver pinpoint steering resolution under extreme load. Its rugged 7-point rubber seal submarine waterproofing safeguards the metal gear train against submersion in mud, water, and snow. Outfitted with heavy-duty single and double aluminum horns, the REEFS BEAST 2000 provides total control for giant scale RC buggies and monster trucks.
Technical DataComplete Servo Specifications
Compatible Vehicles
1/5 Scale RC Vehicles
Part Type
Steering Servo
Material
Metal Gears and Aluminum Horns
Input Voltage
7.4V - 16.8V
Max Servo Torque
2000 oz-in @ 16.8V
Maximum Servo Speed
0.08sec @ 16V
Spline Count
15-Tooth
Deadband
2 uSec
Bearing
5 Ball Bearings
Gear Type
Metal
Wire Gauge
22 AWG
Dimensions
2.59 x 1.18 x 2.32 in (66 x 30 x 59 mm) (ruler)
Weight
10 oz (285g) (weight)
Heavy-Duty CapabilitiesEngineered for Maximum Strength
Submarine Waterproof7 Point Seals for underwater protection
Precision PositioningMagnetic Angle Sensor technology
Signal ProcessingPulse Width Modulation Control

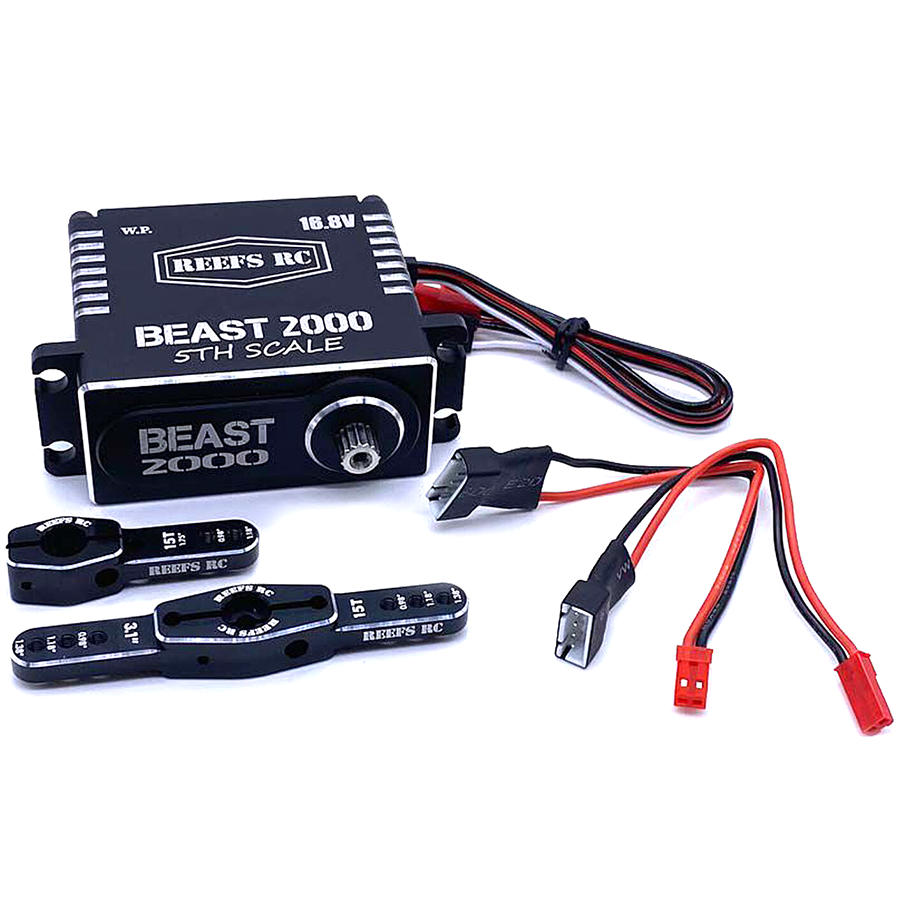

Included HornsHeavy-Duty REEFS Single and Double Aluminum Horns
High-Voltage Harness3S and 4S Direct Connector Included
Internal StrengthAll Metal Gear Train supported by 5 Ball Bearings
Complete HardwareIncludes clamping and mounting screws
Frequently Asked QuestionsEverything you need to know
What voltage range does the REEFS BEAST 2000 Servo with Aluminum Horns support?
The REEFS BEAST 2000 Servo operates across an input voltage range of 7.4V to 16.8V, allowing direct connection to 3S and 4S LiPo battery configurations.
Is the REEFS BEAST 2000 Servo with Aluminum Horns fully waterproof?
Yes, the REEFS BEAST 2000 Servo features 7-point rubber seals providing true submarine waterproofing for extreme wet-weather and submerged RC driving.
What size RC vehicles are compatible with the REEFS BEAST 2000 Servo with Aluminum Horns?
This servo is specifically designed for 1/5 scale RC cars, trucks, and monster crawlers that require heavy-duty torque and standard large-scale mounting compatibility.
