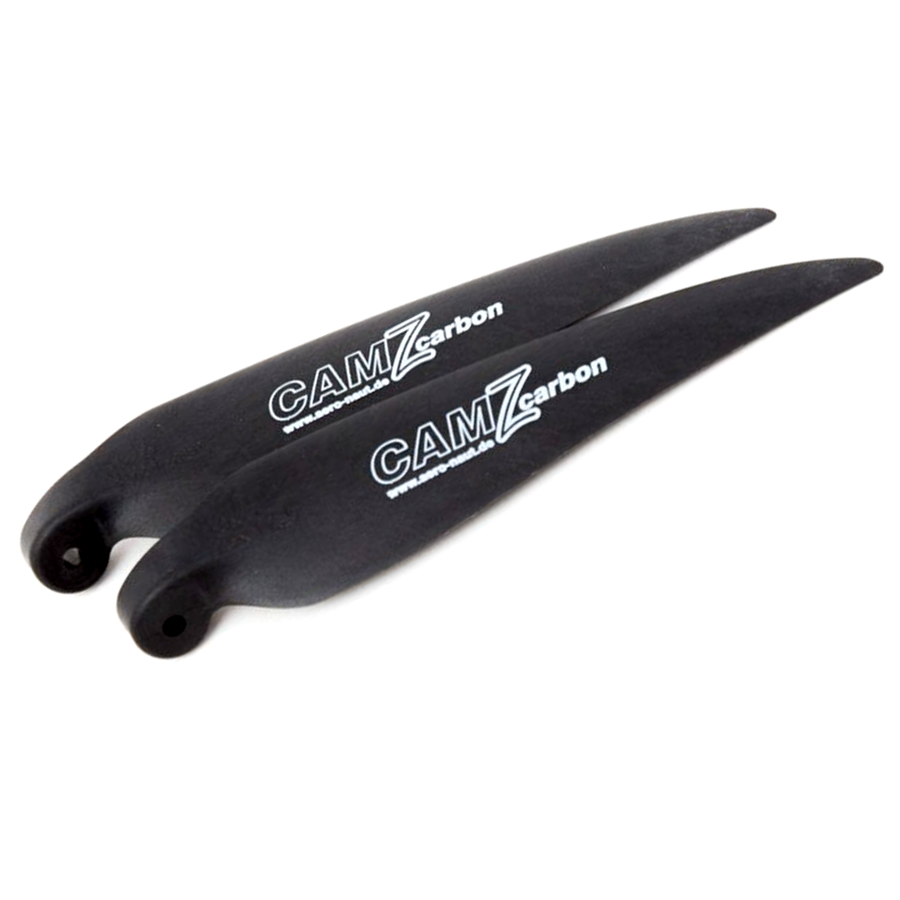

10.0x6.0 CAM Carbon Z Folding Blades
$12.49
Skip to product information
10.0x6.0 CAM Carbon Z Folding Blades
$12.49
10.0x6.0 Precision
Optimized for glider performance
8mm Blade Root
Fits standard prop hubs
Carbon Composite
Lightweight fiber reinforced plastic
16,000 RPM Limit
High speed motor rating
Tight Z Folding
Slim low drag profile
Matched Pair
Includes two matched blades
Next-Gen Glider EfficiencyAerodynamic folding blades for electric flight
The AeroNaut CAM Carbon Z Folding Propeller Blades: 10.0×6.0" deliver maximum thrust with minimal drag for your high-performance RC glider or electric sailplane. Engineered with an advanced carbon fiber reinforced composite, these folding propeller blades hug narrow fuselages tightly to drastically lower aerodynamic resistance during unpowered soaring.
Streamlined Thrust & PerformanceUncompromising precision for soaring competition
Designed specifically to optimize electric flight performance, the AeroNaut CAM Carbon Z Folding Propeller Blades: 10.0×6.0" represent a major leap forward in thermal glider propeller design. Utilizing a specialized Z-profile shape at the root, these blades collapse closer to slender and box-shaped fuselages alike, removing unnecessary gaps that create air turbulence. Compatible with standard 8mm root spinners—especially optimal when paired with 42mm CN Z-spinners—this pair of high-RPM carbon-reinforced blades ensures seamless power delivery from your brushless motor, followed by effortless folding when thermalling.
Technical SpecificationsDimensions and operational limits
Compatible Vehicles
RC Gliders & Sailplanes
Part Type
Folding Propeller Blades
Material
Carbon Fiber Reinforced Plastic
Placement/Position
Front / Spinner Assembly
Dimensions
10.0 x 6.0 inches
Blade Root Width
8mm
Reference Center Piece
42mm
Maximum Speed
16,000 RPM
Weight
Lightweight Composite
Engineered PerformanceBuilt for electric sailplane soaring
Z-Shape GeometryAllows blades to fold closer to the fuselage
Carbon Fiber CompositeDurable lightweight plastic construction
Universal Root SizeCompatible with standard 8mm root hubs
Drag ReductionEliminates air gaps for improved glide ratio
Balanced Matched PairFactory paired set of two blades
High Speed RatingRated for reliable use up to 16,000 RPM
Frequently Asked QuestionsEverything you need to know
What spinner size is required for the AeroNaut CAM Carbon Z Folding Propeller Blades: 10.0×6.0"?
These blades are designed around a standard 42mm middle piece/spinner width with an 8mm root slot. Using a smaller or larger middle piece will slightly alter the effective propeller diameter and pitch.
What is the maximum motor speed limit for the AeroNaut CAM Carbon Z Folding Propeller Blades: 10.0×6.0"?
The maximum permissible operating speed for these 10-inch blades is 16,000 RPM. Always ensure your motor controller is programmed with a soft-start feature to prevent sudden stress on the propeller assembly.
How many blades are included with the AeroNaut CAM Carbon Z Folding Propeller Blades: 10.0×6.0"?
Every package contains a factory-matched pair of two folding propeller blades.
