1015 Size Main Electric Retracts
$69.99
Skip to product information

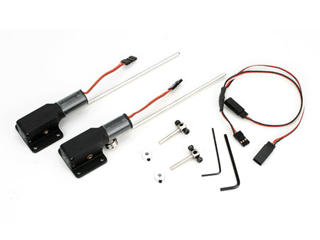

1015 Size Main Electric Retracts
$69.99
Electric Drive System
Integrated motor and PCB design
90-Degree Motion
Smooth realistic scale gear operation
Overcurrent Protection
Built-in automatic circuit safety
Scale Realism Made EasyUpgrade your model airplane landing gear
The E-flite 10 to 15 Size 90° Main Electric Retracts bring effortless scale realism to your RC airplane without the complexity of pneumatic systems. Designed for 10- to 15-size aircraft, this self-contained electric retract system bolts directly into place and plugs right into your receiver.
Precision Engineered Electric RetractsReliable scale performance for model aircraft
Adding functional scale gear to your model aircraft no longer requires air tanks, complex linkages, or additional servos. The E-flite 10 to 15 Size 90° Main Electric Retracts feature an integrated electric motor, durable metal gears, and an internal micro PCB board with built-in overcurrent protection. Extending smoothly in a 90-degree arc, this RC airplane landing gear set includes a dedicated Y-harness that lets you control all main retract units using a single receiver channel.
Technical SpecificationsDetailed equipment specs and measurements
Application
Aircraft 10 - 15 size
Part Type
Electric Main Retracts
Placement/Position
Main Landing Gear
Speed
4.8V (1.25s) / 6.0V (1.0s) / 7.4V (0.80s) (speedometer)
Weight
3.1 oz complete set
Motor Type
Electric Brushed Can
Connector Type
JR Universal
Gear Type
Metal
Current Draw Idle
5mA
Current Draw Stall
200mA
Voltage
4.8V - 7.4V
Key Features and HighlightsBuilt for smooth reliable aircraft performance
Self-Contained DesignOperates without external air tanks or complex servos
Micro PCB ControlFeatures built-in overcurrent protection circuitry
Scale Gear ArcExtends gear smoothly in a 90-degree arc
Simple WiringIncluded Y-harness uses a single receiver channel
Metal GearingStrong metal gear train built for long-term durability
Easy InstallationDirect bolt-in replacement for standard 10 to 15 size models
Frequently Asked QuestionsEverything you need to know
What aircraft size are the E-flite 10 to 15 Size 90° Main Electric Retracts designed for?
The E-flite 10 to 15 Size 90° Main Electric Retracts are engineered specifically for .10- to .15-size RC airplanes.
Do I need a separate servo or air tank for the E-flite 10 to 15 Size 90° Main Electric Retracts?
No, the E-flite 10 to 15 Size 90° Main Electric Retracts are self-contained electric units that plug directly into your receiver without needing air tanks or extra servos.
What voltage range do the E-flite 10 to 15 Size 90° Main Electric Retracts accept?
The E-flite 10 to 15 Size 90° Main Electric Retracts operate smoothly on input voltages ranging from 4.8V up to 7.4V.
