13.0 x 6.5 CAM Carbon Z Folding Blades
$13.69
Skip to product information
Only 3 Left!

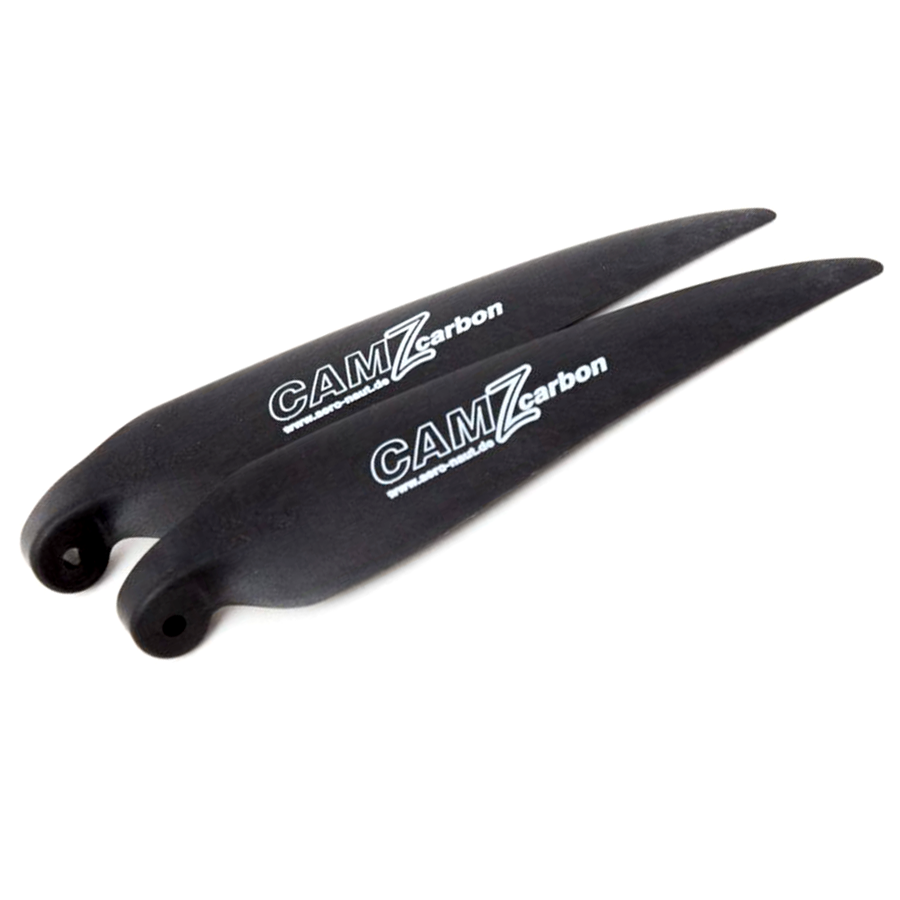

13.0 x 6.5 CAM Carbon Z Folding Blades
$13.69
Carbon Composite
Durable reinforced plastic construction
Aero Z Design
Folds flat against fuselage
High RPM Limit
Rated up to 12000 RPM
In Stock
High Efficiency ThrustOptimized aerodynamics for electric sailplanes
The AeroNaut CAM Carbon Z Folding Propeller Blades: 13.0×6.5" deliver superior aerodynamic efficiency for RC gliders and electric sailplanes. Specially designed with an optimized blade geometry, these carbon-reinforced propeller blades fold exceptionally flat against narrow fuselages to drastically reduce drag in high-performance flight.
Precision Carbon PerformanceNext level aerodynamic propeller technology
Upgrade your electric glider with the AeroNaut CAM Carbon Z Folding Propeller Blades: 13.0×6.5", engineered to set a new benchmark in folding prop performance. Crafted from carbon fiber reinforced plastic, these blades offer incredible torsional rigidity while keeping weight to a minimum. The revised Z-profile root allows the propeller to contour closely around both round and box-shaped fuselages, eliminating drag-inducing gaps. Designed for use with standard 8mm blade root middle pieces and optimal with AeroNaut Z-spinners, this pair of blades ensures maximum thrust output under load and clean, aerodynamic folding during motor-off thermal soaring. Always ensure motor soft-start is activated and operational limits do not exceed the 12,000 RPM rating for safe, reliable flight performance.
Technical SpecificationsDetailed sizing and compatibility limits
Compatible Vehicles
RC Electric Gliders & Sailplanes
Part Type
Folding Propeller Blades
Material
Carbon Fiber Reinforced Plastic
Placement/Position
Nose / Motor Hub Mount
Dimensions
13.0 x 6.5 inches
Blade Root Width
8mm
Max Permissible Speed
12,000 RPM
Middle Piece Reference Size
42mm
Quantity Included
Matched Pair / 2 Blades
Key Design BenefitsEngineered for tight folding performance
Z-Profile DesignFolds closer to fuselage for reduced drag
Carbon Fiber MaterialHigh stiffness and minimal weight deformation
Standard CompatibilityFits 8mm root folding prop center hubs
Optimized Blade RootEnhanced aerodynamic transition near spinner hub
High Velocity RatingSafe operation up to 12,000 RPM maximum
Matched Pair PackageContains 2 perfectly matched blades for balance
Frequently Asked QuestionsEverything you need to know
What is the maximum RPM limit for the AeroNaut CAM Carbon Z Folding Propeller Blades: 13.0×6.5"?
The AeroNaut CAM Carbon Z Folding Propeller Blades: 13.0×6.5" are rated for a maximum operating speed of 12,000 RPM. Always configure your motor setup and ESC soft-start settings to operate safely within this threshold.
What hub size is required to achieve the true specs of the AeroNaut CAM Carbon Z Folding Propeller Blades: 13.0×6.5"?
The specified 13.0x6.5" diameter and pitch for the AeroNaut CAM Carbon Z Folding Propeller Blades: 13.0×6.5" are calculated based on a 42mm middle piece (hub). Using a smaller or larger center piece will alter the effective diameter and pitch of the prop assembly.
Will the AeroNaut CAM Carbon Z Folding Propeller Blades: 13.0×6.5" fit standard folding spinners?
Yes, the AeroNaut CAM Carbon Z Folding Propeller Blades: 13.0×6.5" feature an 8mm blade root size, making them compatible with standard folding prop hubs, CN precision spinners, and especially AeroNaut Z-spinners.
