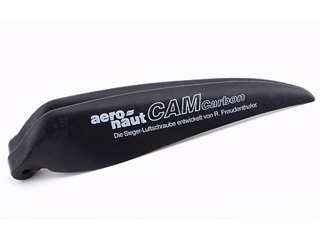

14x9 CAM Folding Blades
$14.99
Skip to product information
14x9 CAM Folding Blades
$14.99
Matched Pair
Includes two matched blades
Carbon Composite
Durable composite blade construction
8mm Root Size
Fits standard folding hubs
11000 Max RPM
Safe high speed performance
Z Design Profile
Folds tight against fuselage
14x9 Dimensions
Based on 42mm yoke
Precision Glider ThrustStreamlined Performance for Electric Sailplanes
The Aeronaut 14x9 CAM Folding Blades offer exceptional aerodynamic efficiency for high-performance RC gliders and electric sailplanes. Designed with advanced carbon fiber composite materials, these folding propeller blades deliver maximum thrust while maintaining structural integrity under load. Upgrade your electric flight setup with the trusted precision of Aeronaut engineering.
Engineered Aerodynamic EfficiencyUltra Tight Folding Profile for Minimum Drag
Crafted specifically to optimize electric flight on sailplanes and motor gliders, the Aeronaut 14x9 CAM Folding Blades feature a specialized Z-profile geometry. This shape allows the propeller blades to rest flush against narrow and boxy fuselages, dramatically reducing parasitic aerodynamic drag when the brushless motor is disengaged. Molded from high-grade carbon fiber reinforced plastic, these blades fit standard 8mm root shoulder folding hubs and pair seamlessly with Aeronaut CN and Z-spinners. Based on a standard 42mm center yoke, the Aeronaut 14x9 CAM Folding Blades deliver crisp throttle response, reliable power, and clean folding action every flight.
Technical SpecificationsKey Details and Mechanical Dimensions
Part Type
Folding Propeller Blades
Diameter
14 inches
Pitch
9 inches
Root Width
8mm
Material
Carbon Fiber Reinforced Plastic
Max Speed
11,000 RPM
Reference Yoke Size
42mm
Compatible Vehicles
RC Gliders & Electric Sailplanes
Advanced Blade DesignKey Features of Aeronaut CAM Blades
Z-Profile DesignFolds closer to fuselage to reduce drag on RC planes
Carbon CompositeMolded from high-strength carbon fiber reinforced plastic
Standard Root SizeFits standard folding hubs with an 8mm root width
Matched Pair IncludedPackage includes two balanced propeller blades
High RPM RatingRated for safe operation up to 11,000 RPM
Optimized PitchSized for ideal power output when using a 42mm yoke
Frequently Asked QuestionsEverything you need to know
What is the maximum permitted RPM for the Aeronaut 14x9 CAM Folding Blades?
The Aeronaut 14x9 CAM Folding Blades are rated for a maximum permissible operating speed of 11,000 RPM. Always verify that your motor setup does not exceed this RPM threshold.
What is included in the package with the Aeronaut 14x9 CAM Folding Blades?
Every package of Aeronaut 14x9 CAM Folding Blades includes a factory-matched pair of two folding prop blades ready to mount to your hub.
What hub size is required to achieve the 14x9 rating on the Aeronaut 14x9 CAM Folding Blades?
The stated 14x9 specifications for the Aeronaut 14x9 CAM Folding Blades are based on using a standard 42mm middle piece (yoke). Installing them on a wider or narrower yoke will alter the effective overall diameter and pitch.
Are special motor ESC settings required when running Aeronaut 14x9 CAM Folding Blades?
Yes, operation of the Aeronaut 14x9 CAM Folding Blades requires an electronic speed control (ESC) set up with a soft start function to prevent severe torque shocks during motor spool-up.
What root width do the Aeronaut 14x9 CAM Folding Blades use?
The Aeronaut 14x9 CAM Folding Blades feature a standard 8mm blade root, making them compatible with standard folding prop hubs and spinners designed for 8mm blade shoulders.
How does the Z-shape on the Aeronaut 14x9 CAM Folding Blades help my RC plane?
The Z-profile design allows the Aeronaut 14x9 CAM Folding Blades to fold tighter against the fuselage, eliminating gaps and significantly reducing in-flight drag during unpowered soaring.
