16T Mod1 Safe-D8 Pinion Gear: ARA311036
$14.99
Skip to product information
Only 3 Left!
16T Mod1 Safe-D8 Pinion Gear: ARA311036
$14.99
Tough Steel
Built for extreme performance
Safe-D Profile
Prevents loss of drive
8mm Shaft Fit
Designed for standard motors
In Stock
Heavy-Duty Power DeliveryReliable Gearing for High Performance
Upgrade your vehicle's drivetrain with the 16T Mod1 Safe-D8 Pinion Gear, engineered to handle extreme torque in power-demanding RC Car applications. This precision-cut gear fits securely onto 8mm brushless motor shafts to ensure maximum drive retention without slippage. Keep your high-speed setup running smoothly with this durable, high-strength steel replacement component.
Engineered Drive PrecisionMaximum Strength Under Heavy Duty
The 16T Mod1 Safe-D8 Pinion Gear is manufactured from high-grade steel for long-lasting performance under intense bashing and racing conditions. Featuring a unique 'D' shaped bore designed specifically for 8mm motor shafts, this pinion gear prevents total drive loss even if the set screw becomes loose during operation. The wide tooth profile ensures optimal gear mesh and smooth power transfer to your RC brushless motor drivetrain. Each gear includes a heavy-duty M4 set screw and retention E-clip to deliver complete security and peace of mind during extreme driving sessions.
Gear SpecificationsDimensions and Part Details
Compatible Vehicles
1/8 and 1/5 Scale RC Vehicles
Part Type
Pinion Gear
Material
Steel (metal)
Placement/Position
Motor Shaft
Tooth Count
16T
Gear Pitch
Mod 1
Motor Shaft Diameter
8mm
Hardware Included
M4 x 4mm Set Screw & 5.6mm E-Clip
Key Design FeaturesBuilt For Demanding Conditions
Durable SteelConstructed from high-strength steel for extreme power
Precision TeethManufactured with a wide tooth profile for smooth operation
Safe-D Profile'D' shaped hole prevents total drive loss if screw loosens
Shaft SizePrecision fit for 8mm brushless motor shafts
Set Screw HolePrecision threaded hole for secure tightening

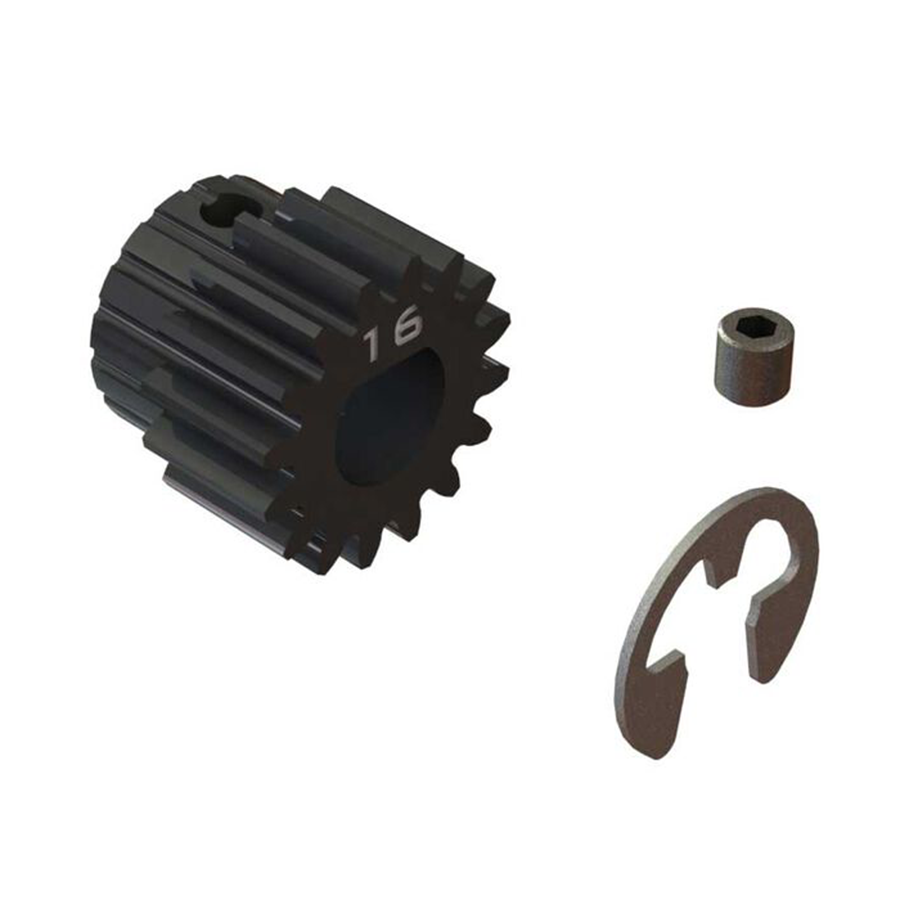

Included HardwareShips with M4 set screw and 5.6mm E-clip
Frequently Asked QuestionsEverything you need to know
What size motor shaft fits the 16T Mod1 Safe-D8 Pinion Gear?
The 16T Mod1 Safe-D8 Pinion Gear is specifically designed to fit 8mm motor shafts commonly found in large-scale high-performance brushless RC motors.
How does the Safe-D feature on the 16T Mod1 Safe-D8 Pinion Gear work?
The Safe-D feature utilizes a 'D' shaped center hole that matches the motor shaft flat spot, ensuring you maintain drive and brake control even if the set screw loosens.
What hardware comes included with the 16T Mod1 Safe-D8 Pinion Gear?
The 16T Mod1 Safe-D8 Pinion Gear comes complete with one 16T Mod1 Safe-D pinion gear, one M4 x 4mm set screw, and one 5.6mm E-clip for secure retention.
