Spektrum 3 Cell 2200mAh 11.1V 100C Smart G1 LiPo with IC3 (SPMX22003S100)
$39.99
Skip to product information
Spektrum 3 Cell 2200mAh 11.1V 100C Smart G1 LiPo with IC3 (SPMX22003S100)
$39.99
Smart Technology
Integrated Microchip Stores Battery Data
100C Continuous
Maximum Power and High Performance
Auto Discharge
Safe Voltages Ensure Longer Lifespan
IC3 Connector
Backwards Compatible With EC3 Plugs
Heat Dissipation
Protective Sheet Maintains Battery Shape
2200mAh Capacity
Optimal Flight Times For Aircraft
Next-Level Smart PowerIntelligent Performance for Your Aircraft

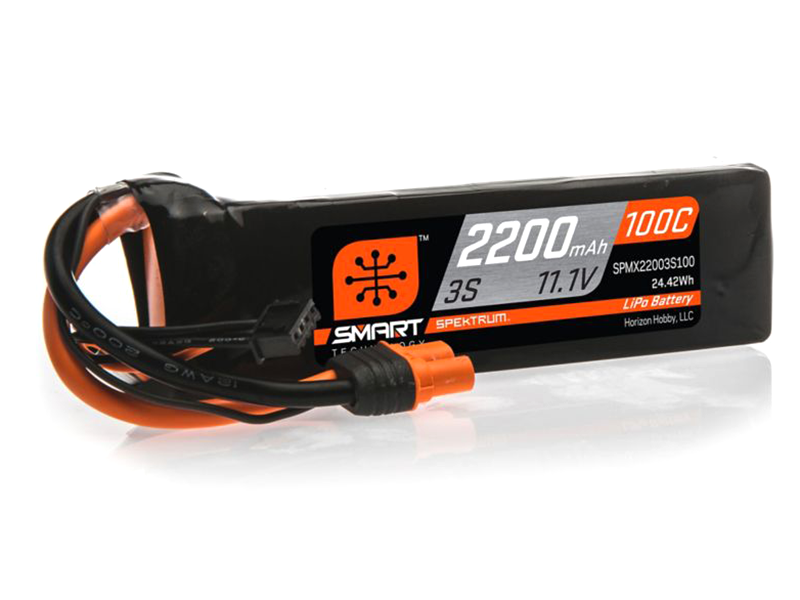

The Spektrum 11.1V 2200mAh 3S 100C Smart LiPo Battery revolutionizes power management for RC Aircraft models by integrating an onboard microchip that communicates automatically with Smart systems. Delivering a continuous 100C discharge rating, this pack supplies full current demand to high-output brushless motors while optimizing overall battery safety and longevity.
Advanced Battery IntelligenceSeamless Operation and Maximum Efficiency
Designed for effortless battery maintenance and extreme power delivery, the Spektrum 11.1V 2200mAh 3S 100C Smart LiPo Battery eliminates the guesswork from charging. When connected to a compatible Spektrum Smart Charger, unique operational parameters, health logs, and charge presets upload automatically from the memory chip. An integrated protective alloy sheet helps dissipate excess heat during intense LiPo battery discharge cycles while helping maintain structural shape. Fitted with a factory-installed IC3 connector that is fully backwards compatible with standard EC3 plugs, this high-performance 3S battery also features auto-storage discharge to ensure maximum cell life and worry-free operation.
Technical SpecificationsComplete Battery Dimensions and Ratings
Application
Aircraft
Battery Type
Smart LiPo
Battery Voltage
11.1V
Capacity
2200 mAh
Cell Configuration
3S1P
Charge Protection Circuitry
Yes
Connector Type
IC3
Hard Case
No
Height
0.8 in (21.5mm) (ruler)
Length
4.5 in (115mm) (ruler)
Width
1.3 in (34mm) (ruler)
Weight
0.35 lbs (160g) (scale)
Maximum Charge Rate
3C
Maximum Continuous Discharge Current
100C
Number of Cells
3
Wire Gauge
12 AWG
Intelligent Feature SetBuilt for Peak Performance and Durability
Integrated MicrochipStores unique performance parameters and diagnostic health logs
Self-Discharge StorageAutomatically discharges to a safe storage voltage to preserve cell health
High Discharge PowerMassive 100C continuous discharge rating delivers maximum output
Heat DissipationOuter metal alloy sheet dissipates heat and helps maintain pack shape
Plug CompatibilityEquipped with an IC3 connector that works seamlessly with EC3 plugs
Automated PresetsAuto-uploads user charge configurations directly to Smart chargers
No Soldering RequiredPre-wired with high-flex 12 AWG silicone wiring
Frequently Asked QuestionsEverything you need to know
What charger is required for the Spektrum 11.1V 2200mAh 3S 100C Smart LiPo Battery?
The Spektrum 11.1V 2200mAh 3S 100C Smart LiPo Battery works best with Spektrum Smart Chargers to utilize auto-preset uploading, but it can also be charged on standard balance chargers using appropriate IC3/EC3 adapters.
Is the Spektrum 11.1V 2200mAh 3S 100C Smart LiPo Battery compatible with standard EC3 plugs?
Yes, the installed IC3 connector on the Spektrum 11.1V 2200mAh 3S 100C Smart LiPo Battery is fully backwards compatible with standard EC3 connectors.
How does auto-discharge work on the Spektrum 11.1V 2200mAh 3S 100C Smart LiPo Battery?
The onboard microchip in the Spektrum 11.1V 2200mAh 3S 100C Smart LiPo Battery safely discharges the pack down to a safe storage voltage after a period of inactivity, preserving cell life without requiring manual intervention.
