60 120 90Degree Nose Retracts
$79.99
Skip to product information
60 120 90Degree Nose Retracts
$79.99
All-Aluminum Unit
Durable metal strut construction
Self-Contained Design
No air tanks or servos
Built-In Protection
Integrated micro PCB safety system
Scale Realism Made SimpleEffortless Retract Upgrade for Aircraft

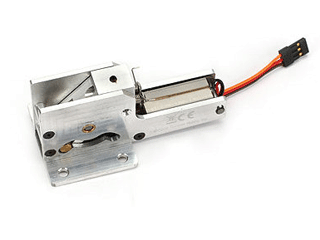

Upgrade your model aircraft with the E-flite .60-1.20 90° Nose Wheel Electric Retract, delivering authentic scale operation without the hassle of pneumatic systems. Designed for easy installation, this self-contained RC plane electric retract bolts directly into place and connects right to your receiver. Experience reliable nose wheel landing gear functionality that enhances both performance and appearance.
Precision Engineered Landing GearAdvanced Retract Technology for RC Planes
The E-flite .60-1.20 90° Nose Wheel Electric Retract brings unmatched realism and durability to your scale RC aircraft. Built with an all-aluminum retract unit, robust mounting bracket, and high-strength landing gear strut, it is engineered to handle demanding landings with ease. The integrated electric motor features an advanced micro PCB with built-in overcurrent protection, safeguarding your electrical system from stall conditions. Included with the unit is a specialized Y-harness, allowing seamless control of full retract setups through a single receiver channel. Perfect for .60- to 1.20-size airplanes and select helicopters, the E-flite electric nose gear eliminates cumbersome air tanks, air lines, and mechanical linkages, providing a clean, plug-and-play solution for scale aviators.
Technical SpecificationsDetailed Unit Measurements and Parameters
Application
Aircraft, Helicopter
Part Type
Nose Wheel Electric Retract
Landing Gear Parts
Retracts
Gear Material
Steel/Brass
Connector Type
Universal
Voltage
4.8 - 7.2 volts
Current Draw Idle
5mA
Current Draw Stall
900mA
Weight
4.10 oz (116.7g) (scale)
Placement/Position
Nose Gear
Performance FeaturesBuilt for Durability and Simple Installation
All-Aluminum UnitPrecision machined for high strength and long service life
Integrated Electric MotorCompact motor system features micro PCB control
Overcurrent ProtectionAutomatically guards motor against damage during stalls
Smooth 90° MotionGear extends down smoothly in a realistic 90-degree arc
Self-Contained SystemOperates without pneumatic air tanks, pumps, or linkages
Y-Harness IncludedAllows control of multiple units via one channel
Frequently Asked QuestionsEverything you need to know
What aircraft sizes are compatible with the E-flite .60-1.20 90° Nose Wheel Electric Retract?
The E-flite .60-1.20 90° Nose Wheel Electric Retract is designed for .60 to 1.20 size RC airplanes as well as select scale helicopters requiring a 90-degree nose gear operation.
Does the E-flite .60-1.20 90° Nose Wheel Electric Retract require a separate servo or air system?
No, this electric retract unit is completely self-contained with an integrated motor, meaning no air tanks, pressure lines, or mechanical servos are needed.
What operational voltage does the E-flite .60-1.20 90° Nose Wheel Electric Retract support?
The E-flite .60-1.20 90° Nose Wheel Electric Retract operates smoothly on a voltage range between 4.8 and 7.2 volts and plugs directly into standard receivers via a universal connector.
