60 Amp<br>Pro SwitchMode BEC Brushless ESC (V2)
$89.99
Skip to product information
60 Amp
60 Amp
Pro SwitchMode BEC Brushless ESC (V2)
$89.99
High Current Output
Handles 60A continuous power load
3S-6S LiPo Power
Supports 9-18 cell NiMH batteries
Switch-Mode BEC
Powers up to seven servos
Pre-Wired Plugs
Factory EC3 and bullet leads
Programmable Controls
Customizable timing and braking options
Finned Heat Sink
Optimized aluminum thermal cooling design
Pro-Grade Power ManagementPrecision performance for brushless motors

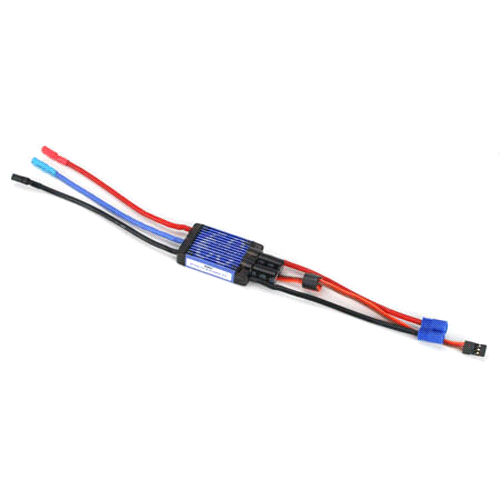

The E-flite 60-Amp Pro Switch-Mode BEC Brushless ESC delivers exceptional power and efficiency for high-performance RC airplanes and helicopters. Designed with an integrated Switch-Mode BEC, this speed controller eliminates the need for a separate receiver battery while managing up to 60A continuous current. Upgrade your brushless motor power system with confidence using this reliable electronic speed control.
High-Current Speed Control EngineeringAdvanced protection and custom programmability
Engineered for high-current applications, the E-flite 60-Amp Pro Switch-Mode BEC Brushless ESC combines smooth throttle response with comprehensive motor protection features. Built with modern, compact MOSFET technology, a finned aluminum heat sink case, and lightweight endcaps, this brushless ESC provides superior thermal management without sacrificing flight weight. Pilots can easily customize flight characteristics using programmable features such as soft start for helicopters, 5-range motor timing, throttle input calibration, and low voltage cutoff settings for 3S to 6S LiPo battery packs. Complete with factory-installed EC3 battery connectors and 3.5mm female gold bullet motor leads, it offers a hassle-free, plug-and-play installation for your fixed-wing RC aircraft or heli builds.
Technical ESC SpecificationsDetailed specs and power capabilities
Part Type
Electronic Speed Control (esc)
Continuous Current
60 Amps
Peak Current
75 Amps
BEC Type
Integrated Switch-Mode
BEC Output
5.0V / 2.5A Continuous
Input Voltage Range
3S to 6S Li-Po / 9 to 18 cell Ni-MH
Battery Connector
E-flite EC3
Motor Lead Connectors
3.5mm Gold Bullet
Programmable
Yes
Heat Sink
Finned Aluminum Case
Key Performance FeaturesBuilt for safety efficiency and power
Continuous CurrentUp to 60A continuous with proper airflow and 75A peak
Switch-Mode BECIntegrated 5V 2.5A circuit powers up to 7 analog or 6 digital servos
Voltage CompatibilitySupports 3-6S Li-Po and 9-18 cell Ni-MH input
Thermal CoolingFinned heat sink aluminum case maximizes heat dissipation
Safety ProtectionSafe power-arm mode and auto motor shutdown on signal loss
Programmable TuningFeatures 5 timing ranges, motor braking, LVC, and soft start
Pre-Wired ConnectorsEquipped with E-flite EC3 and 3.5mm bullet motor leads
Frequently Asked QuestionsEverything you need to know
What battery configurations are compatible with the E-flite 60-Amp Pro Switch-Mode BEC Brushless ESC?
The E-flite 60-Amp Pro Switch-Mode BEC Brushless ESC supports 3S to 6S Li-Po battery packs as well as 9- to 18-cell Ni-Cd or Ni-MH batteries.
How many servos can the integrated BEC on the E-flite 60-Amp Pro Switch-Mode BEC Brushless ESC power?
The built-in 5V Switch-Mode BEC can power up to 7 standard-sized analog servos or 6 standard-sized digital servos across any recommended input voltage.
What connectors come pre-wired on the E-flite 60-Amp Pro Switch-Mode BEC Brushless ESC?

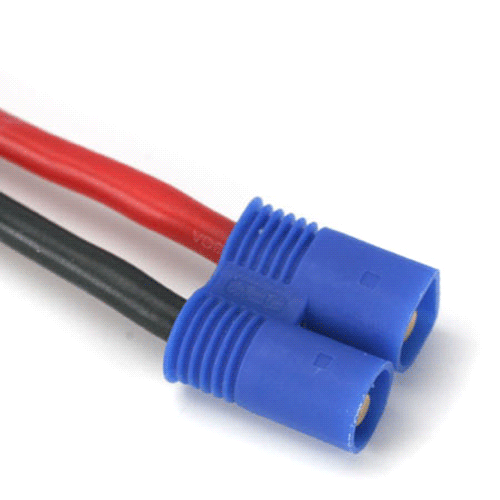

It comes pre-wired with an E-flite EC3 connector on the battery input side and 3.5mm female gold bullet connectors on the motor output leads.
Does the E-flite 60-Amp Pro Switch-Mode BEC Brushless ESC have safety features to prevent accidental motor starts?
Yes, it includes a safe power-arming mode that prevents the motor from starting accidentally when the battery is connected, along with auto motor shutdown if the radio signal is lost.
