Reefs RC - 99 Micro Servo
$59.99
Skip to product information
Reefs RC - 99 Micro Servo
$59.99
Micro Power
Up To 115oz Torque
CNC Aluminum
Precision Metal Gear Case
Fully Waterproof
All Weather Offroad Performance
Compact Servo DominanceUnmatched Power In Micro Scale

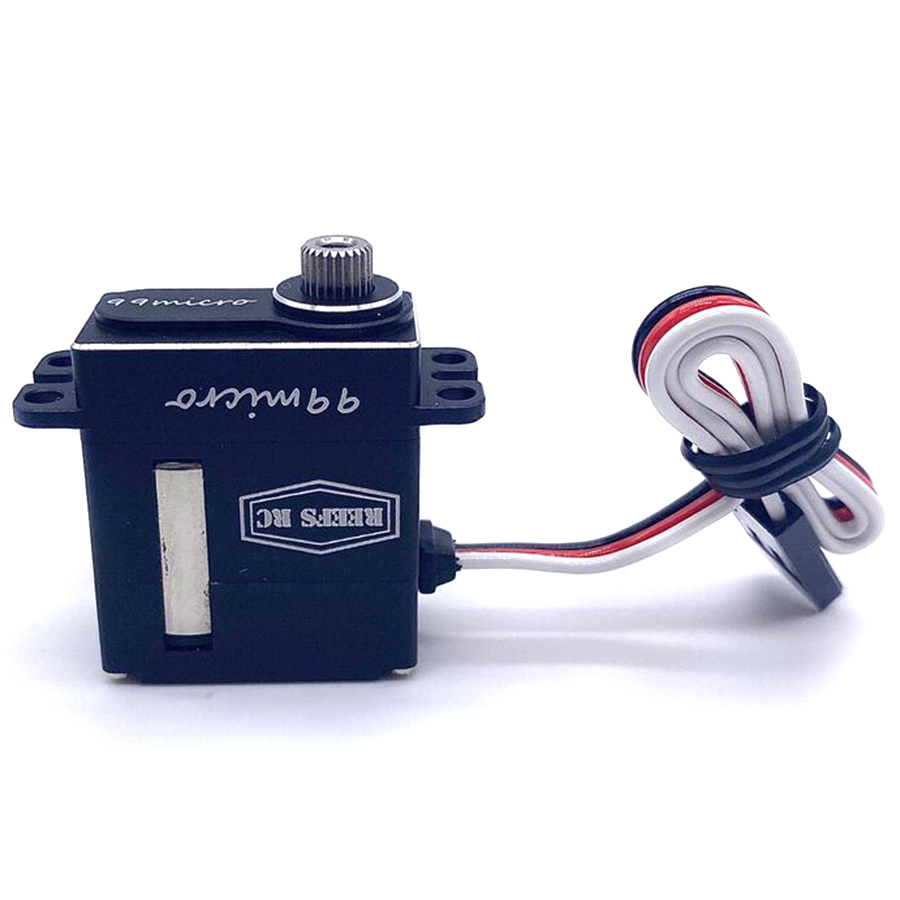

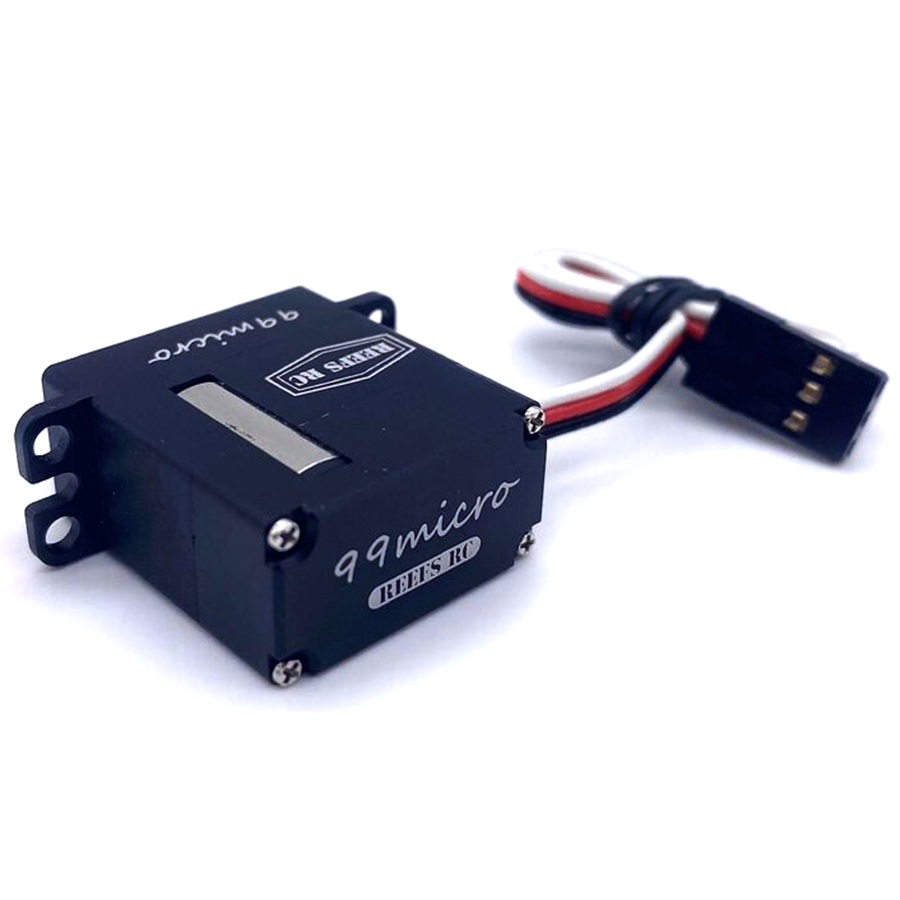

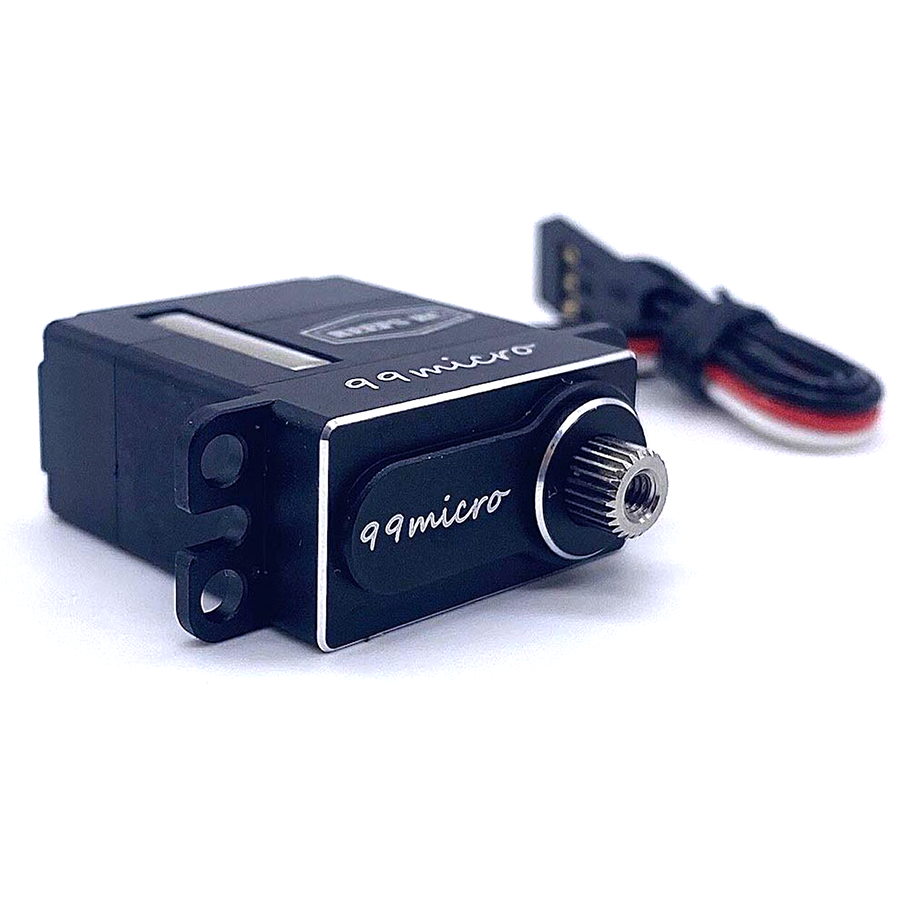

Engineered for high-demand micro RC applications, the Reefs RC 99 Micro Servo delivers incredible torque and response speed in an ultra-compact footprint. Featuring a rugged CNC aluminum case and precision metal gears, this waterproof micro servo provides superior steering authority for micro crawlers and custom scale builds.
Precision Engineered Micro PowerHigh Voltage Performance For Micro Rigs
Upgrade your micro RC vehicle with the ultimate combination of power and reliability in the Reefs RC 99 Micro Servo. Capable of handling high-voltage setups from 6.0V to 8.4V, this servo generates up to 115 oz-in of torque to turn oversized tires through tough obstacles with ease. The all-CNC aluminum housing acts as an efficient heat sink while defending internal components against harsh trail conditions. Equipped with precision metal gears and dual ball bearings, it offers smooth, slop-free control required by serious RC enthusiasts.
Complete Technical SpecificationsFull Dimensions Voltage And Ratings
Part Type
High-Speed Micro Servo
Compatible Vehicles
1/18 & 1/24 Scale Micro RC Crawlers
Material
CNC Machined Aluminum Case / Metal Gears
Maximum Servo Torque
89oz @ 6.0V / 99oz @ 7.4V / 115oz @ 8.4V
Maximum Servo Speed
0.050-0.099 sec
Input Voltage
6.0V - 8.4V
Spline Count
25-Tooth
Bearing Type
2BB Dual Ball Bearing
Dimensions
0.9 x 0.47 x 1.08 in / 23 x 12 x 27 mm
Product Weight
0.70 oz
Deadband
2 µs (pulse)
Current Draw Idle
200mA @ 4.8V / 350mA @ 6.0V / 450mA @ 7.4V / 550mA @ 8.4V
Current Draw Stall
1600mA @ 4.8V / 2000mA @ 6.0V / 2200mA @ 7.4V / 2400mA @ 8.4V
Core Performance AdvantagesDesigned For Maximum Micro Durability
Aluminum HousingAll CNC machined aluminum case for heat dissipation
Metal Gear TrainPrecision metal gears built for high load durability
Waterproof RatingFully sealed design for operation in water, snow, and mud
High Voltage ReadySupports 6.0V to 8.4V direct power systems
Dual Ball BearingsDual ball bearing supported output shaft for smooth control
Output SplineStandard 25T output spline for broad servo horn compatibility
Frequently Asked QuestionsEverything you need to know
What vehicles are compatible with the Reefs RC 99 Micro Servo?
The Reefs RC 99 Micro Servo is designed for 1/18 and 1/24 scale micro RC crawlers and custom micro vehicles requiring micro-sized servos with maximum torque.
Is the Reefs RC 99 Micro Servo waterproof?
Yes, the Reefs RC 99 Micro Servo features a fully waterproof design, making it ideal for running in wet conditions, mud, and snow.
What voltage can I run on the Reefs RC 99 Micro Servo?
The Reefs RC 99 Micro Servo is high-voltage compatible and operates safely on input voltages ranging from 6.0V up to 8.4V.
