Spektrum 9KG Servo, WP, Metal Center Case, 23T: S605 (SPMS605)
$24.99
Skip to product information

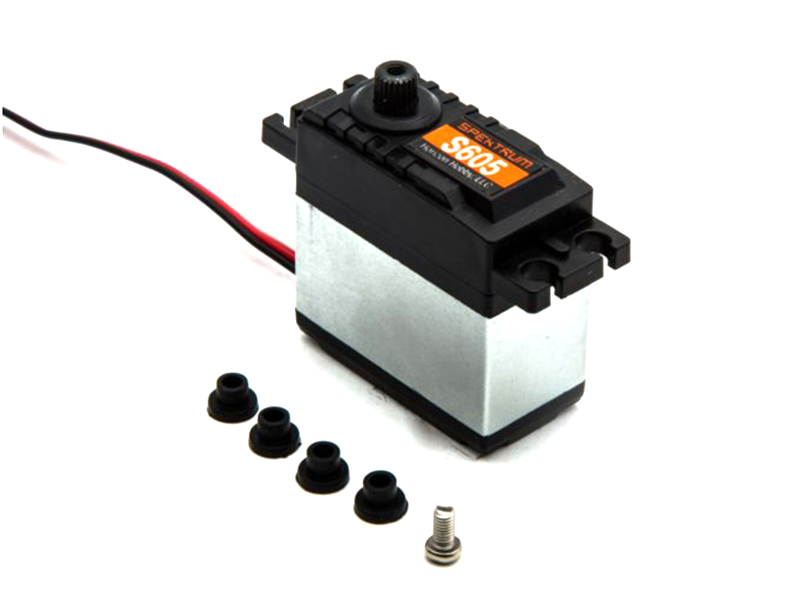

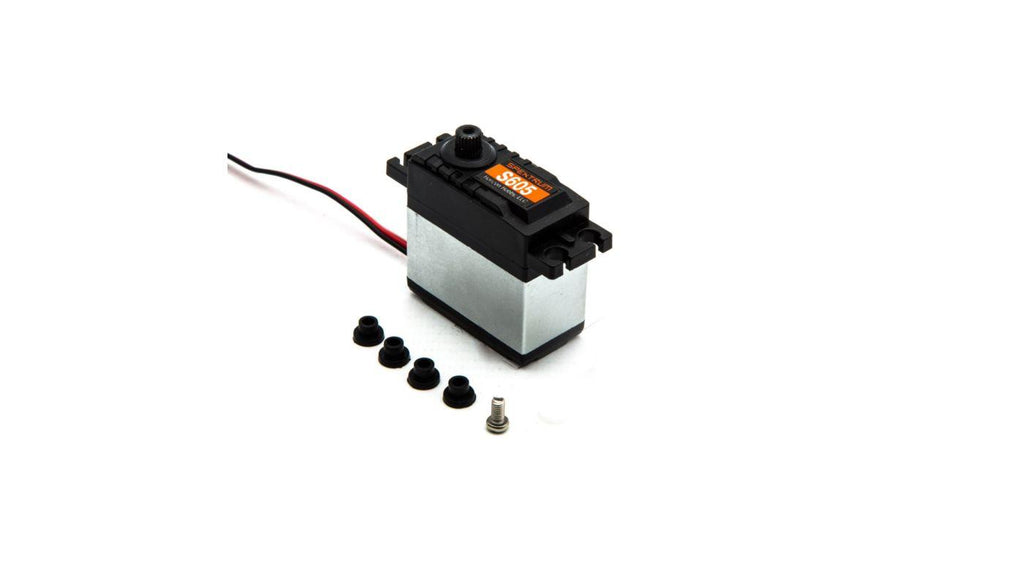

Spektrum 9KG Servo, WP, Metal Center Case, 23T: S605 (SPMS605)
$24.99
Waterproof Servo
Ready For All Weather Conditions
161 oz-in Torque
Reliable Power At 6.0 Volts
Metal Center Case
Enhanced Heat Dissipation And Durability
Precision Steering PowerEssential Control For RC Vehicles
The 9KG Servo, WP, Metal Center Case, 23T delivers dependable steering response for standard surface applications. Engineered as a robust waterproof analog servo, it provides smooth handling for 1/10 2WD trucks and ProBoat RC speedboats.
Versatile Servo UpgradeDurable Performance Across Off-Road Marine
Upgrade your vehicle's response with the 9KG Servo, WP, Metal Center Case, 23T. Featuring a sturdy metal center case for optimized heat dissipation, this standard-sized RC servo produces up to 161 oz-in of torque at 6.0V. Whether replacing a tired stock servo in a 1/10 scale 2WD off-road truck or powering a high-speed ProBoat remote control boat, its waterproof construction ensures long-lasting operation through splash and wet conditions.
Engineering SpecificationsDetailed Technical Dimensions And Power Specifications
Compatible Vehicles
1/10 2WD Trucks & ProBoat Speedboats
Part Type
Analog Servo
Size Category
Standard
Torque
161 oz-in @ 6.0V
Speed
0.24 sec/60 degrees @ 6.0V
Gear Type
Nylon
Gear Material
Plastic
Bushing Or Bearing
Bushing
Connector Type
Z-connector
Application
Surface and Marine
Key Servo FeaturesBuilt For Standard RC Applications
Waterproof DesignSealed construction protects against moisture damage
Metal Center HousingDissipates motor heat effectively during operation
23T Output ShaftFits standard 23-tooth servo arms and horns
High Torque RatingDelivers strong 161 oz-in torque at 6.0V
Versatile FitmentIdeal for 1/10 scale 2WD trucks and speedboats
Universal PlugFeatures standard Z-connector receiver plug
Frequently Asked QuestionsEverything you need to know
Is the 9KG Servo, WP, Metal Center Case, 23T suitable for 1/10 scale RC cars?
Yes, the 9KG Servo, WP, Metal Center Case, 23T features a standard size category, making it an ideal drop-in replacement or upgrade servo for most 1/10 2WD RC trucks and surface vehicles.
Is the 9KG Servo, WP, Metal Center Case, 23T fully waterproof?
Yes, the 9KG Servo, WP, Metal Center Case, 23T is designed with waterproof protection, allowing reliable operation in wet off-road conditions and inside marine applications like ProBoat speedboats.
What servo horn spline count does the 9KG Servo, WP, Metal Center Case, 23T use?
The 9KG Servo, WP, Metal Center Case, 23T uses a standard 23-tooth (23T) output spline, which is compatible with matching 23T servo arms and horns.
