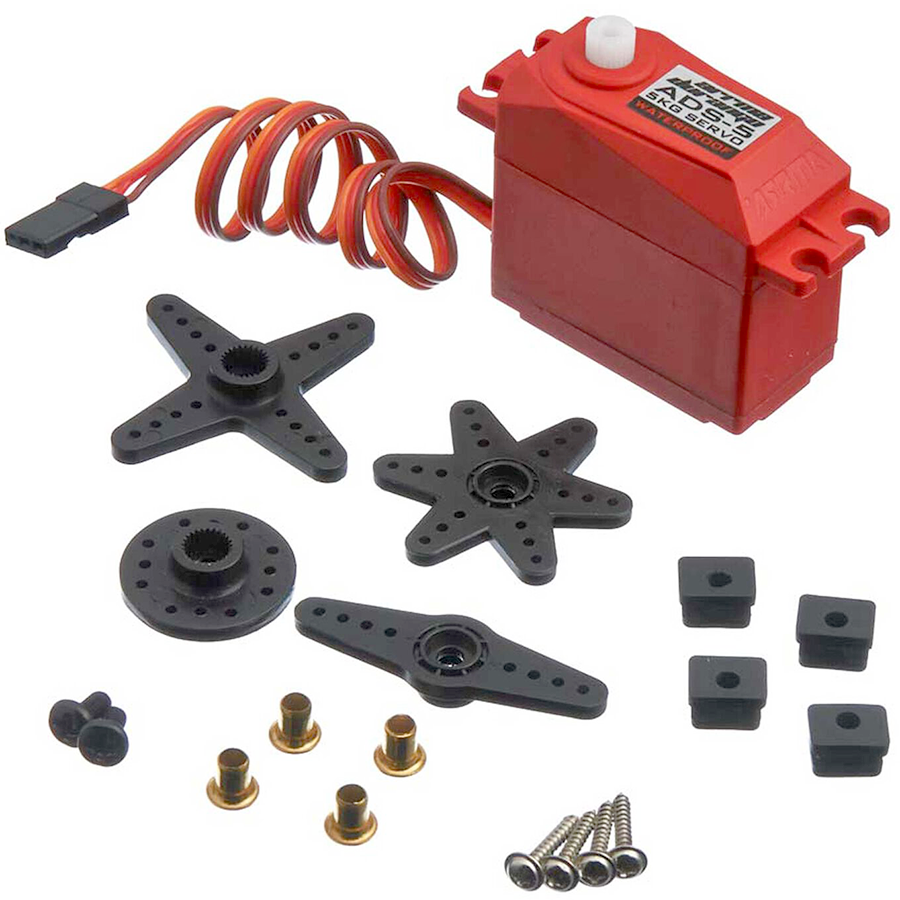

ADS-5 V2 4.5kg Waterproof Servo Red: ARAM1011
$22.99
Skip to product information
ADS-5 V2 4.5kg Waterproof Servo Red: ARAM1011
$22.99
Waterproof Design
Resilient Water and Dust Protection
Dual Bearings
Smooth Precision Ball Bearings
25T Spline
Standard 25 Tooth Fitment
Precision Steering ResponseReliable Control for Your RC Vehicle
The ADS-5 V2 4.5kg Waterproof Servo, Red delivers fast, reliable, and precise steering response for your RC car or truck. Constructed with a waterproof and dust-proof case, this high-performance analog steering servo ensures dependable operation in wet or dusty off-road environments. Upgrade your RC vehicle setup with confidence knowing the ADS-5 V2 servo is built to withstand demanding hobby use.
Built for Durability and PerformanceEngineered to Handle Demanding Off-Road Driving
Engineered for maximum reliability, the ADS-5 V2 4.5kg Waterproof Servo, Red features heavy-duty composite gears and dual ball bearings to provide ultra-smooth motion under load. Equipped with an industry-standard 25-tooth spline and a Futaba-style 3-pin connector, this RC car waterproof servo offers straightforward installation across a wide range of scale models. Operating efficiently at 6V to deliver 5kg/cm (70oz/inch) of torque and quick 0.12 sec response speeds, the ADS-5 V2 servo is the ideal replacement steering servo for drivers looking to maintain precise handling during aggressive RC driving.
Technical SpecificationsDetailed Dimensions and Electrical Performance
Part Type
Steering Servo
Placement/Position
Steering / Chassis
Dimensions
40mm x 38mm x 20mm
Weight
Standard Size Class
Material
HD Composite Gears, Plastic Case
Compatible Vehicles
Universal 1/10 Scale RC Vehicles
Connector Type
Futaba style 3-pin
Spline Count
25 Tooth
Bearing Type
Dual Ball Bearing
Signal Type
Analog
Torque
5kg/cm (70oz/inch) at 6V (power)
Speed
0.14 sec/60° at 4.8V, 0.12 sec/60° at 6V
Wire Length
300mm
Water Resistance
Waterproof & Dust-proof
Key Performance HighlightsHeavy Duty Construction for Extreme Reliability
Waterproof CaseFully sealed against water and dust intrusion
Dual Ball BearingsEnsures smooth and efficient operation under heavy load
HD Composite GearsDelivers durable strength and long-lasting wear resistance
Industry Standard Fit40mm x 38mm x 20mm case fits standard servo mounts
25-Tooth SplineCompatible with popular standard servo horns and aluminum upgrades
Futaba-Style ConnectorUniversal 3-pin plug for easy receiver connectivity
Extended Lead300mm wire length for clean routing in any RC car chassis
Frequently Asked QuestionsEverything you need to know
Is the ADS-5 V2 4.5kg Waterproof Servo, Red fully waterproof?
Yes, the ADS-5 V2 4.5kg Waterproof Servo, Red features a fully sealed waterproof and dust-proof red case designed to handle wet off-road conditions and dirt track running safely.
What size servo horn fits the ADS-5 V2 4.5kg Waterproof Servo, Red?
The ADS-5 V2 4.5kg Waterproof Servo, Red features an industry-standard 25-tooth (25T) spline, making it compatible with standard 25T servo horns and aftermarket aluminum servo arms.
What connector type does the ADS-5 V2 4.5kg Waterproof Servo, Red use?
The ADS-5 V2 4.5kg Waterproof Servo, Red comes equipped with a universal Futaba-style 3-pin connector and a 300mm wire lead for easy connection to most RC receivers.
