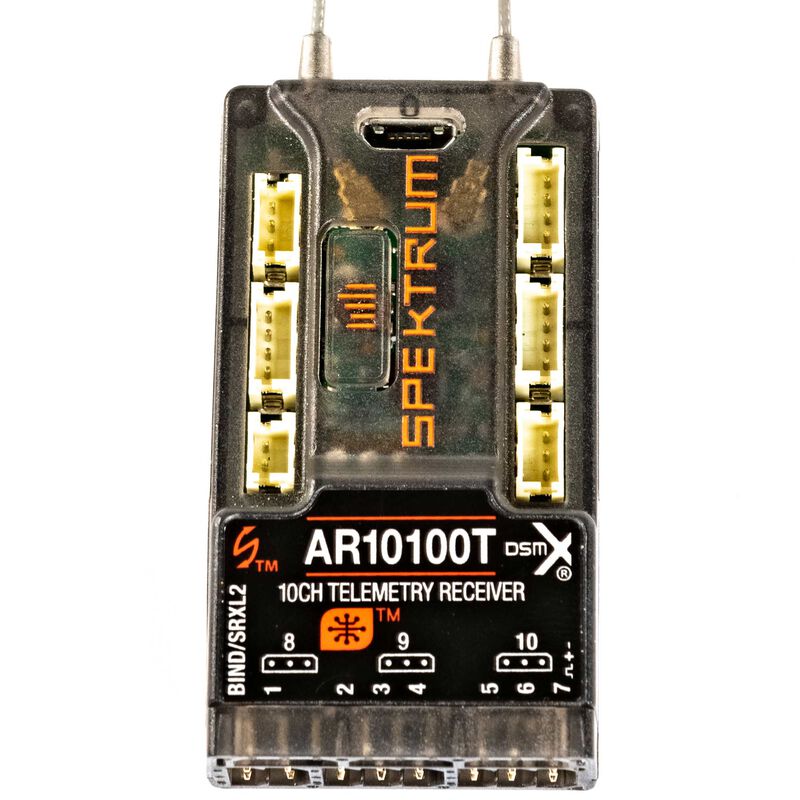

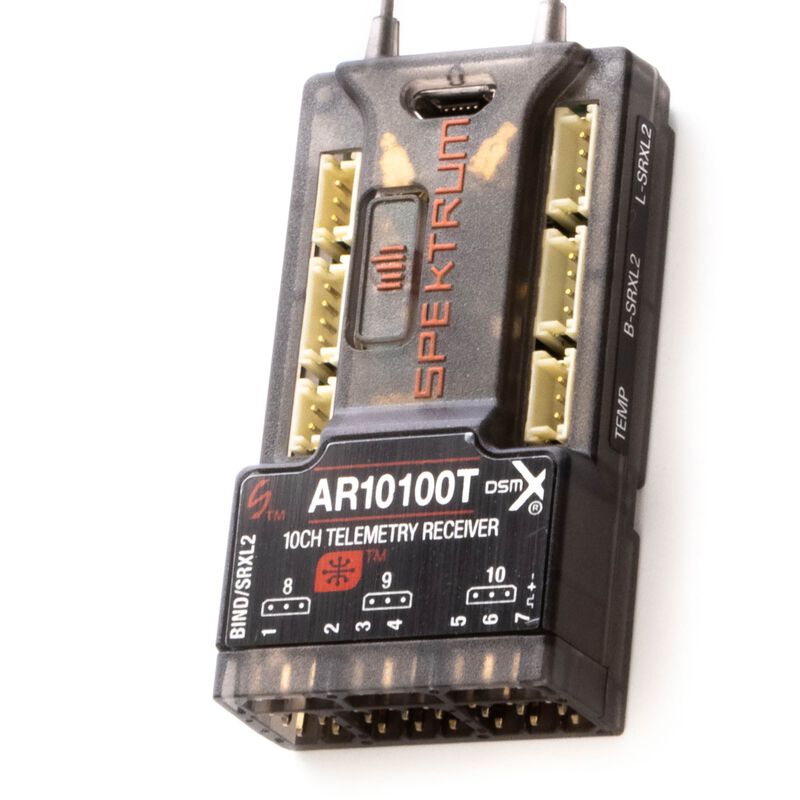

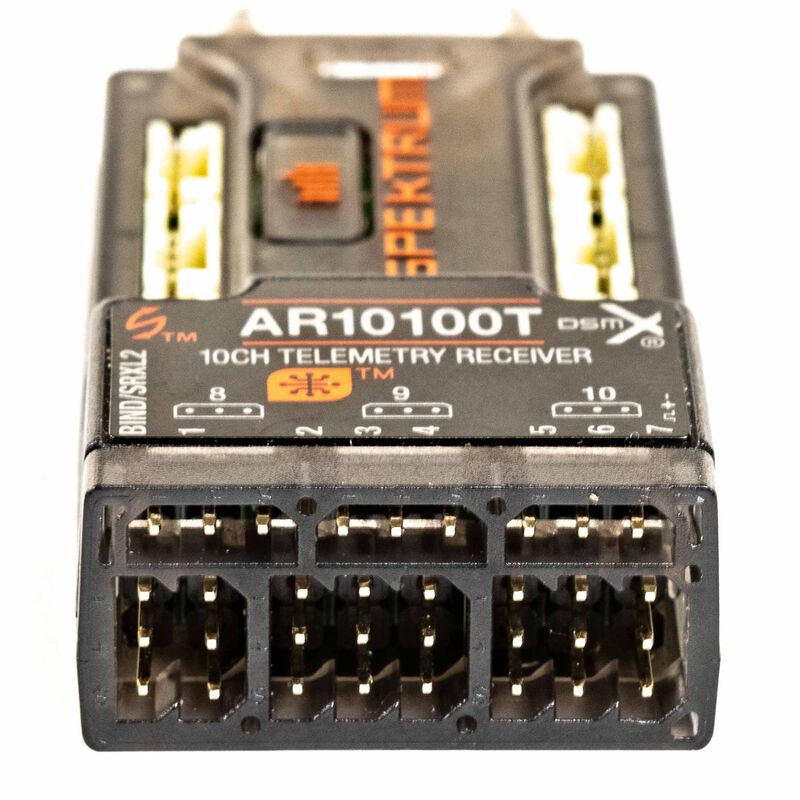

AR10100T 10-Channel Telemetry Receiver
$89.99
Skip to product information
AR10100T 10-Channel Telemetry Receiver
$89.99
10 Channels
Control Complex Aircraft Models
Integrated Barometer
Real Time Altitude Vario Data
Full Telemetry
Built In Range Data Support
DSMX Protocol
Secure Reliable Radio Connection
Micro USB Port
Simple Access Firmware Updates
Push Button Bind
No Bind Plug Required
Precision Aircraft ControlFull Range Telemetry and Robust Reliability
The Spektrum AR10100T DSMX 10-Channel Telemetry Receiver delivers high-performance radio control for RC aircraft ranging from parkflyers to giant scale models. Featuring integrated telemetry with an onboard barometer, this advanced DSMX receiver provides instant altitude and variometer tracking without needing extra sensors. Its compact footprint and Smart ESC compatibility make it an ideal choice for pilot clarity and streamlined electronics setup.
Advanced Telemetry IntegrationNext Generation Electronics for Peak Performance
Engineered for maximum reliability and signal security, the Spektrum AR10100T DSMX 10-Channel Telemetry Receiver utilizes proven 2.4GHz DSM2 and DSMX protocols paired with dual external antennas for optimal multi-angle RF coverage. Pilots will appreciate the convenience of the integrated bind button and built-in Micro USB port for easy registration and firmware updates through the Spektrum PC Programmer application. Designed to support modern Smart ecosystem components, this 10-channel receiver offers dedicated VOLT, RPM, TEMP, and XBUS telemetry expansion ports alongside SRXL2 ports for adding optional remote receivers, ensuring complete peace of mind during demanding flight routines.
Technical SpecificationsDetailed Engineering and Dimension Specs
Channels
10
Modulation
DSMX / DSM2
Band
2.4GHz
Range
Full
Input Voltage
3.5V–9V
Dimensions
55 x 30 x 15mm / 2.16 x 1.18 x 0.59 in
Product Weight
18g
Antenna Length
7.32 in / 186 mm
Bind Method
Bind Button
Telemetry
Yes
Data Port
Yes (connector)
Programmable
Yes
Failsafe
Yes
Water-Resistant
No
System FeaturesBuilt for Effortless Setup and Flight Redundancy
Barometric SensorBuilt-in altitude and vario telemetry tracking
Smart ReadyCompatible with Spektrum Smart ESC for single-wire telemetry
Path RedundancyTwo SRXL2 ports for optional SRXL2 remote receivers
Plug-Free BindingIntegrated bind button eliminates traditional bind plugs
Micro USB AccessEasy PC programming access for firmware updates

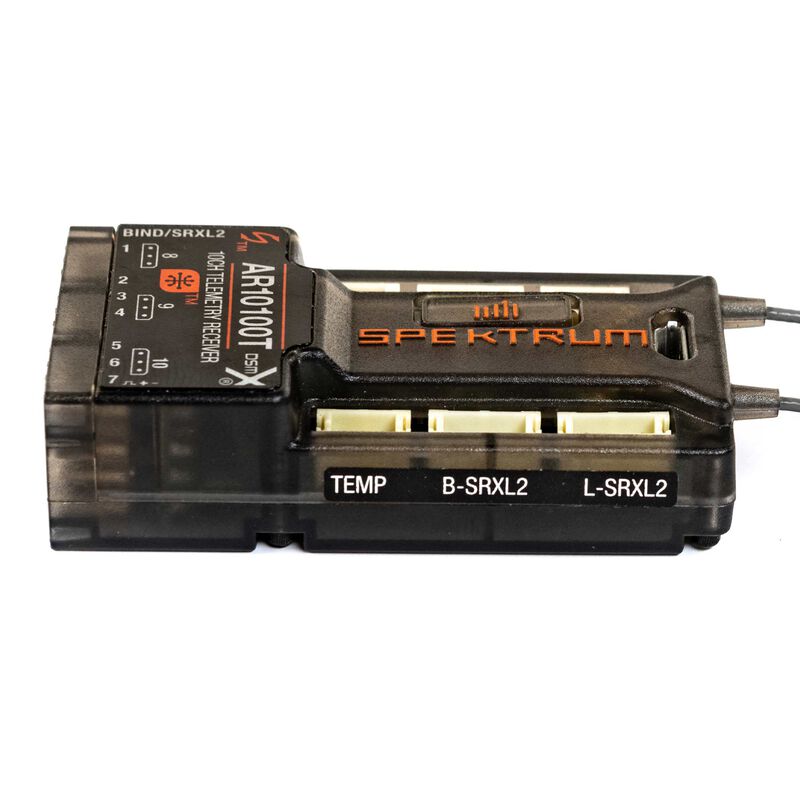

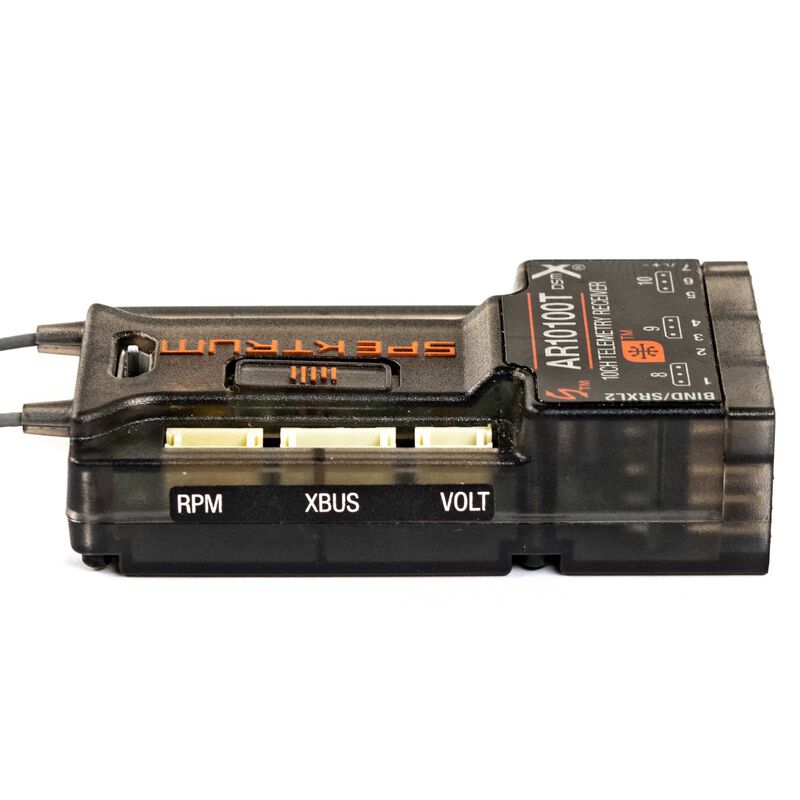

Expandable TelemetryDedicated VOLT, RPM, TEMP, and XBUS ports

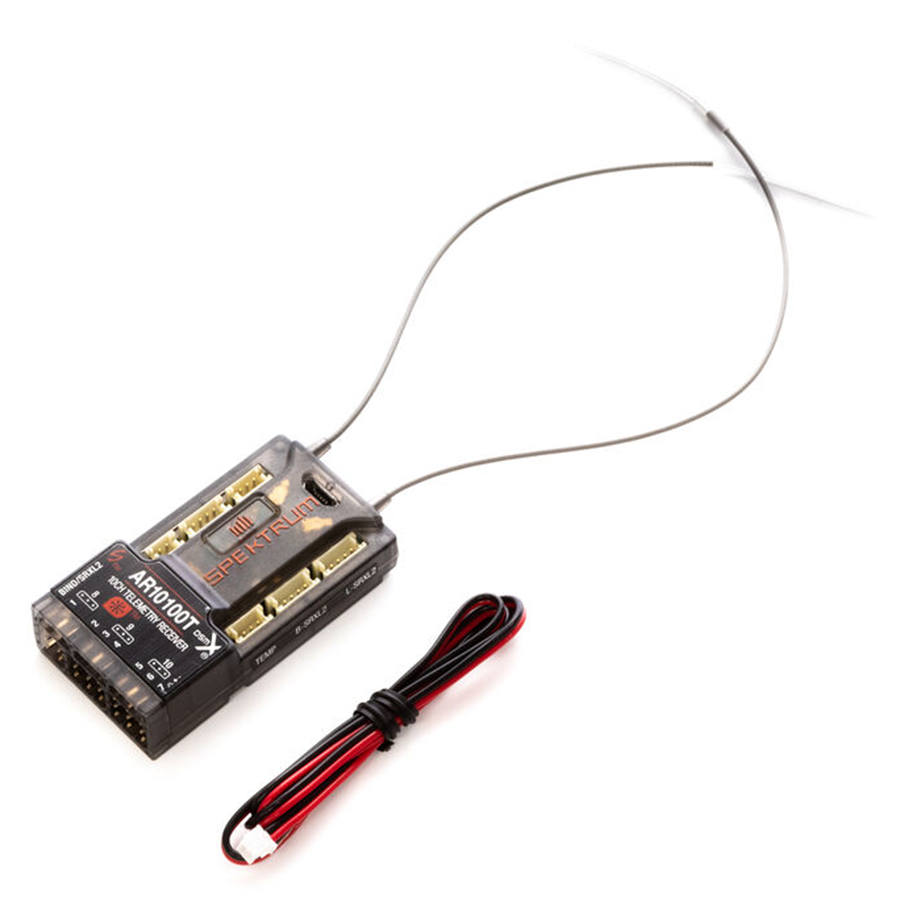

Dual AntennasEnsures total RF coverage from all flight angles
Forward ProgrammingSimple adjustment of failsafe parameters per channel
Frequently Asked QuestionsEverything you need to know
Is a bind plug required for the Spektrum AR10100T DSMX 10-Channel Telemetry Receiver?
No, the Spektrum AR10100T features an integrated push-button bind mechanism, eliminating the need for a traditional bind plug.
What built-in telemetry features come with the Spektrum AR10100T DSMX 10-Channel Telemetry Receiver?
The Spektrum AR10100T includes an integrated barometer that automatically provides real-time altitude and variometer telemetry data to your transmitter.
Can I connect extra remote receivers to the Spektrum AR10100T DSMX 10-Channel Telemetry Receiver?
Yes, it provides two SRXL2 ports to connect optional SRXL2 remote receivers (such as SPM9747 or SPM4651T) for additional signal redundancy.
How do I update the Spektrum AR10100T DSMX 10-Channel Telemetry Receiver?
A built-in Micro USB port allows you to easily connect the receiver to a PC for firmware updates using the Spektrum PC Programmer Application.
