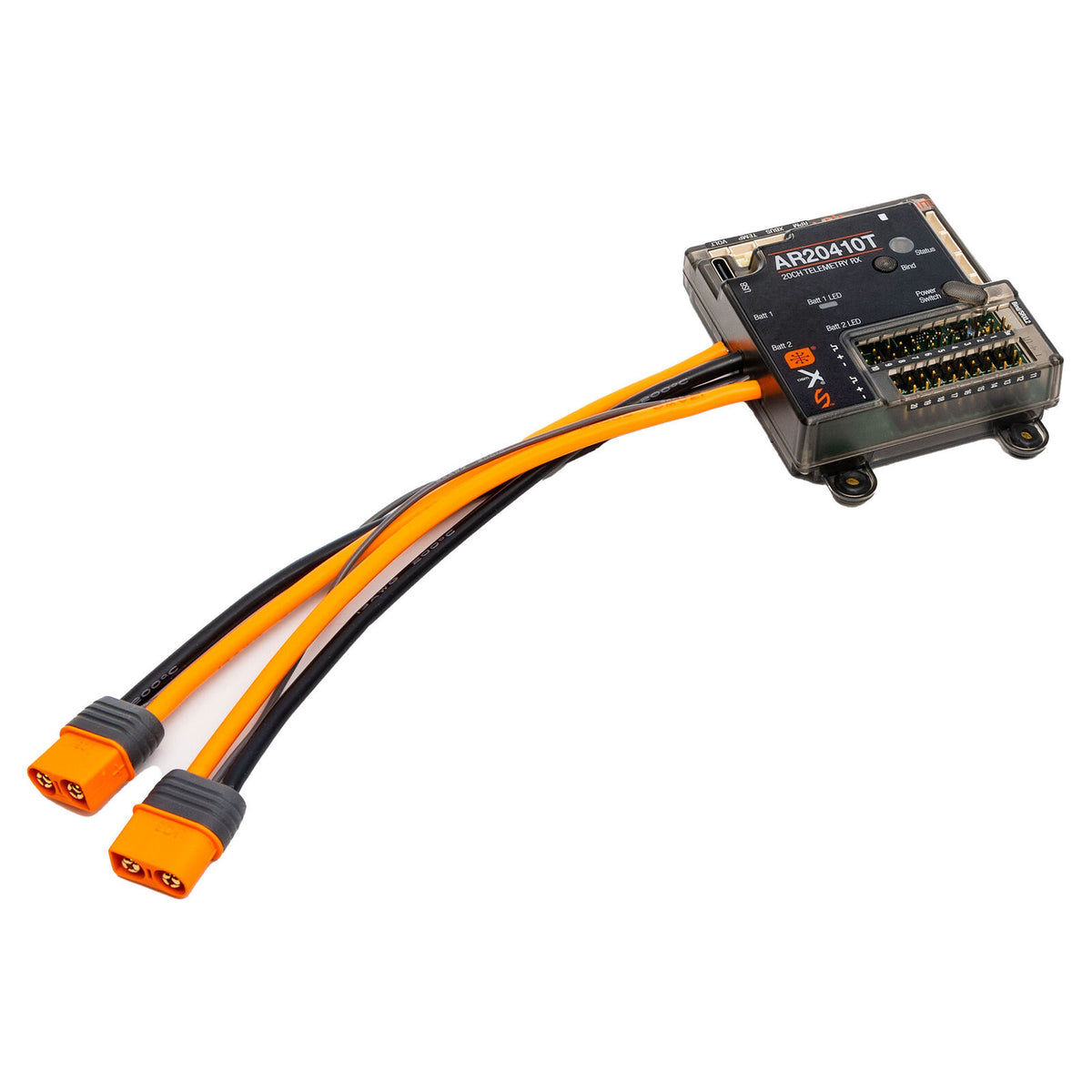

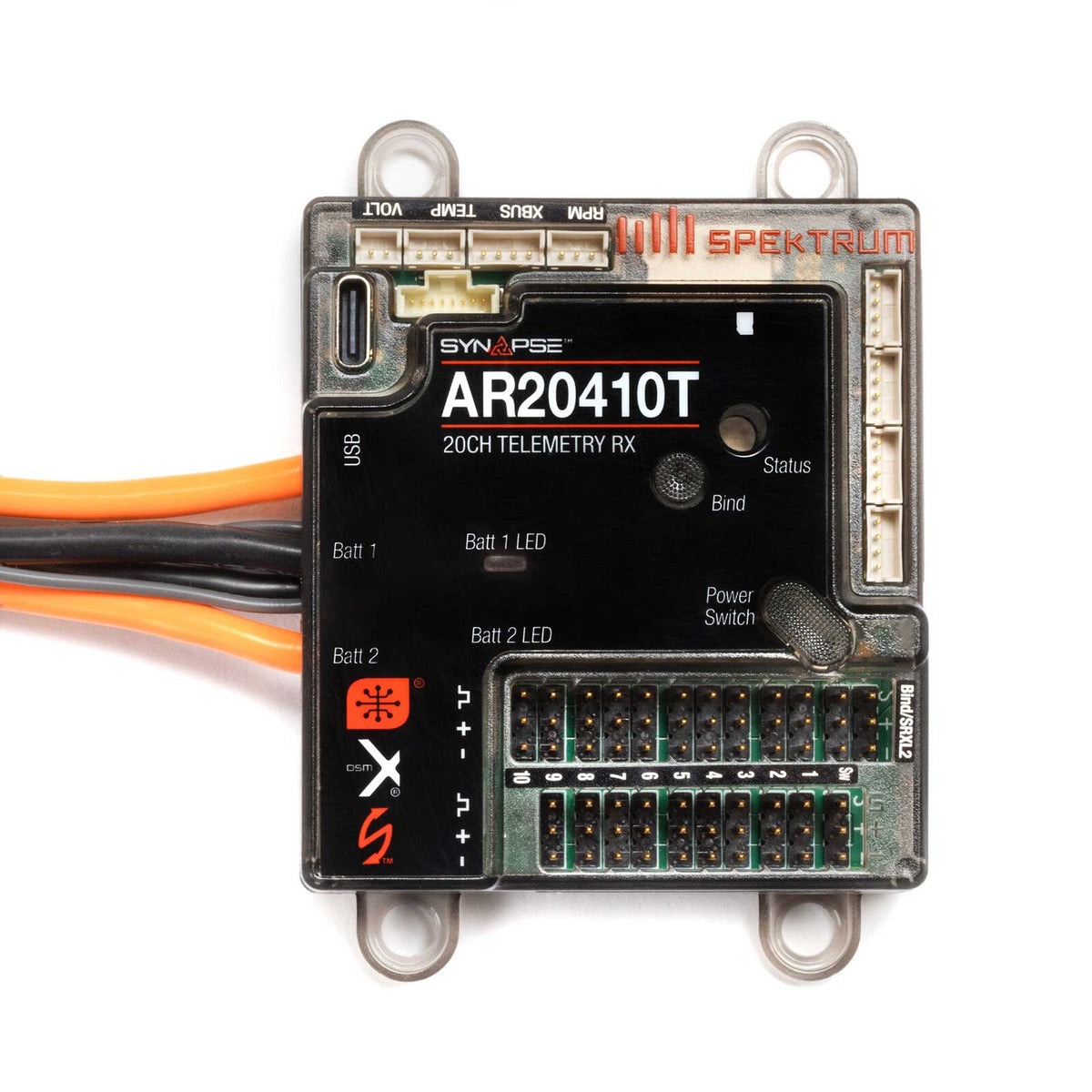

AR20410T 20 Channel PowerSafe Telemetry Receiver
$449.99
Skip to product information
AR20410T 20 Channel PowerSafe Telemetry Receiver
$449.99
20 Channels
Maximum Control Expansion
PowerSafe Redundancy
Dual IC3 Battery Inputs
Full Telemetry
Real Time Energy Monitoring
Fast Recovery
In Flight Quick Reboot
Synapse Ready
AS3X Plus Compatible
4 Remote Receivers
Spektrum MultiLink Included
Ultimate Power & ControlNext Generation Telemetry Receiver System
The Spektrum AR20410T 20-Channel PowerSafe Telemetry Receiver offers unprecedented control and power management for giant-scale airplanes and turbine jet models. Designed for high-current setups, this 2.4GHz DSMX receiver integrates dual IC3 battery inputs to safely manage heavy servo loads without requiring a separate power distribution unit.
Advanced Redundancy EngineeringUnmatched Reliability for Giant Scale Aircraft
Engineered with patented PowerSafe redundancy, the Spektrum AR20410T 20-Channel PowerSafe Telemetry Receiver ensures continuous operation under peak current demands up to 35A continuous and 50A burst. Equipped with four SRXL2 remote receivers utilizing Spektrum MultiLink technology, it eliminates signal fading and antenna blind spots across complex airframes. The system features integrated battery energy sensors, fast boot recovery for flight stabilization reboots, and full compatibility with the Synapse AS3X+ / SAFE module, making the Spektrum AR20410T the pinnacle of RC aircraft safety and precision.
Technical SpecificationsFactory Parameters and Product Dimensions
Application
Air
Band
2.4GHz
Channels
20
Modulation
DSMX/DSM2
Input Voltage
4V - 12.6V
Product Length
2.4 in (61 mm) (ruler)
Product Width
2.72 in (69 mm) (ruler)
Product Height
0.75 in (19 mm) (ruler)
Product Weight
TBD
Bind Method
Bind Button, Bind Plug
Data Port
Yes
Failsafe
Yes
Remote Receiver Ports
4
Resolution
2048
Serial Out
SRXL2
Technology
AS3X+ / PowerSafe
Telemetry
Integrated Full Range
PowerSafe Performance FeaturesHigh Current Redundancy and Safety Integration
PowerSafe RedundancyDual IC3 inputs supporting 35A continuous and 50A burst
MultiLink Antenna SystemIncludes 4 SRXL2 remote receivers to eliminate signal blind spots
Integrated Smart TelemetryEnergy, voltage, and capacity sensors with Black Box micro SD logging
Fast Boot RecoveryEnables millisecond-fast gyro reboots in flight during power interruptions
Synapse Stabilization ReadySeamless integration with Synapse AS3X+ and SAFE modules
High-Speed Frame RatesSupports 11ms frame rates and up to 5.5ms boosted stabilization
Forward ProgrammingDirect configuration of failsafe, frame rates, and gyro parameters from radio
Frequently Asked QuestionsEverything you need to know
What power inputs does the Spektrum AR20410T 20-Channel PowerSafe Telemetry Receiver use?
The Spektrum AR20410T features dual IC3 battery input ports designed to manage high-current loads up to 35A continuous and 50A max burst without needing a separate power distribution system.
Is the Spektrum AR20410T 20-Channel PowerSafe Telemetry Receiver compatible with stabilization systems?
Yes, the Spektrum AR20410T is designed for seamless compatibility with the optional Synapse AS3X+ and SAFE Flight Stabilization Module (SPMAS6000).
How many remote receivers come included with the Spektrum AR20410T 20-Channel PowerSafe Telemetry Receiver?
The Spektrum AR20410T includes four SRXL2 remote receivers (one SPM4651T telemetry remote and three SPM9747 DSMS remotes) to eliminate signal fading and antenna blind spots.
Can I monitor battery consumption using the Spektrum AR20410T 20-Channel PowerSafe Telemetry Receiver?
Yes, the receiver includes built-in battery energy sensors that measure mAh used, voltage, and system current in real time directly to your Spektrum transmitter without additional sensors.
