ARRMA 1/10 VORTEKS 223S DSC 2WD RTR Brushless Stadium Truck, Pink: ARA3505T3
$249.99
50+ MPH on 3S
35+ mph on a 2S LiPo
Brushless Power
Spektrum 3660 4000Kv motor
DSC Stability
Four selectable DSC modes
SLT2 Radio Included
50% and 75% throttle limits
Waterproof Electronics
ESC, receiver and servo
Easy Battery Access
Bottom-loading battery tray
In Stock
VORTEKS 223S 2WD Stadium Truck1/10 brushless RTR in Pink

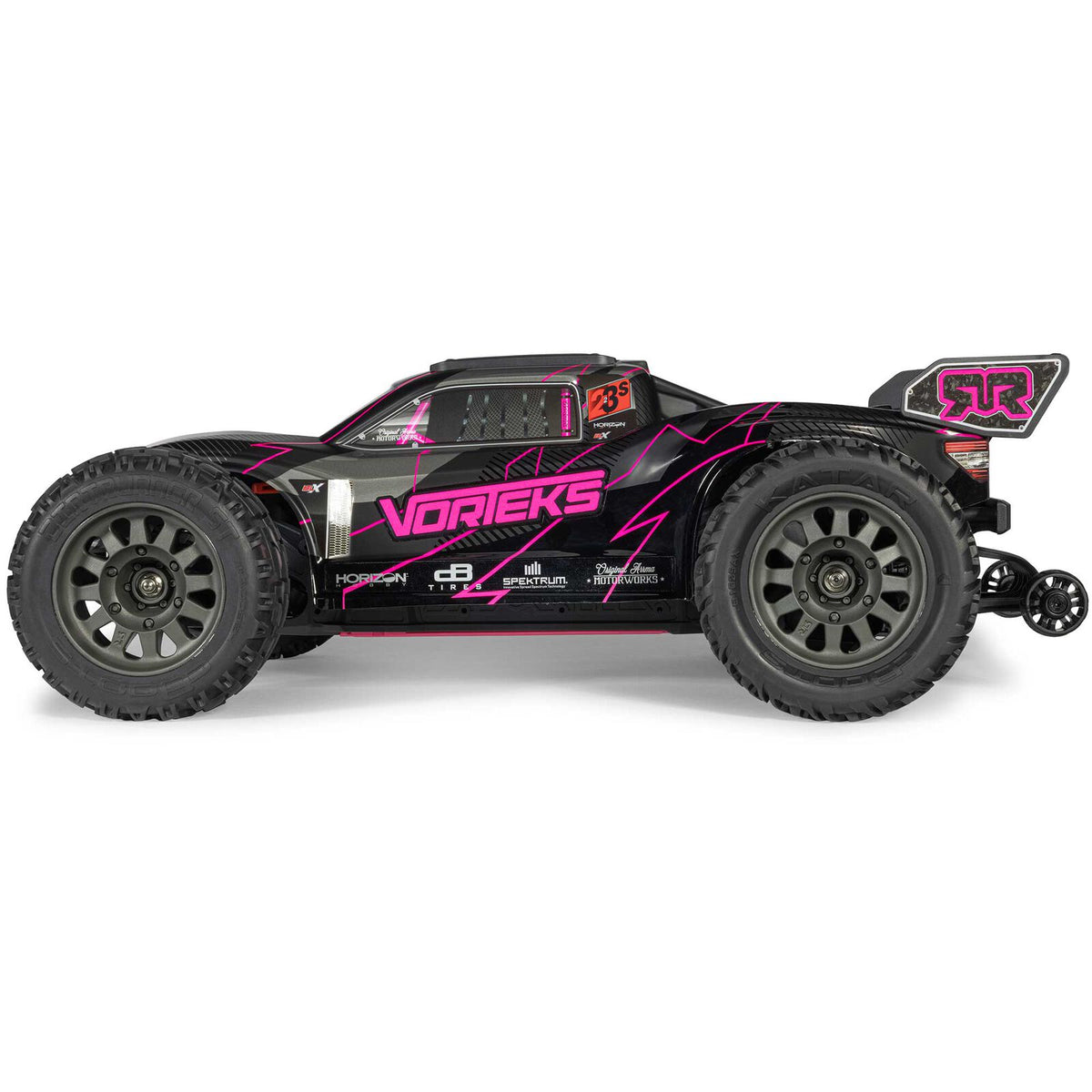

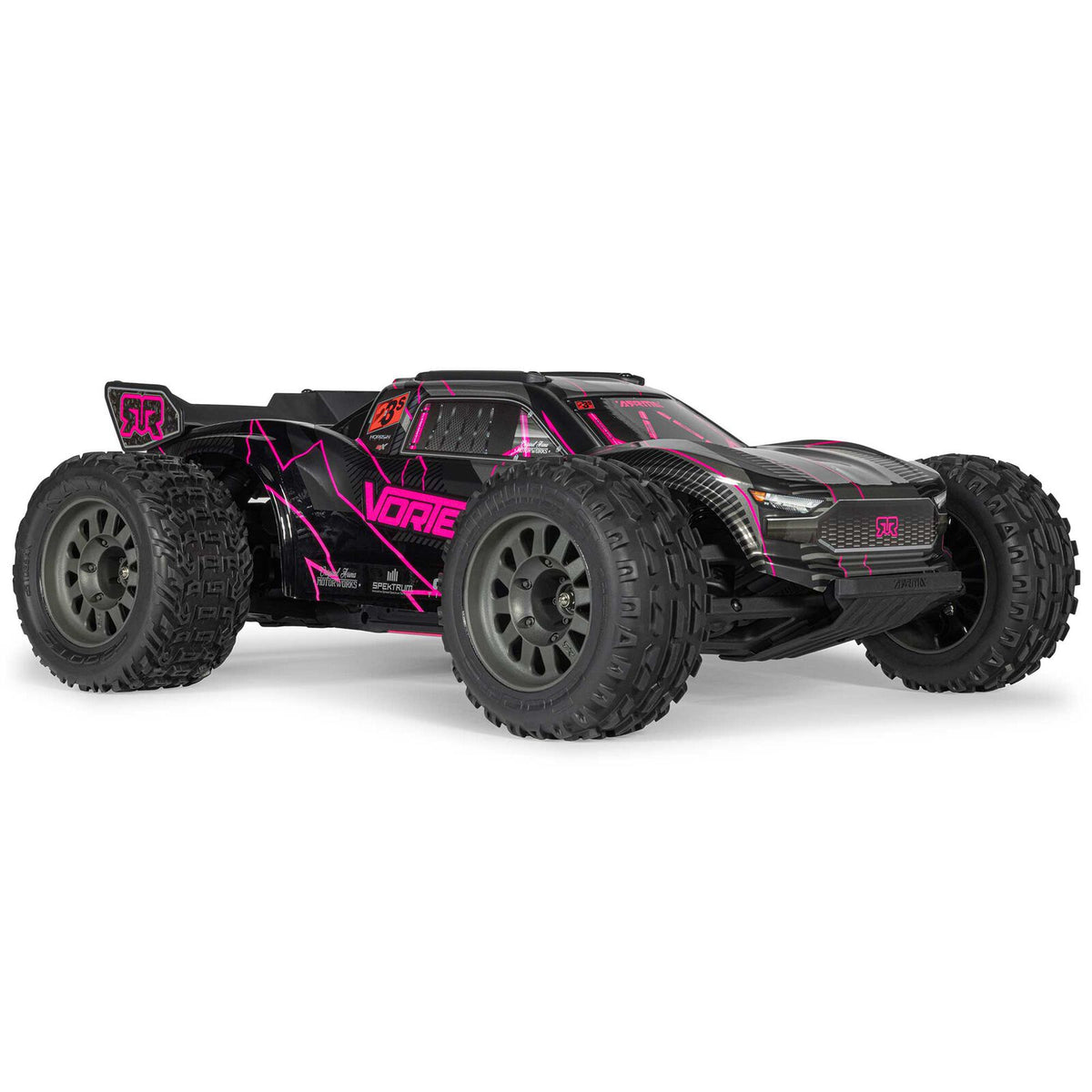

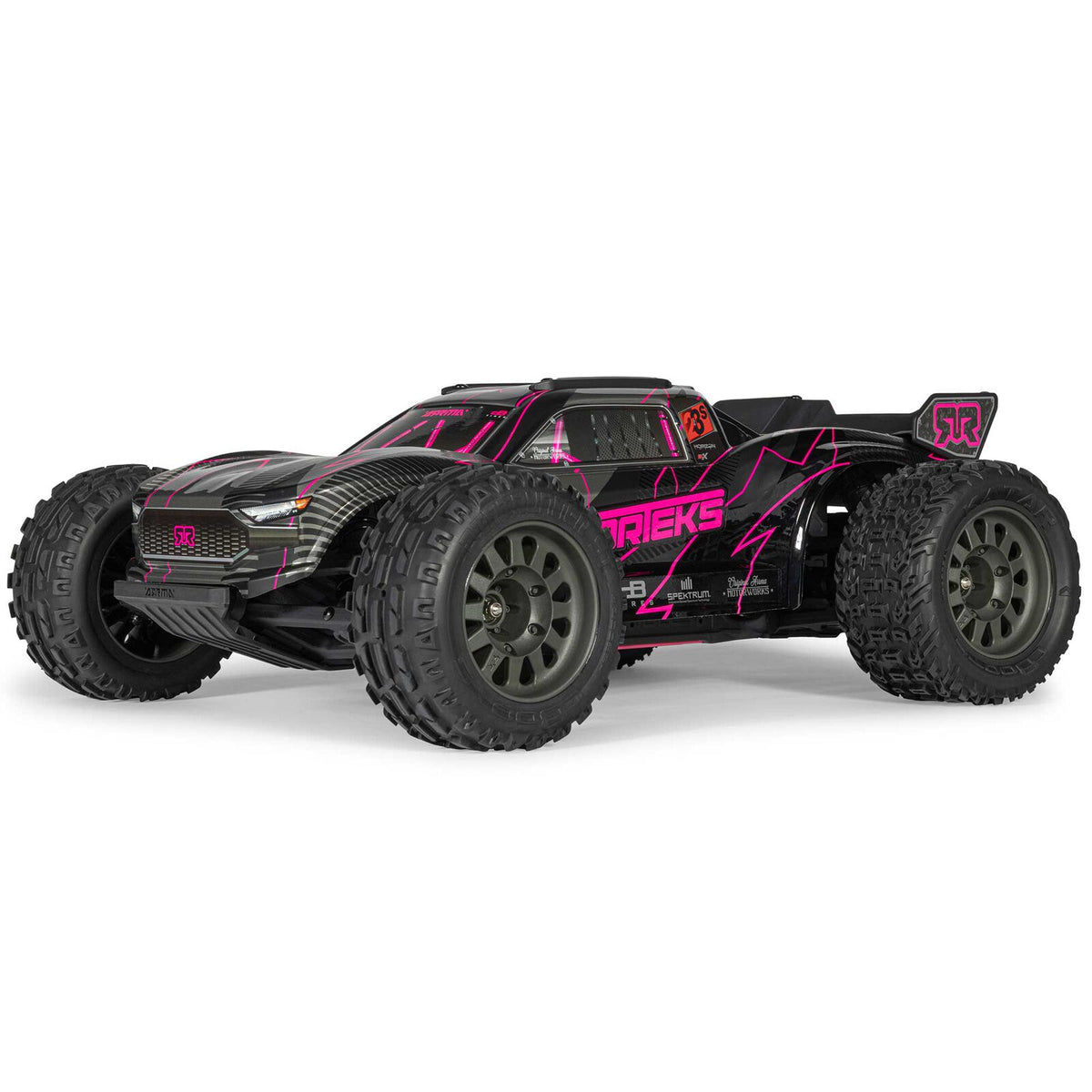

The ARRMA 1/10 VORTEKS 223S DSC 2WD RTR Brushless Stadium Truck, Pink (ARA3505T3) is a 1/10 scale, ready-to-run, 2WD brushless stadium truck. It runs 35+ mph on a 2S LiPo and 50+ mph on a 3S LiPo, with Spektrum DSC stability control and a throttle-limiting SLT2 radio to keep new drivers in control. A battery and charger are sold separately.
ARRMA 1/10 VORTEKS 223S DSC 2WD RTR Brushless Stadium Truck - Manual - Multilingual.
Watch Overview
ARRMA 1/10 VORTEKS 223S DSC 2WD RTR Brushless Stadium Truck - Manual - Multilingual.
ARRMA VORTEKS 223S DSC 2WDProduct Overview
ARRMA developed the 223S series for newcomers to brushless bashing who want to move from 2S to 3S power without upgrades or a new vehicle. The VORTEKS 223S BLX 2WD pairs a Spektrum 3660 4000Kv brushless motor with a Spektrum SLT 45A 2-in-1 waterproof ESC and receiver, and its SLT2 transmitter can hold top speed to 50% or 75% until you are ready for full power.
The durable composite spine chassis carries oil-filled coilover shocks, a metal gear differential and all-terrain dBoots Dirtrunner ST front and Katar rear tires. A bottom-loading battery tray and a hidden clipless body retention system make battery changes quick.
Technical SpecificationsDimensions, power system and electronics
Part Number
ARA3505T3
Color
Pink
Scale
1/10
Vehicle Type
Stadium Truck
Completion Level
Ready-To-Run
Drivetrain
2WD
Motor
Spektrum 3660 4000Kv brushless
Speed Control
Spektrum SLT 45A 2-in-1 waterproof ESC and receiver with DSC
Radio
Spektrum SLT2 2.4GHz 2-channel transmitter, included
Servo
Spektrum S681 metal-geared waterproof digital
LiPo Compatibility
2S, 3S
Connector Type
IC5
Top Speed
35+ mph on 2S, 50+ mph on 3S

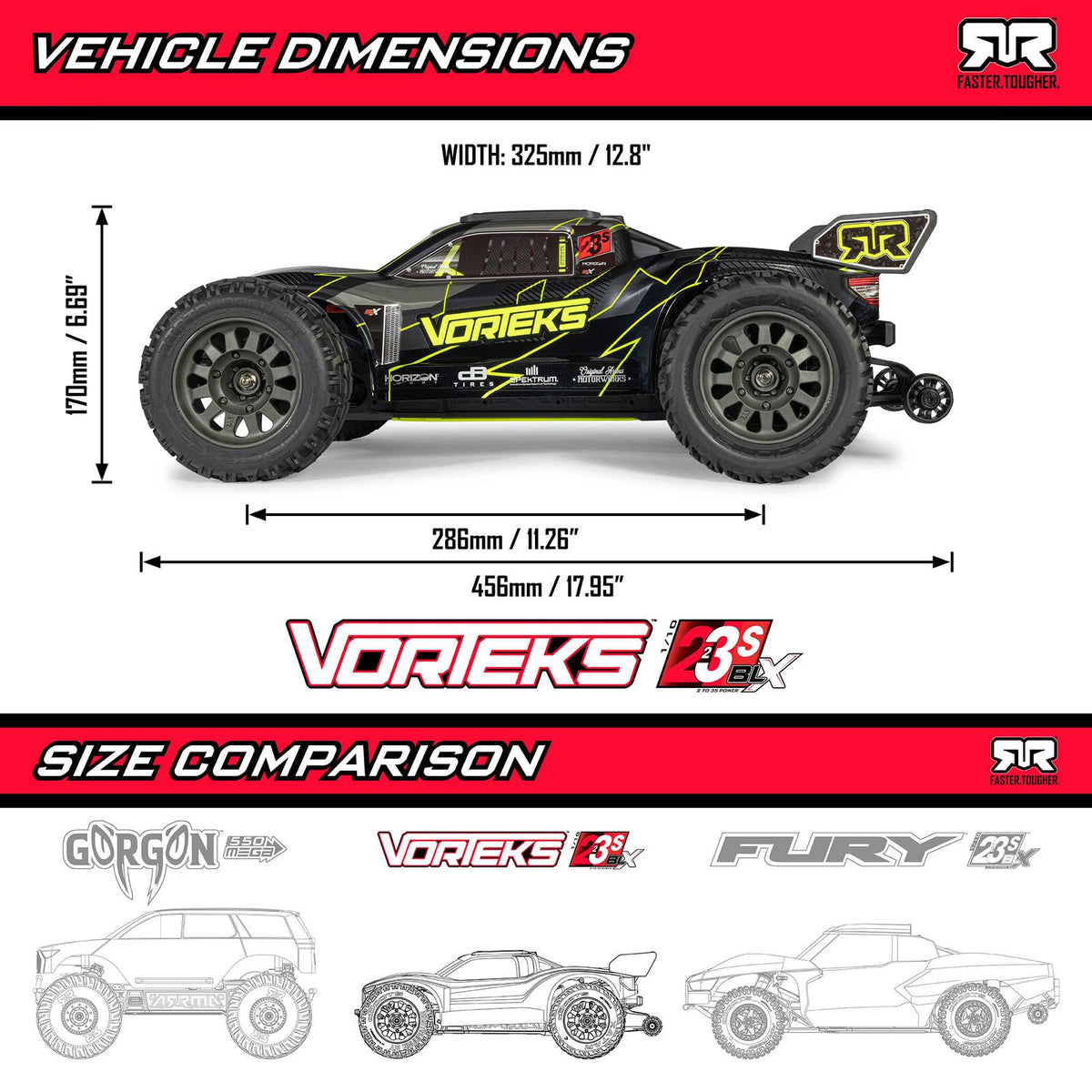

Length
17.95 in / 456 mm
Width
12.8 in / 325 mm
Height
6.69 in / 170 mm
Wheelbase
11.26 in / 286 mm
Weight
5.5 lb / 2.51 kg
Max Battery Dimensions
5.51 x 1.97 x 1.38 in / 140 x 50 x 35 mm
Suspension
All-terrain independent
Shock Type
Oil-filled, coilover
Tires
dBoots Dirtrunner ST front, Katar rear
Body
Painted, decaled, trimmed
Battery and Charger
Sold separately
Key FeaturesBuilt for 2S and 3S brushless bashing
2S and 3S ReadyRuns on a 2S LiPo for 35+ mph or a 3S LiPo for 50+ mph with no upgrades needed.
Dynamic Stability ControlSpektrum DSC offers four selectable modes that automatically correct steering on high-grip and low-grip surfaces, and it can be switched off.
Throttle LimitingThe included Spektrum SLT2 2.4GHz transmitter can limit top speed to 50% or 75% while you build skills.
Brushless Power SystemA Spektrum 3660 4000Kv brushless motor is paired with a Spektrum SLT 45A 2-in-1 ESC and receiver with IC5 connector.
Waterproof ElectronicsThe 2-in-1 ESC and receiver unit and the Spektrum S681 metal-geared digital servo are waterproof; see the manual for waterproof standards.
Heavy-Duty TransmissionA factory-assembled metal gear differential sends power to the rear wheels.

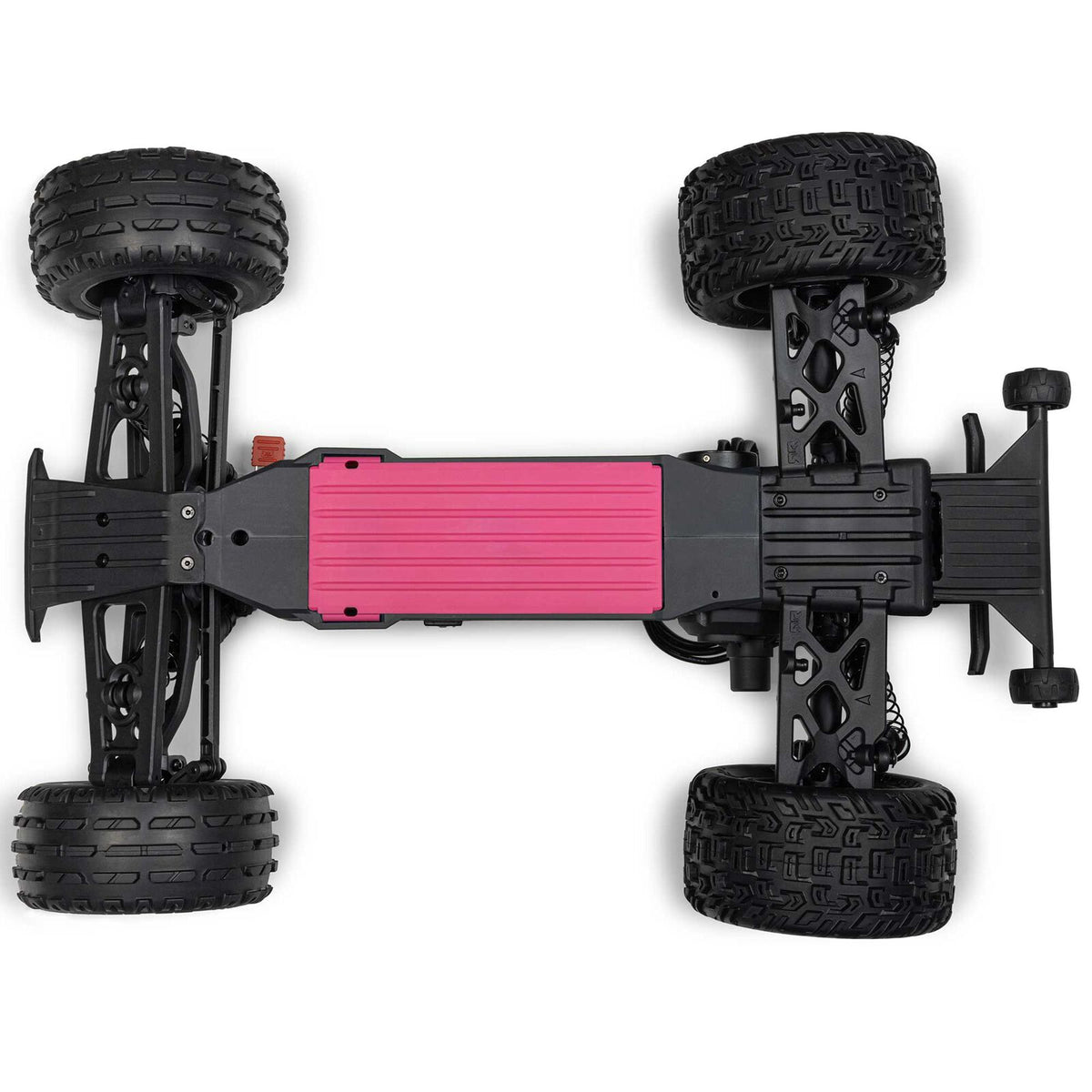

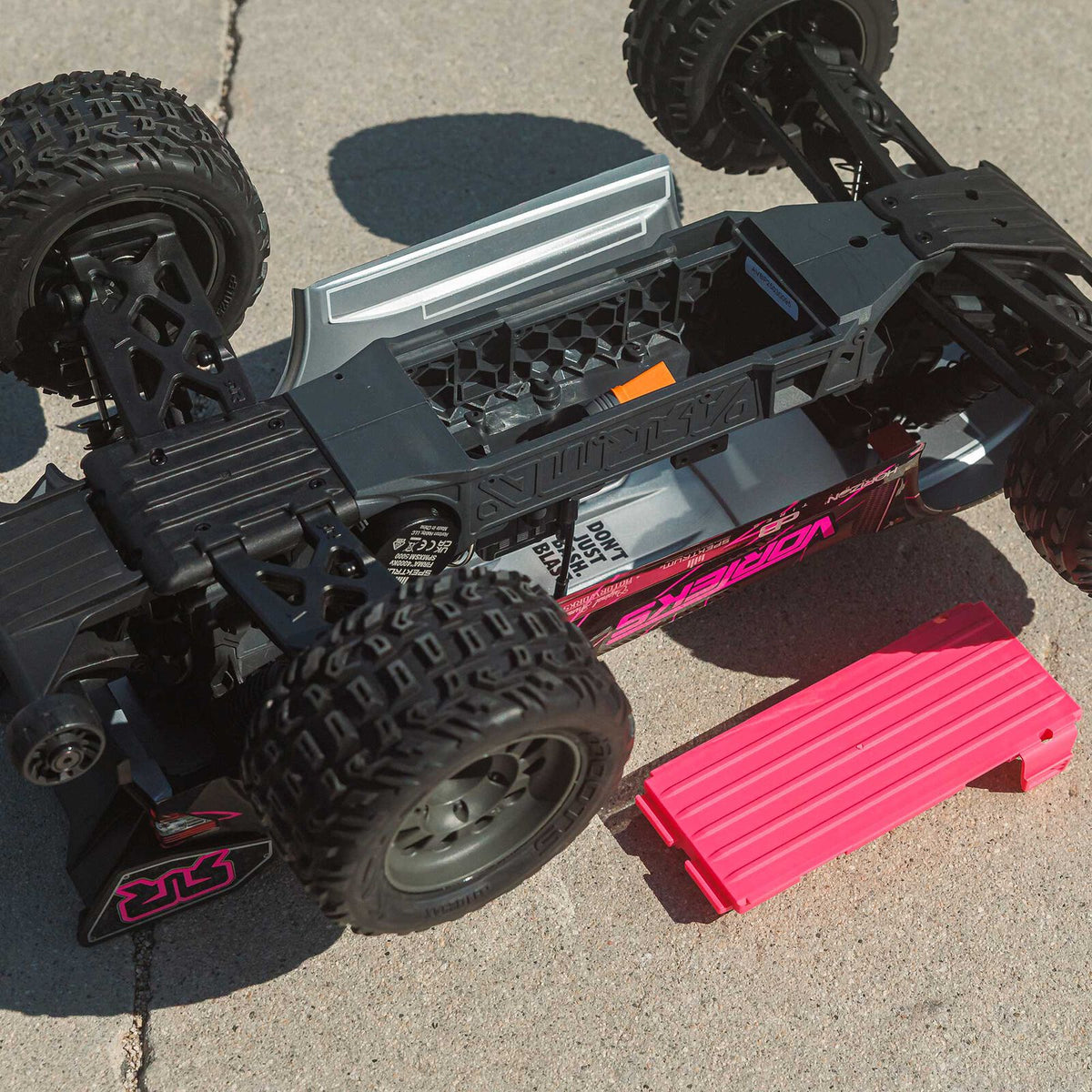

Bottom-Loading Battery TrayPush the latches and open the door to change packs without removing the body or handling clips.

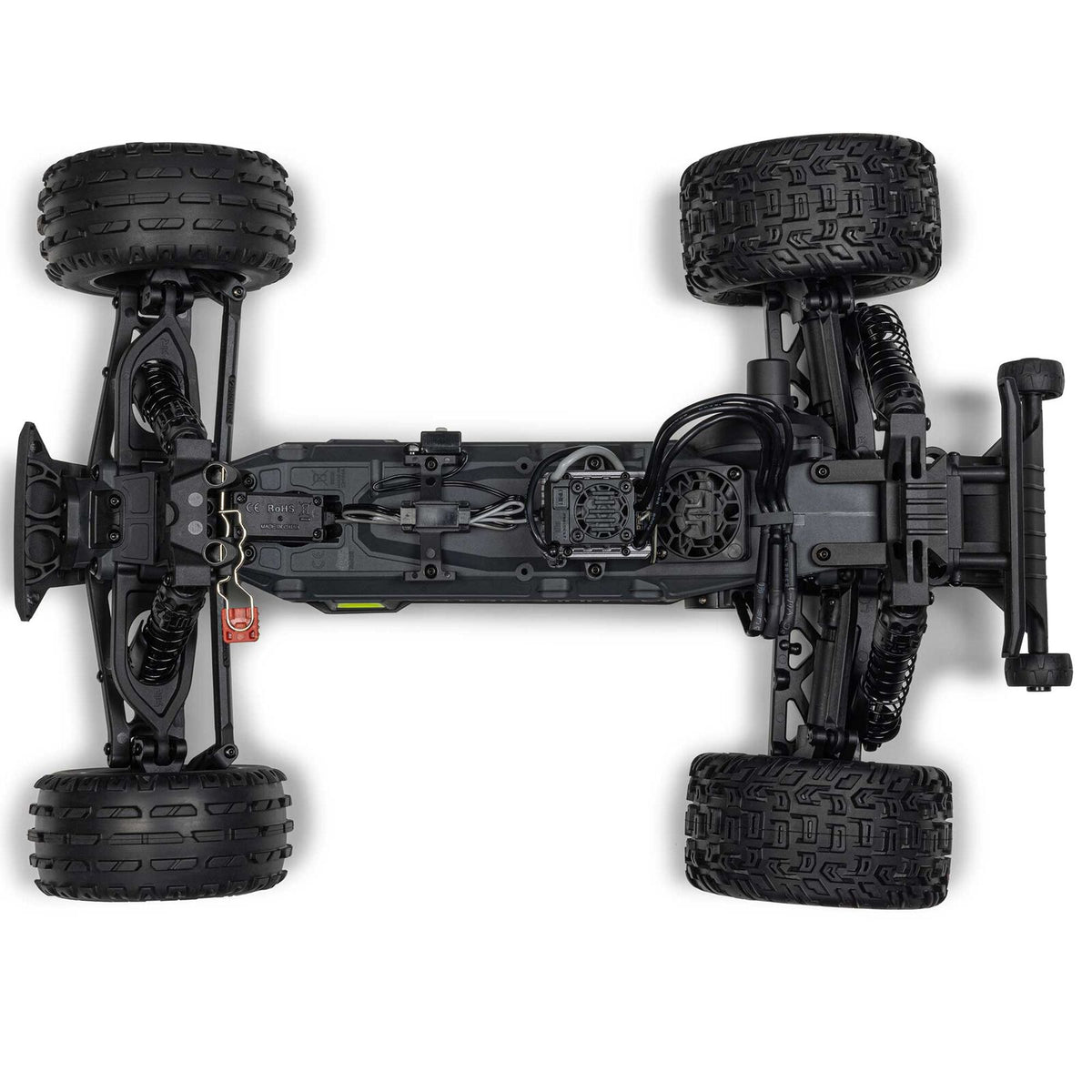

Strong Spine Composite ChassisThe simple spine design of the durable composite chassis does not collect dirt, rocks and mud.
Adjustable SuspensionAll-terrain independent suspension with oil-filled coilover shocks has adjustable ride height.
dBoots TiresAll-terrain dBoots Dirtrunner ST front and Katar rear tires are mounted on multi-spoke wheels.

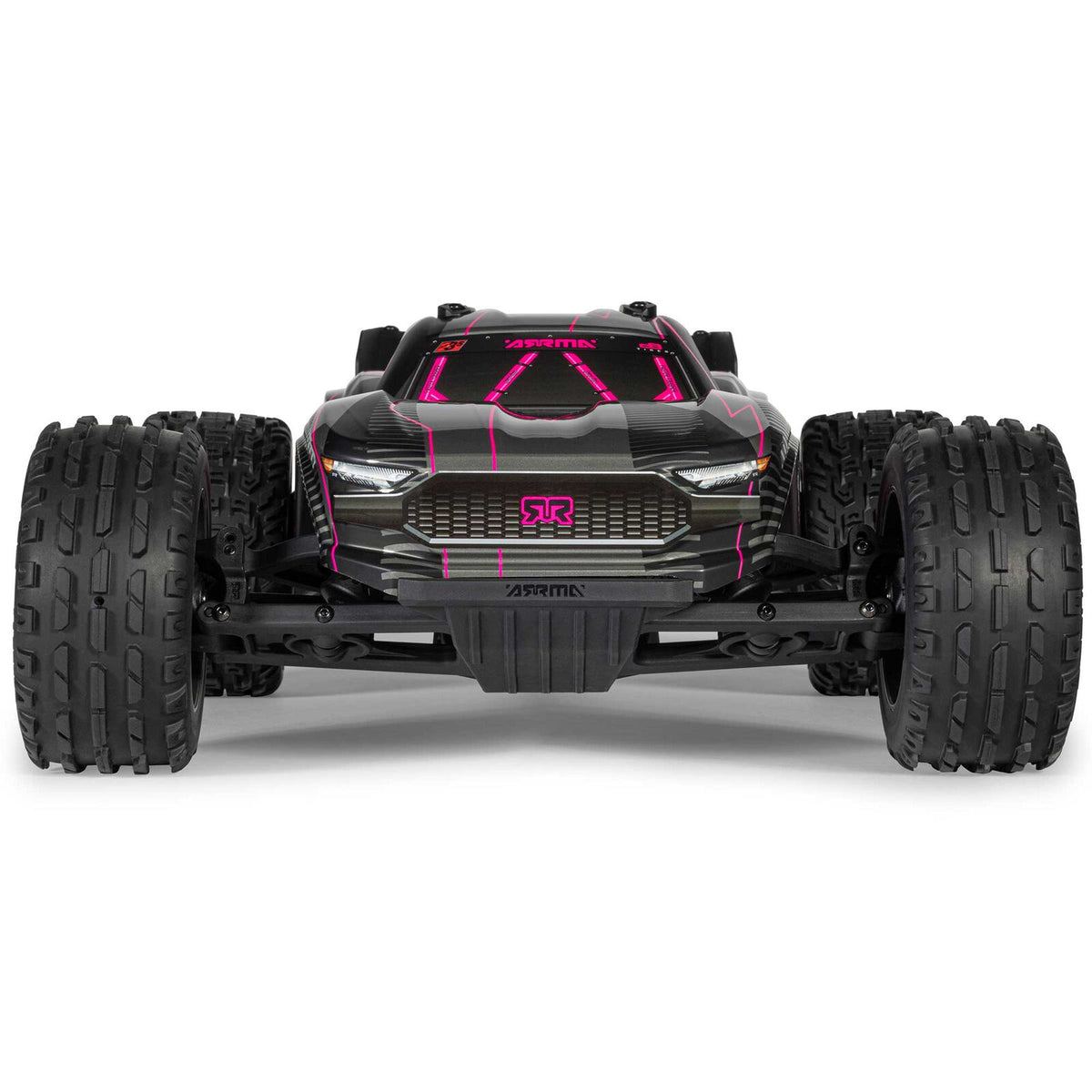

Clipless Stadium Truck BodyThe body is held by a hidden clipless retention system and carries a high downforce rear wing.

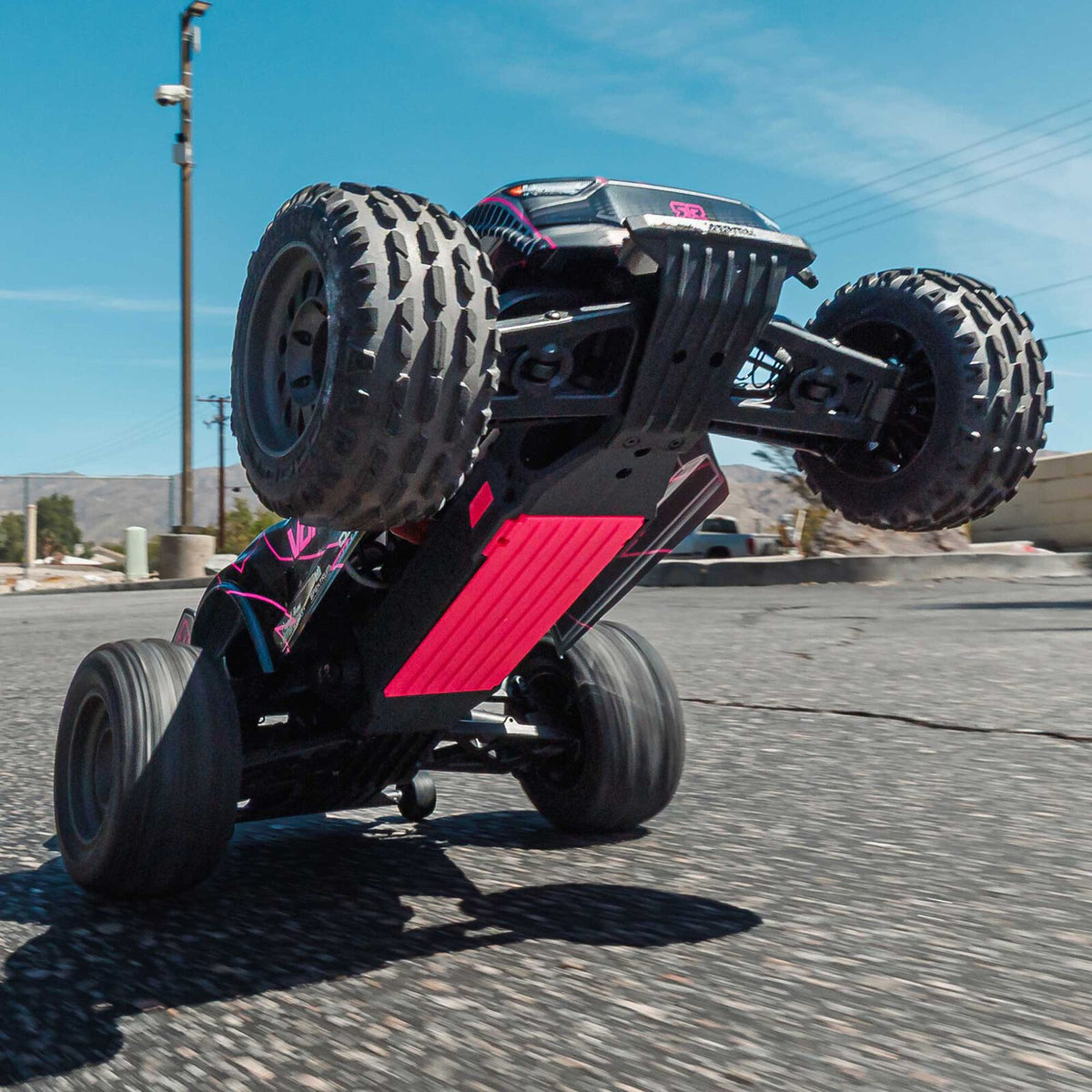

Wheelie Bar and BumpersA wheelie bar, composite nerf bars and impact-absorbing composite front and rear bumpers are fitted.

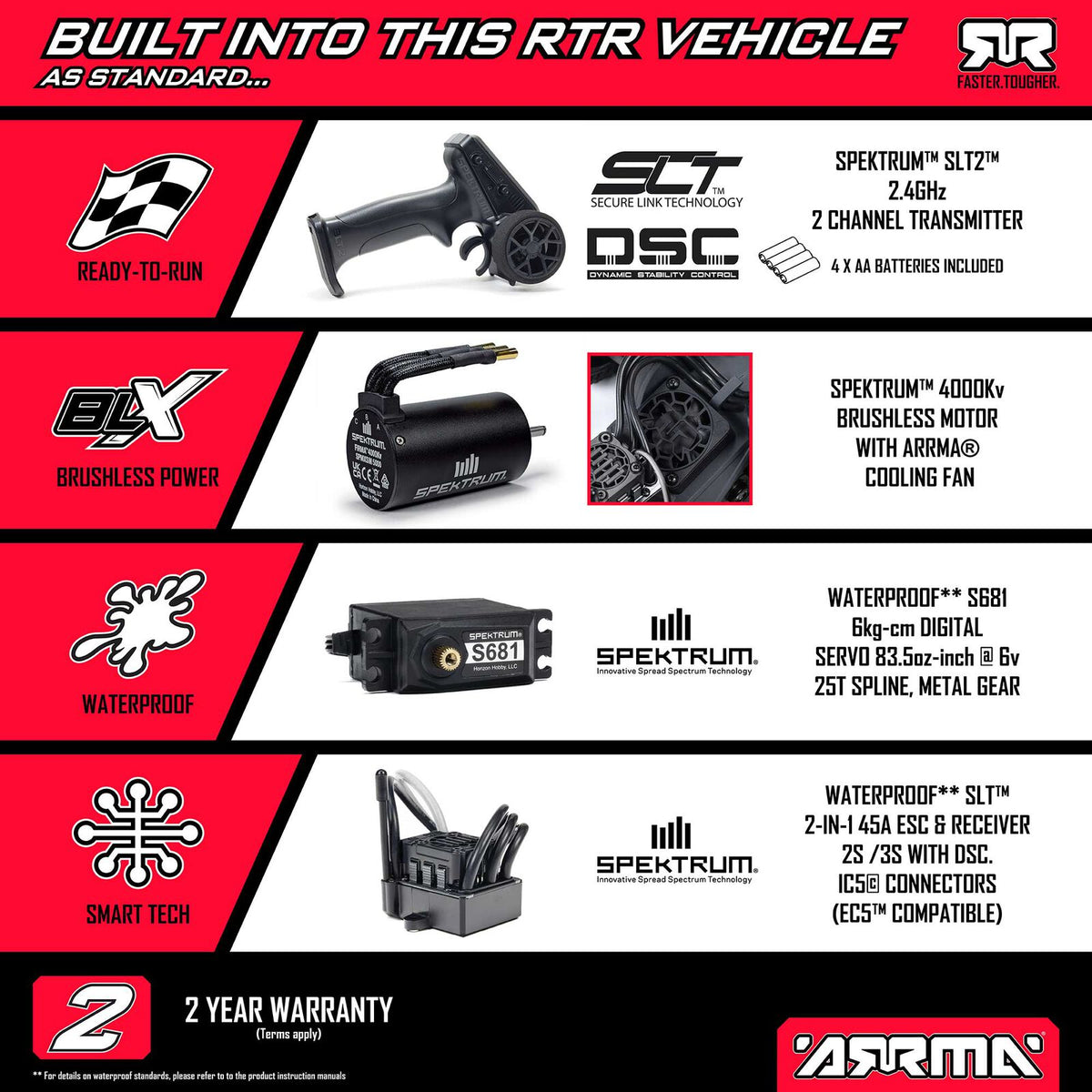

In The BoxEverything that comes in the box.
1X
VORTEKS 223S BLX 2WD Stadium Truck RTR
1X
Spektrum SLT 45A 2-in-1 Waterproof ESC and Receiver 2S/3S with DSC
1X
Spektrum 3660 4000Kv Brushless Motor
1X
Spektrum SLT2 2.4GHz Transmitter
1X
Spektrum S681 Metal-Geared Waterproof Digital Servo
4X
AA Transmitter Batteries
1X
2mm Hex Driver
1X
2.5mm Hex Driver
1X
Wheel Wrench/Shock Tool
1X
Instruction Manual
Needed to CompleteRecommended for Completion
Keep It RunningGenuine replacement parts for repairs, maintenance, and everyday wear.
Frequently Asked QuestionsEverything you need to know
What comes in the box with the ARRMA VORTEKS 223S DSC 2WD ARA3505T3?
The ARA3505T3 includes the ready-to-run truck with its Spektrum 3660 4000Kv brushless motor, SLT 45A 2-in-1 ESC and receiver, S681 servo and SLT2 transmitter. It also comes with four AA transmitter batteries, 2mm and 2.5mm hex drivers, a wheel wrench/shock tool and the manual.
What battery does the VORTEKS 223S 2WD need?

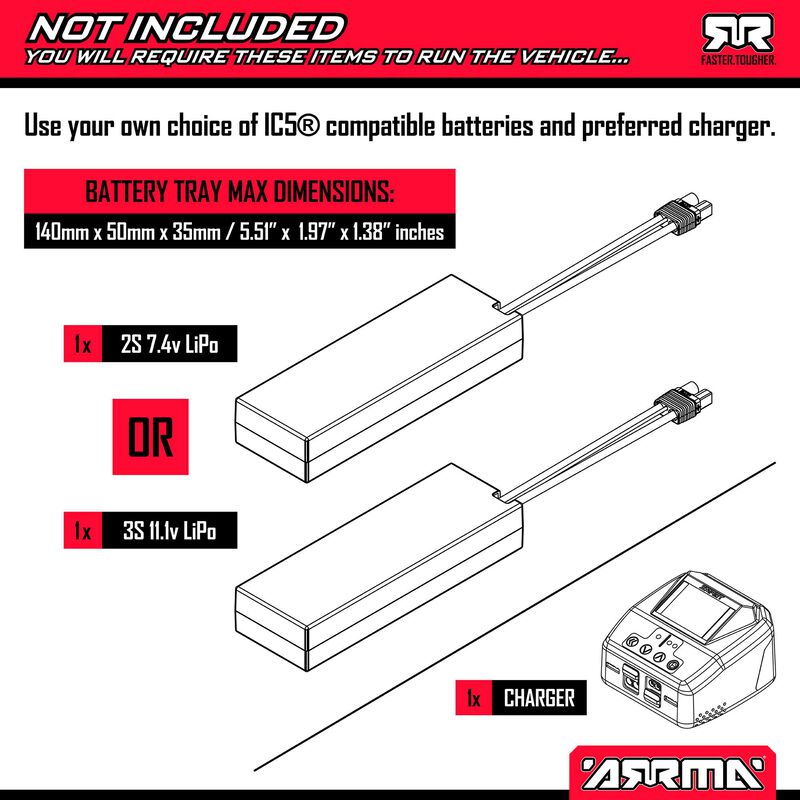

The ARRMA VORTEKS 223S DSC 2WD ARA3505T3 needs one 2S or 3S hardcase LiPo battery with an IC5 connector, plus a charger and a charging bag, all sold separately. The battery tray fits packs up to 140 x 50 x 35 mm.
How fast is the ARRMA VORTEKS 223S 2WD?
The ARRMA VORTEKS 223S DSC 2WD reaches 35+ mph on a 2S LiPo and 50+ mph on a 3S LiPo. The SLT2 transmitter can limit top speed to 50% or 75% while you learn.
Is the VORTEKS 223S 2WD good for beginners?
ARRMA developed the 223S series for newcomers to brushless bashing. The VORTEKS 223S DSC 2WD has throttle limiting at 50% or 75% and Dynamic Stability Control with four selectable modes that correct steering automatically.
How big is the VORTEKS 223S 2WD stadium truck?

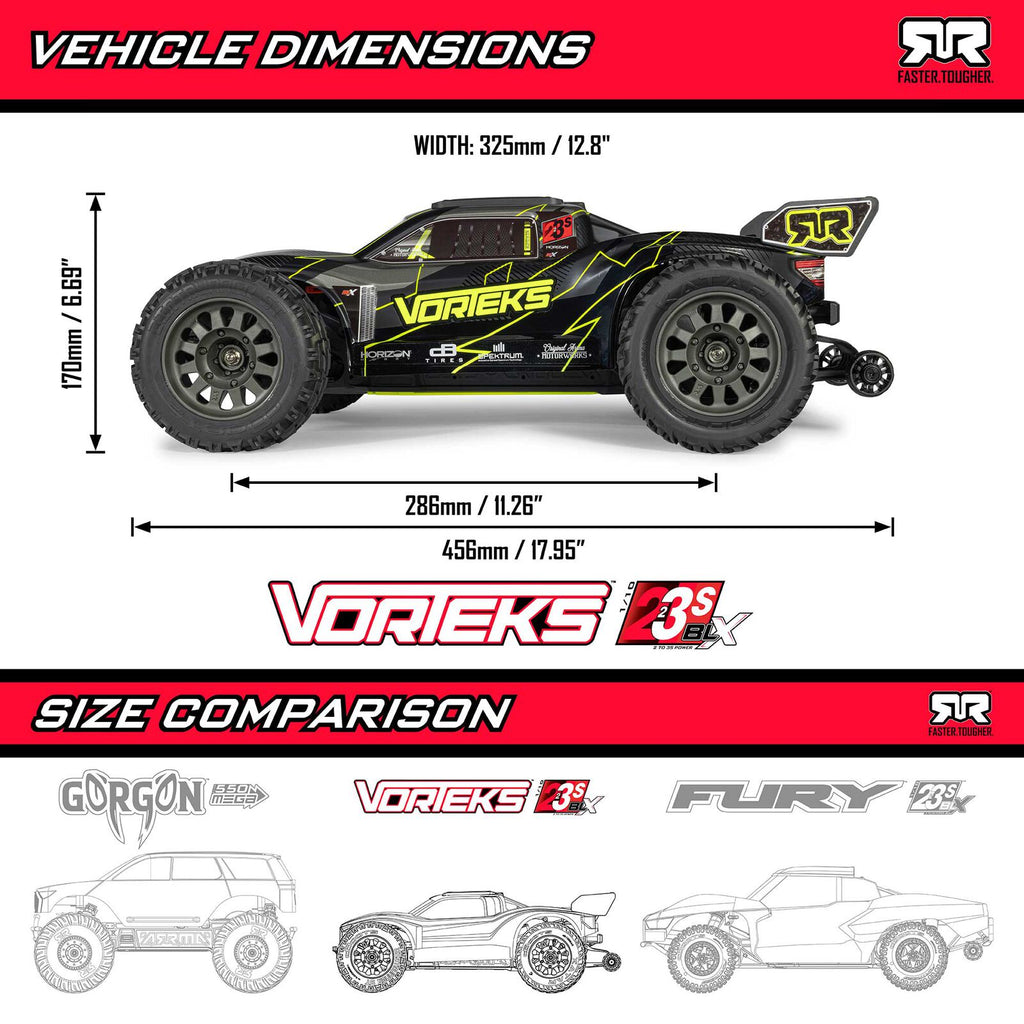

The 1/10 scale ARRMA VORTEKS 223S DSC 2WD ARA3505T3 is 17.95 in / 456 mm long, 12.8 in / 325 mm wide and 6.69 in / 170 mm tall, with an 11.26 in / 286 mm wheelbase. It weighs 5.5 lb / 2.51 kg.
