Avian 2813-1750Kv Outrunner Brushless Motor
$54.99
Skip to product information
Avian 2813-1750Kv Outrunner Brushless Motor
$54.99
Brushless Performance
Extreme torque and rapid acceleration
Efficient Cooling Design
Engineered airflow during every flight
Maintenance Free Operation
Double shielded precision sealed bearings
High-Performance Aircraft PropulsionPower your model with confidence
The Avian 2813-1750Kv Outrunner Brushless Motor delivers superior performance, high reliability, and exceptional torque for lightweight RC aircraft. Ideal for both brushed-to-brushless upgrades and combustion-to-electric conversions, this motor complements your Smart Technology equipped RC plane setups. Experience rapid acceleration, smooth flight control, and efficient thermal management on every flight.
Engineered For Peak Flight EfficiencyAdvanced outrunner motor technology

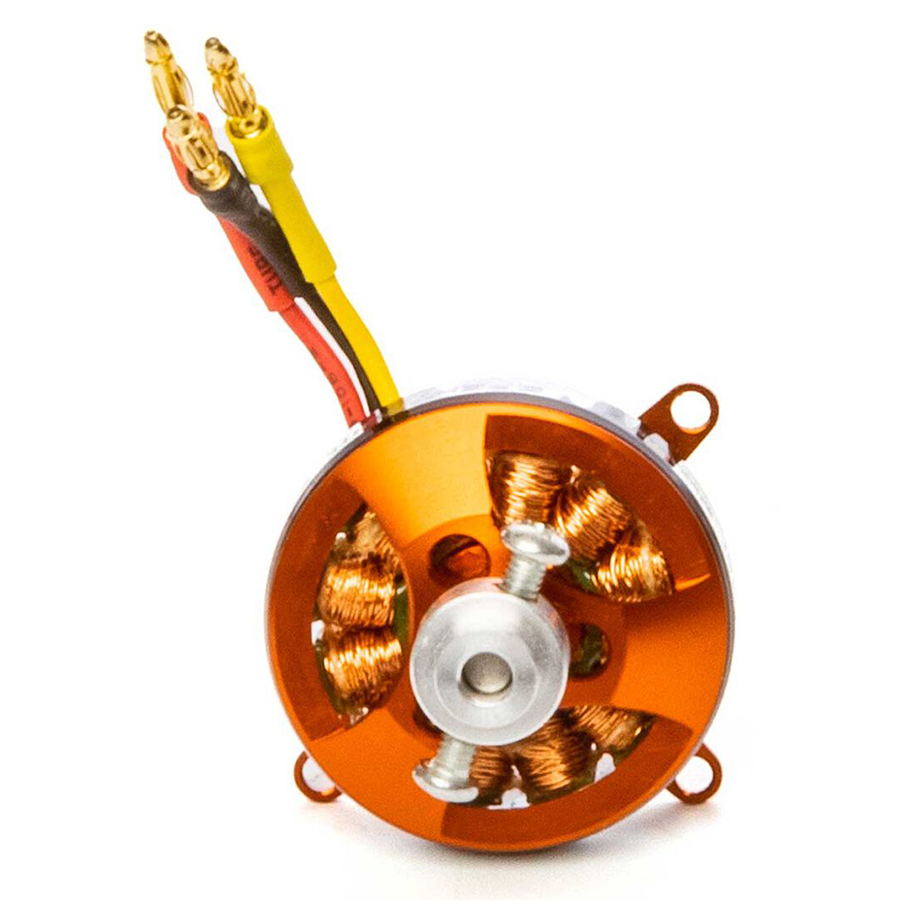

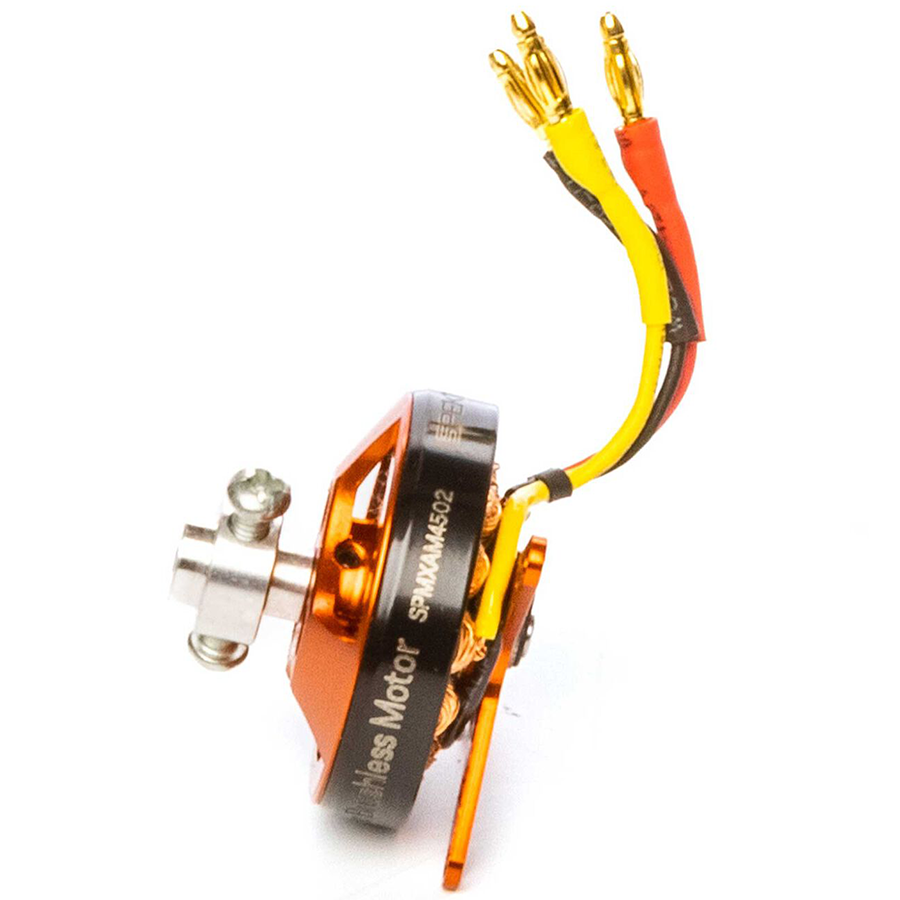

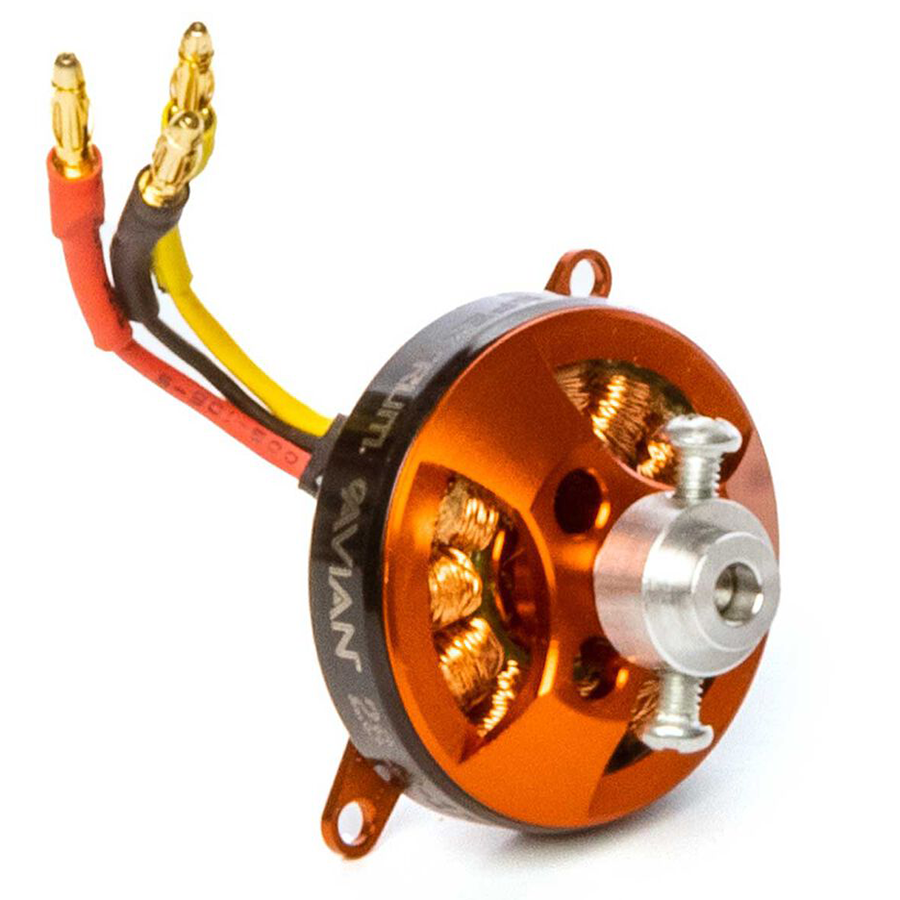

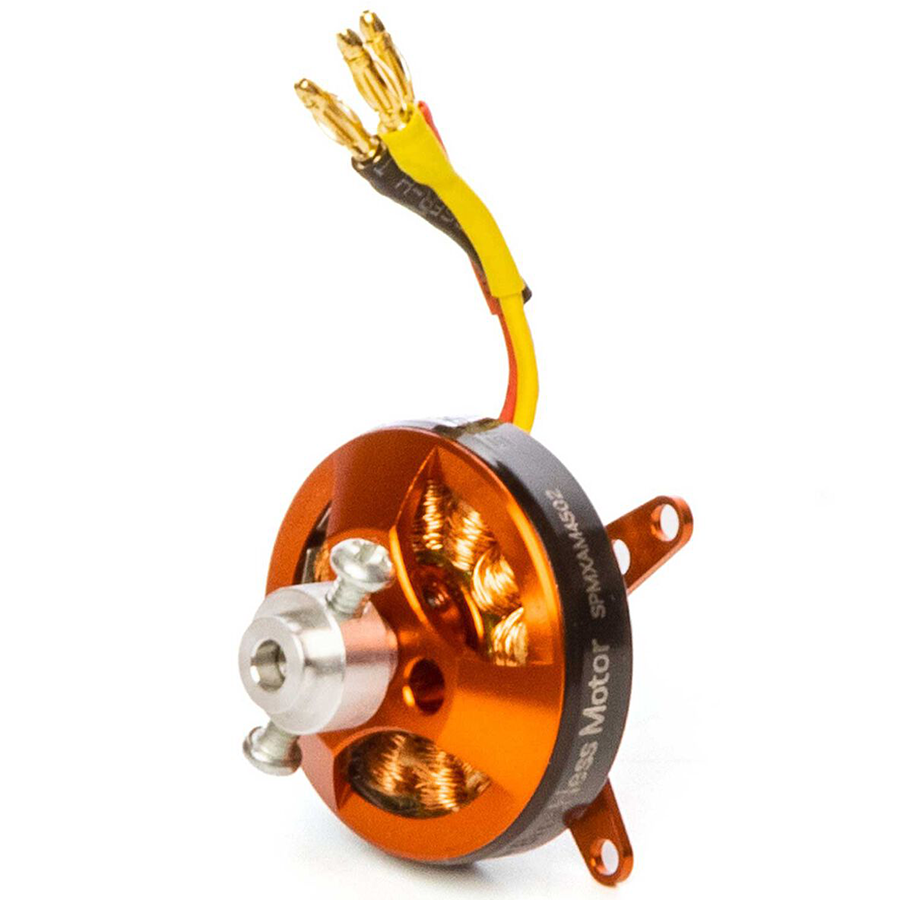

Expertly engineered for high performance, the Avian 2813-1750Kv Outrunner Brushless Motor features a powerful 14-pole stator and durable rare-earth neodymium magnets to ensure smooth and precise throttle response across all flight regimes. Equipped with double-shielded sealed bearings, a precision balanced motor bell, and pre-installed gold-plated bullet connectors, this lightweight motor offers virtually maintenance-free operation. Strategic cooling vents maximize airflow to lower running temperatures, ensuring long motor life and peak efficiency when paired with 2S-3S LiPo power systems and Spektrum Smart ESCs.
Technical SpecificationsDetailed specifications and motor dimensions
Part Type
Brushless Outrunner Motor
Compatible Vehicles
Light RC Aircraft & Airplanes
Motor Type
Brushless Outrunner
RPM/Volt (Kv)
1750Kv
Input Voltage
7.4V - 11.1V / 2-3S LiPo
Max Continuous Power
60W
Max Burst Power
100W
Max Continuous Amps
8A
Max Burst Amps
12A
Outer Diameter
1.1 in (28 mm) (maximize)
Product Length
0.51 in (13 mm) (ruler)
Product Weight
0.38 oz (10.7g) motor only (scale)
Shaft Diameter
0.12 in (3 mm) (disc)
Connector Type
2mm Bullet
Recommended Speed Control
6A - 15A ESC
Recommended Propeller
7x6 to 8x4 Slow-fly Prop
Recommended Model Weight
140g (3D) to 225g (Sport) (anchor)
Key Motor FeaturesDesigned for extreme performance and durability
Rare-Earth MagnetsNeodymium magnets provide maximum torque and efficiency
14-Pole StatorDelivers ultra-smooth and precise throttle response
Sealed BearingsDouble-shielded bearings prevent debris intrusion for longevity
Enhanced CoolingMotor bell airflow design keeps temperatures low during operation

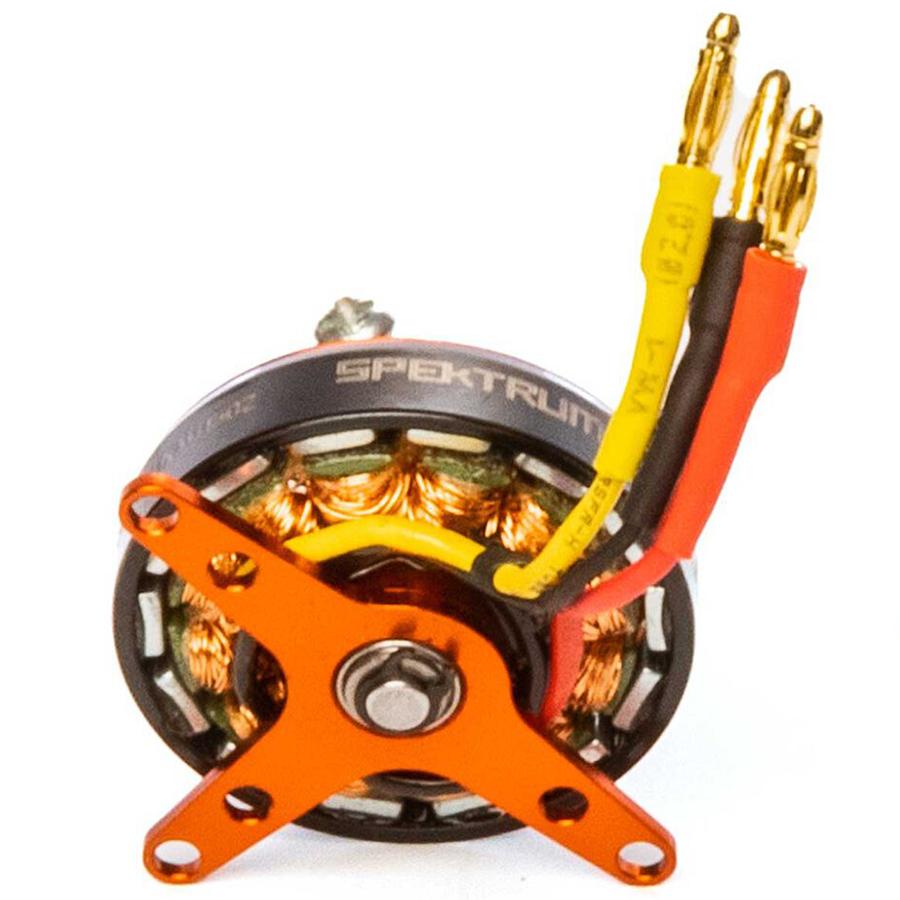

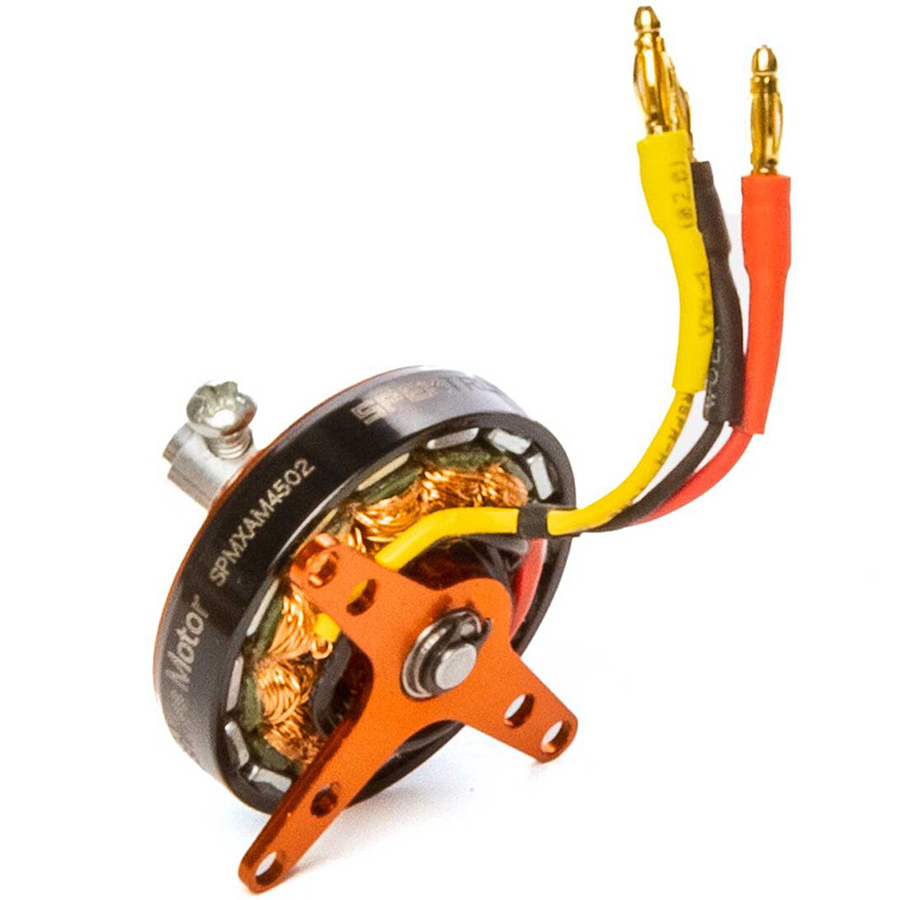

Complete Hardware SetComes with aluminum motor mount, prop adapter, and ESC connectors
Smart System CompatibilityIdeal matching motor for Spektrum Smart Avian ESCs
Frequently Asked QuestionsEverything you need to know
What type of RC airplanes is the Avian 2813-1750Kv Outrunner Brushless Motor best suited for?
The Avian 2813-1750Kv Outrunner Brushless Motor is engineered for lightweight RC airplanes, recommended for 3D flight models weighing around 140g (5 oz) and sport planes up to 225g (8 oz).
What battery configuration is required for the Avian 2813-1750Kv Outrunner Brushless Motor?
The Avian 2813-1750Kv Outrunner Brushless Motor operates efficiently on a 2S to 3S LiPo battery setup with a recommended voltage range of 7.4V to 11.1V.
What hardware is included with the Avian 2813-1750Kv Outrunner Brushless Motor?

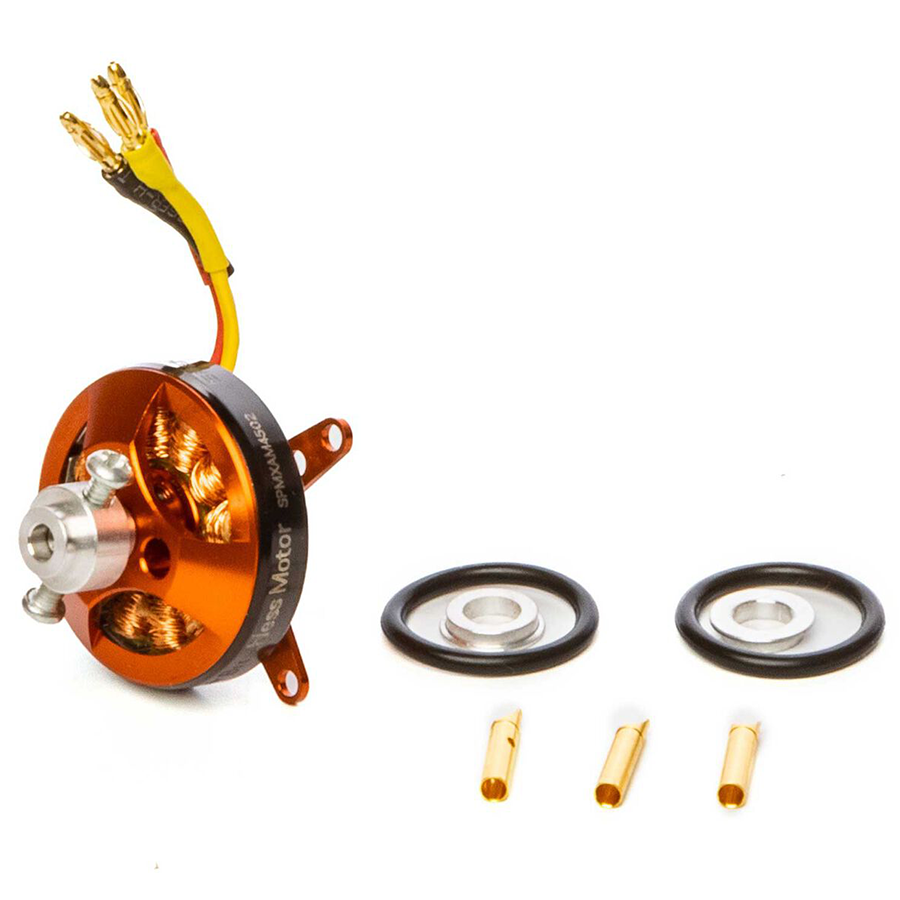

The Avian 2813-1750Kv Outrunner Brushless Motor includes preinstalled gold-plated 2mm bullet connectors, an aluminum motor mount, a propeller adapter, and female ESC bullet connectors.
What propeller size works best with the Avian 2813-1750Kv Outrunner Brushless Motor?
For optimal thrust and flight control, the recommended propeller range for the Avian 2813-1750Kv Outrunner Brushless Motor is a 7x6 to 8x4 Slow-fly propeller.
