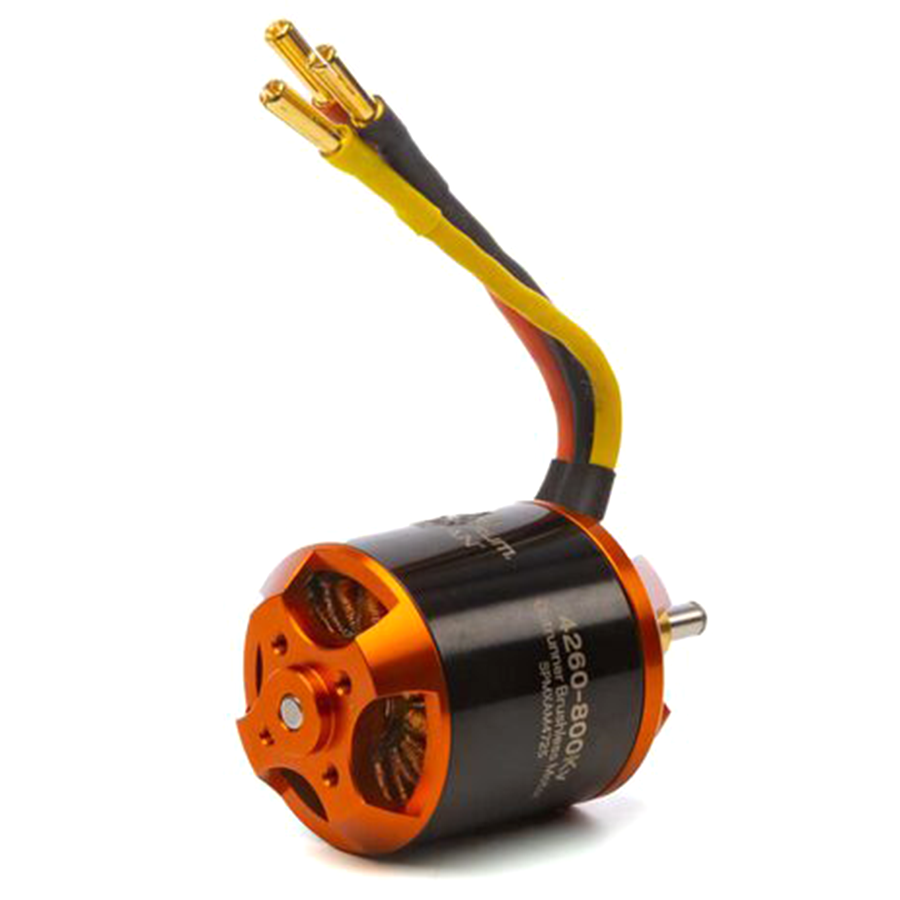

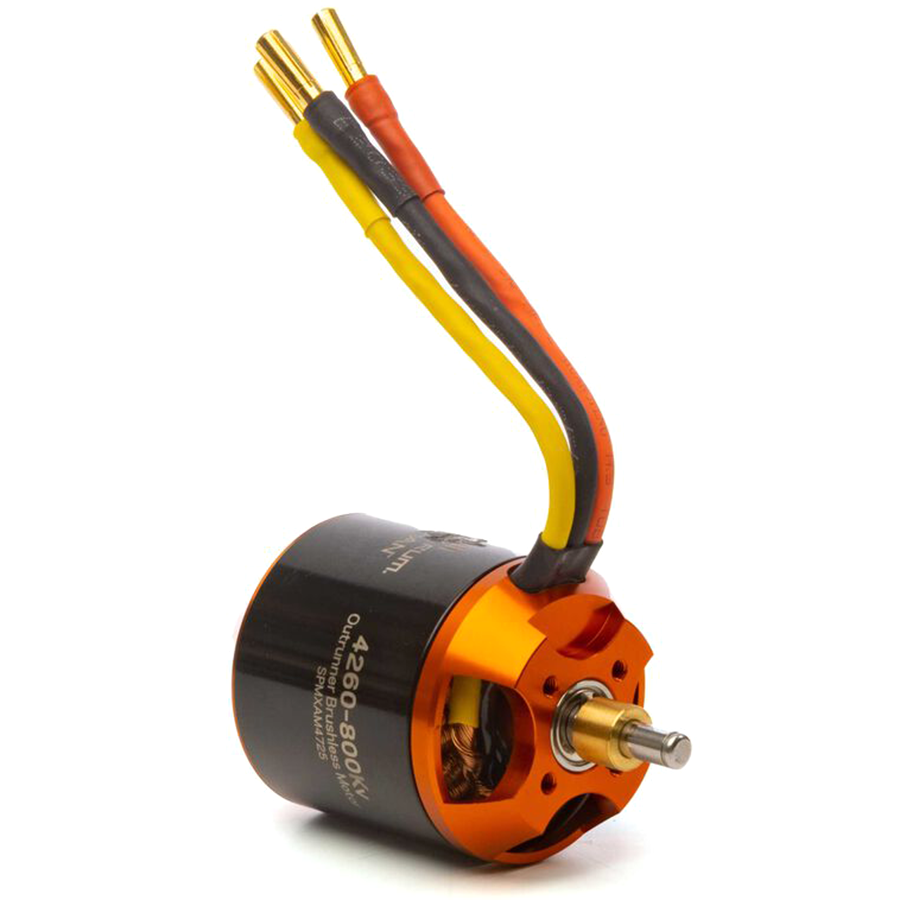

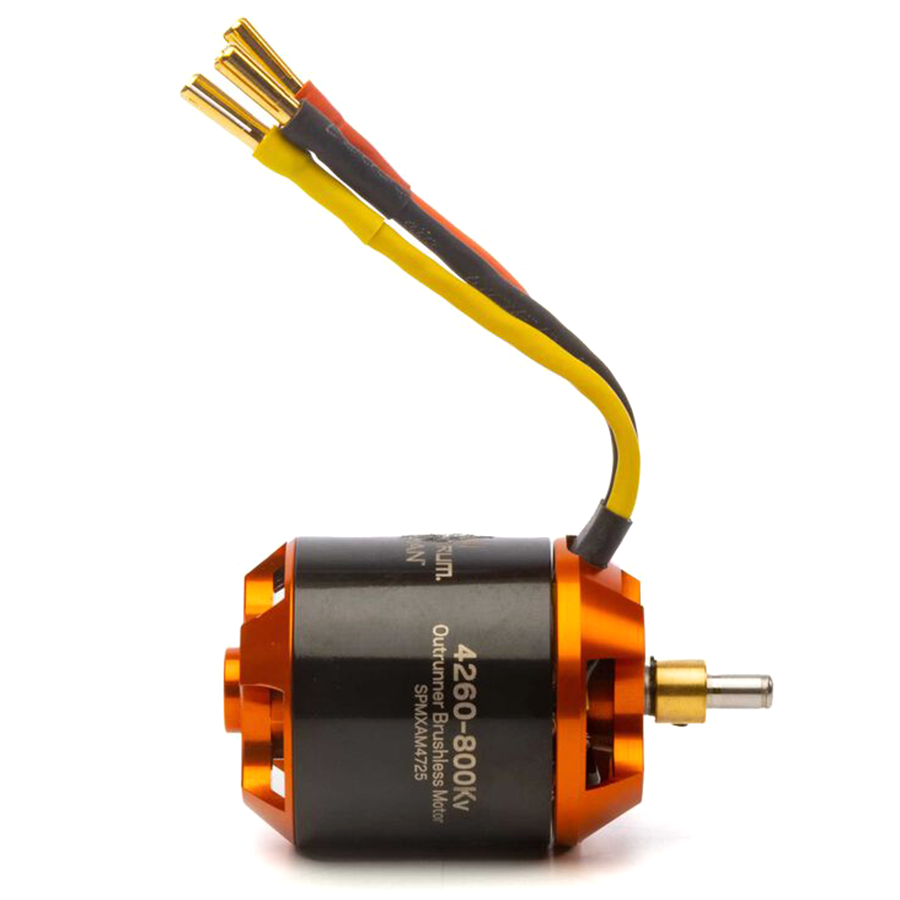

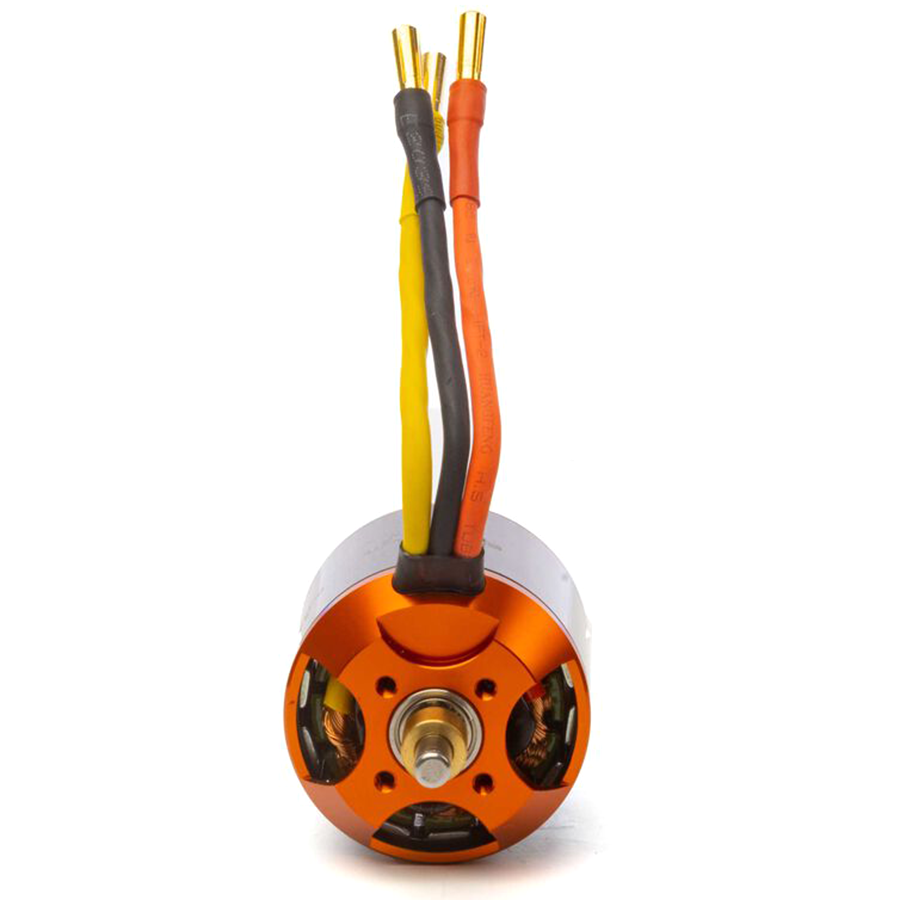

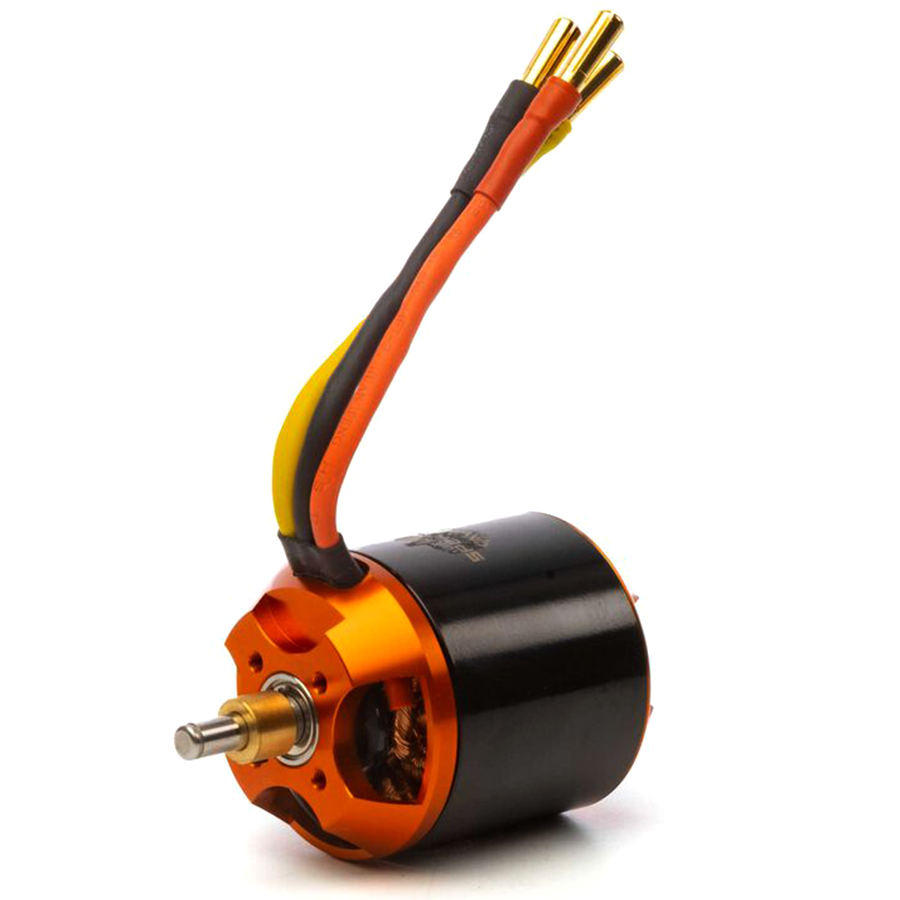

Avian 4260-800Kv Outrunner Brushless Motor
$109.99
Skip to product information
Avian 4260-800Kv Outrunner Brushless Motor
$109.99
Outrunner Motor
High torque brushless power
800Kv Rating
Optimized power per volt
5S-6S LiPo
18.5V to 22.2V capability
810W Output
Max wattage for aircraft
.46 Conversion
Replaces glow combustion engines
Complete Mount
Hardware and prop adapter included
Next-Level Electric PowerHigh Efficiency Brushless Motor Technology
Elevate your flight performance with the Spektrum Avian 4260-800Kv Outrunner Brushless Motor, engineered to deliver rapid acceleration and extreme torque. Perfect for electric conversions of .46-size glow combustion models, this high-performance brushless motor provides efficient airflow cooling for reliable, maintenance-free flying. Ideal for sport and 3D airplanes requiring precise power delivery and dependable RC plane motor thrust.
Superior Brushless EngineeringSmooth Torque And Lasting Durability
The Spektrum Avian 4260-800Kv Outrunner Brushless Motor offers RC pilots exceptional power density, fast throttle response, and unmatched reliability. Built with strong rare-earth neodymium magnets and a smooth 14-pole stator design, this outrunner motor easily drives electric aircraft propellers for aerobatic precision. Featuring double-shielded sealed bearings and gold-plated bullet connectors, it delivers clean, consistent energy when paired with 5S to 6S LiPo batteries and 60A speed controls.
Technical Motor SpecsDetailed Dimensions Electrical Specifications
Application
Sport aircraft to 7.5lbs / 3D to 5lbs
Motor Type
Outrunner Brushless
Motor Size
4260
RPM/Volt (Kv)
800Kv
Input Voltage
18.5-22.2V / 5-6S LiPo
Maximum Continuous Current
60A
Maximum Burst Current
100A
Max Wattage
810W
Idle Current (Io)
4.6A at no load
Outer Diameter
1.65 in (42 mm) (ruler)
Product Length
2.36 in (60 mm) (ruler)
Product Weight
9.5 oz (268 g) (scale)
Shaft Diameter
0.20 in (5 mm) (ruler)
Shaft Length
0.67 in (17 mm) (ruler)
Connector Type
4mm Bullet
Recommended Prop Range
10x5E to 11x5E
Recommended Speed Control
60A ESC
Key Motor FeaturesDesigned For Maximum Aircraft Efficiency
Rapid AccelerationDelivers instant torque and smooth throttle control
Glow ConversionIdeal electric upgrade for .46 size glow aircraft
Cooling ArchitectureBuilt to maximize airflow during intense flights
Premium ConstructionRare-earth neodymium magnets and 14-pole stator
Low MaintenanceSealed double-shielded bearings for smooth operation

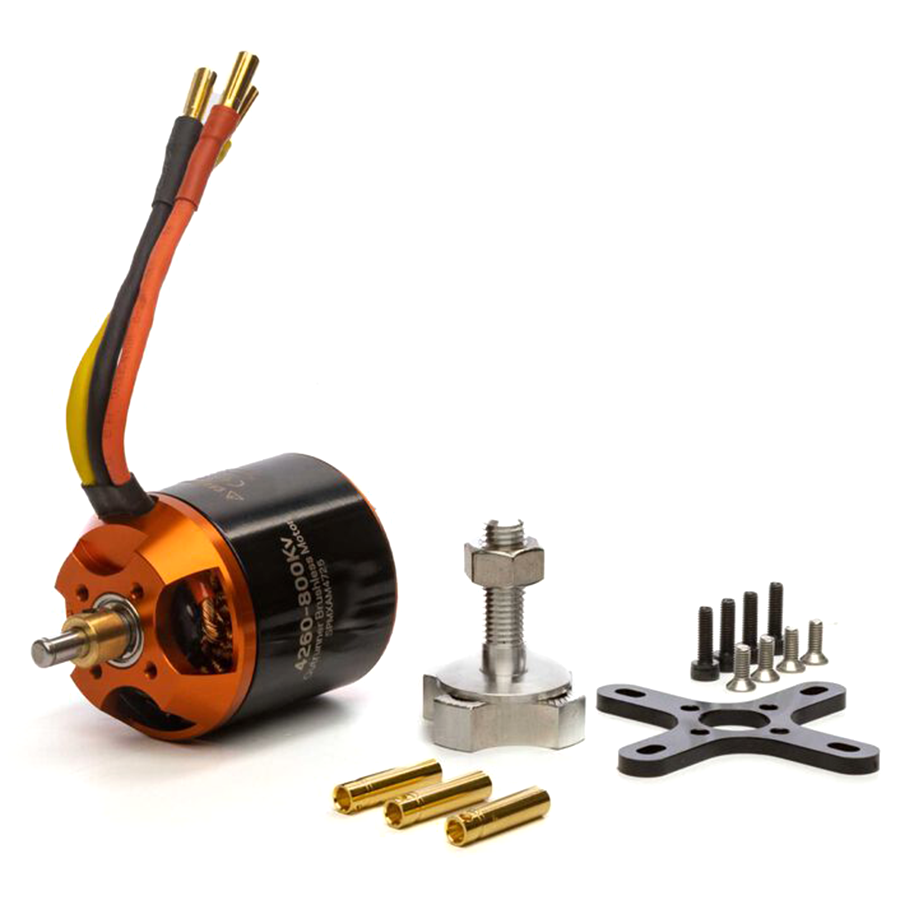

Hardware IncludedComes with motor mount prop adapter and bullet connectors
Smart System FitPerfectly matches Spektrum Smart Avian 60A ESCs
Frequently Asked QuestionsEverything you need to know
What ESC is recommended for the Spektrum Avian 4260-800Kv Outrunner Brushless Motor?
The manufacturer recommends pairing the Spektrum Avian 4260-800Kv Outrunner Brushless Motor with a Spektrum Smart Avian 60 amp ESC or a standard 60A brushless electronic speed control.
What battery setup should I use with the Spektrum Avian 4260-800Kv Outrunner Brushless Motor?
The Spektrum Avian 4260-800Kv Outrunner Brushless Motor operates best on a 5S or 6S LiPo battery setup with a recommended voltage range of 18.5V to 22.2V.
What glow engine size does the Spektrum Avian 4260-800Kv Outrunner Brushless Motor replace?
The Spektrum Avian 4260-800Kv Outrunner Brushless Motor serves as an excellent electric conversion upgrade for .46 size glow combustion power systems.
What propeller sizes are recommended for the Spektrum Avian 4260-800Kv Outrunner Brushless Motor?
Recommended propeller sizes for the Spektrum Avian 4260-800Kv Outrunner Brushless Motor range from 10x5 to 11x5 electric propellers.
