Avian 5055-500Kv Outrunner Brushless Motor
$114.99
500Kv Brushless
High torque outrunner motor design
2200W Output
Massive burst wattage for 3D flight
Efficient Cooling
Engineered airflow for low running temps
14-Pole Stator
Smooth and precise power response
Hardware Included
Includes prop adapter and mount
Glow Conversion
Ideal replacement for .80 engines
In Stock
Unleash High-Torque PerformancePowerful electric power for RC planes
Elevate your RC airplane with the heavy-hitting power of the Avian 5055-500Kv Outrunner Brushless Motor, engineered for unmatched torque and smooth acceleration. Designed for 5S to 6S LiPo configurations, this high-performance brushless motor delivers robust power for aerobatic models and combustion-to-electric conversions. Integrate it into your airframe alongside Spektrum Smart Technology components for optimal reliability and flight efficiency.
Advanced Brushless PropulsionEngineered for maximum power and lifespan
The Avian 5055-500Kv Outrunner Brushless Motor provides exceptional reliability and rapid throttle modulation for sport and 3D aerobatic RC aircraft. Built with a 14-pole stator design and powerful rare-earth neodymium magnets, this power plant ensures high torque density and immediate acceleration out of hover maneuvers. Double-shielded sealed bearings and a precision-balanced motor bell minimize operational friction, while built-in airflow channels keep operating temperatures cool under heavy continuous loads. Pre-installed 4mm gold bullet connectors make installing this outrunner motor fast and convenient, providing a seamless electric upgrade path for traditional .80 size glow engine scale airplanes.
Technical Motor SpecsPrecision details and fitting dimensions
RPM/Volt (Kv)
500Kv
Application
Sport planes up to 11.5 lbs / 3D up to 7 lbs
Input Voltage
18.5-22.2V / 5-6S LiPo
Maximum Burst Wattage
2200W
Maximum Continuous Wattage
1300W
Max Burst Amps
65A
Max Continuous Amps
55A
Motor Type
Brushless Outrunner
Outer Diameter
2.0 in (50 mm) (ruler)
Product Length
2.2 in (55 mm) (ruler)
Product Weight
10.5 oz (298 g) (scale)
Recommended Propeller Range
15x6E to 15x8E
Recommended Speed Control
60A ESC
Shaft Diameter
0.31 in (8 mm) (ruler)
Shaft Length
0.67 in (17 mm) (ruler)
Connector Type
4mm Gold Bullet
Flight-Engineered FeaturesBuilt for efficiency and durability
Rapid AccelerationInstant high-torque response for aerobatics and 3D flying
Smooth Propulsion14-pole stator ensures linear and precise throttle modulation
Advanced Airflow DesignInternally channeled cooling keeps motor temperatures low
Heavy-Duty ConstructionFitted with double-shielded bearings and neodymium magnets

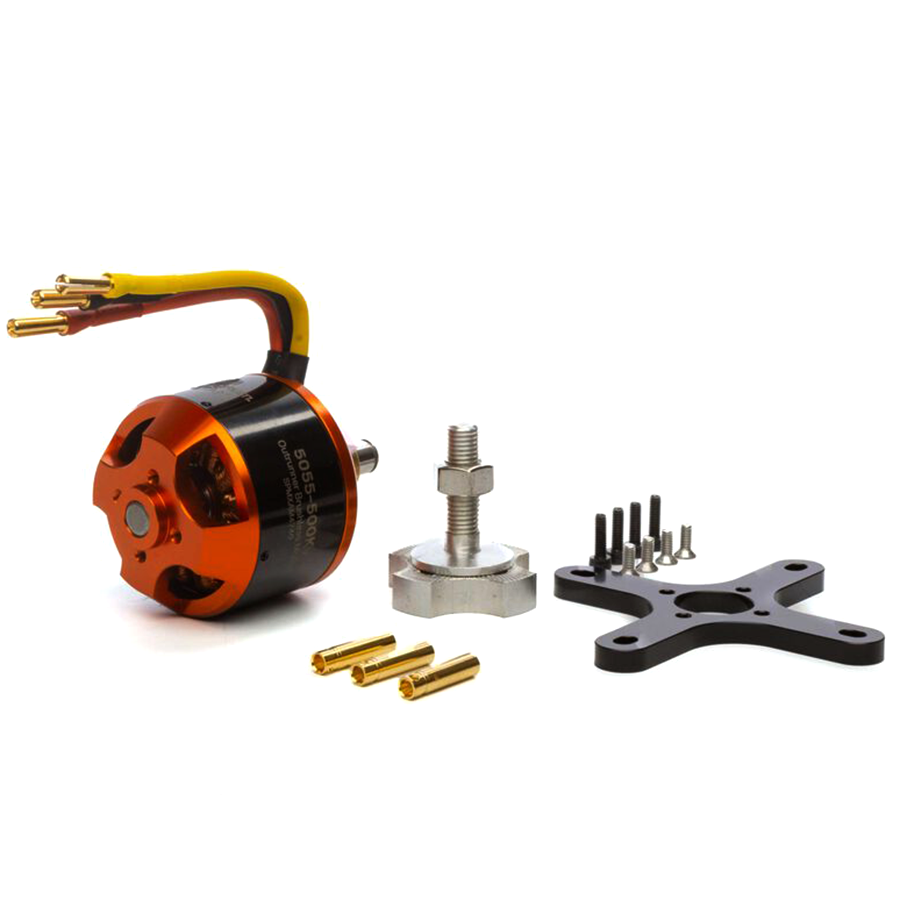

Complete AccessoriesComes with mount, prop adapter, and matching bullet connectors
Glow Conversion ReadyReplaces traditional .80-size glow engines effortlessly
Frequently Asked QuestionsEverything you need to know
What size prop is best for the Avian 5055-500Kv Outrunner Brushless Motor?
The Avian 5055-500Kv Outrunner Brushless Motor performs optimally with electric propellers ranging from 15x6 to 15x8 when running on 5S or 6S LiPo battery power.
What ESC rating should I use with the Avian 5055-500Kv Outrunner Brushless Motor?
We recommend pairing the Avian 5055-500Kv Outrunner Brushless Motor with a 60-amp electronic speed controller, such as the Spektrum Smart Avian 60A ESC.
Can the Avian 5055-500Kv Outrunner Brushless Motor replace a glow engine?
Yes, the Avian 5055-500Kv Outrunner Brushless Motor is designed as a direct high-power electric conversion for .80 size glow combustion engine airframes.
What battery voltage does the Avian 5055-500Kv Outrunner Brushless Motor support?
The Avian 5055-500Kv Outrunner Brushless Motor operates within a voltage range of 18.5V to 22.2V, which corresponds to 5S to 6S LiPo battery packs.
