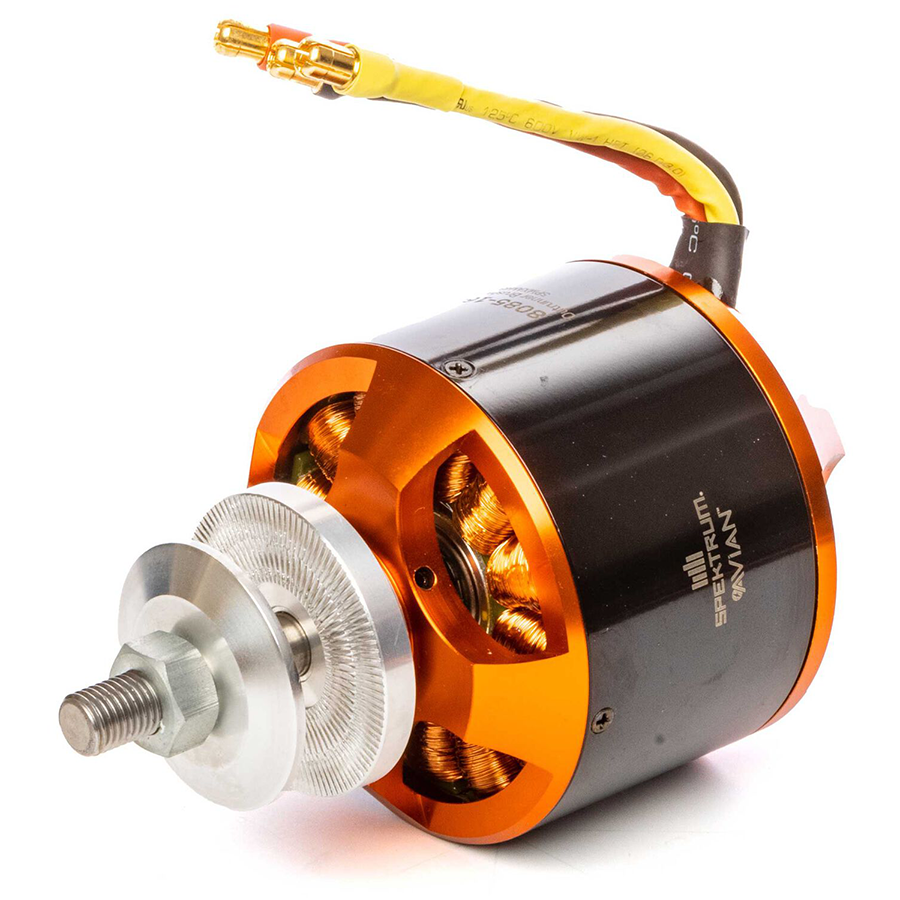

Avian 8085-160Kv Outrunner Brushless Motor
$369.99
Skip to product information
Avian 8085-160Kv Outrunner Brushless Motor
$369.99
Brushless Outrunner
14 pole high torque design
160Kv Motor Rating
Optimized for large aircraft
15S LiPo Ready
Handles up to 55.5 volts
4400W Peak Power
Extreme wattage for giant scale
65cc Gas Equivalent
Ideal gas to electric swap
Maintenance Free Build
Double shielded sealed bearings installed
Dominant Electric PropulsionGiant scale power for aerobatic performance
The Spektrum Avian 8085-160Kv Outrunner Brushless Motor delivers superior reliability, extreme torque, and rapid throttle response for high-performance RC airplanes. Designed as a high-efficiency electric power system, this motor provides seamless power delivery for massive 3D and sport scale aircraft.
Precision Power EngineeringAdvanced thermal efficiency and rugged construction
Engineered for maximum thrust and long-term durability, the Spektrum Avian 8085-160Kv Outrunner Brushless Motor features powerful rare-earth neodymium magnets and a smooth 14-pole stator design. Built specifically as a clean, reliable alternative to 65cc gas engines, this high-output brushless motor features integrated cooling channels to drive airflow through the housing during high-load flight. Equipped with pre-installed 6mm gold bullet connectors, double-shielded bearings, and included mounting hardware, it provides exceptional quality and performance for your next scale aviation project.
Technical SpecificationsComplete power plant parameters and dimensions
Motor Type
Brushless Outrunner
RPM/Volt (Kv)
160Kv
Input Voltage
33.3 - 55.5V (9-15S LiPo) (battery)
Maximum Continuous Current
135A at 12S
Maximum Burst Current
150A
Max Wattage
4400W
Outer Diameter
3.14 in (80 mm) (ruler)
Product Length
3.35 in (85 mm) (ruler)
Shaft Diameter
0.39 in (10 mm) (ruler)
Shaft Length
0.79 in (20 mm) (ruler)
Product Weight
52.5 oz (1480 g) (scale)
Connector Type
6mm Bullet
Number of Poles
14
Recommended Speed Control
160A ESC
Recommended Prop Range
22x8E to 26x10E
Application
3D 26 lbs (11.79 kg) / Sport 42 lbs (19.1 kg) (plane)
Adjustable Timing
No
Key Features & CapabilitiesOptimized performance details for electric flight
Power OutputFast and smooth power delivery up to 4400 watts
Magnet SystemHigh-strength Rare-Earth Neodymium magnets
Stator Design14-pole stator engineered for maximum torque
Thermal ManagementIntegrated casing airflow system for cooling
Gas ConversionIdeal electric upgrade for 65cc combustion engines

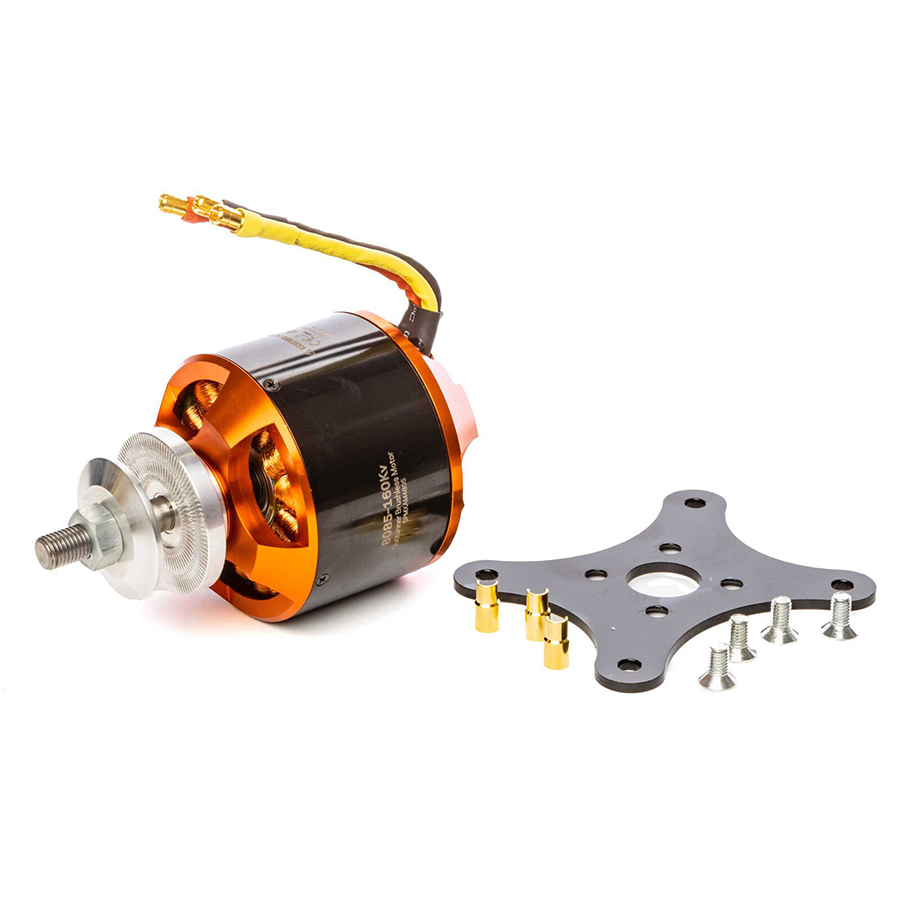

Included AccessoriesIncludes motor mount, prop adapter, and female connectors
BearingsDouble-shielded sealed bearings for smooth operation
ESC MatchingOptimized for Spektrum Smart Avian speed controls
Frequently Asked QuestionsEverything you need to know
What size airplane is the Spektrum Avian 8085-160Kv Outrunner Brushless Motor designed for?
The Spektrum Avian 8085-160Kv Outrunner Brushless Motor is engineered for giant-scale aircraft, serving as a direct electric conversion for 65cc gas engine setups. It easily powers 3D aerobatic models up to 26 lbs (11.79 kg) and sport planes up to 42 lbs (19.1 kg).
What battery voltage range does the Spektrum Avian 8085-160Kv Outrunner Brushless Motor require?
The Spektrum Avian 8085-160Kv Outrunner Brushless Motor supports an input voltage range from 33.3V to 55.5V, which corresponds to 9S up to 15S LiPo battery configurations.
Which ESC and propeller should I use with the Spektrum Avian 8085-160Kv Outrunner Brushless Motor?
We recommend pairing the Spektrum Avian 8085-160Kv Outrunner Brushless Motor with a 120A to 160A brushless ESC (such as a Spektrum Smart Avian ESC) and an electric propeller size ranging from 22x8E to 26x10E.
