Cinestar 3328 Brushless
$49.99
700KV Motor
Optimized speed for large multirotors
2200g Max Thrust
Delivers exceptional payload lifting force
3S-6S LiPo
Wide voltage capability and versatility
EZO Bearings
Smooth genuine Japanese ball bearings
Heavy-Duty Wiring
600mm preinstalled 16ga motor leads
Magnet Retention
Dual mechanical lock prevents dislodging
Cinematic Drone Propulsion EngineUnrivaled Efficiency and Heavy Payload Capacity

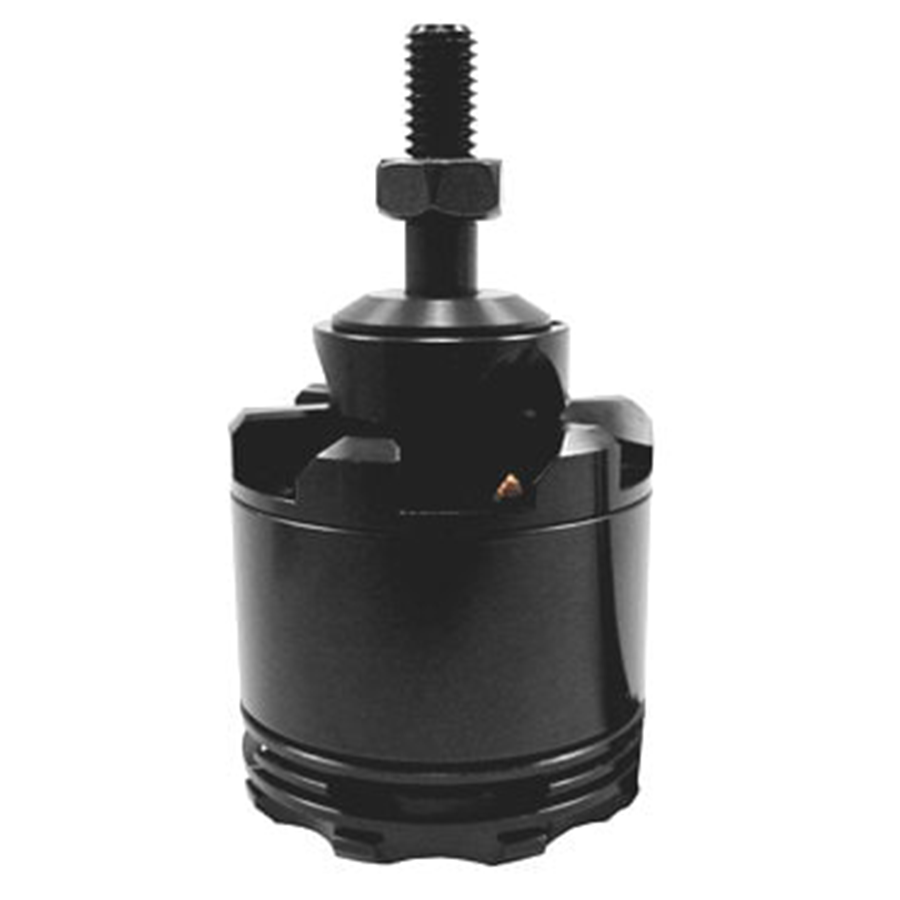

The FreeFly CineStar FFS-3328 Multirotor Motor is engineered specifically for high-performance drone platforms that demand an unprecedented power-to-weight ratio. Operating with a 700KV rating and capable of producing up to 2200g of maximum thrust, this multirotor brushless motor outperforms conventional options in its class. Perfect for professional aerial video platforms, the FreeFly CineStar FFS-3328 offers exceptional energy efficiency, bulletproof thermal stability, and simple installation.
Precision Heavy-Lift Motor ArchitecturePremium Components Built For Large Multirotors

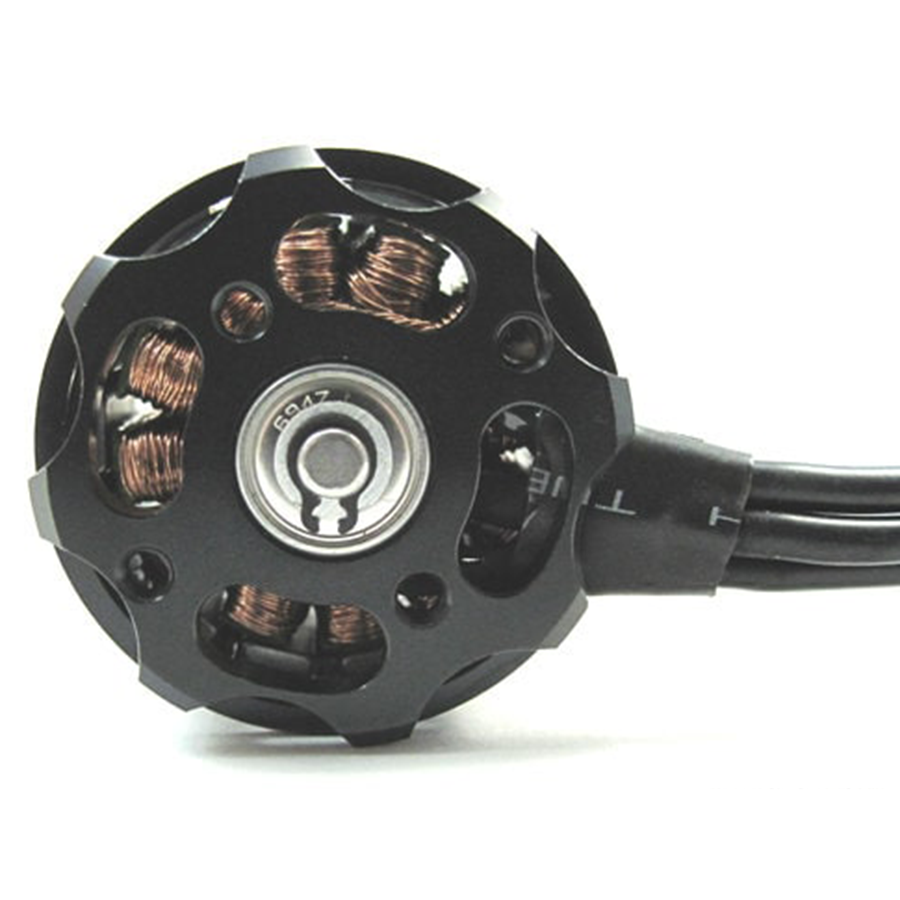

Designed from the ground up for professional aerial cinematographers, the FreeFly CineStar FFS-3328 Multirotor Motor delivers ultimate efficiency and ultra-smooth operation. Featuring ultra-thin 0.2mm stator laminations for minimal eddy current losses and high-strength Neodymium magnets, this drone brushless motor maximizes power output while keeping current draw optimized. The custom dual mechanical magnet retention system ensures magnets stay permanently secured even under thermal expansion and harsh operating conditions.

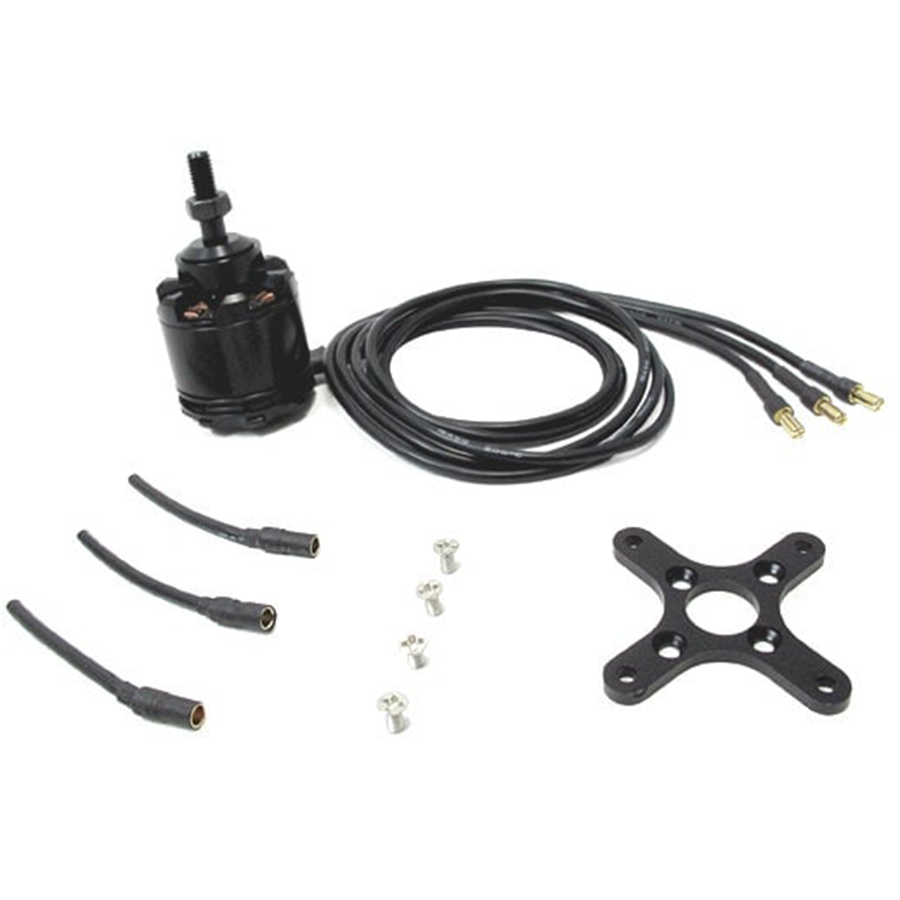

Built with top-tier genuine EZO Japanese ball bearings and high-precision CNC machining, the FreeFly CineStar FFS-3328 ensures vibration-free rotation crucial for capturing smooth aerial footage. Each motor comes fully equipped for immediate installation, featuring a sleek all-black finish, 600mm 16ga heavy-duty leads, pre-installed bullet connectors, and a 6mm propeller adapter compatible with 10 to 14-inch props such as APC Slow Flyer composite propellers.
Technical Performance SpecificationsDetailed Engineering and Electrical Parameters
Part Type
Brushless Multirotor Motor
Compatible Vehicles
CineStar & Heavy-Lift Multirotors
Material
CNC Machined Aluminum & Steel Shaft
Placement/Position
Drone Frame Arm / Motor Mount
Dimensions
28mm Diameter x 33.5mm Height
Weight
105g Motor Only / 139g Loaded
Lithium Cell Count
3S to 6S LiPo
KV Rating
700 RPM/V
Load Current
Max 30A Continuous
Peak Current
50A Max (15 Seconds) (lightning)
Mechanical Power
350 W
Max Thrust
2200 g
Shaft Diameter
4mm Shaft / 6mm Prop Adapter
Bearings
Genuine EZO Japanese Ball Bearings
Wire Length
600mm 16ga Heavy Duty Wires
Recommended Propeller Size
10 to 14 Inches
Advanced Brushless Motor FeaturesHeavy Duty Construction for Aerial Photography
Stator LaminationsThin 0.2mm stator laminations minimize eddy current losses for maximum operating efficiency
Magnet RetentionDual mechanical magnet locking system prevents dislodging under extreme thermal load
EZO BearingsPrecision genuine EZO Japanese ball bearings ensure whisper-quiet, low-vibration operation
Heavy-Duty Lead WiresPre-installed 600mm 16ga motor leads offer clean wire routing on large frames
Plug and Play DesignPre-soldered bullet connectors and 6mm prop adapter allow fast assembly
CNC Machined HousingAll-black precision aluminum casing provides heat dissipation and sleek aesthetic
High Load CapacityGenerates up to 2200g thrust for large payload multirotor systems
Frequently Asked QuestionsEverything you need to know
What battery voltage is compatible with the FreeFly CineStar FFS-3328 Multirotor Motor?
The FreeFly CineStar FFS-3328 Multirotor Motor supports 3S to 6S LiPo battery configurations, providing versatile setup options for various drone payloads.
Which propellers work best with the FreeFly CineStar FFS-3328 Multirotor Motor?
The FreeFly CineStar FFS-3328 Multirotor Motor is optimized for 10 to 14-inch propellers, including APC Slow Flyer composite propellers like the 12x3.8, 13x4.7, and 14x4.7 models.
Does the FreeFly CineStar FFS-3328 Multirotor Motor require soldering during installation?
No, the FreeFly CineStar FFS-3328 Multirotor Motor comes plug-and-play with pre-installed bullet connectors and long 600mm 16ga lead wires.
