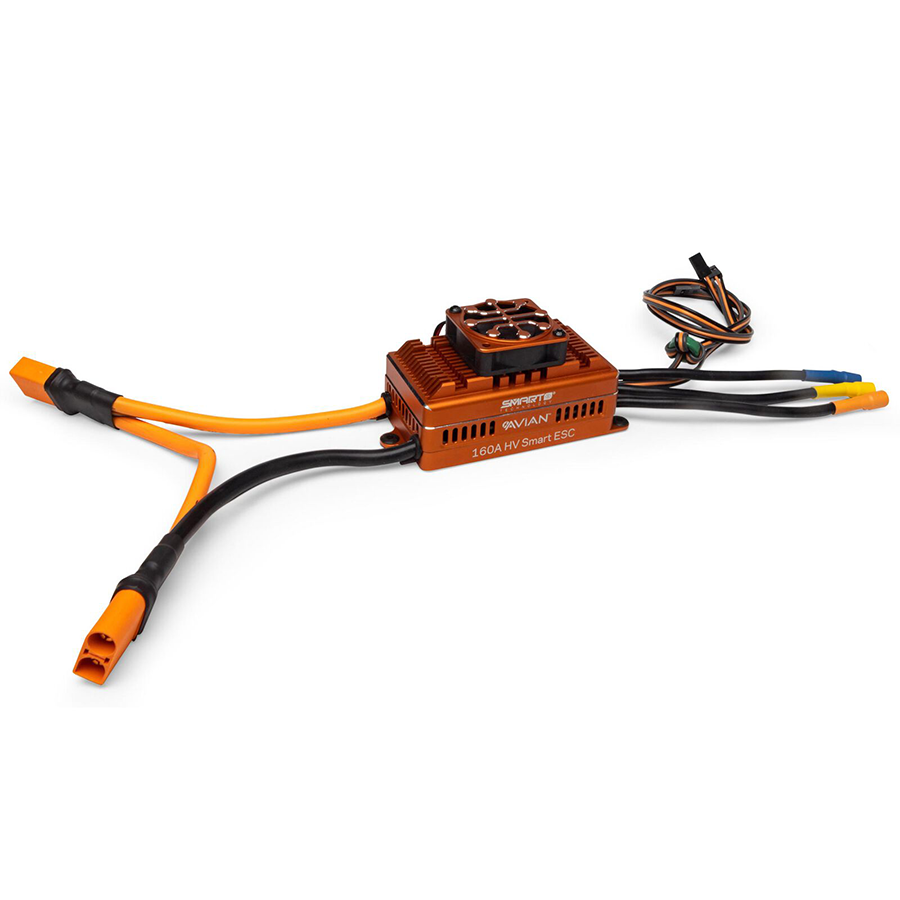

Avian 160 Amp HV Brushless SMART ESC, 6S - 12S
$439.99
Skip to product information
Avian 160 Amp HV Brushless SMART ESC, 6S - 12S
$439.99
160A Continuous
Massive continuous power output
6S-14S LiPo
High voltage power support
Smart Telemetry
Real time single wire data
32-Bit ARM M4
Fast powerful micro controller
Adjustable BEC
Continuous 10A current output
IC5 Connectors
High heat resistant plugs
Smart Telemetry IntegratedReal time data for giant scale
The Spektrum Avian 160A HV Brushless Smart ESC 6S-14S delivers an all-in-one telemetry solution designed specifically for high-performance RC aircraft. Operating as a virtual engineer inside your model, this advanced brushless electronic speed control transmits real-time voltage, temperature, current, and RPM data directly to your transmitter using a single wire. Experience unmatched reliability and seamless setup with the industry-leading Spektrum Smart technology ecosystem.
Engineering Superior ControlHigh voltage power and protection
Engineered for maximum power and simplified control, the Spektrum Avian 160A HV Brushless Smart ESC 6S-14S features a fast, powerful 32-bit ARM M4 processor that ensures responsive motor control and optimal efficiency during high-demand aerobatics. With built-in multi-point protection including over-current, automatic LiPo low-voltage cutoff, thermal protection, and failsafe modes, your high-voltage RC airplane remains protected under extreme loads. The factory-installed IC5 connectors are high heat-resistant and fully backward-compatible with standard EC5 connectors, ensuring plug-and-play convenience without soldering. Upgradable via the Smart ESC Programming Box or SmartLink PC application, this high-voltage RC brushless ESC provides unmatched telemetry accuracy and flexible programming to elevate your flight performance.
Electronic SpecsDetailed power and sizing ratings
Application
Air Motor
BEC
Yes
BEC Type
Adjustable
BEC Continuous Current
10A
BEC Maximum Burst Current
25A
BEC Voltage
6.0V / 7.4V / 8.4V
Input Voltage
6S - 14S LiPo
Maximum Continuous Current
160A
Maximum Burst Current
200A
Motor Type
Brushless
Connector Type
IC5
Product Weight
376g / 13.3oz
Product Length
3.5 in (89 mm) (ruler)
Product Width
1.96 in (50 mm) (ruler)
Product Height
1.4 in (36 mm) (ruler)
Auto Cutoff
Yes
Overload Protection
Yes
Programmable
Yes
Core CapabilitiesBuilt for max precision flight
Smart TelemetryOne-wire real-time telemetry data transmission
Fast ProcessingPowerful 32-bit ARM M4 processor for responsive throttle
Multi-Point ProtectionOver-current, thermal, and automatic LiPo low-voltage cutoff
Programming FlexibilityStick programming, Smart ESC Box, or SmartLink USB app
Plug-and-Play SetupReady to install with no soldering required
IC5 ConnectorsHigh heat-resistant plugs backward compatible with EC5
Dual BEC OutputIntegrated high-current BEC supporting high voltage servos
Heat Dissipating DesignEfficient cooling case layout for optimum performance
Frequently Asked QuestionsEverything you need to know
What receiver do I need to use telemetry with the Spektrum Avian 160A HV Brushless Smart ESC 6S-14S?
To utilize full single-wire real-time telemetry features with the Spektrum Avian 160A HV Brushless Smart ESC 6S-14S, you will need a Spektrum Smart-compatible receiver and telemetry-capable Spektrum transmitter.
What battery range is supported by the Spektrum Avian 160A HV Brushless Smart ESC 6S-14S?
The Spektrum Avian 160A HV Brushless Smart ESC 6S-14S is engineered for high-voltage RC aircraft applications and supports 6S to 14S LiPo battery configurations.
Do I need to solder any battery leads on the Spektrum Avian 160A HV Brushless Smart ESC 6S-14S?
No, the Spektrum Avian 160A HV Brushless Smart ESC 6S-14S comes factory-assembled with high heat-resistant IC5 power connectors, so no soldering is required.
