D954SW
High Torque Steel Gear Servo

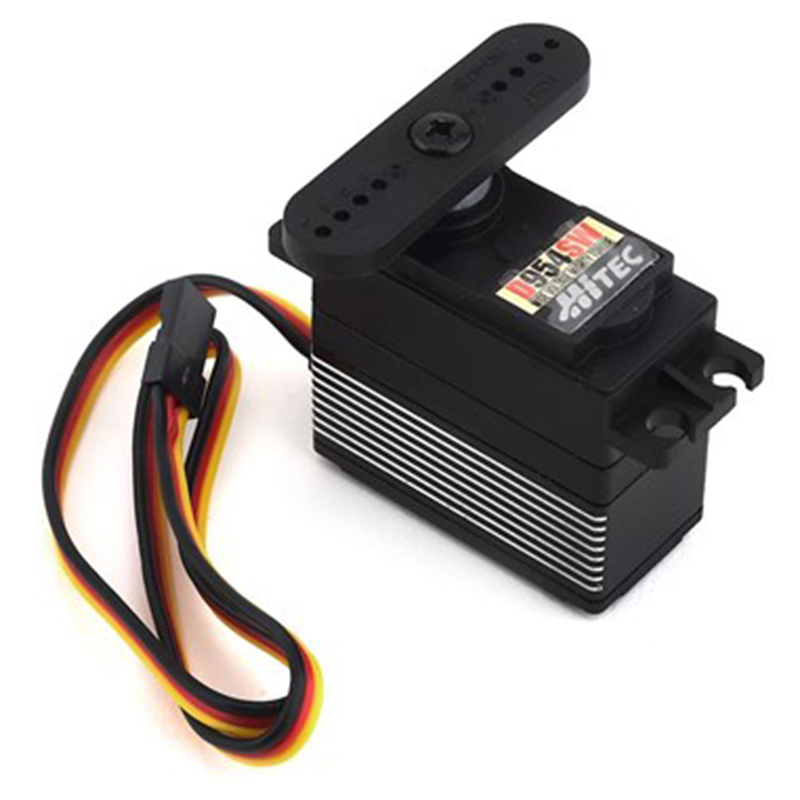

Hitec D9545SW High Torque Steel Gear Servo (High Voltage)

Overview:
The Hitec D9545SW High Torque Steel Gear Servo, a technologically-advanced servo that is powered by Hitec's 32-bit MCU (Microcontroller Unit) and 12-bit ADC (Analog to Digital Converter) industrial science and possess Smart Sense engineering with rapid, high resolution response.

The servos unprecedented programmability and wide-voltage capabilities deliver the most progressive, leading-edge performance for all your radio control needs. Built with incredibly durable steel gears, the D930SW are the perfect upgrade from Hitec's popular HS-7954SH servo.

Features:
• Programmable PWM Digital Amplifier
• 32-Bit MCU with 12-Bit ADC Circuitry
• 4096 Resolution
• 1M Cycle Long Life Potentiometer
• Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
• Dual Ball Bearing Supported Output Shaft
• 25-Tooth Output Spline
• Coreless Metal Brush Motors
• Nylon Reinforced Plastic Upper and Lower Case
• Diamond Cut Aluminum Heat Sink Center Case
• Dust Resistant and Splash Proof Case

Programmable Features:
• End Point Adjustments
• Direction
• Fail Safe
• Dead Band
• Speed (Slower)
• Soft Start Rate
• Overload Protection
• Data Save / Load
• Program Reset

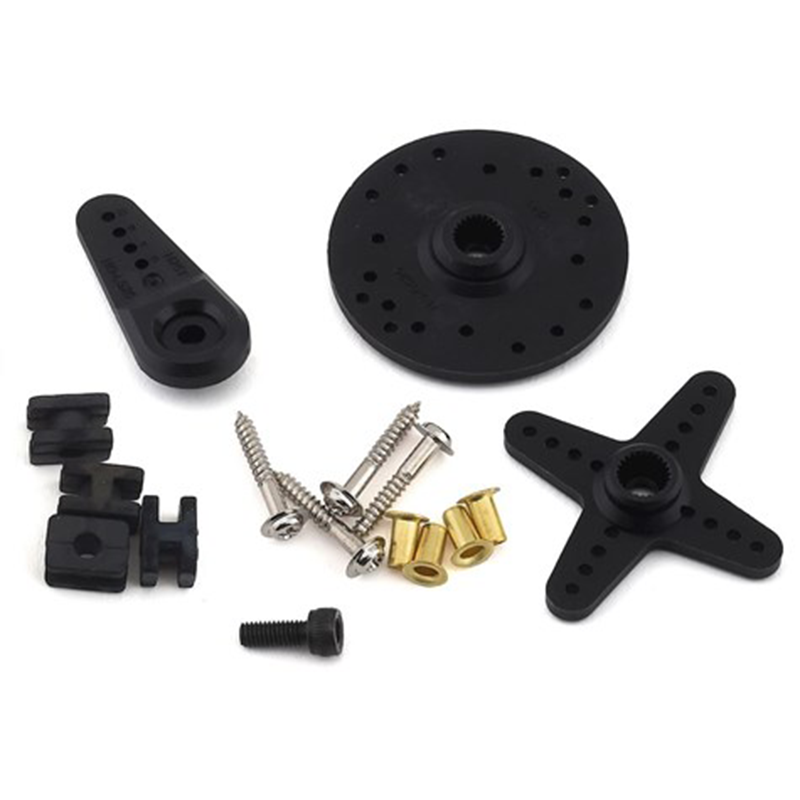

Includes:
• (1) D9545SW High Torque Steel Gear Servo
• (3) Steel Alloy Gears Set
• Metal / Karbonite 1st Gear Set
• Plastic/Aluminum Case Set
