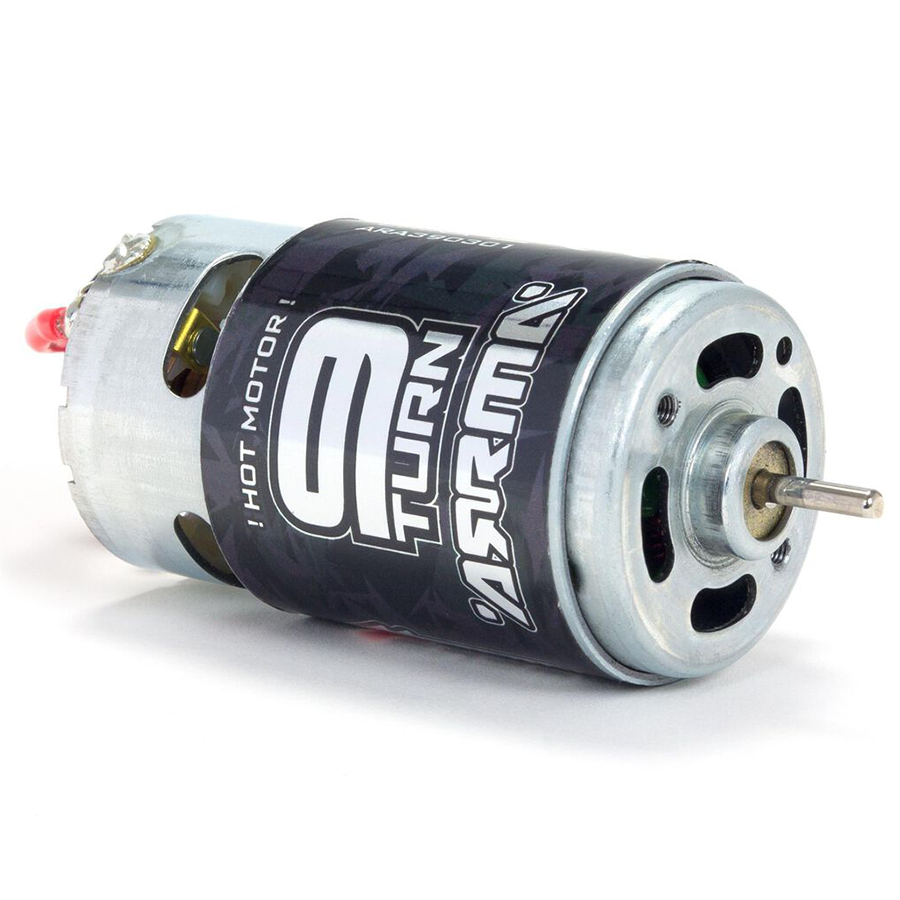

Mega 570 Brushed Motor: ARA390301
$28.99
570 Size Motor
Thrilling 9T Brushed Power
Enhanced Torque
Integrated Flux Ring Boosts Power
Thermal Control
Internal Fan Reduces Running Heat
In Stock
Unleash Brushed PowerReliable Speed and Dynamic Torque
The ARRMA Mega 570 9T Brushed Motor delivers an outstanding combination of straight-line speed and impressive low-speed torque for your favorite RC car. Engineered to handle demanding off-road conditions, this high-performance brushed motor offers reliable power and long-lasting durability for hobbyists looking to upgrade or repair their ARRMA vehicle.
Engineered For Peak PerformanceFlexible Power and High Torque Output
Built to enhance your driving experience, the ARRMA Mega 570 9T Brushed Motor features an internal cooling fan to keep operating temperatures low during intense bash sessions. An integrated flux ring significantly boosts low-end torque, giving your RC vehicle rapid acceleration out of turns and over obstacles. Designed with versatility in mind, this 570 size motor is compatible with both 6-7 cell NiMH and 2S LiPo battery packs, and comes pre-wired with 16AWG silicone wire and standard 4mm male bullet connectors for a seamless drop-in installation.
Technical Motor SpecificationsPrecision Metrics for Ideal Fitment
Part Type
Brushed Motor
Motor Size
570 Size, 9-Turn
Motor Type
Brushed
Shaft Diameter
1/8 in (3.175 mm) (ruler)
Shaft Length
17 mm
Motor Diameter
38.5 mm
Motor Length
65.0 mm
Mounting Pattern
2 x M3 Holes, 25mm Pitch
Connector Type
4mm Male Bullet Connectors
Wire Gauge
16AWG Wire
Recommended Battery
6-7 Cell NiMH / 2S LiPo
Key Performance FeaturesBuilt for Durability and Speed
Balanced Power OutputPerfect balance of straight-line pace and low-speed torque
Internal Cooling FanKeeps running temperatures lower during heavy operation
Integrated Flux RingIncreases motor torque for better acceleration
Pre-Solder WiresIncludes 16AWG wire with 4mm male bullet connectors
Battery VersatilityCapable of running on 6-7 cell NiMH or 2S LiPo batteries
Standard MountingFeatures 2 x M3 mounting holes with a 25mm pitch
ARRMA StylingIncludes eye-catching sticker for easy motor recognition
Frequently Asked QuestionsEverything you need to know
What battery types work with the ARRMA Mega 570 9T Brushed Motor?
The ARRMA Mega 570 9T Brushed Motor is fully compatible with 6 to 7-cell NiMH battery packs as well as 2S LiPo batteries, giving you great flexibility depending on your power setup.
What size output shaft does the ARRMA Mega 570 9T Brushed Motor use?
The ARRMA Mega 570 9T Brushed Motor features a standard 1/8 inch (3.175mm) diameter output shaft that is 17mm long, making it compatible with a wide variety of standard pinion gears.
Does the ARRMA Mega 570 9T Brushed Motor require soldering for installation?
No, the ARRMA Mega 570 9T Brushed Motor comes pre-fitted with 16AWG wire and pre-installed 4mm male bullet connectors, allowing for a quick plug-and-play connection to compatible ESCs.
