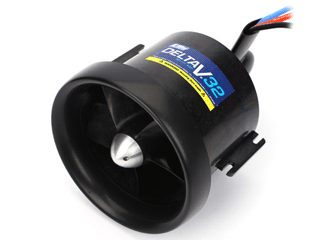

Delta-V (R) 32 80mm EDF Unit
$55.99
Skip to product information
Only 1 Left!
Delta-V (R) 32 80mm EDF Unit
$55.99
80mm Rotor
Factory Balanced 5 Blade Design
PPS Construction
Fiberglass Reinforced Injection Molded
High Thrust
Delivers Up To 5.4 lbs
Aerodynamic Design
Center Body Fairing Reduces Drag
Lightweight Build
Weighs Only 4.10 Ounces Total
Quick Assembly
Fast Simple Fan Unit Installation
In Stock
High Speed Jet PowerNext Level Electric Ducted Fan Performance
The E-flite Delta-V 32 80mm EDF Unit is engineered to deliver high-performance electric ducted fan operation for RC plane enthusiasts seeking ultimate speed and efficiency. Perfect for scale jet models like the E-flite Habu 32 DF, this unit integrates seamlessly with high-power brushless motor setups. Experience outstanding thrust and streamlined airflow for your custom 80mm ducted fan RC jet project.
Engineered For Peak EfficiencyUncompromising EDF Performance and Quality
Crafted from injection-molded, high-strength fiberglass-filled Polyphenylene Sulfide (PPS) plastic, the E-flite Delta-V 32 80mm EDF Unit offers exceptional durability and thermal stability under high RPM load conditions. Featuring a factory-balanced 80mm 5-blade rotor design with an aluminum spinner, this electric ducted fan unit minimizes vibration while optimizing high-speed airflow. The included center body fairing actively reduces aerodynamic drag, maximizing total thrust output when paired with a performance-matched brushless motor like the BL32 Ducted Fan Outrunner (2150Kv). Whether upgrading an existing RC airplane or constructing a custom jet model from scratch, this EDF power system provides the supreme reliability and raw power demanded by expert hobby technicians.
Technical SpecificationsDetailed Data and Fan Dimensions
Compatible Vehicles
E-flite Habu 32 DF and 80mm EDF RC Planes
Part Type
Electric Ducted Fan (EDF) Unit (fan)
Material
Fiberglass-filled PPS Plastic / Aluminum Spinner
Rotor Diameter
3.15 in (80.0mm) (ruler)
Shroud Outer Diameter
3.27 in (83.0mm) (ruler)
Shroud Length
2.61 in (66.2mm) (ruler)
Weight
4.10 oz (116g) (scale)
Static Thrust
5.40 lb @ 6S (21.9V) (zap)
RPM
39,640 @ 6S
Watts/Current
53A @ 6S
Recommended Motor
BL32 Ducted Fan Outrunner, 2150Kv (EFLM3032DFA) (engine)
Key Performance FeaturesAdvanced Engineering For Maximum Speed
Rotor DesignFactory-balanced 80mm 5-blade rotor with precision aluminum spinner
High Strength HousingDurable fiberglass-filled Polyphenylene Sulfide (PPS) plastic construction (shield)
Drag ReductionIntegrated center body fairing reduces internal air drag
Impressive ThrustDelivers up to 5.40 lbs of static thrust on 6S power setups
Simple AssemblyQuick and straightforward installation process
Optimized Motor MatchPurpose-built to pair with the BL32 2150Kv brushless EDF motor
Frequently Asked QuestionsEverything you need to know
What motor is recommended for the E-flite Delta-V 32 80mm EDF Unit?
The E-flite Delta-V 32 80mm EDF Unit is purpose-built to pair with the E-flite BL32 Ducted Fan Brushless Motor, 2150Kv (EFLM3032DFA) for optimal performance and fit.
What thrust output can I expect from the E-flite Delta-V 32 80mm EDF Unit on a 6S setup?
When powered by a 6S LiPo battery (21.9V) and the recommended brushless motor, the E-flite Delta-V 32 80mm EDF Unit generates up to 5.40 lbs of static thrust at 39,640 RPM drawing approximately 53 amps.
What RC aircraft are compatible with the E-flite Delta-V 32 80mm EDF Unit?
The E-flite Delta-V 32 80mm EDF Unit is ideal for the E-flite Habu 32 DF jet as well as other high-performance scale RC airplanes designed to accept an 80mm ducted fan unit.
Is the E-flite Delta-V 32 80mm EDF Unit suitable for beginners?
No, this performance fan unit is intended for experienced RC plane enthusiasts and builders aged 14 and up who have knowledge of high-speed electric power systems.
