E16-0 29mm Engine PSII (2) HAZ
$29.99
Skip to product information
In Store Only
E16-0 29mm Engine PSII (2) HAZ
$29.99
29mm Diameter
Fits Large Rocket Mounts
Upper Stage
Ideal For Multistage Flights
18 oz Capacity
Launches Heavy Rocket Payloads
Pickup In Store Only
High Altitude Rocket PowerReliable Propulsion For Heavy Launchers

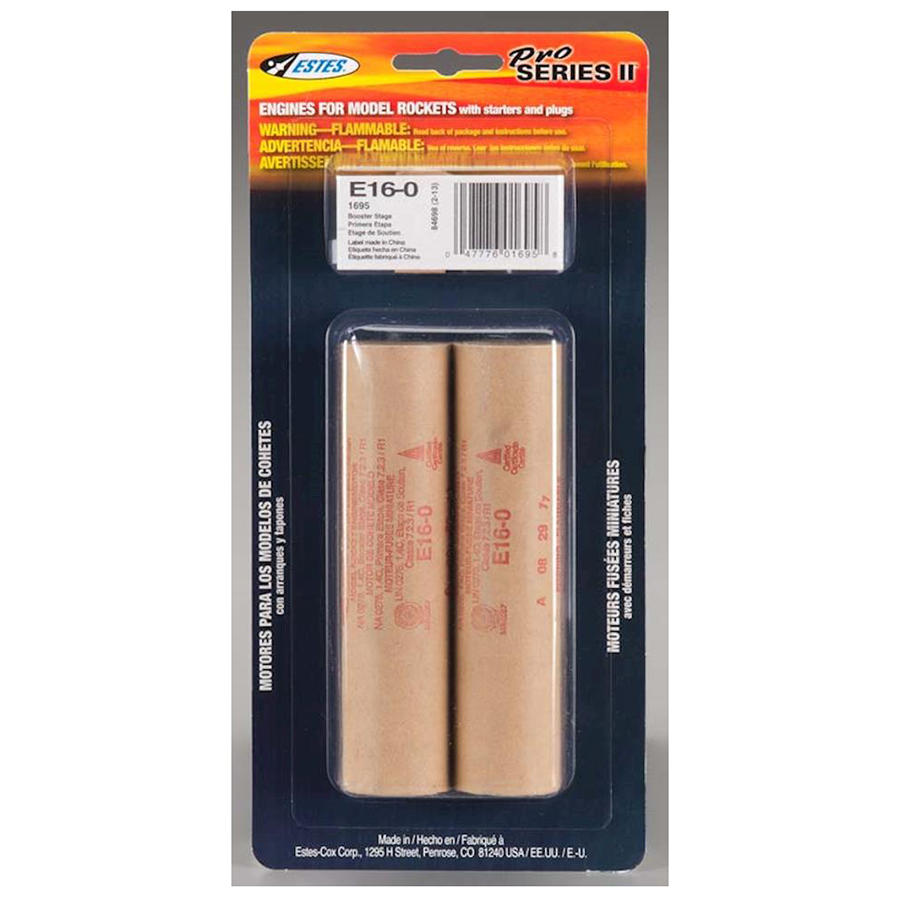

The Estes E16-0 Engine PSII (2) is a powerful 29mm model rocket engine engineered for upper stage or heavy single-stage launches. Featuring a zero time delay, this motor provides instant staging ignition to maximize altitude in multi-stage rocketry builds. Each package includes 2 engines, 2 starters, and 4 starter plugs for ultimate launchpad convenience.
Unleash Maximum ThrustEngineered For Pro Series Rocketeers
Take your rocketry builds to new heights with the Estes E16-0 Engine PSII (2). Built specifically for 29mm motor mounts, this high-performance rocket motor delivers a peak thrust of 26.44 Newtons with a total impulse of 33.68 N-sec over a 2.09-second burn duration. Designed with zero time delay (0 seconds), the Estes E16-0 Engine ignites upper-stage motors instantaneously at burnout, ensuring optimal flight transition without dropping velocity. Capable of lifting rockets up to 18 ounces, it is the ideal choice for launching larger payload-carrying scale models into the sky.
Engine Technical SpecificationsDetailed Flight Data And Dimensions
Length
4.5 in. (11.4 cm) (ruler)
Diameter
29 mm
Estimated Weight
2.58 oz (73.1 g) (scale)
Total Impulse
33.68 N-sec
Time Delay
None / 0 Sec
Estimated Max Lift Weight
18.0 oz (509 g) (weight)
Max Thrust
26.44 Newtons (5.9 lbs) (speedometer)
Thrust Duration
2.09 Seconds
Propellant Weight
1.41 oz (40.0 g) (scale)
Quantity Per Pack
2
Key Engine FeaturesPerformance Specs For Flight
Engine StagingUpper Stage or Single Stage
Mount Size29mm Diameter Mount
Maximum Lift Capacity18.0 oz (509 g) (weight)
Peak Thrust Output26.44 Newtons / 5.9 lbs
Burn Duration2.09 Seconds
Package Contents2 Engines, 2 Starters, 4 Plugs
Frequently Asked QuestionsEverything you need to know
What type of rocket builds are suitable for the Estes E16-0 Engine PSII (2)?
The Estes E16-0 Engine PSII (2) is designed for 29mm motor mounts and is ideal for upper-stage configurations in multi-stage rockets or heavy single-stage model rocket launches.
Does the Estes E16-0 Engine PSII (2) include a time delay for parachute deployment?
No, the "0" designation in the Estes E16-0 Engine PSII (2) indicates zero time delay. It is engineered to ignite an upper stage immediately upon burnout and does not contain an ejection charge.
What is the maximum recommended lift weight for the Estes E16-0 Engine PSII (2)?
The Estes E16-0 Engine PSII (2) has a maximum recommended lift weight of 18.0 ounces (509 grams), making it powerful enough to launch heavier model rockets.
What accessories are included in the package of the Estes E16-0 Engine PSII (2)?
Each package of the Estes E16-0 Engine PSII (2) contains two 29mm rocket engines, two launch starters, and four starter plugs.
