E16-6 29mm Engine PSII (2) HAZ
$29.99
Skip to product information
In Store Only
E16-6 29mm Engine PSII (2) HAZ
$29.99
29mm Diameter
Standard Pro Series Size
6-Second Delay
Optimal Ejection Timing Sequence
High Thrust Output
26.44 Newtons Peak Thrust
Pickup In Store Only
High-Altitude Flight PropulsionReliable Mid-Power Model Rocket Engines
The Estes E16-6 Engine PSII is a powerful 29mm diameter mid-power model rocket engine designed for exceptional upper-stage and single-stage performance. Engineered to propel heavier scale model rockets skyward, this engine delivers a total impulse of 33.68 N-sec with a 6-second delay to ensure maximum altitude before recovery deployment. Whether launching single-stage builds or multi-stage rockets, the Estes E16-6 Engine PSII offers reliable ignition and impressive thrust.
Pro Series Rocket PowerPrecision Engineered for High Performance
Take your rocketry launches to new heights with the Estes E16-6 Engine PSII engine pack. Specially engineered for 29mm motor mounts, each model rocket engine features a max thrust of 26.44 Newtons (5.9 lbs) and a thrust duration of 2.09 seconds, capable of lifting models weighing up to 16 ounces. Ideal as an upper stage or single-stage powerplant, this motor pack includes two Estes rocket engines, two reliable starters, and four starter plugs to get you completely ready for launch day. Experience consistent burn times and reliable recovery system deployment on every launch.
Technical SpecificationsEngine Specs and Technical Dimensions
Length
4.5 in. (11.4 cm) (ruler)
Diameter
29 mm
Estimated Weight
2.92 oz. (82.8 g) (scale)
Total Impulse
33.68 N-sec
Time Delay
6 Seconds
Estimated Max Lift Weight
16.0 oz (453 g) (weight)
Max Thrust
26.44 Newtons (5.9 lbs) (zap)
Thrust Duration
2.09 Seconds
Initial Weight
2.92 oz (82.7 g) (scale)
Propellant Weight
1.41 oz (40.0 g) (scale)
Quantity Per Pack
2
Engine FeaturesKey Capabilities and Package Contents
Motor Diameter29mm Pro Series Standard
Flight ApplicationUpper Stage or Single Stage
Time Delay6-Second Ejection Delay
Maximum Lift Weight16 oz / 453 g
Peak Thrust26.44 Newtons / 5.9 lbs
Total Impulse33.68 N-sec
Package Contents2 Engines, 2 Starters, 4 Plugs
Frequently Asked QuestionsEverything you need to know
What rockets are compatible with the Estes E16-6 Engine PSII?
The Estes E16-6 Engine PSII is designed for model rockets equipped with a 29mm motor mount that can accommodate a maximum lift weight of up to 16 ounces.
Can the Estes E16-6 Engine PSII be used as a single stage motor?
Yes, the Estes E16-6 Engine PSII works excellent as both an upper stage engine in multi-stage builds and as a single stage rocket motor.

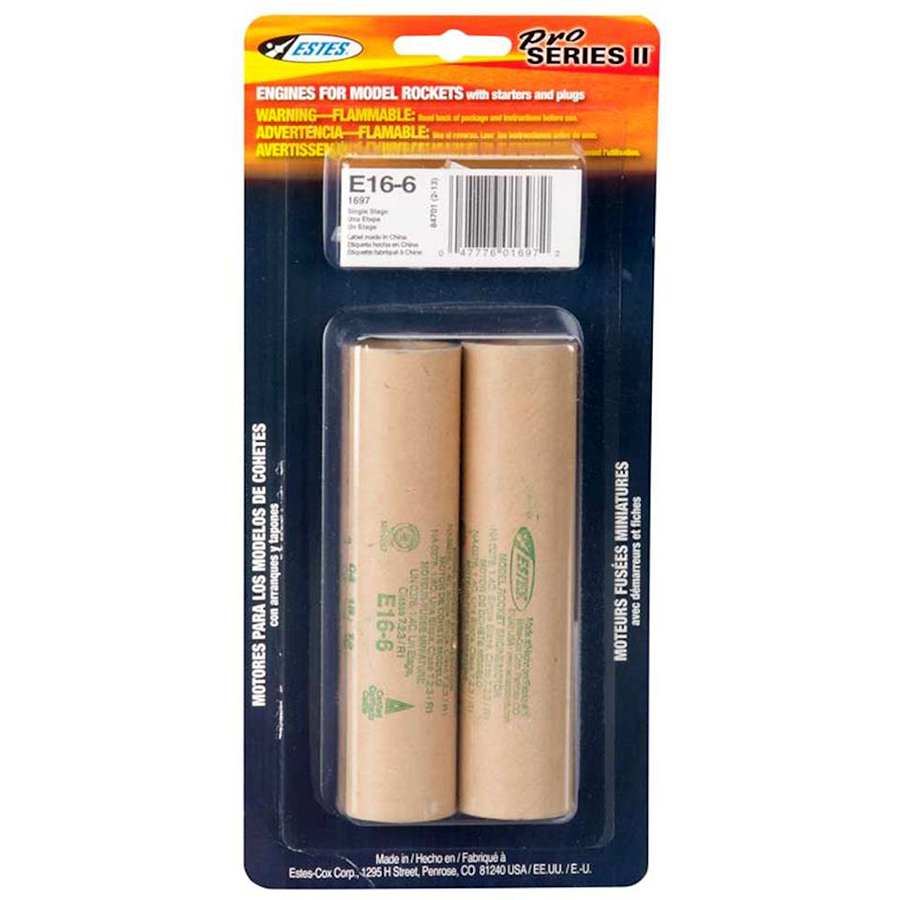

What is included in the Estes E16-6 Engine PSII pack?
Each pack of the Estes E16-6 Engine PSII includes 2 model rocket engines, 2 starters, and 4 starter plugs.
What is the delay time on the Estes E16-6 Engine PSII?
The Estes E16-6 Engine PSII features a 6-second time delay before activating the ejection charge to deploy your rocket's recovery system at apogee.
