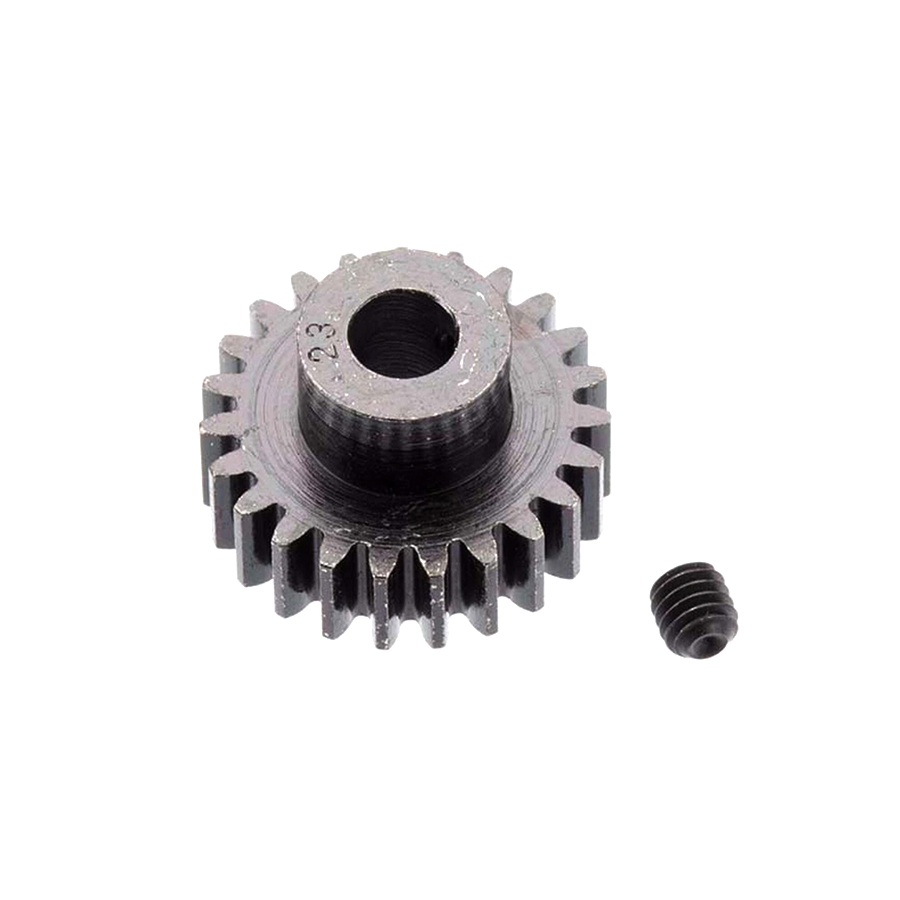

Extra Hard 23 Tooth Blackened Steel 32p Pinion 5mm
$12.50
Skip to product information
Only 3 Left!
Extra Hard 23 Tooth Blackened Steel 32p Pinion 5mm
$12.50
High Carbon Steel
Heat treated for extreme durability
23 Tooth Count
Precision machined 32 pitch profile
5mm Bore Fit
Designed for heavy duty brushless
In Stock
Maximum Drivetrain PowerBuilt for extreme RC performance
Upgrade your high-power RC car drivetrain with the Extra Hard 23 Tooth Blackened Steel 32p Pinion, 5mm. Designed to withstand the extreme torque of modern brushless motors, this precision-machined pinion gear ensures optimal gear mesh and long-lasting durability. It is the ultimate upgrade for heavy-duty off-road and street RC applications.
Precision Engineering StandardUnmatched strength and smooth operation
Crafted from heat-treated high-carbon steel, the Extra Hard 23 Tooth Blackened Steel 32p Pinion, 5mm offers superior surface hardness and reduced friction, making it ideal for pairing with metal spur gears. Designed specifically for motors featuring a 5mm motor shaft, such as those found in popular Traxxas, Associated, and HPI models, this pinion gear incorporates high natural lubricity to minimize wear under heavy loads. Each gear is stamped with its tooth count for quick identification and includes a heavy-duty 4mm set screw to secure it tightly during intense driving sessions. Additionally, its 32 pitch profile is cross-compatible with 0.8 module gears without compromising performance.
Technical Gear SpecificationsDetailed physical and compatibility stats
Part Type
Pinion Gear
Tooth Count
23 Tooth
Gear Pitch
32-Pitch / 0.8 Module
Material
Heat-Treated High Carbon Steel
Shaft Size
5mm
Set Screw Size
4mm
Placement/Position
Motor Shaft
Compatible Vehicles
Traxxas, Associated, HPI, and custom 5mm shaft RC models
Key Performance AdvantagesEngineered features for peak output
High Carbon ConstructionHeat-treated steel for extra surface hardness
Precision MachiningStamped tooth count for easy identification
5mm Shaft FitCompatible with heavy duty RC brushless motors
High LubricityNaturally low adhesion steel reduces wear against spur gears
0.8 Module CompatibilityWorks seamlessly with both 32P and 0.8M spur gears
Set Screw IncludedShips with one 4mm set screw for secure installation
Frequently Asked QuestionsEverything you need to know
Will the Extra Hard 23 Tooth Blackened Steel 32p Pinion, 5mm fit a 1/8 inch motor shaft?
To install the Extra Hard 23 Tooth Blackened Steel 32p Pinion, 5mm on a 1/8 inch motor shaft, you will need a 5mm to 1/8 inch reducer sleeve (such as RRP #1200).
Can I run the Extra Hard 23 Tooth Blackened Steel 32p Pinion, 5mm with a 0.8 module spur gear?
Yes, 32 pitch and 0.8 module gears can be used together interchangeably without causing adverse noise or gear wear on the Extra Hard 23 Tooth Blackened Steel 32p Pinion, 5mm setup.
What set screw size and allen wrench are needed for the Extra Hard 23 Tooth Blackened Steel 32p Pinion, 5mm?
The Extra Hard 23 Tooth Blackened Steel 32p Pinion, 5mm includes a 4mm set screw, which requires a standard 2mm allen wrench (not included) for installation.
