Extra Hard 5mm Bore .8 Module(31.75P) Pinion 14T
$12.50
Skip to product information
Only 1 Left!

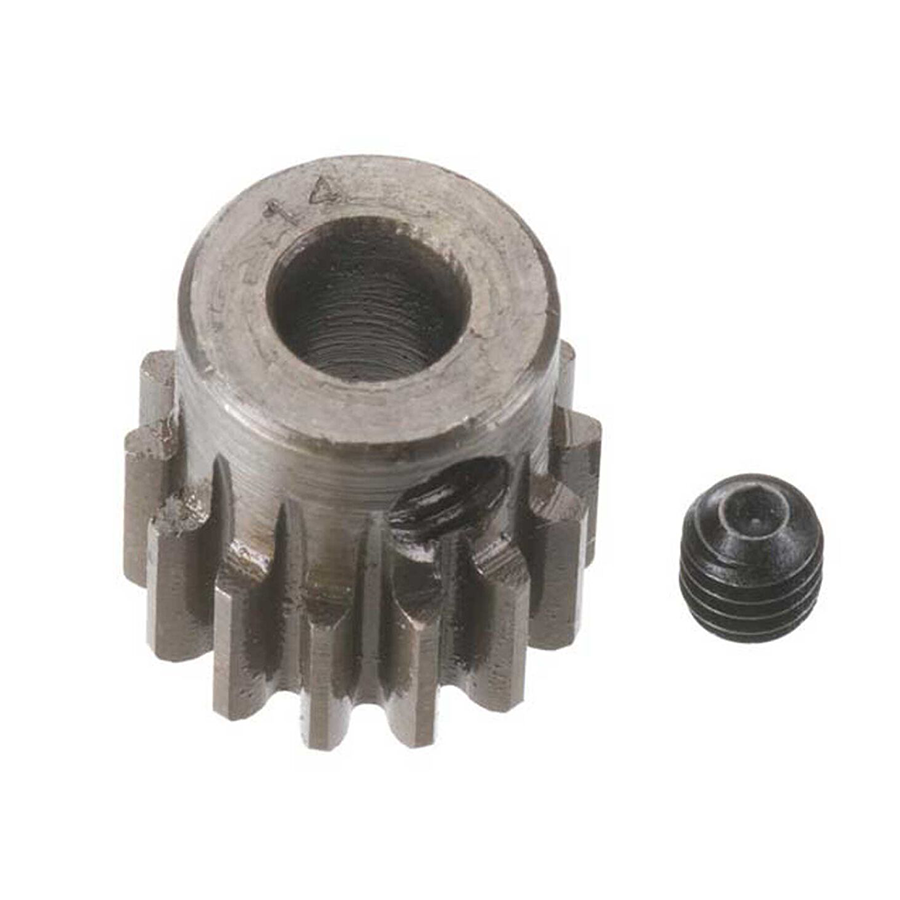

Extra Hard 5mm Bore .8 Module(31.75P) Pinion 14T
$12.50
High Carbon Steel
Built for extreme brushless power
5mm Bore Fit
Precision fit for brushless motors
0.8 Module Pitch
Fully compatible with 32P gears
In Stock
Durable Motor PowerHeavy duty gearing for RC cars
Upgrade your RC car motor setup with the heavy-duty Extra Hard 5mm Bore .8 Module (31.75P) Pinion Gear, 14T. Engineered from high-carbon steel, this precision-machined pinion provides maximum durability and efficient power transfer for high-performance brushless systems. Perfect for demanding off-road bashers and racers using a 5mm motor shaft.
Precision Gearing PerformanceEngineered for longevity and smooth power transfer
The Extra Hard 5mm Bore .8 Module (31.75P) Pinion Gear, 14T is designed to withstand the extreme torque of modern high-performance brushless motors. Featuring precision-machined construction and stamped tooth counts for instant identification, this 14-tooth pinion includes a secure 4mm set screw to lock onto your 5mm motor shaft. Note that 0.8 module gears are fully intercompatible with standard 32-pitch spur gears without causing adverse wear or excessive gear noise, offering a seamless gear ratio tuning option for your scale model RC vehicle.
Technical SpecsExact dimensions and compatibility parameters
Compatible Vehicles
Brushless RC Cars & Trucks
Part Type
Pinion Gear
Tooth Count
14T (hash)
Gear Pitch
0.8 Module / 32 Pitch
Bore Size
5mm
Material
Extra Hard GEN3 High Carbon Steel
Set Screw Size
4mm
Required Tool
2mm Allen Wrench
Key FeaturesBuilt to handle extreme brushless torque
MaterialPrecision machined extra hard GEN3 high-carbon steel
Tooth StampingStamped tooth count for easy gear identification (hash)
Set ScrewIncludes robust 4mm set screw for secure shaft attachment
Shaft CompatibilityDirect fit for 5mm motor shafts
Pitch MeshWorks seamlessly with 32P and 0.8 module spur gears
Reducer SupportCompatible with 1/8 inch shafts using a reducer sleeve
Frequently Asked QuestionsEverything you need to know
Will the Extra Hard 5mm Bore .8 Module (31.75P) Pinion Gear, 14T fit a 1/8 inch motor shaft?
It is designed directly for 5mm motor shafts, but it can fit a 1/8 inch motor shaft if you use a 5mm to 1/8 inch reducer sleeve adapter.
Can I run the Extra Hard 5mm Bore .8 Module (31.75P) Pinion Gear, 14T with standard 32 pitch spur gears?
Yes, 0.8 module gears mesh cleanly with 32 pitch spur gears with no adverse effects such as increased gear noise or accelerated wear.
What tool is needed to secure the Extra Hard 5mm Bore .8 Module (31.75P) Pinion Gear, 14T?
A standard 2mm allen wrench is required to tighten the included 4mm set screw onto your motor shaft.
