60mm Aperture Fast f5 Optical System
Petzval Quad Design Flat Field No Spacing
FPL-53 Glass Color Free APO Performance
Full Frame Ready Huge 44mm Image Circle
Precision Focuser Dual Speed 2.5 Inch
Padded Soft Case Die Cut Foam Protection

Out of Stock
Part #: G60Q-05-01
SKU: 100025966
MFG: Starfield Optics
45+ YEARS IN BUSINESSServing since 1978
REPAIR SERVICESRC Cars, Planes, Boats, Drones & More
AUTHORIZED DEALERGenuine products from top brands
FAST SHIPPINGNext day shipping anywhere in the country.
EASY RETURNSIn-stock items returnable within 30 days
Starlight Imaging ExcellenceCompact Refactor for Deep Sky Astrophotography

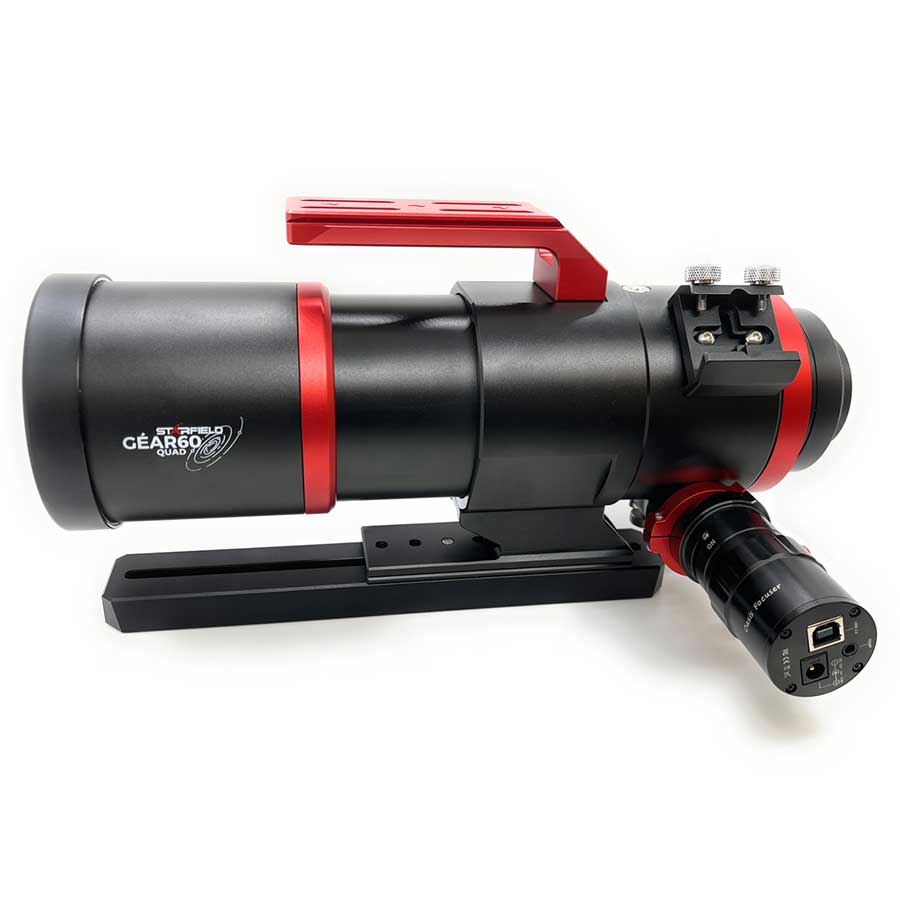

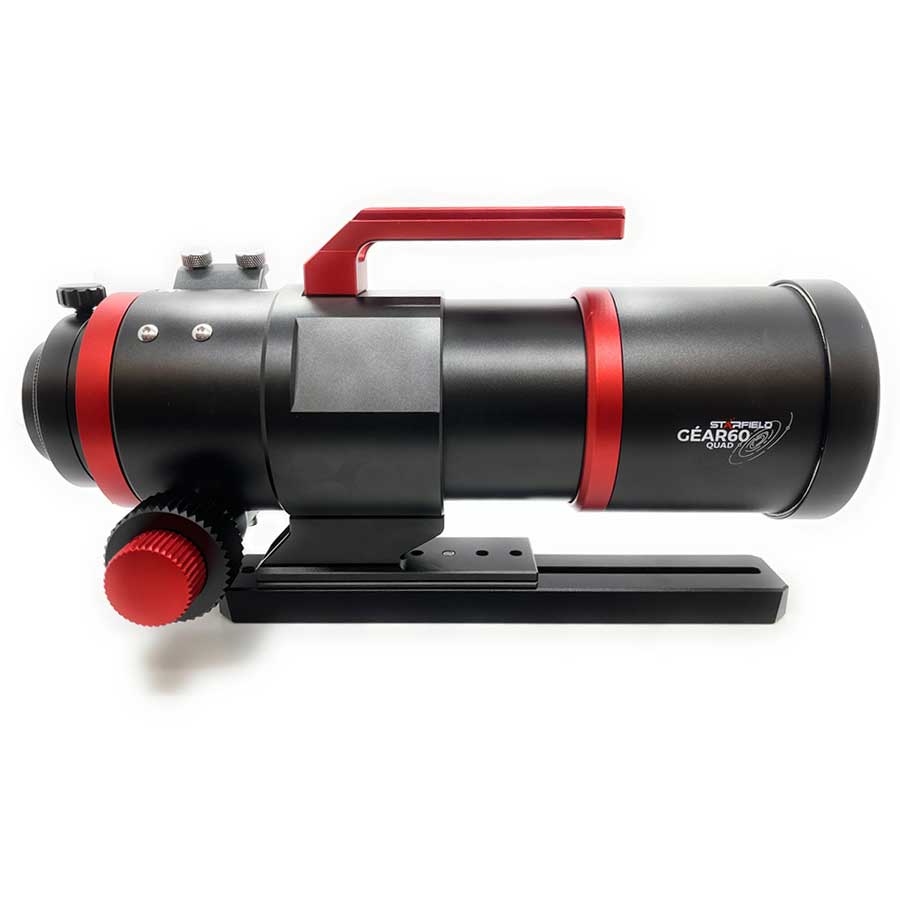

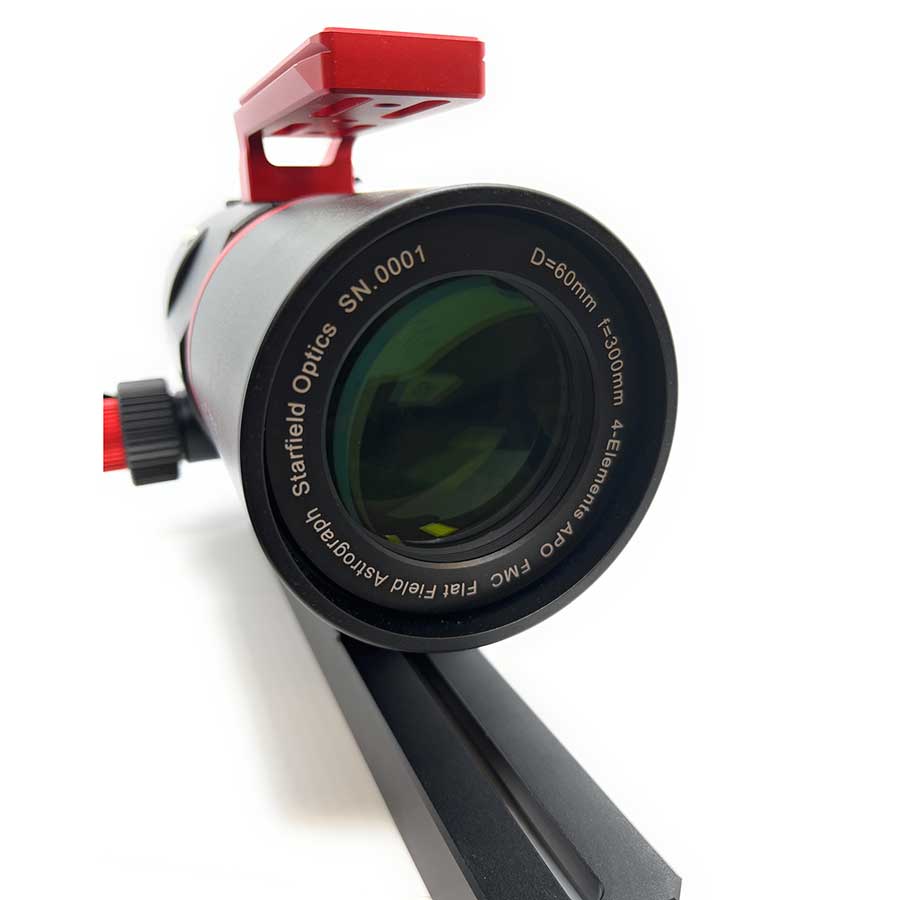

The Starfield Gear series 60mm Quad f/5 Astrograph is a high-performance Petzval APO telescope engineered to elevate your wide-field deep sky astrophotography. Featuring a premium FPL-53 glass lens and an integrated optical corrector, this fast f/5 refractor telescope delivers sharp, color-free star profiles across a generous 44mm image circle.

Precision Optics Meets Portable PowerEngineered for Flawless Astronomical Imaging

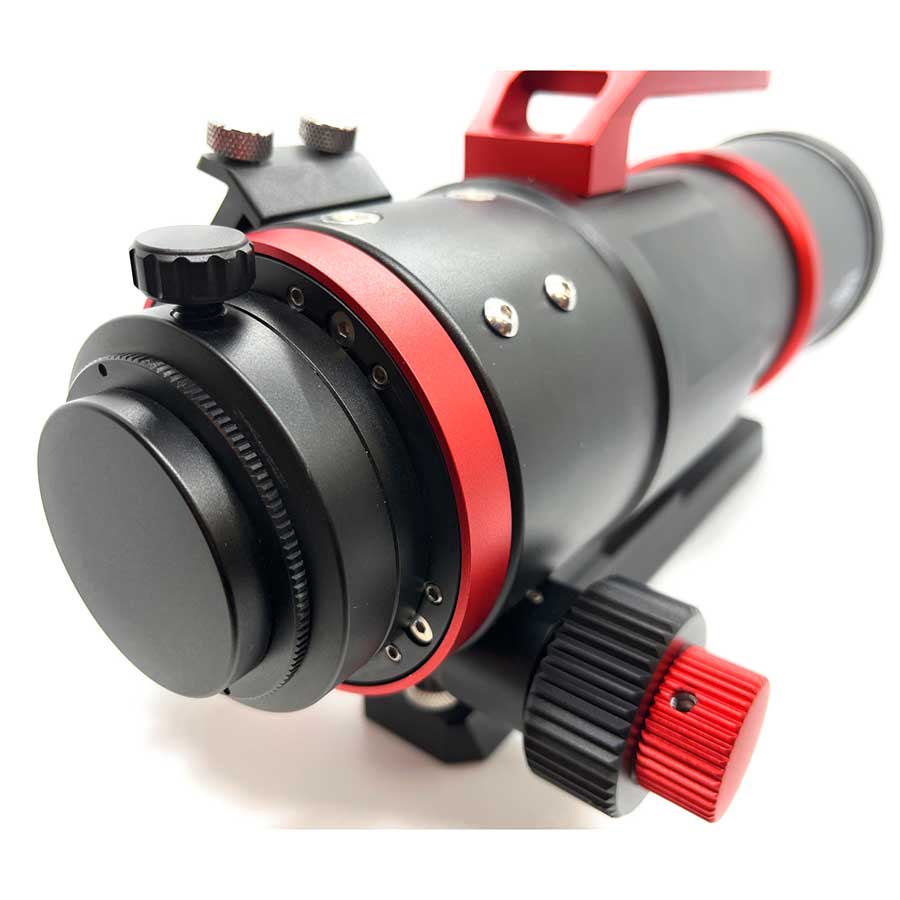

Designed for astrophotographers demanding top-tier optical and mechanical build quality, the Starfield Gear series 60mm Quad f/5 Astrograph eliminates the hassle of dialing in complex backfocus spacing. Its integrated 2-element field corrector ensures flat field performance automatically when in focus, making it perfectly compatible with full-frame dedicated astronomy cameras. The robust 2.5-inch dual-speed rack and pinion focuser includes a 360-degree camera angle rotator, tilt adjustment plate, and internal 2-inch filter holder, giving you complete creative control over target framing. Complete with a top carry handle, long dovetail plate, and a foam-padded soft case, the Starfield 60mm Quad Astrograph is ready to travel to dark sky sites or mount in your home observatory.

Technical SpecificationsDetailed Telescope Mechanical Data
Aperture 60mm
Optical Design Quadruplet Petzval APO
Focal Length 300mm
Focal Ratio f/5
Optical Element 2-Element FPL-53 APO + 2-Element Corrector
Image Circle 44mm Full Frame
Working Distance 41mm to 61mm from M48 thread
Focuser 2.5 Inch Dual-Speed Rack & Pinion 1:10
Rotator 360 Degree Manual Camera Angle Adjuster
Tilt Adjuster Precise Camera Tilter Mechanism
Filter Holder Integrated 2 Inch Filter Thread
Accessories Included Soft Case, Handle, Long Dovetail Plate
Motor Focus Compatibility ZWO EAF and Pegasus Astro Compatible
Advanced Optical CapabilitiesDesigned for High Performance Imaging
Petzval Optical DesignBuilt-in corrector eliminates complicated backfocus spacing
FPL-53 APO OpticsPremium dispersion glass prevents chromatic aberration
Full-Frame CompatibilityMassive 44mm image circle illuminates 36x24mm sensors
Heavy-Duty Focuser2.5-inch rack and pinion drawtube with ball bearing support
Camera Angle AdjusterSmooth 360-degree manual rotator for accurate image framing
Integrated Tilt MechanismFine-tune corner sharpness to compensate for sensor tilt
Built-In Filter HolderAccepts standard mounted 2-inch filters directly in the light path
Travel-Ready CaseDie-cut foam padded soft case holds scope, camera, and focus motor
Frequently Asked QuestionsEverything you need to know
Do I need to calculate exact backfocus for the Starfield Gear series 60mm Quad f/5 Astrograph?

No, the Petzval design of the Starfield Gear series 60mm Quad f/5 Astrograph eliminates traditional backfocus requirements. Simply achieve sharp focus with your camera anywhere within the 41-61mm working distance from the M48 thread.

Is the Starfield Gear series 60mm Quad f/5 Astrograph suitable for full-frame cameras?

Yes, the Starfield Gear series 60mm Quad f/5 Astrograph produces a 44mm illuminated image circle, making it fully compatible with 36x24mm full-frame astro-imaging sensors without severe vignetting.

Can I attach an automatic motor focuser to the Starfield Gear series 60mm Quad f/5 Astrograph?

Yes, the 2.5-inch focuser on the Starfield Gear series 60mm Quad f/5 Astrograph is designed to easily integrate popular electronic focus motors like the ZWO EAF and Pegasus Astro models.

How do I mount filters to the Starfield Gear series 60mm Quad f/5 Astrograph?

The Starfield Gear series 60mm Quad f/5 Astrograph includes an integrated 2-inch filter holder inside the focuser assembly, allowing standard threaded 2-inch astronomy filters to sit directly in front of the camera sensor.
