HPI Racing Stage-D10 Creator Edition: HPI161000
$149.99
1/10 RWD Drift Chassis
Fully assembled, no electronics
100+ Motor Positions
Over 200 drivetrain setups
3 or 4 Gear Gearbox
2.6 internal final drive ratio
Adjustable Ackermann
Four servo mounting positions
Adjustable Wheelbase
246mm to 264mm
Magnetic Body Mounts
Posts and screw-locks included
In Stock
Stage-D10 Creator Edition1/10 RWD drift chassis
The HPI Racing Stage-D10 Creator Edition (HPI161000) is a fully assembled 1/10 scale rear-wheel-drive RC drift chassis. It comes without a body, wheels, tires or electronics, so you add your own 190mm or 200mm body, radio, servo, speed control, gyro, motor, 2S LiPo battery and charger. The chassis offers more than 100 motor positions and a wheelbase that adjusts from 246mm to 264mm.
HPI Stage D10 Startup Guide.
Watch Overview
HPI Stage D10 Startup Guide.
HPI Racing Stage-D10Product Overview
The Stage-D10 Creator Edition is the Stage-D10 drift chassis on its own, built and ready for your finishing touches. More than 100 rear motor positions and a 3 or 4 gear transmission give over 200 drivetrain configurations with a 2.6 internal final drive ratio.
Adjustable Ackermann, four servo positions, threaded oil-filled coilover shocks and a 246mm to 264mm wheelbase make it easy to tune, and three body mounting systems are included: magnets, screw-locks and conventional posts.
Technical SpecificationsDimensions, drivetrain and setup range
Part Number
HPI161000
Scale
1/10
Vehicle Type
Drift car chassis
Completion Level
Assembled chassis, no electronics, body, wheels or tires
Drivetrain
2WD rear-wheel drive
Internal Final Drive Ratio
2.6
Gearbox
3 or 4 gear, parts included
Differential
Sealed composite geared rear
Motor Positions
Over 100
Length
390 mm
Width
190 mm
Height
75 mm
Wheelbase
255 mm, adjustable 246 to 264 mm
Body Fit
1/10 scale, 190 or 200 mm wide
Shocks
Threaded oil-filled coilover
Bearings
Metal-shielded ball bearings
Battery
2S LiPo shorty pack, sold separately
Key FeaturesA drift chassis you finish your way

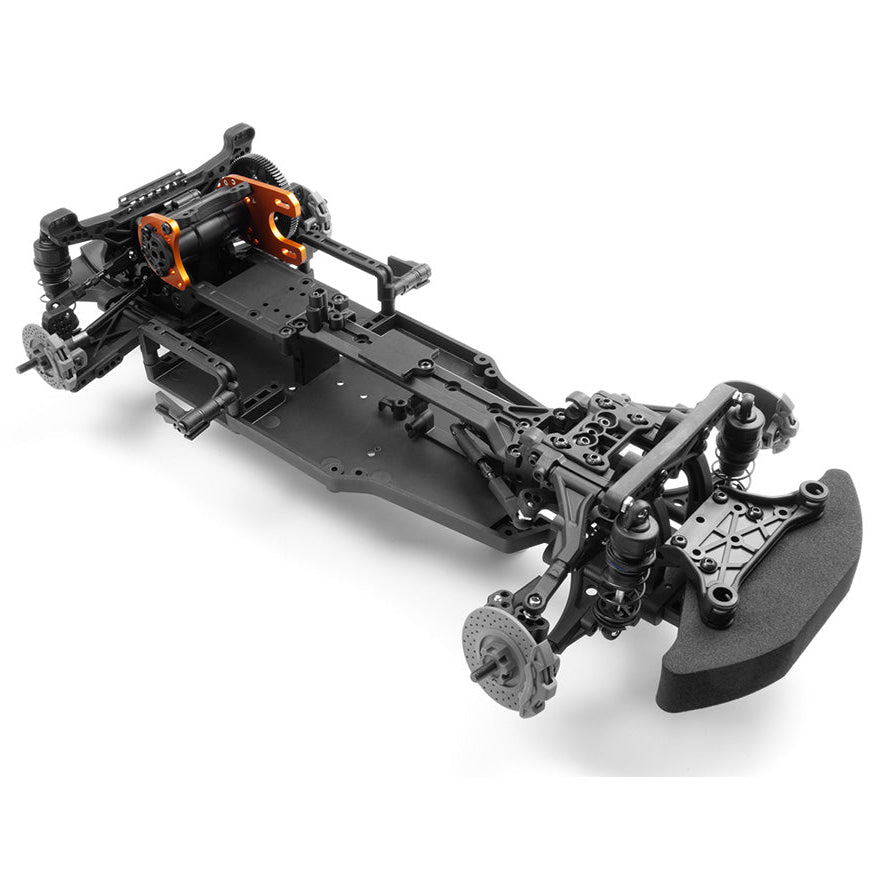

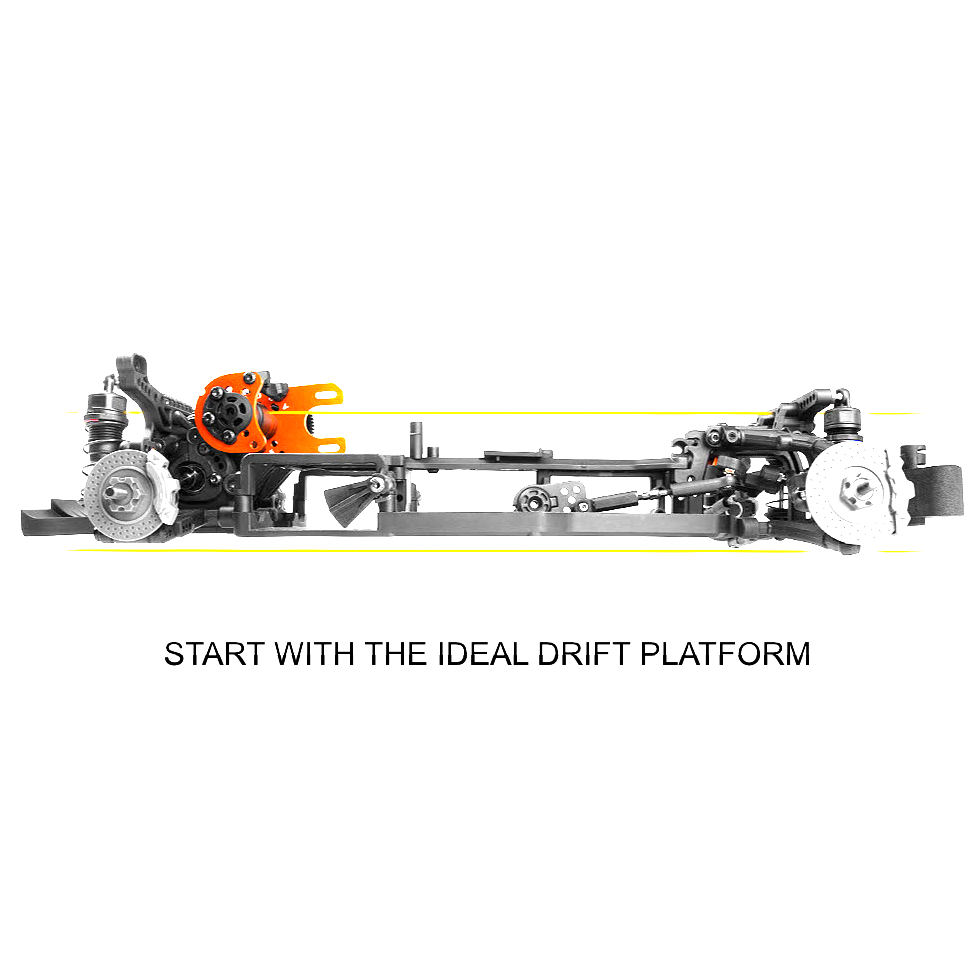

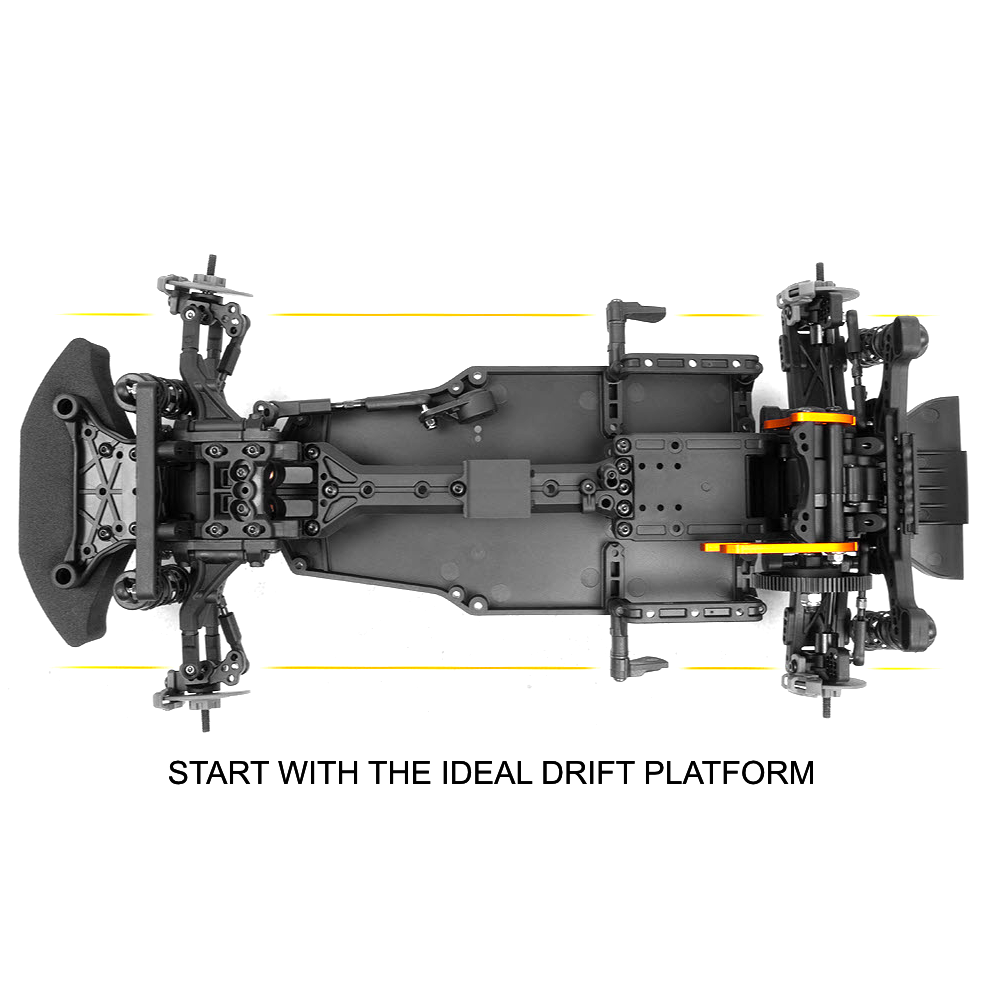

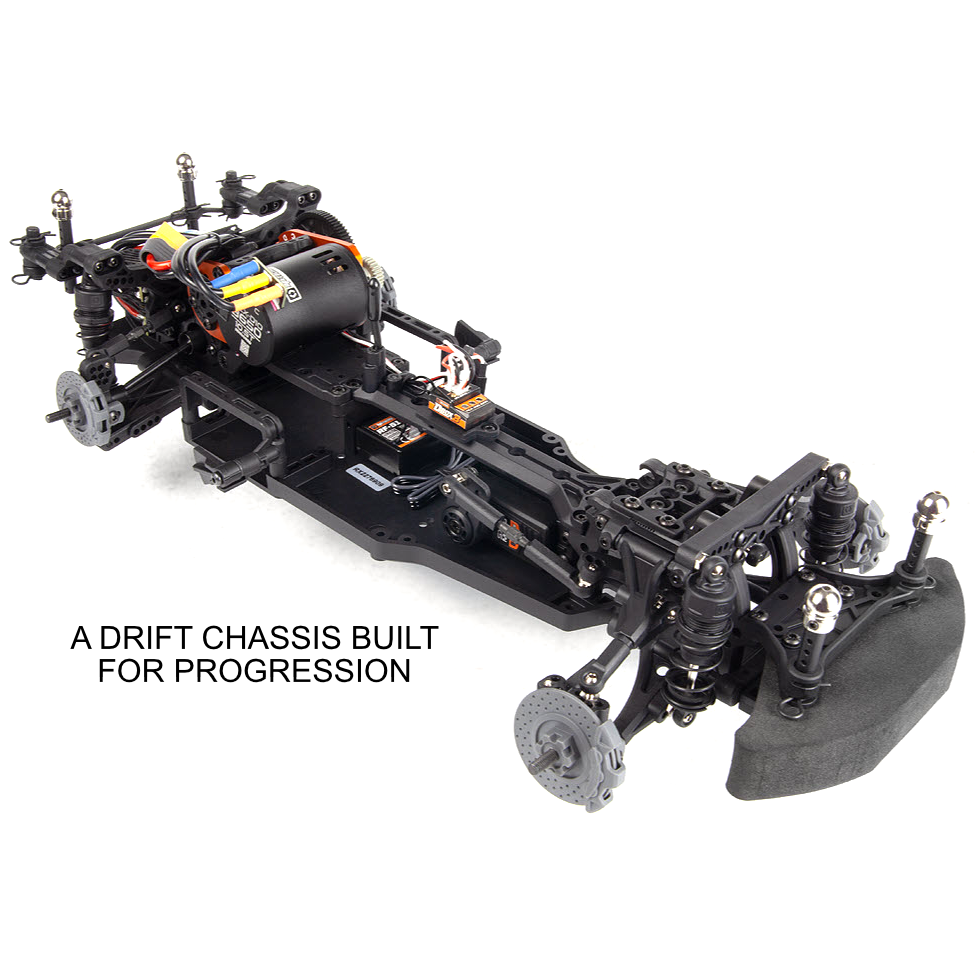

Fully Built Drift ChassisThe Stage-D10 Creator Edition arrives as a completely assembled 1/10 scale rear-wheel-drive drift chassis, ready for your own body, wheels, tires and electronics.

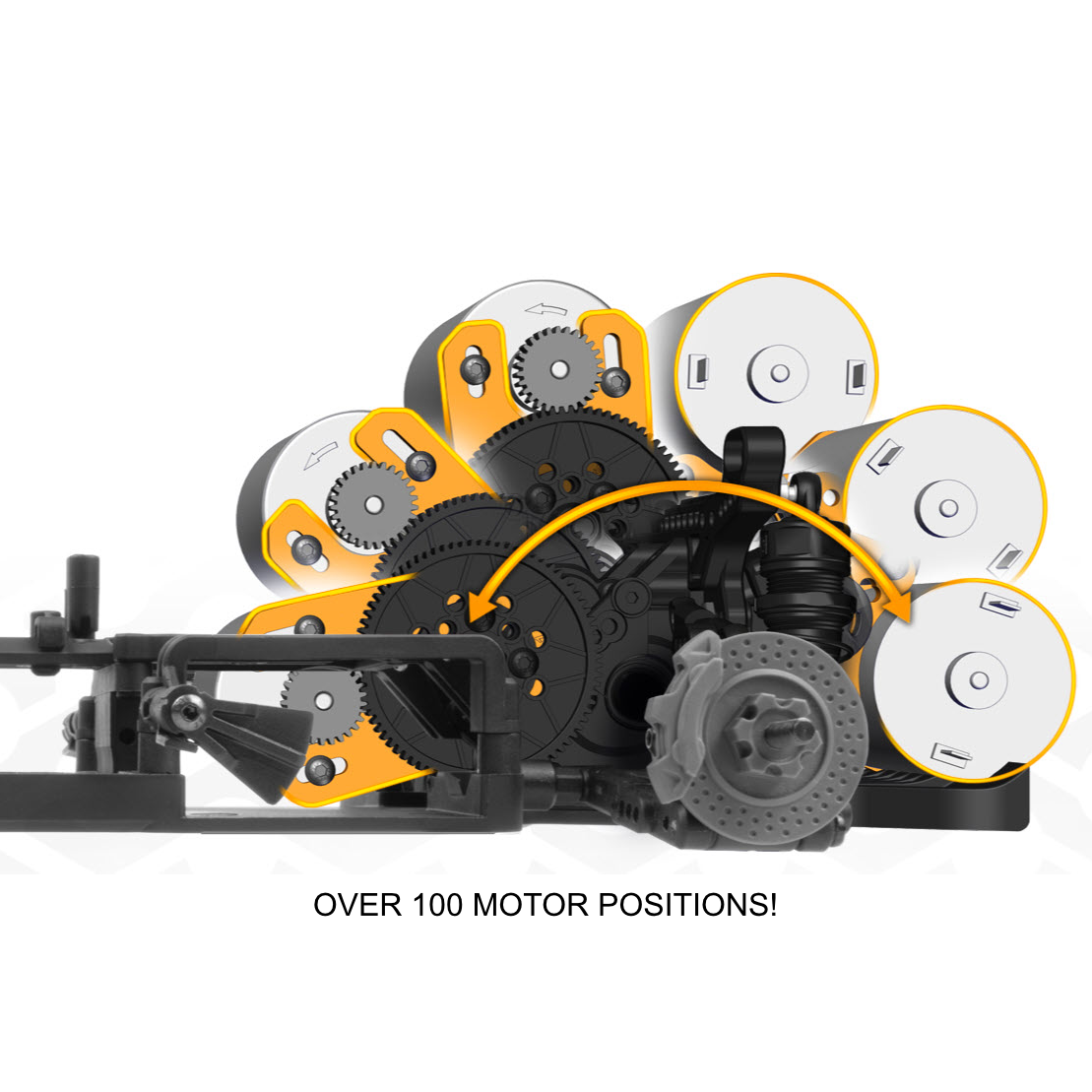

Over 100 Motor PositionsMore than 100 rear motor positions combine with the gearbox options for over 200 possible drivetrain configurations.
3 or 4 Gear TransmissionThe gearbox builds with 3 or 4 gears using the included parts, the motor direction is reversible and the internal final drive ratio is 2.6.
Sealed Rear DifferentialA sealed composite geared rear differential drives the rear wheels.

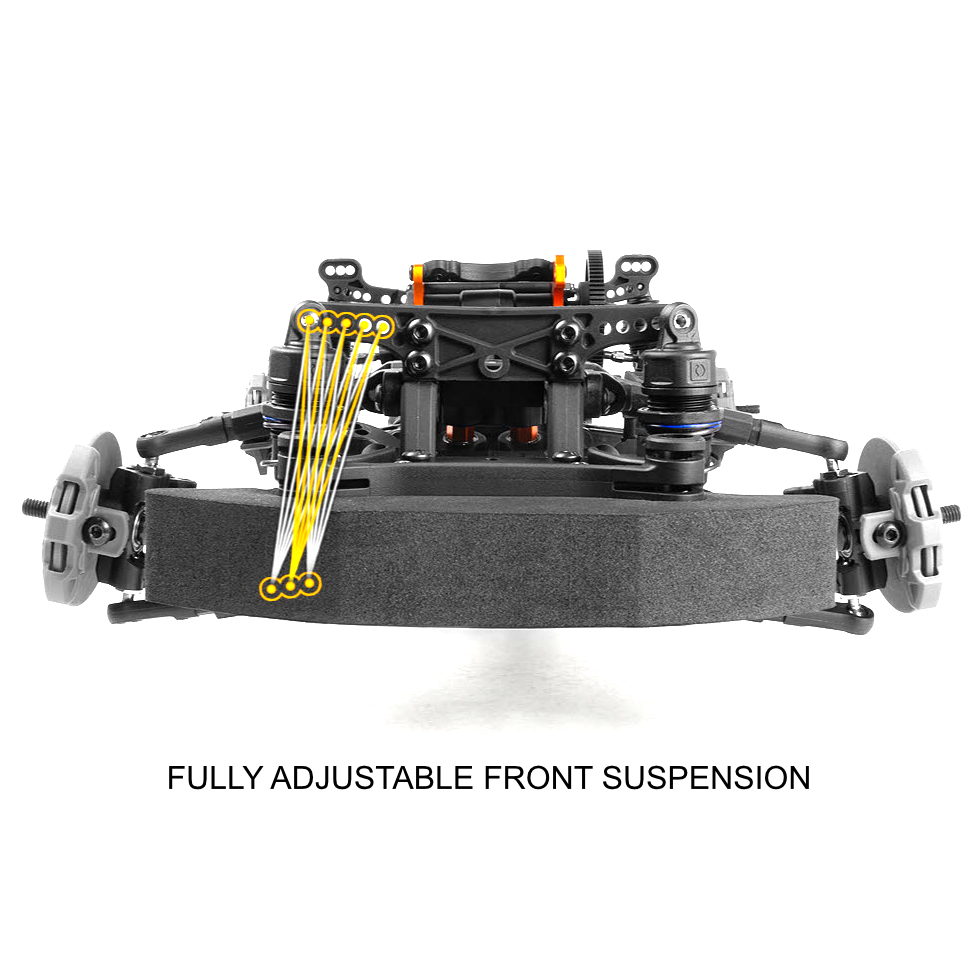

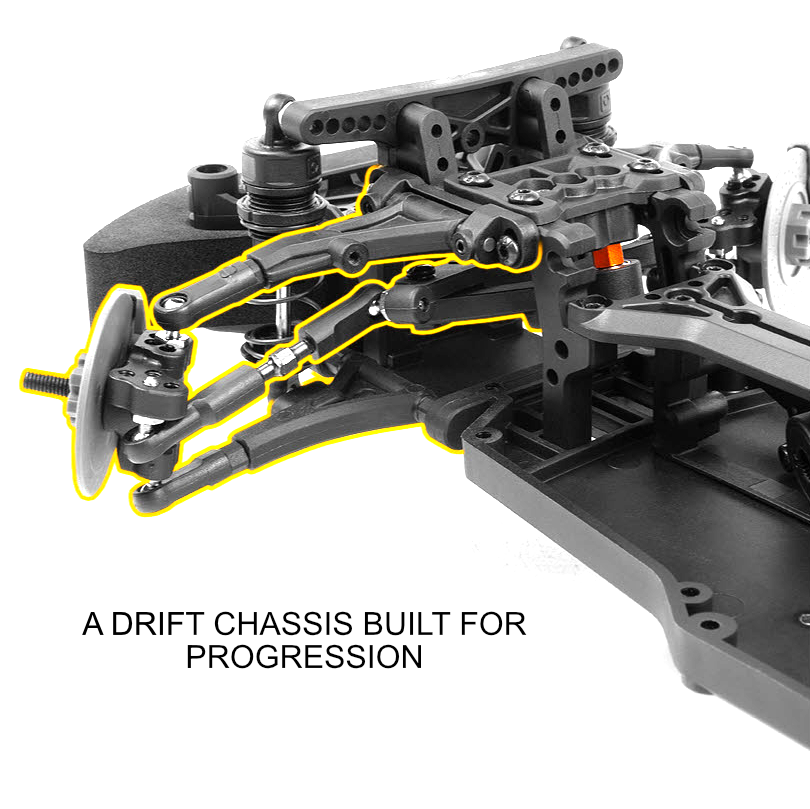

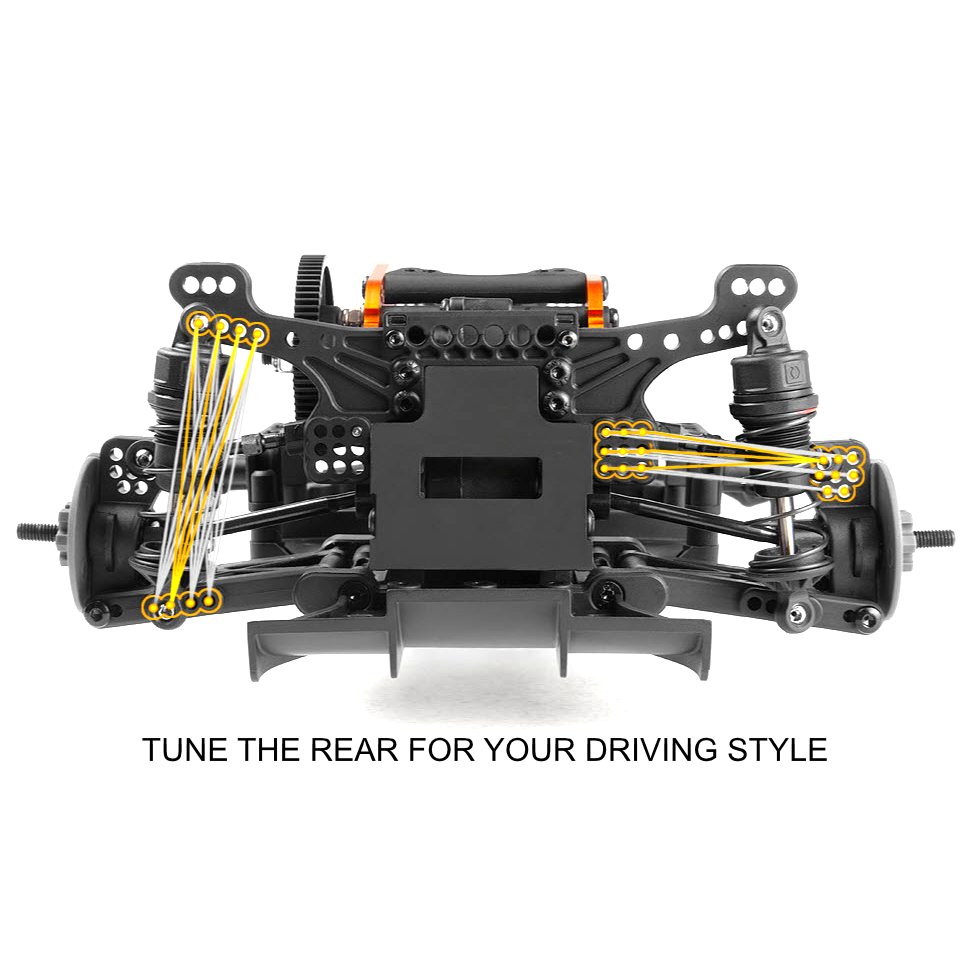

Adjustable SuspensionFront and rear camber links, toe block options and multiple roll center and camber gain positions are adjustable, with mounting points for optional sway bars.
Threaded Coilover ShocksThreaded oil-filled coilover shocks come with alternative pistons, and the rear shocks use a 2mm longer ball link and a stiffer spring than the front.

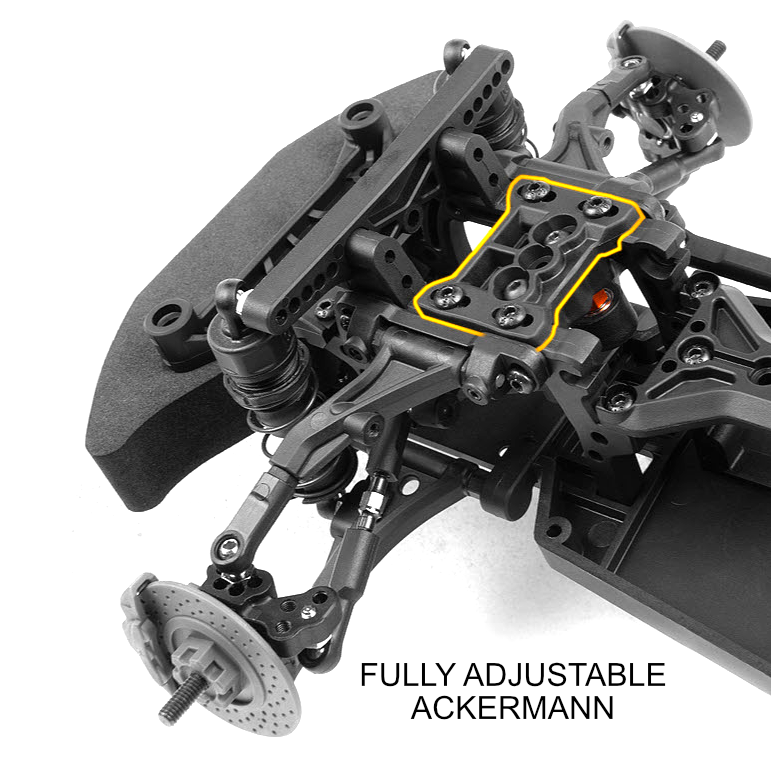

Fully Adjustable AckermannAckermann adjusts forward and backward and up and down, the servo mounts in four positions, and both a servo saver and a solid servo arm are included.

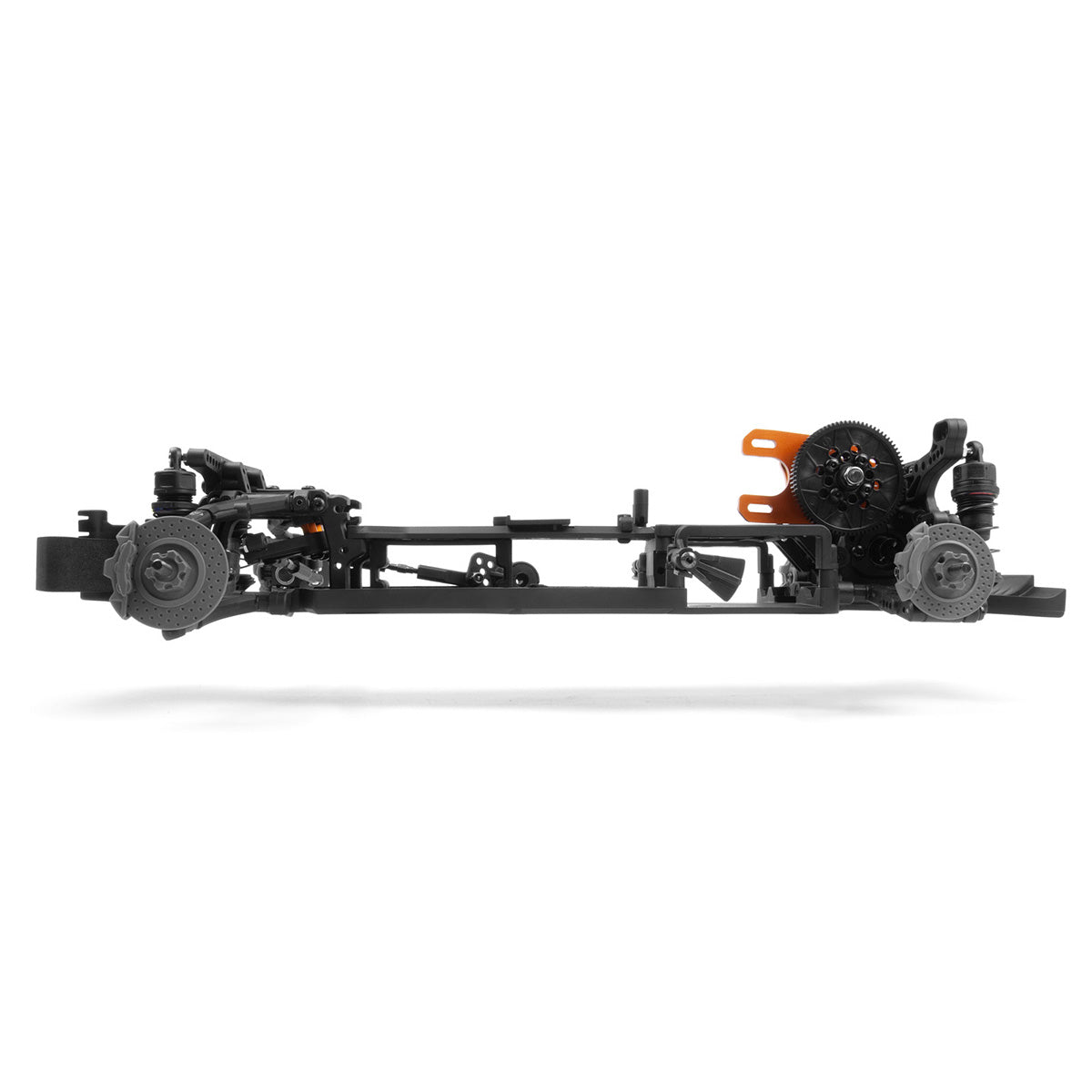

Adjustable WheelbaseThe wheelbase adjusts from 246mm to 264mm around the standard 255mm to suit different bodies.

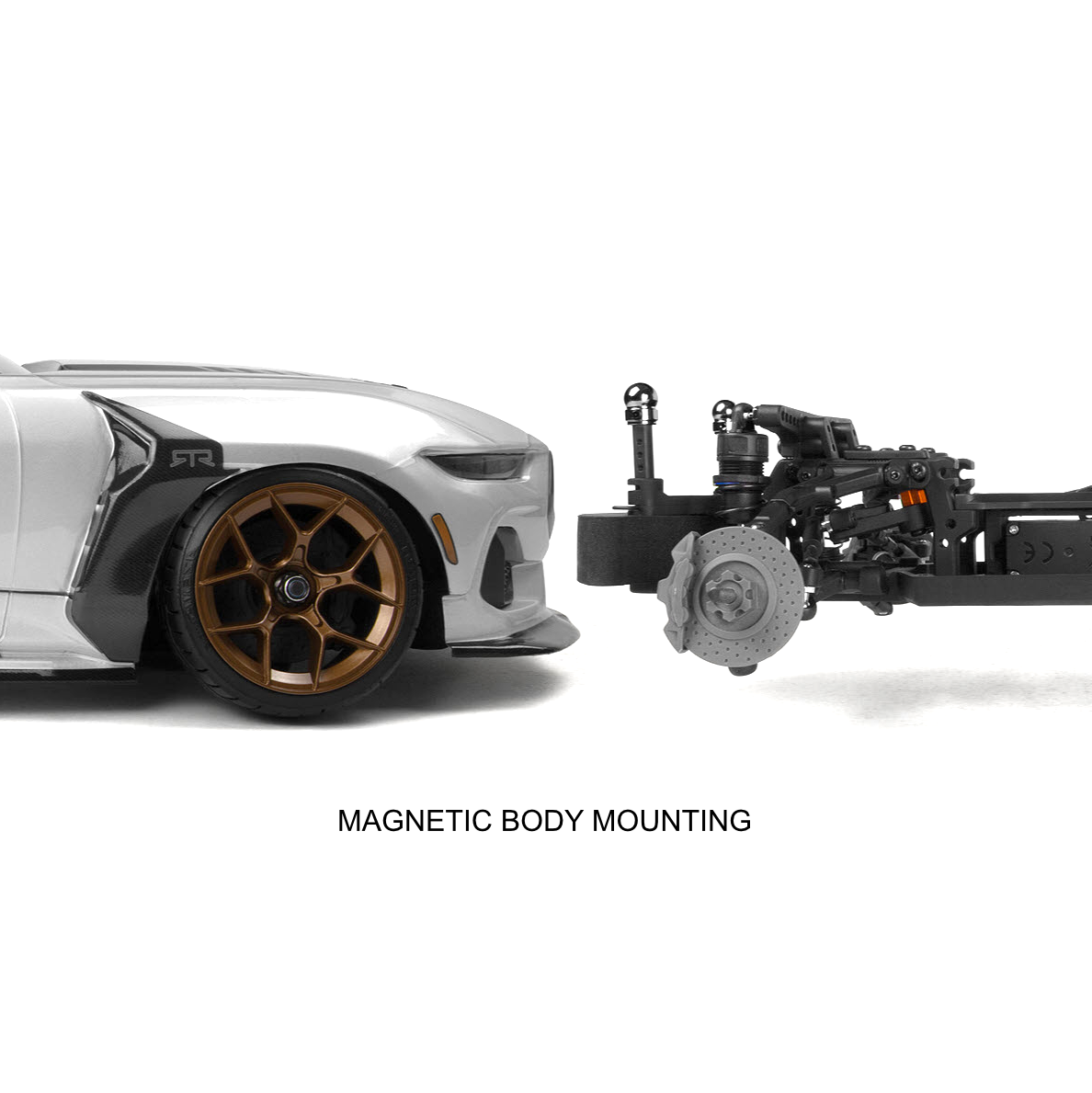

Three Body Mounting OptionsHPI magnetic mounts with N52 magnets and 10mm steel balls, a conical screw-lock system and conventional body posts are all included.

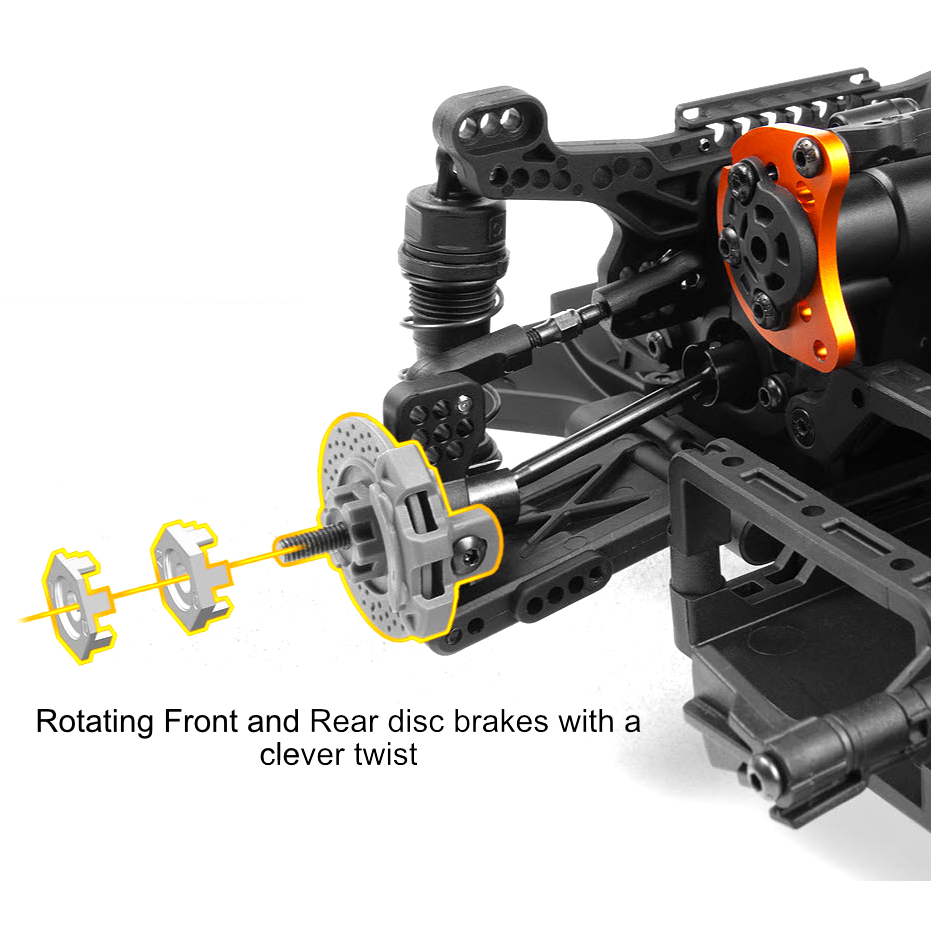

Scale Brake DetailsFront and rear rotating hex-adaptor brake discs have adjustable and removable scale calipers, and click-in spacers widen the wheel hexes by 1mm or 2mm.
Flexible Battery PlacementShorty battery packs mount in a mid or rear position to change the weight balance.
Ball Bearings ThroughoutMetal-shielded ball bearings are fitted throughout the chassis.
In The BoxEverything that comes in the box.
1X
Stage-D10 Creator Edition Assembled Drift Chassis
1X
Magnetic Body Mount Set
1X
Conical Screw-Lock Body Mount Set
1X
Body Post Set
1X
Gearbox Parts for 3 or 4 Gear Setup
1X
Alternative Shock Piston Set
1X
Servo Saver and Solid Servo Arm
1X
Motor Fan Mounting Bar
Frequently Asked QuestionsEverything you need to know
What comes with the HPI Stage-D10 Creator Edition HPI161000?
The HPI161000 is a fully assembled Stage-D10 drift chassis with magnetic body mounts, a screw-lock mount system, body posts, alternative shock pistons, a servo saver and solid servo arm, a motor fan mounting bar and the parts for a 3 or 4 gear gearbox. No body, wheels, tires or electronics are included.
What do I need to finish the Stage-D10 Creator Edition?
The HPI Racing Stage-D10 Creator Edition HPI161000 needs a 1/10 scale 190mm or 200mm body, touring car wheels and drift tires, a 2 to 4 channel radio, steering servo, speed control, drift gyro, motor with pinion gear, a 2S LiPo battery, a charger and a LiPo charge case.
What size body fits the HPI Stage-D10 Creator Edition?
The Stage-D10 Creator Edition HPI161000 takes a 1/10 scale car body that is 190mm or 200mm wide. Its wheelbase adjusts from 246mm to 264mm, with 255mm as the standard setting, and magnetic mounts, screw-locks and body posts are included.
Is the Stage-D10 Creator Edition rear-wheel drive?
Yes. The HPI Racing Stage-D10 Creator Edition HPI161000 is a 2WD rear-wheel-drive drift chassis with a sealed composite geared rear differential and a 2.6 internal final drive ratio.
How is the Creator Edition different from the Stage-D10 ready-to-run cars?
The Creator Edition HPI161000 is the assembled Stage-D10 chassis only. The ready-to-run Stage-D10 cars add a painted Ford Mustang body, wheels and tires, a motor, speed control, servo, gyro and a TF-51 radio.
