Hitec Standard High Voltage Deluxe Servo (HS-430BH)
$17.99
Skip to product information
Hitec Standard High Voltage Deluxe Servo (HS-430BH)
$17.99
High Voltage
2S LiPo Battery Compatible
Dual Bearing
Smooth and Precise Operation
Fast Speed
0.14 sec at 7.4V
Engineered Actuator PerformanceReliable Standard Control Servo Solution

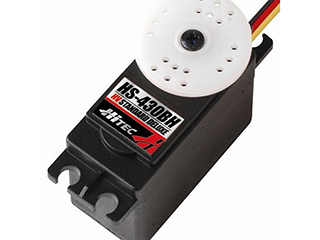

The Hitec HS-430BH Standard Deluxe High Voltage Servo delivers dependable performance and solid torque for RC aircraft, surface vehicles, and boats. Designed with high voltage capability, this analog servo operates seamlessly on 2S LiPo or 6-cell NiMH power without needing a voltage regulator. Upgrade your model's steering and throttle control with Hitec's proven durability and precision.
Versatile Control for Your RC FleetExceptional Power and Dual Bearing Precision
The Hitec HS-430BH Standard Deluxe High Voltage Servo is an ideal upgrade or replacement choice for standard-sized servo applications. Capable of delivering up to 69 oz-in of torque and rapid 0.14-second transit times at 7.4V, it provides responsive handling across a broad spectrum of RC cars, glow or electric airplanes, and RC boats. Equipped with a durable 3-pole ferrite motor and smooth dual ball bearings, the Hitec HS-430BH ensures precise feedback via its direct potentiometer drive. Complete with a full set of servo horns and mounting hardware, this reliable standard servo is ready for effortless installation into your favorite hobby vehicle.
Precision Power SpecsComplete Performance and Physical Metrics
Compatible Vehicles
.20-.60 Airplanes, 30 Class Helicopters, Cars, Trucks, Boats
Part Type
Standard High Voltage Servo
Servo Type
Analog
Size Category
Standard
Operating Voltage
6.0V - 7.4V
Motor Type
3-pole ferrite
Gear Material
Plastic
Bearing
Dual / Single Ball Bearing
Speed (6.0V)
0.16 sec/60°
Speed (7.4V)
0.14 sec/60°
Torque (6.0V)
57 oz-in / 4.1 kg-cm (force)
Torque (7.4V)
69 oz-in / 5.0 kg-cm (force)
Dimensions
1.59 x 0.77 x 1.44 in / 40.6 x 19.8 x 36.6 mm
Weight
1.60 oz / 45.5 g
Designed for ReliabilityKey Capabilities and Included Hardware
High Voltage CompatibleOperates directly on 2-cell LiPo (7.4V) and 6-cell NiMH battery packs (zap)
Smooth OperationFeatures dual ball bearing equipped output shaft for reduced friction
Direct Potentiometer DriveDelivers accurate position feedback and responsive control
Wide Application RangePerfect for aircraft throttle/control surfaces, helicopter control, and car steering
Included Servo HornsPackage includes round horn, 4-point horns, double arm horn, and single arm horn
Mounting Hardware IncludedComes complete with all necessary screws, eyelets, and grommets for easy installation (hardware)
Frequently Asked QuestionsEverything you need to know
What battery voltages does the Hitec HS-430BH Standard Deluxe High Voltage Servo support?
The Hitec HS-430BH naturally supports 6.0V to 7.4V input voltage, making it fully compatible with 6-cell NiMH packs and standard 2S LiPo batteries without requiring a voltage regulator.
Can the Hitec HS-430BH Standard Deluxe High Voltage Servo be used in RC cars and airplanes?
Yes, the Hitec HS-430BH is extremely versatile and suitable for .20-.60 size airplanes, 30 class electric and glow helicopters, as well as steering and throttle applications in RC cars, trucks, and boats.
What hardware is included with the Hitec HS-430BH Standard Deluxe High Voltage Servo?
The Hitec HS-430BH includes a 0.92" round horn, 1.2" 4-point horn, 1.7" 4-point horn, 1.2" double arm horn, 1.2" single arm horn, and full mounting hardware.
Is the Hitec HS-430BH Standard Deluxe High Voltage Servo a digital or analog servo?
The Hitec HS-430BH is a standard analog servo equipped with a 3-pole ferrite motor and plastic gears.
