HS-5065MG Sub-Micro Digital Metal Gear
$37.99
Digital Precision
Programmable high holding power
Metal Gears
Durable precise gear train
Micro Size
Lightweight ultra compact design
Precision Servo PowerMaximum accuracy in micro sizing

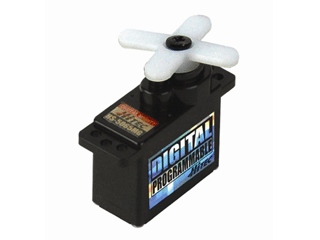

The Hitec HS-5065MG Digital Micro Servo brings exceptional digital precision and holding power to compact RC aircraft, helicopters, and micro vehicles. Built on the proven HS-65 platform, this high-performance micro servo incorporates a programmable digital amplifier and robust metal gears for unmatched control responsiveness. Upgrade your RC model setup with expert engineering designed for demanding control surfaces and precision steering assemblies.
Advanced Digital ControlReliable performance for micro setups
Engineered for maximum reliability, the Hitec HS-5065MG Digital Micro Servo delivers superior centering accuracy and high holding force compared to standard analog servos. Featuring a high-strength metal gear train supported by a top ball bearing, the Hitec HS-5065MG resists gear stripping under severe loads. Whether you are operating an ultra-compact RC car or flying micro 3D planes, this digital servo provides the rapid transit speed and torque required for exact, instantaneous control responses.
Technical SpecificationsComplete performance and mechanical breakdown
Part Type
Digital Micro Servo
Gear Material
Metal
Speed (4.8V)
0.14 sec/60 deg
Speed (6.0V)
0.11 sec/60 deg
Torque (4.8V)
24.99 oz-in (force)
Torque (6.0V)
30.55 oz-in (force)
Dimensions
0.92 x 0.45 x 0.94 in
Weight
0.42 oz
Bearing Type
Top Ball Bearing
Programmable Circuit
Yes
Core Design FeaturesBuilt for strength and precision
Programmable Digital CircuitDelivers maximum resolution and holding force
Metal Gear TrainProvides extreme durability for demanding micro applications
Top Ball BearingEnsures smooth output shaft rotation and long life
Compact Micro SizeFits tight chassis and airframe spaces easily
Dual Voltage SupportOperates efficiently on standard 4.8V or 6.0V receiver packs
Frequently Asked QuestionsEverything you need to know
What voltage range does the Hitec HS-5065MG Digital Micro Servo support?
The Hitec HS-5065MG Digital Micro Servo is designed to operate on either 4.8V or 6.0V receiver power systems, offering improved transit speed and holding torque at 6.0V.
Is the Hitec HS-5065MG Digital Micro Servo programmable?
Yes, the Hitec HS-5065MG features a programmable digital amplifier that allows settings like endpoints, direction, and deadband to be configured using a compatible Hitec servo programmer.
What gear material is used in the Hitec HS-5065MG Digital Micro Servo?
The Hitec HS-5065MG Digital Micro Servo utilizes a durable metal gear train supported by a top ball bearing for enhanced longevity and reduced gear strain.
