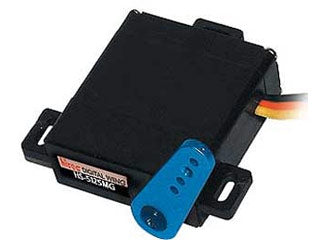

Hitec Digital Wing Servo HS-5125MG: Universal (759575)
$55.99
In Stock
Ultra Thin Profile
10mm Thickness For Wings
Metal Gear Train
Exceptional Strength And Durability
Digital Precision
Programmable Circuit Instant Torque
Slim Glider Servo PerformanceCompact Digital Power For Wings
The Hitec HS-5125MG Digital Wing Servo delivers impressive holding power and response in an ultra-slim 10mm profile designed specifically for narrow glider and airplane wings. Optimized for precision control, this high-performance wing servo incorporates advanced digital technology for exceptional authority on your flight control surfaces.
Engineered For High-Performance FlightUncompromising Strength In Narrow Wings
Engineered for sailplanes, gliders, and thin-wing aircraft, the Hitec HS-5125MG Digital Wing Servo features a rugged gear train driven by a reliable 3-pole ferrite motor. Its digital programmable circuit delivers immediate centering and maximum holding torque, while dual ball bearings ensure smooth operation under heavy air loads. Upgrade your aircraft control surfaces with the reliable response and heavy-duty performance of this specialized digital servo.
Technical SpecificationsComplete Servo Dimensions And Performance
Compatible Vehicles
Gliders, Sailplanes, and Thin-Wing RC Airplanes
Part Type
Digital Wing Servo
Material
Metal Gear Train, Plastic Case
Placement/Position
Wing Control Surfaces / Ailerons / Flaps
Dimensions
1.14 x 0.51 x 1.18 in (29.0 x 13.0 x 30.0 mm) (ruler)
Weight
0.84 oz (24.0g) (scale)
Operating Voltage
4.8V - 6.0V
Speed (4.8V / 6.0V)
0.17 sec/60° / 0.13 sec/60°
Torque (4.8V / 6.0V)
41.66 oz-in / 48.60 oz-in (force)
Motor Type
3-Pole Ferrite
Bearing Type
Dual Ball Bearing
Gear Type
4 Metal Gears, 1 Metal Resin Gear
Potentiometer Drive
Direct Drive
Connector Wire Length
11.81 in (300mm) (cable)
Core FeaturesBuilt For High Speed Accuracy
Slim Profile10mm casing engineered to fit tightly inside slim wing pockets
Digital ProgrammabilityCircuit offers rapid holding power and precise centering
Metal Gear TrainBuilt with four metal gears and one metal resin gear for extreme resistance to stripping
Dual Ball BearingsEnsures smooth surface deflection under heavy air loads
Direct Drive PotentiometerProvides stable position sensing and high operational accuracy
Dual Voltage PerformanceDelivers crisp speeds down to 0.13 sec/60 deg at 6.0V
Frequently Asked QuestionsEverything you need to know
What applications is the Hitec HS-5125MG Digital Wing Servo designed for?
The Hitec HS-5125MG Digital Wing Servo is specifically engineered for RC sailplanes, gliders, and high-speed aircraft that require thin, high-torque servos to fit tightly inside slim wing pockets.
Is the gear train on the Hitec HS-5125MG Digital Wing Servo durable?
Yes, the Hitec HS-5125MG Digital Wing Servo uses a heavy-duty metal gear train consisting of four metal gears and one metal resin gear for high resistance to stripping during high-G maneuvers or landing impacts.
What operating voltage does the Hitec HS-5125MG Digital Wing Servo support?
The Hitec HS-5125MG Digital Wing Servo operates efficiently on standard 4.8V to 6.0V receiver power sources, producing up to 48.60 oz-in of torque and speeds down to 0.13 sec/60° at 6.0V.
