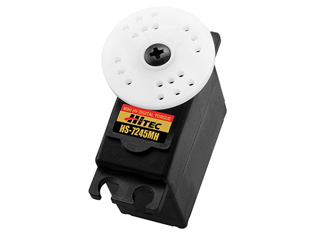

HS-7245MH Mini Digital HV High Torque Metal Gear
$76.99
Skip to product information
Only 2 Left!
HS-7245MH Mini Digital HV High Torque Metal Gear
$76.99
High Voltage
Direct 2S LiPo battery operation
Metal Gears
Durable high precision metal drive
Coreless Motor
Fast crisp steering throttle response
High Torque
Delivers up to 89 oz-in
Digital Precision
Accurate centering and holding power
Compact Mini
Fits 1/18 crawlers and helis
In Stock
Precision Control PowerHigh Voltage Performance for Mini Models
The Hitec HS-7245MH Digital Hi-Voltage Hi-Torque Metal Gear Servo provides incredible performance and precision for compact RC applications. Engineered with a powerful coreless motor and robust metal gears, this mini servo delivers impressive speed and holding power directly on 2S LiPo voltage. It is the ideal upgrade for hobbyists seeking reliable control in aircraft, helicopters, and 1/18 scale RC crawlers.
Unmatched Mini Servo TechBuilt for High Performance Applications
Upgrade your vehicle setup with the Hitec HS-7245MH Digital Hi-Voltage Hi-Torque Metal Gear Servo. Designed for demanding applications such as .40 to .60 size glow/electric aircraft, 500-550 size electric helicopters, 1/12 scale on-road racers, and 1/18 scale rock crawlers, this high-voltage servo runs directly off a 2S LiPo battery without requiring a BEC. Featuring dual ball bearings and heavy-duty metal gears, the Hitec HS-7245MH ensures maximum durability, reduced slop, and ultra-fast response times under heavy loads.
Technical SpecificationsDetailed Mechanical and Electrical Data
Compatible Vehicles
.40-.60 Aircraft, 500-550 Helis, 1/18 Rock Crawlers
Part Type
Digital Mini Servo
Servo Type
Digital High-Voltage
Motor Type
Coreless
Gear Type
Metal
Bearing
Dual Ball Bearing
Operating Voltage
6.0V - 7.4V
Speed (6.0V)
0.13 sec/60º
Speed (7.4V)
0.11 sec/60º
Torque (6.0V)
72 oz-in / 5.2 kg-cm
Torque (7.4V)
89 oz-in / 6.4 kg-cm
Dimensions
1.28 x 0.66 x 1.29 in / 32.4 x 16.8 x 32.8 mm
Weight
1.20 oz / 34.0 g
Size Category
Mini / Micro
Key Performance FeaturesEngineered for Durability and Speed
High-Voltage CompatibilityOperates directly on 2S 7.4V LiPo batteries without a regulator
Coreless Motor TechnologyDelivers rapid response, high efficiency, and smooth power output
Heavy-Duty Metal Gear TrainProvides long-lasting durability against severe impacts
Dual Ball BearingsEnsures smooth output shaft rotation with minimal mechanical slop
Programmable Digital CircuitryDelivers tight centering, crisp response, and strong holding power
Versatile Mounting ProfileDesigned for mini planes, 500-class helis, and 1/18 crawlers
Frequently Asked QuestionsEverything you need to know
What vehicles are compatible with the Hitec HS-7245MH Digital Hi-Voltage Hi-Torque Metal Gear Servo?
The Hitec HS-7245MH Digital Hi-Voltage Hi-Torque Metal Gear Servo is designed for .40 to .60-sized glow and electric aircraft, 500-550 class electric helicopters, 1/12 scale on-road cars, and 1/18 scale rock crawlers.
Can I run the Hitec HS-7245MH Digital Hi-Voltage Hi-Torque Metal Gear Servo directly on a 2S LiPo battery?
Yes, the Hitec HS-7245MH Digital Hi-Voltage Hi-Torque Metal Gear Servo is high-voltage capable and operates safely between 6.0V and 7.4V, allowing direct connection to a 2S LiPo battery without needing an external BEC.
What type of motor and gear train does the Hitec HS-7245MH Digital Servo use?
The Hitec HS-7245MH Digital Hi-Voltage Hi-Torque Metal Gear Servo features a high-efficiency coreless motor combined with durable metal gears and dual ball bearings for maximum strength and precise control.
