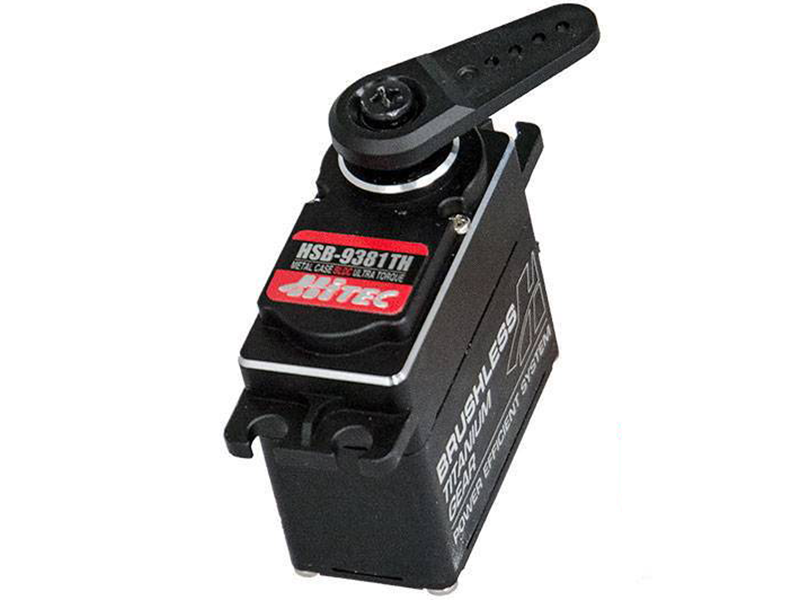

HSB9381TH Ultra Torque Brushless Titan Gear Servo

HSB9381TH Ultra Torque Brushless Titan Gear Servo

1 3
$189.99
$0.00 $189.99
Sale Sold out
Shipping calculated at checkout.
ⓘ $0.00 Tax Collected Outside GA
Availability: Sorry we are out of stock but have more on the way.
SKU: 100021493
Part #: HRC39384
UPC: 669962393843
MFG: Hitec
Live Help Chat
rewards icon
You will earn 94 Electron Reward Points on this product! Click to find out more about our points program and save big!
low price promise icon
Low Price Promise! Click to find out more about our low price promise
View full details

HSB-9381TH Full Metal Case, Ultra Torque, Brushless, Titanium Gear Servo

Overview:
With ultra-efficient brushless motors, titanium gear trains, low current consumption and constant output power, the full metal case HSB-9381TH is the perfect match for the most demanding radio control pilots and racers.

Features:
• Programmable 12-Bit PWM Digital Amplifier
• Custom Long Life Brushless Motor
• 1M Cycle Long Life Potentiometer
• Constant Output Torque
• Wide Operating Voltage (5 ~ 9 Volts DC)
• Dual Ball Bearing Supported Output Shaft
• Dust Resistant and Splash Proof Case
• 25-Tooth Output Spline
• Hybrid Nylon Reinforced Plastic and Aluminum Case
• Low Power Consumption

Programmable Functions:
• End Point Adjustments
• Direction
• Fail Safe
• Dead Band
• Speed (Slower)
• Soft Start Rate
• Data Save / Load
• Program Reset (From File)

Accessories:
• 3 Titanium / Steel Gears Set
• Metal / Plastic / Duralumin Hybrid 1st Gear Set
• Plastic / Aluminum Case Set
• Applicable Horns

Operating Voltage Range (Volts DC): 6.0V ~ 7.4V
Speed (Second @ 60°): 0.17 ~ 0.14
Maximum Torque Range oz. / in.: 472
Maximum Torque Range kg. / cm.: 34
Current Draw at Idle: 27 mA
No Load Operating Current Draw: 250 mA
Stall Current Draw: 2,700 mA
Dead Band Width: 1 µs
Dimensions (Inches): 1.57 x 0.79 x 1.50
Dimensions (Metric): 40.0 x 20.0 x 38.0
Weight (Ounces): 2.4
Weight (Gram): 72.0
Circuit Type: EBL Digital
Motor Type: Brushless
Gear Material: Titanium
Bearing Type: Dual Ball Bearing
Output Shaft (type / Ømm): H25T
Case Material: Plastic / Aluminum
Dust / Water Resistance: Splash Proof
Connector Gauge (AWG) / Strand Count: 20 / 80
2020 Hitec Servo Chart.
