Light Controller Kit
$9.99
Receiver Controlled
Operate via transmitter auxiliary channel
16 LED Capacity
Powers up to 16 LEDs
5.5V Maximum Input
Safe low voltage operating range
Illuminate Your FlightReceiver Controlled Lighting Switch Solution

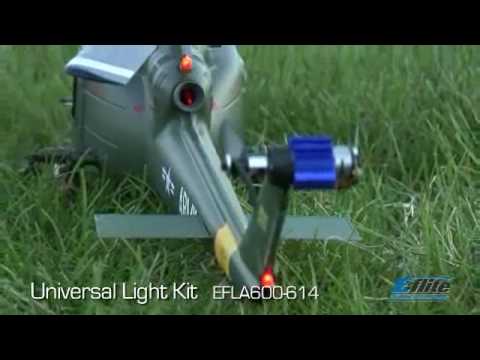

Take your aircraft scale realism to the next level with the E-flite Universal Light Kit Controller. This compact electronic switch allows pilots to toggle custom lighting setups directly from an available channel on their receiver. Designed to power up to 16 LEDs, it is an essential upgrade for scale RC planes and night-flying enthusiasts.
Smart Remote Lighting ControlPrecision Receiver Switch for RC Aircraft
The E-flite Universal Light Kit Controller provides effortless remote switching for your RC airplane or helicopter navigation lights. Operating reliably on a 3 to 5.5-volt power supply, this RC light controller toggles light power at the middle stick position (1.5ms) on any standard receiver channel. With efficient power consumption ranging from 60mA for 6 LEDs up to 160mA for a full 16-LED array, the E-flite lighting system offers maximum visibility without overloading your receiver power system.
Technical DataController Electrical & Compatibility Specifications
Part Type
Light Kit Controller
Input Voltage
3.0V - 5.5V DC
Maximum Capacity
Up to 16 E-flite LEDs
Operation Signal
>1.5ms ON / <1.5ms OFF
Current Load (6 LEDs)
60mA @ 5.5V
Current Load (12 LEDs)
120mA @ 5.5V
Current Load (16 LEDs)
160mA @ 5.5V
Compatible Vehicles
Universal RC Airplanes & Helicopters
Placement/Position
Internal Receiver Auxiliary Port
Key CapabilitiesIntegrated Control and Efficient Power Performance
Remote OperationSwitch lighting on or off via transmitter auxiliary channel

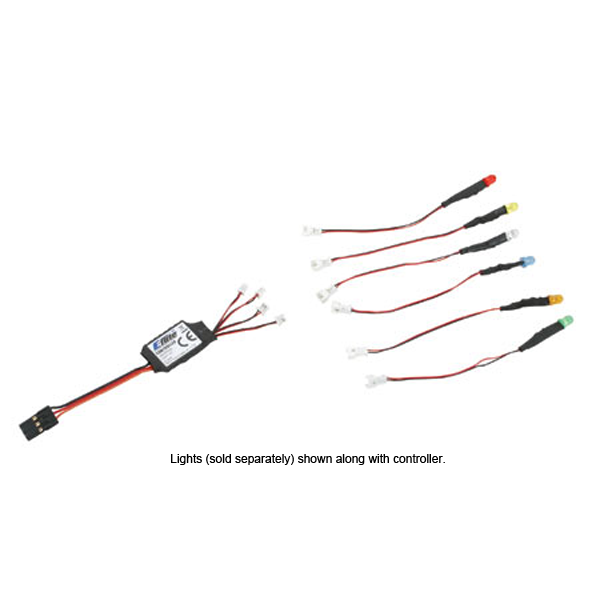

High Capacity OutputDrives up to 16 E-flite Universal LEDs simultaneously
Regulated Voltage InputBuilt for standard 3.0V to 5.5V receiver power
Precise Pulse SwitchingToggles cleanly at the 1.5ms pulse width threshold
Low Current DrawEfficient output drawing only 60mA to 160mA max
Plug and Play UtilityUniversal fit for standard RC aircraft receivers
Frequently Asked QuestionsEverything you need to know
What is the maximum voltage supported by the E-flite Universal Light Kit Controller?
The E-flite Universal Light Kit Controller operates between 3.0 and 5.5 volts DC. Do not exceed 5.5 volts, as higher voltage will damage the internal circuitry.
How do I operate the E-flite Universal Light Kit Controller using my radio transmitter?
You connect the E-flite Universal Light Kit Controller to an open channel on your RC receiver. It toggles on when the channel pulse signal goes above 1.5ms and turns off when it drops below 1.5ms.
How many LEDs can I connect to a single E-flite Universal Light Kit Controller?
You can connect and operate up to 16 E-flite Universal Light Kit LEDs on one E-flite Universal Light Kit Controller.
