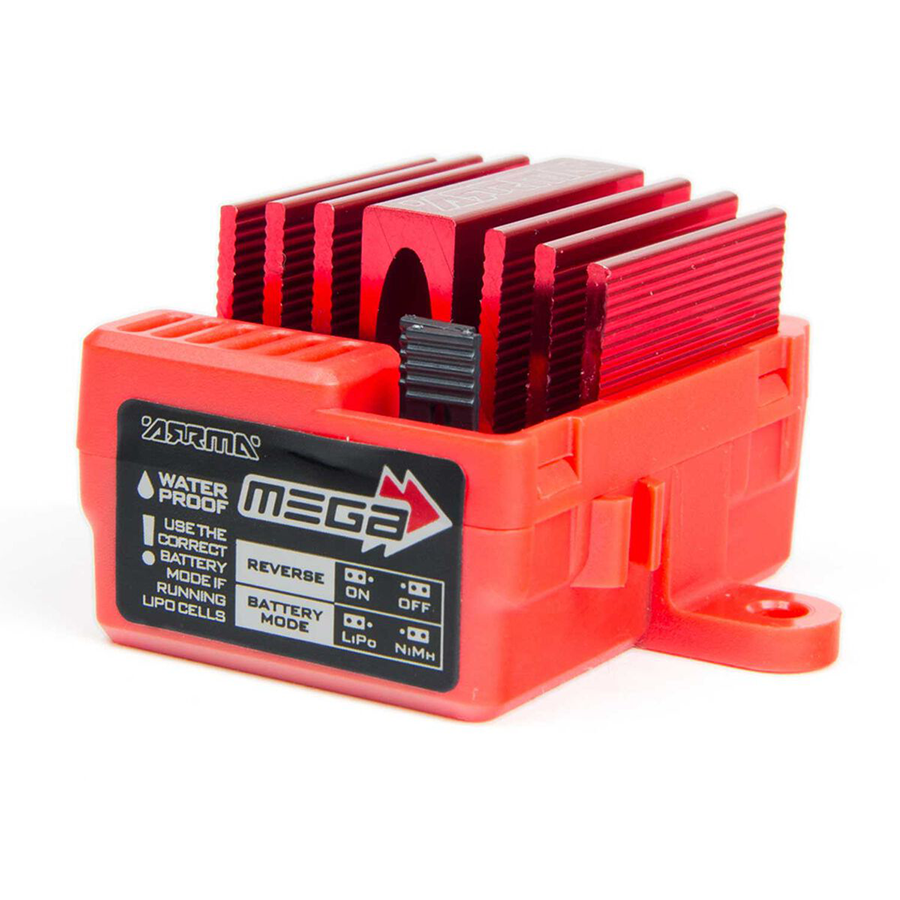

Mega Brushed 2S ESC

This high-quality ARRMA MEGA ESC unit (with integrated LiPo protector) will provide consistent and safe power control in your ARRMA vehicle.


  • Fitted with reliable IC3 connector
  • Capable of running 2S LiPo or 6 or 7 cell NiMh, this MEGA ESC has over-voltage protection for safe voltage management when under heavy operating conditions
  • Cool-looking integrated red anodized heatsink for increased heat dissipation
  • Durable motor and battery connection cables for safe and reliable power transfer
  • Waterproof power switch
  • Strong and durable red nylon case with dedicated chassis mount tabs for additional secure fit
  • Etched 'ARRMA' livery for cool looks and quality assurance
Battery usage: 7.2v (6 Cell) NiMh Stick Pack, 8.4v (7 Cell) NiMh Stick Pack, 7.4V (2S) Lipo
Low Voltage Cut-Off (LVC): 3.2V per cell
Thermal Protection Temperature: 95°C / 203°F
BEC Voltage: 5V
BEC Current: 2A
ESC Length: 47mm / 1.85"
ESC Height: 21mm / 0.83"
ESC Width: 34mm / 1.34"
ESC Weight: 70g / 2.47oz
Receiver Wire Length: 160mm / 6.3"
Battery Wire Length: 90mm / 3.54"
