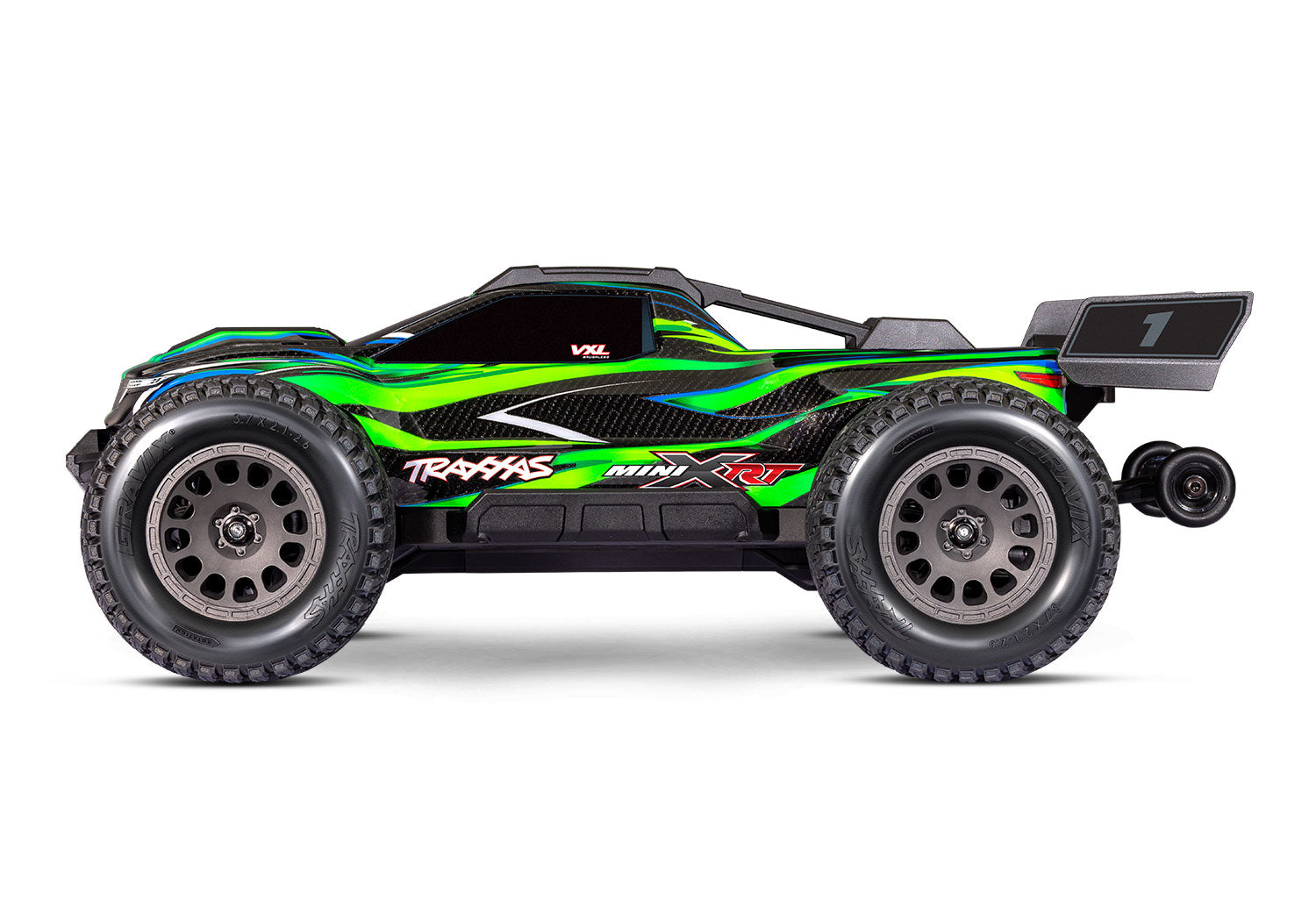

Traxxas Mini XRT VXL: Green
Extreme 3S Performance. Compact Size.

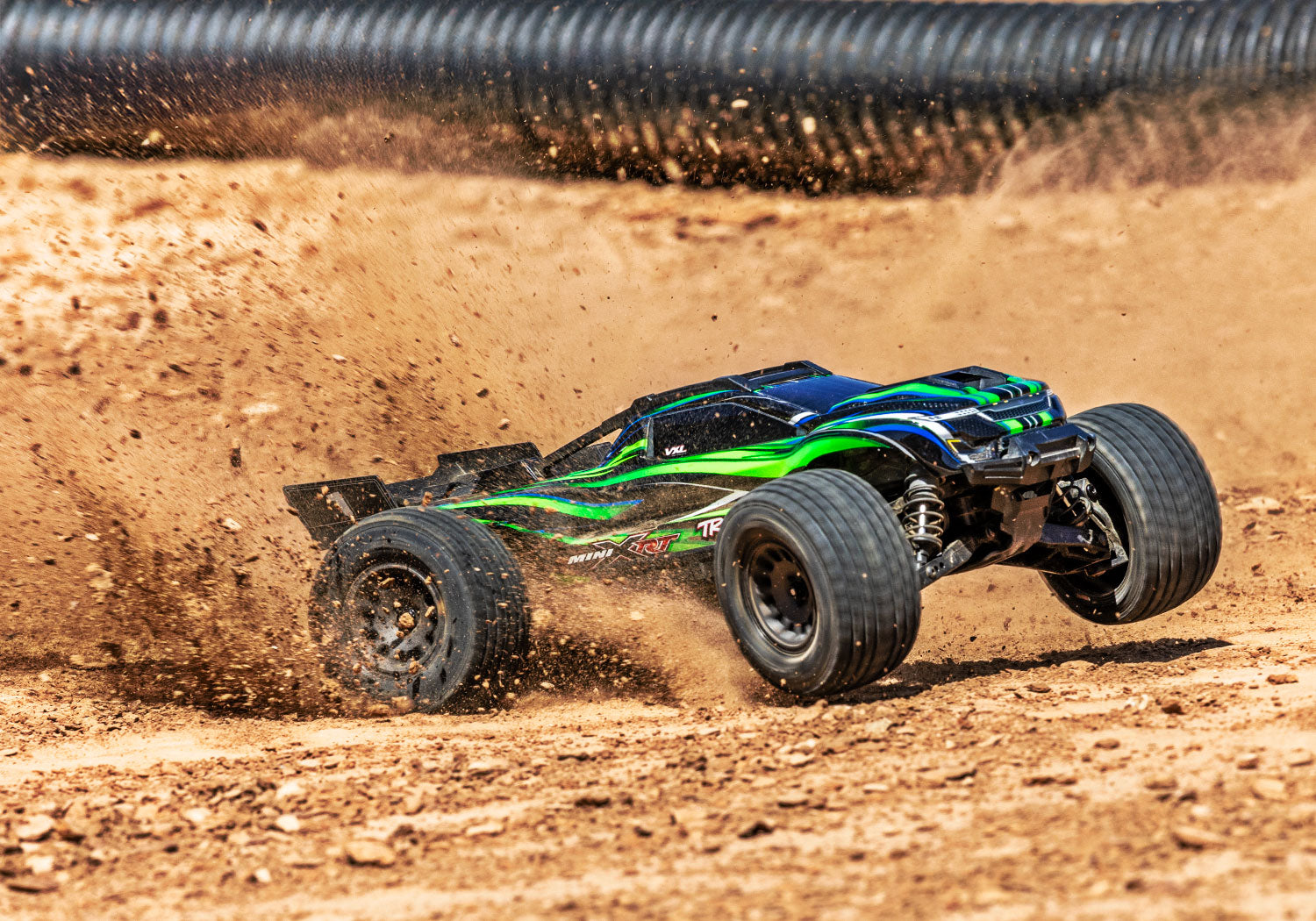

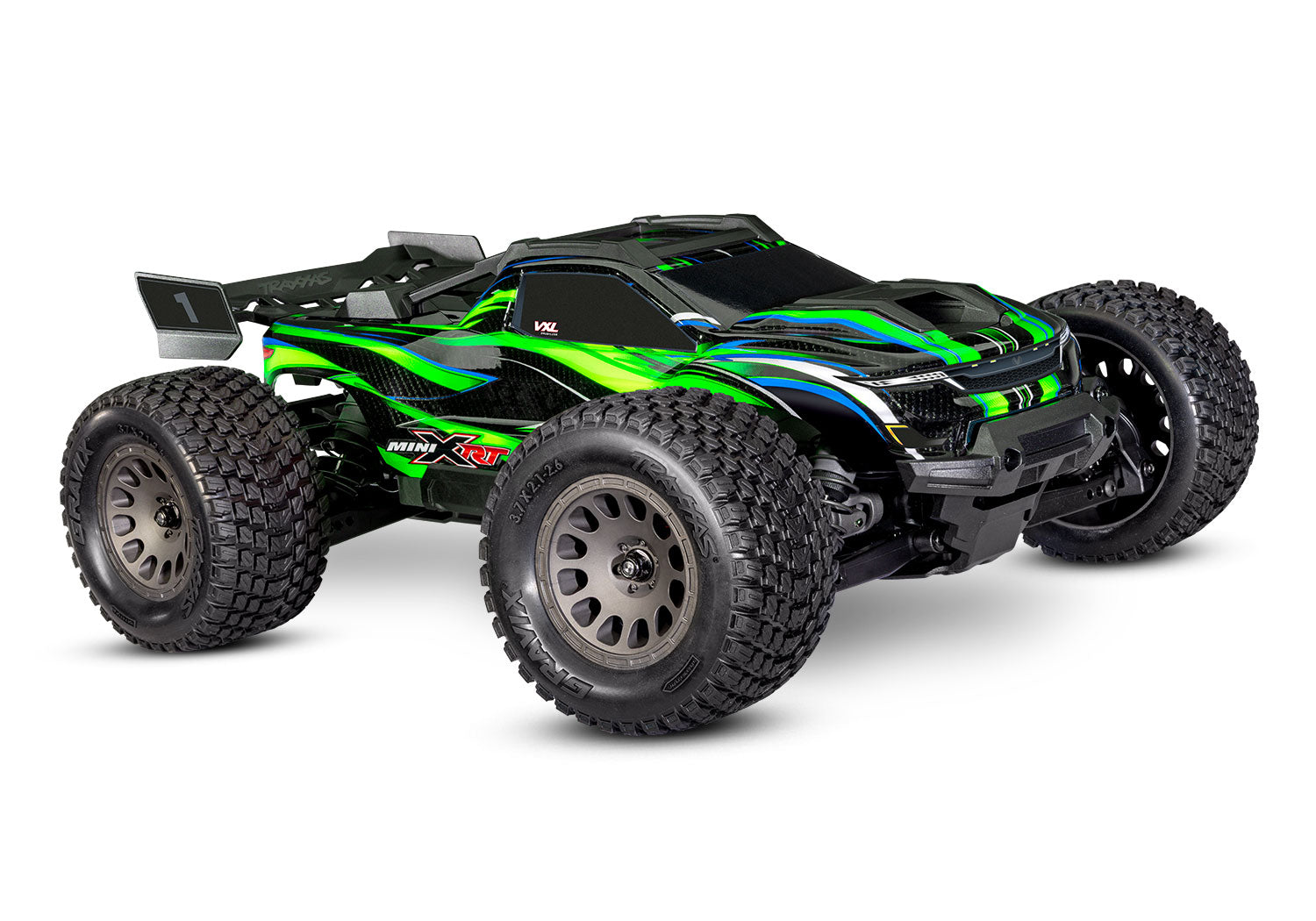

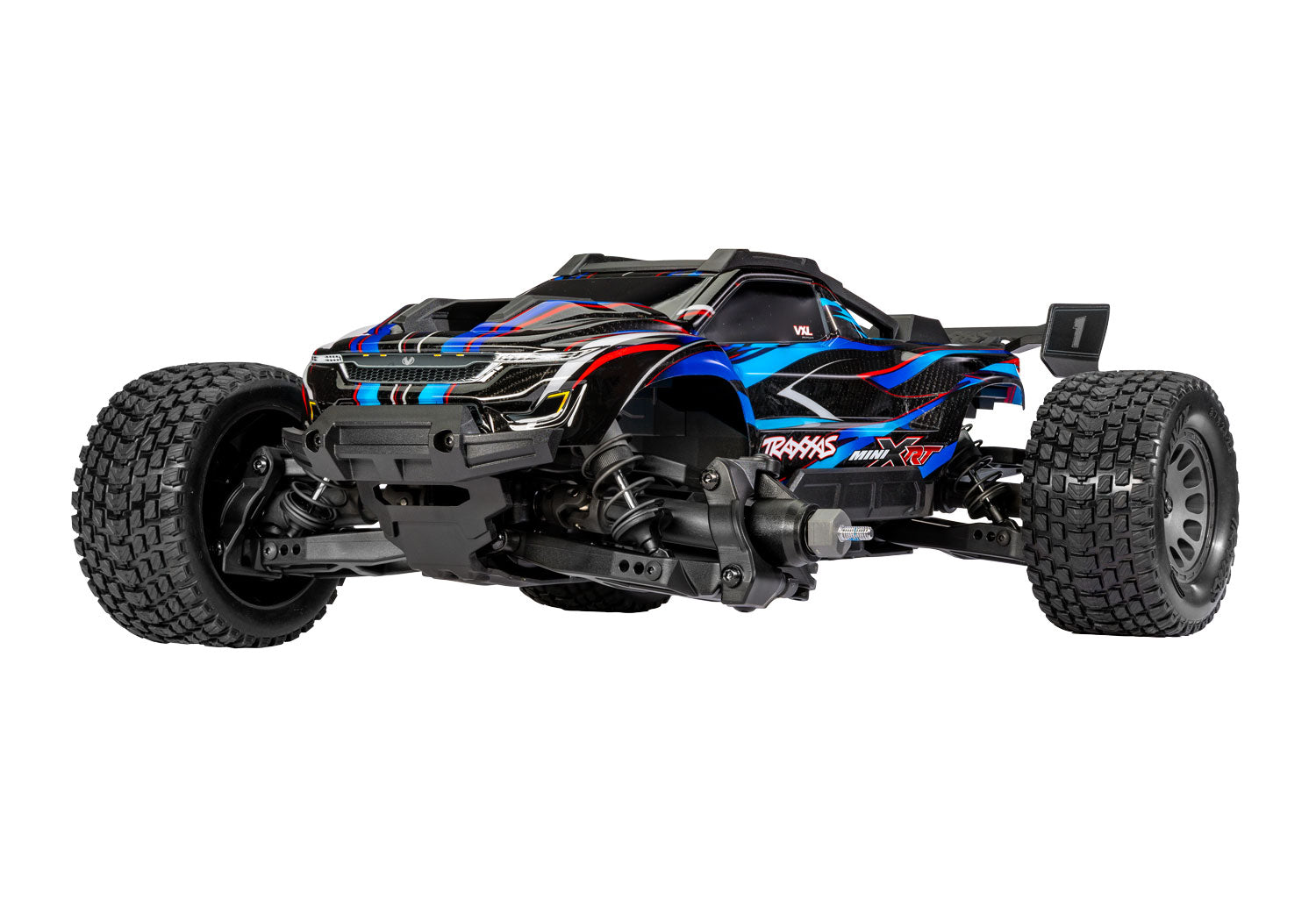

Mini XRT® is a true rocket with full 1/10 scale Velineon® 3s brushless power in a compact, take-anywhere size. Mini XRT lives up to its name with unprecedented 55+ mph speed and ferocious acceleration, backed by race-inspired engineering and unrivaled toughness. Mini XRT shatters all expectations with big-scale performance and toughness that fits in a backpack.

Features:

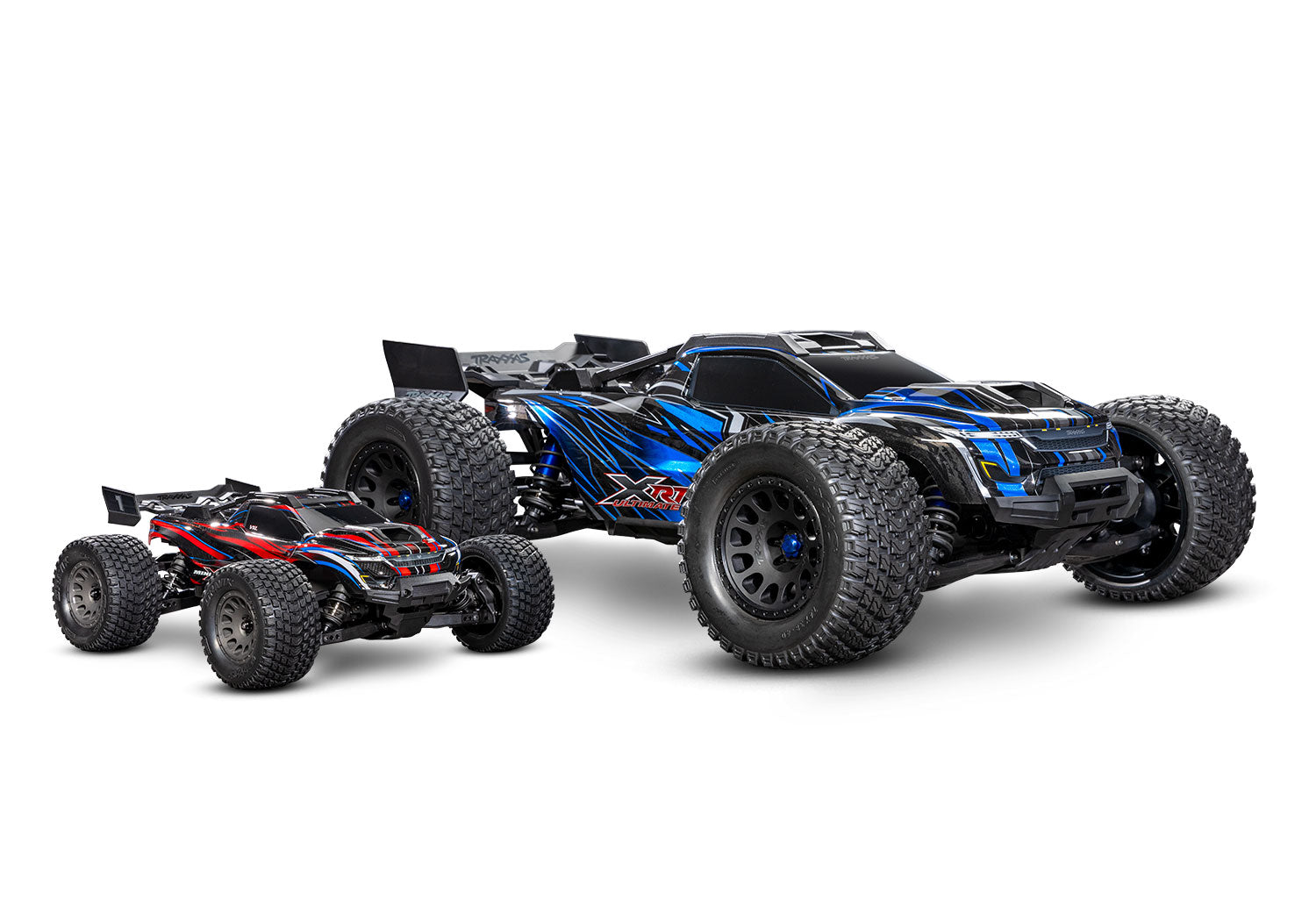

- Bred For Performance - Like its X-series™ counterpart, Mini XRT was engineered with maximum focus on speed, handling, and performance. A low, ultra-wide stance delivers supreme confidence and control as Mini XRT muscles its way to 55 mph and beyond. It’s a whole new way to experience big-scale fun and toughness in a backpack-friendly size.

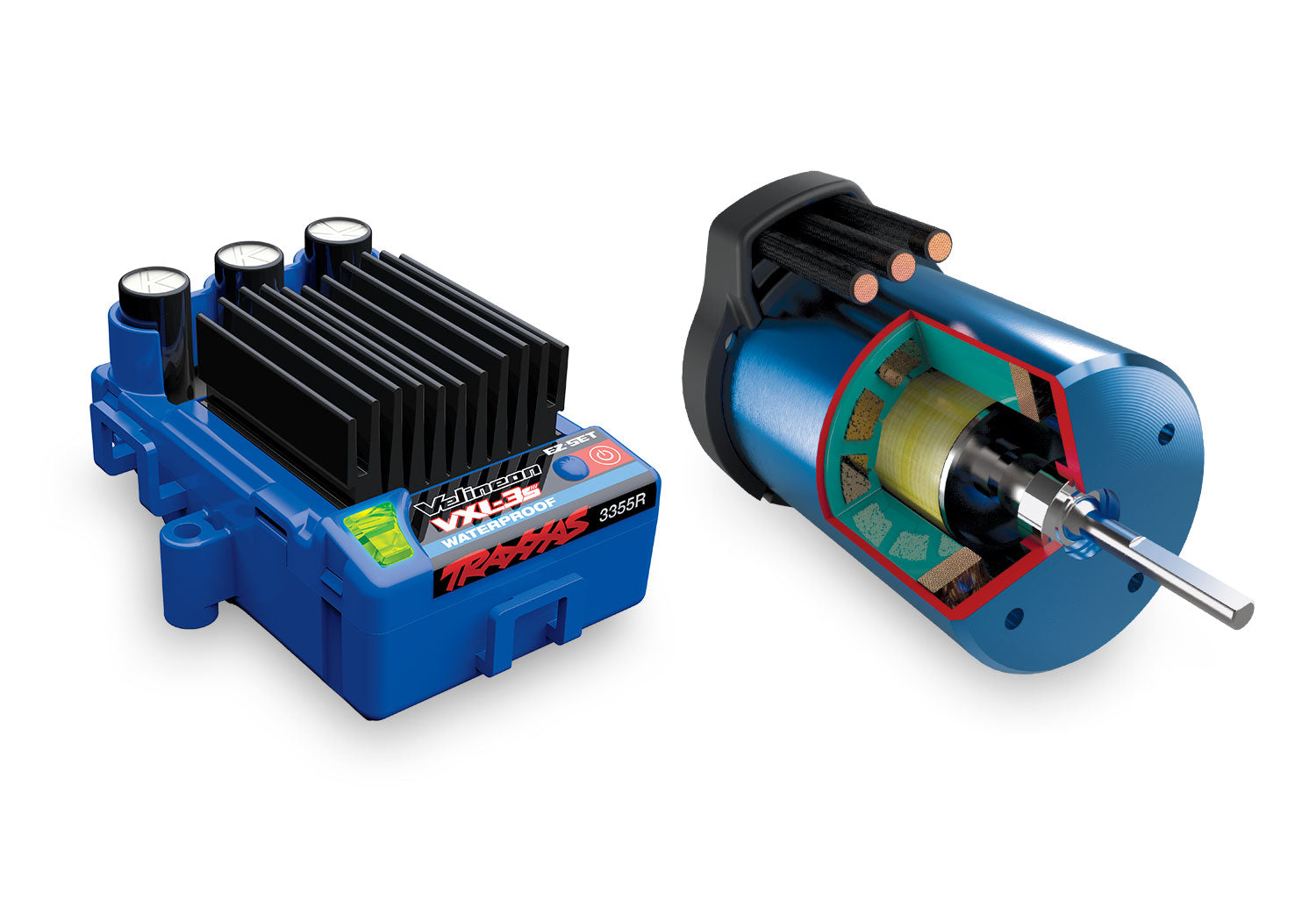

- 1/10 Scale VXL-3s Brushless Power - The Velineon VXL-3s brushless power system is the heart of Traxxas’ fastest and most powerful 1/10 scale vehicles. For the first time ever, this extreme 11.1-volt powerplant now comes installed in a compact platform. The result is astonishing acceleration, 55+ mph speed, and wheel-standing power at any rpm.

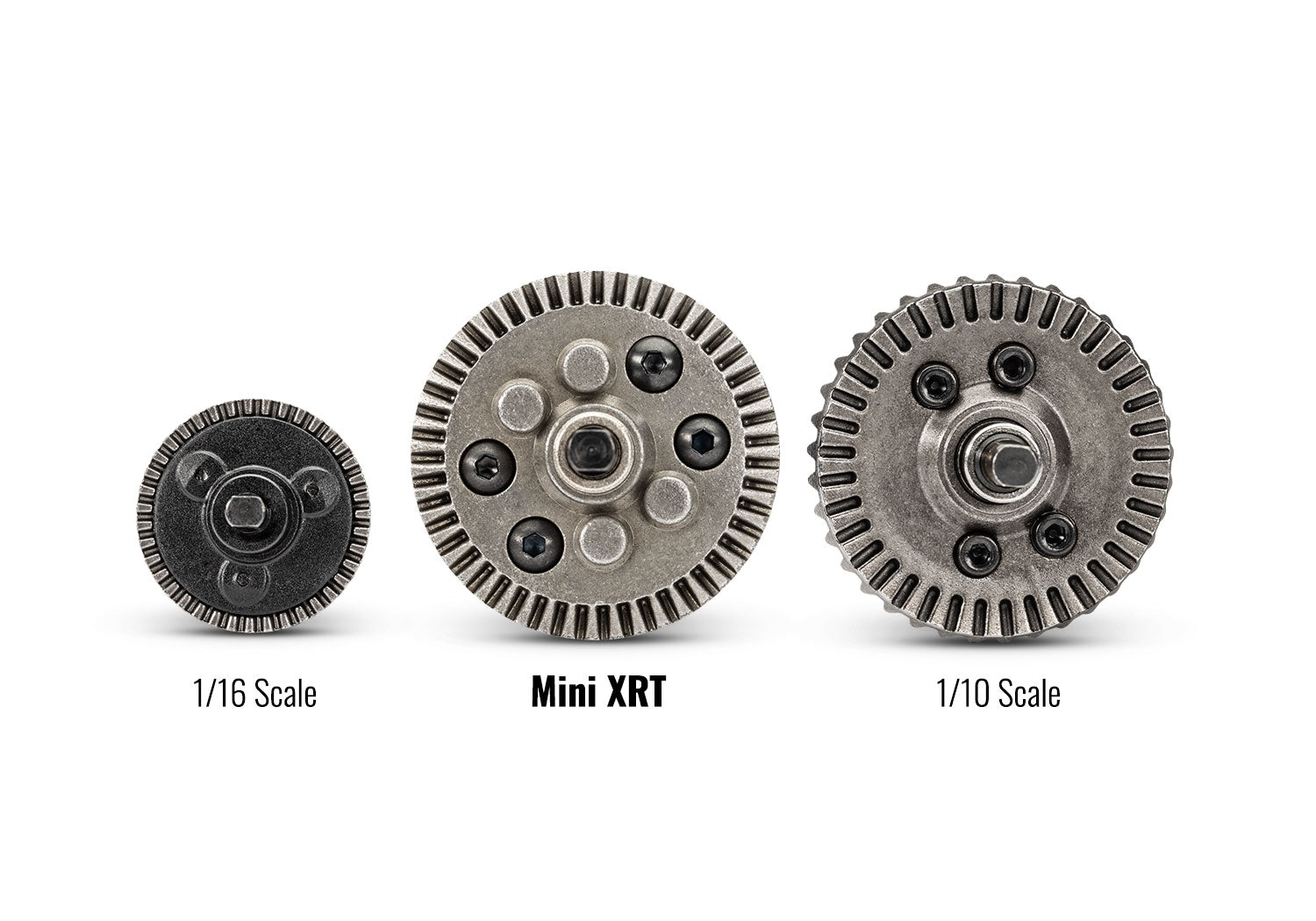

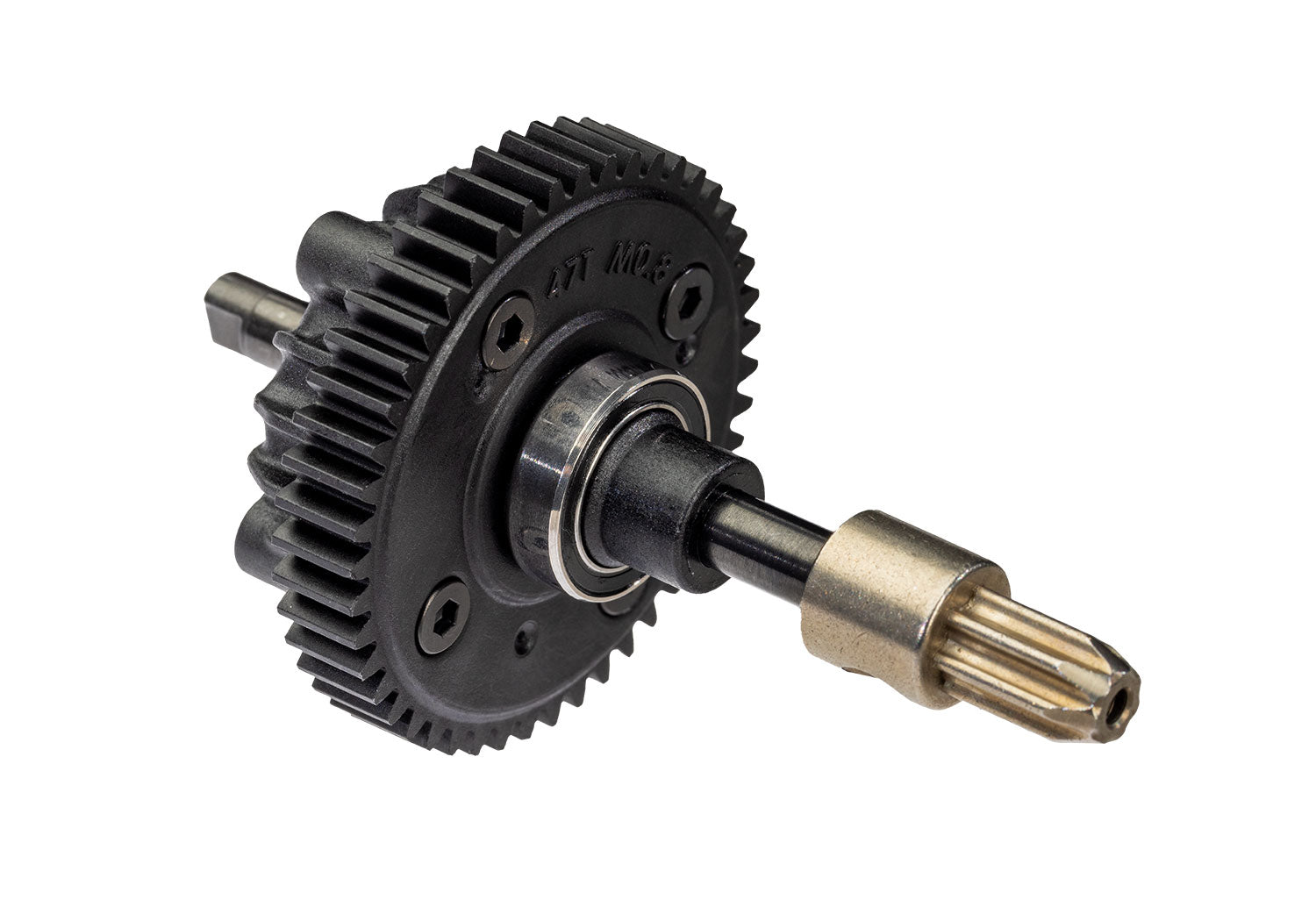

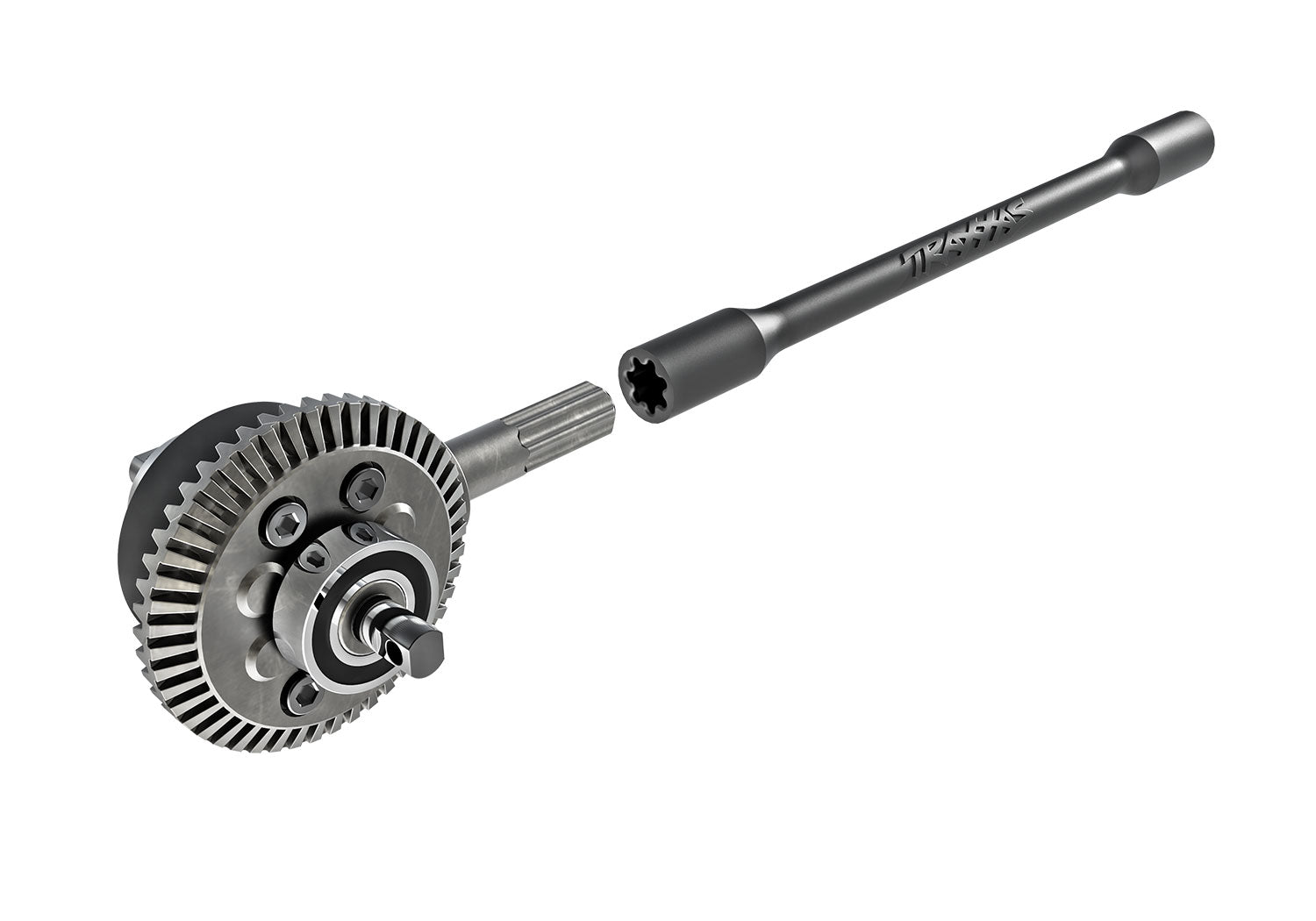

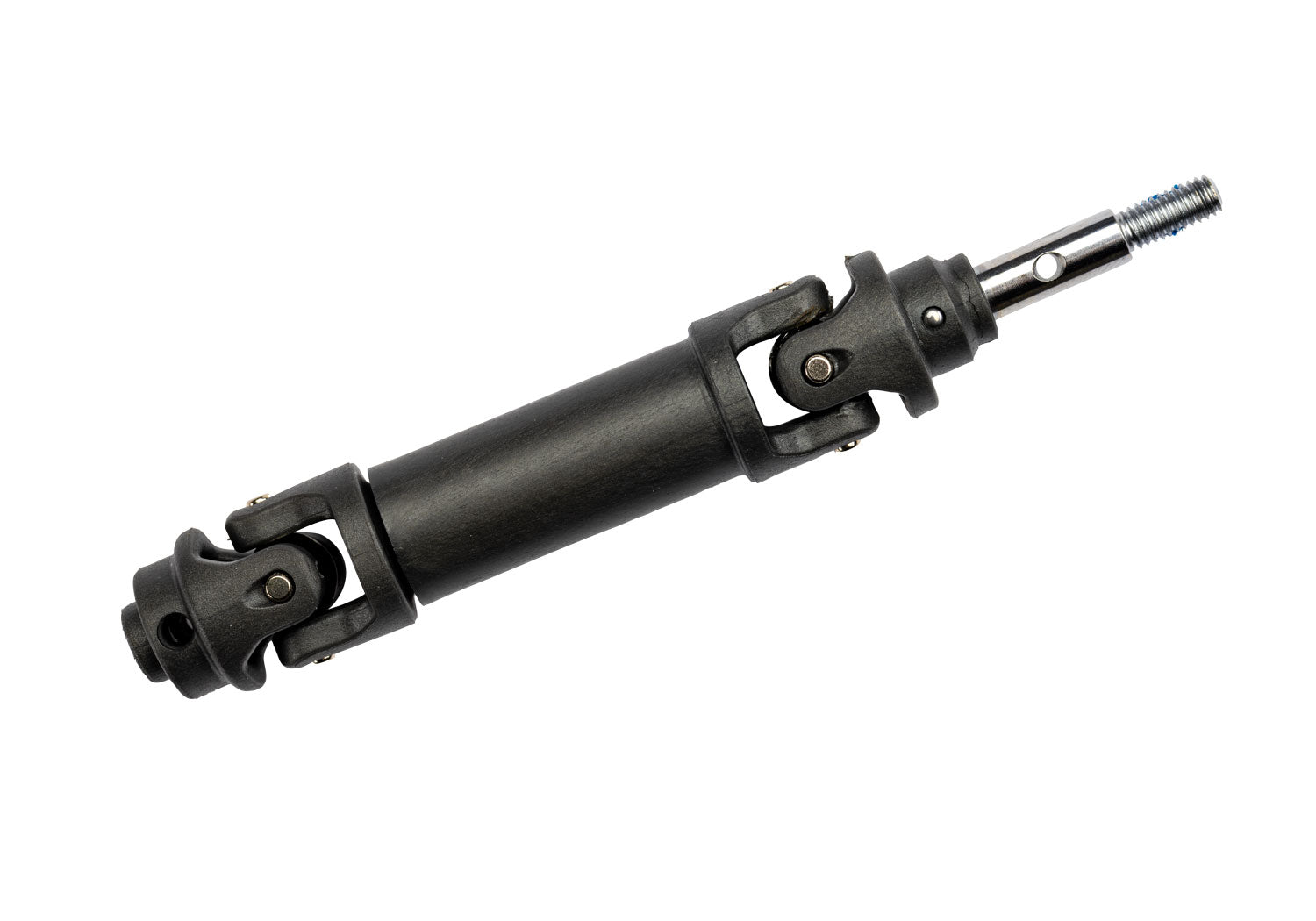

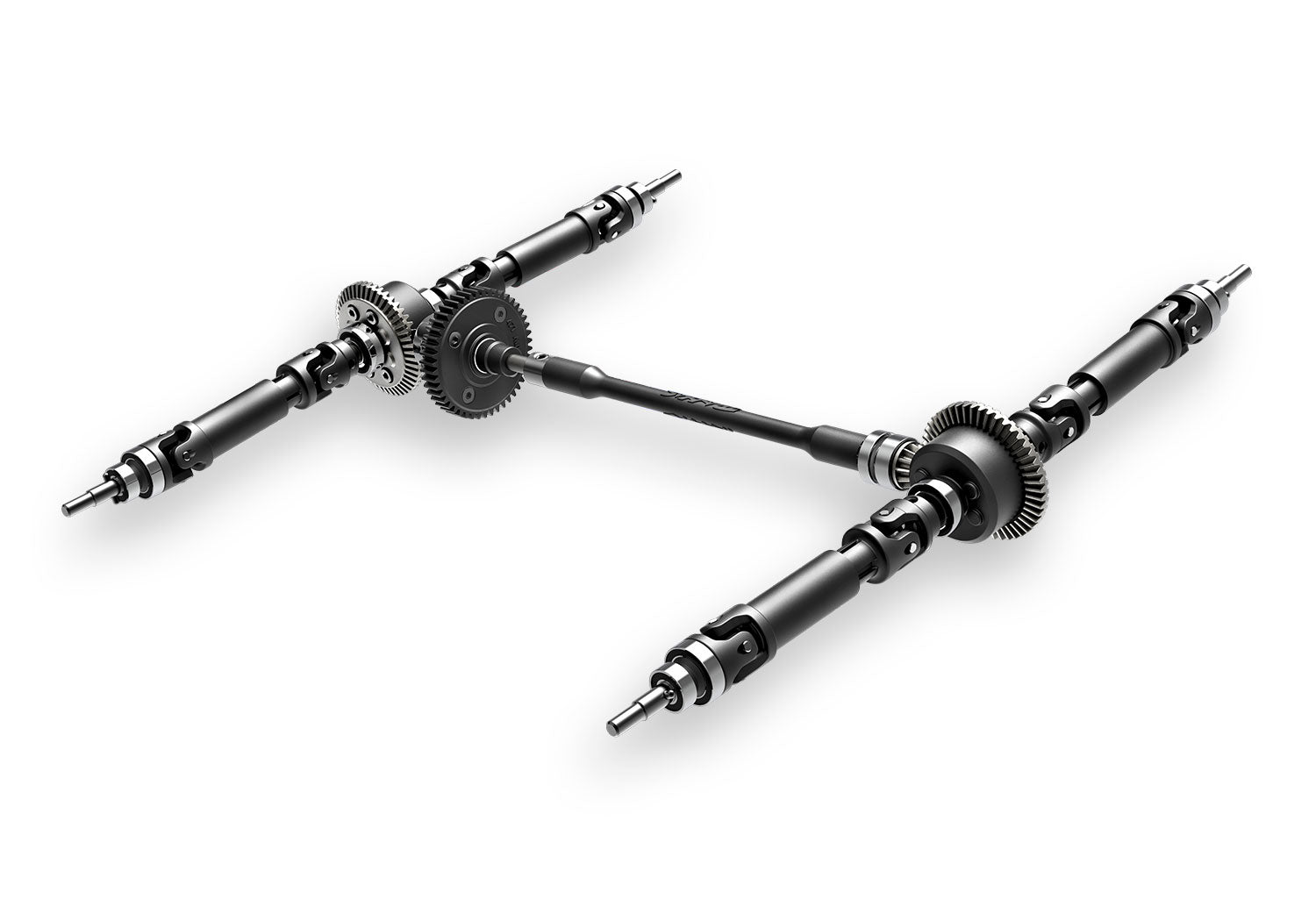

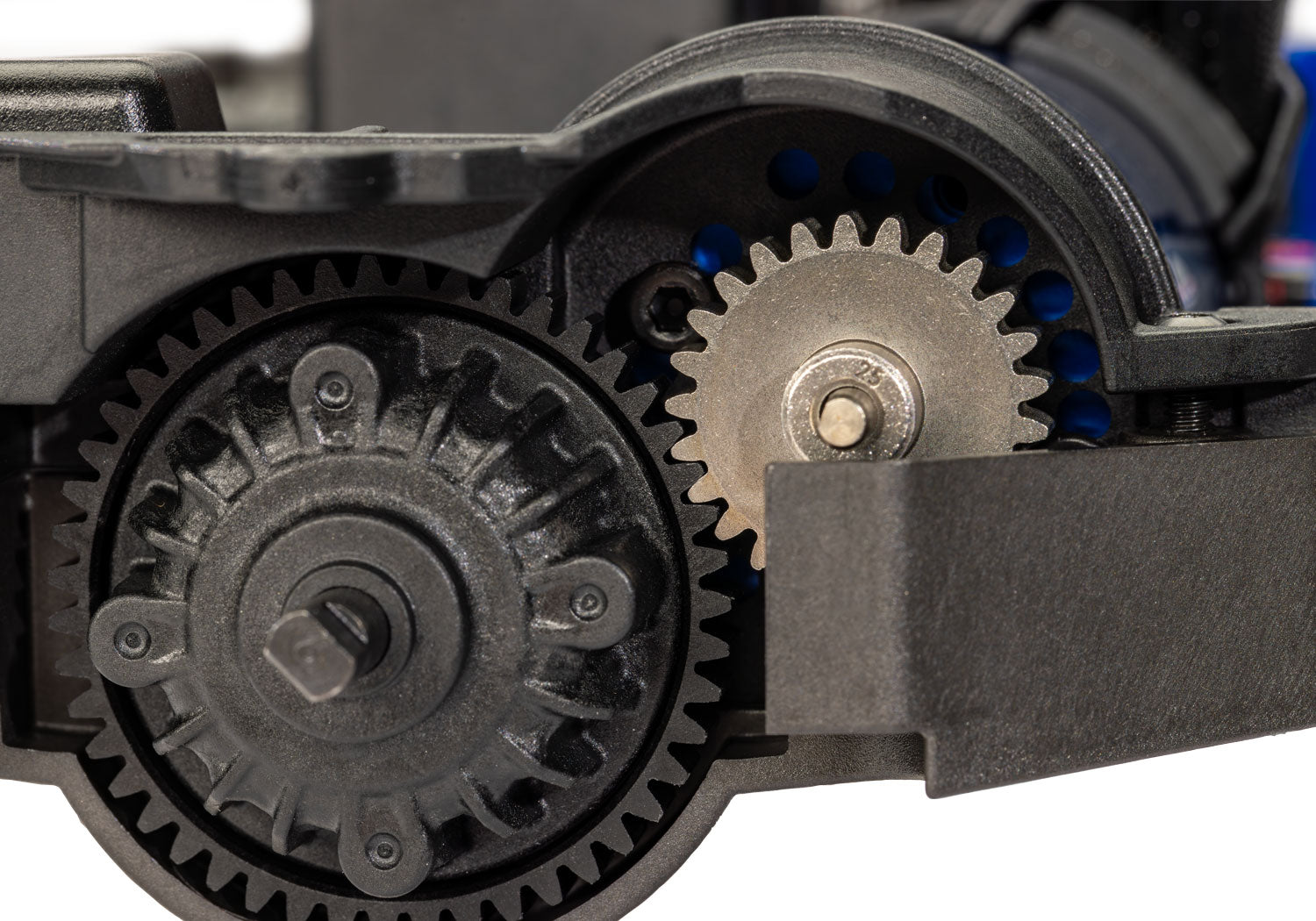

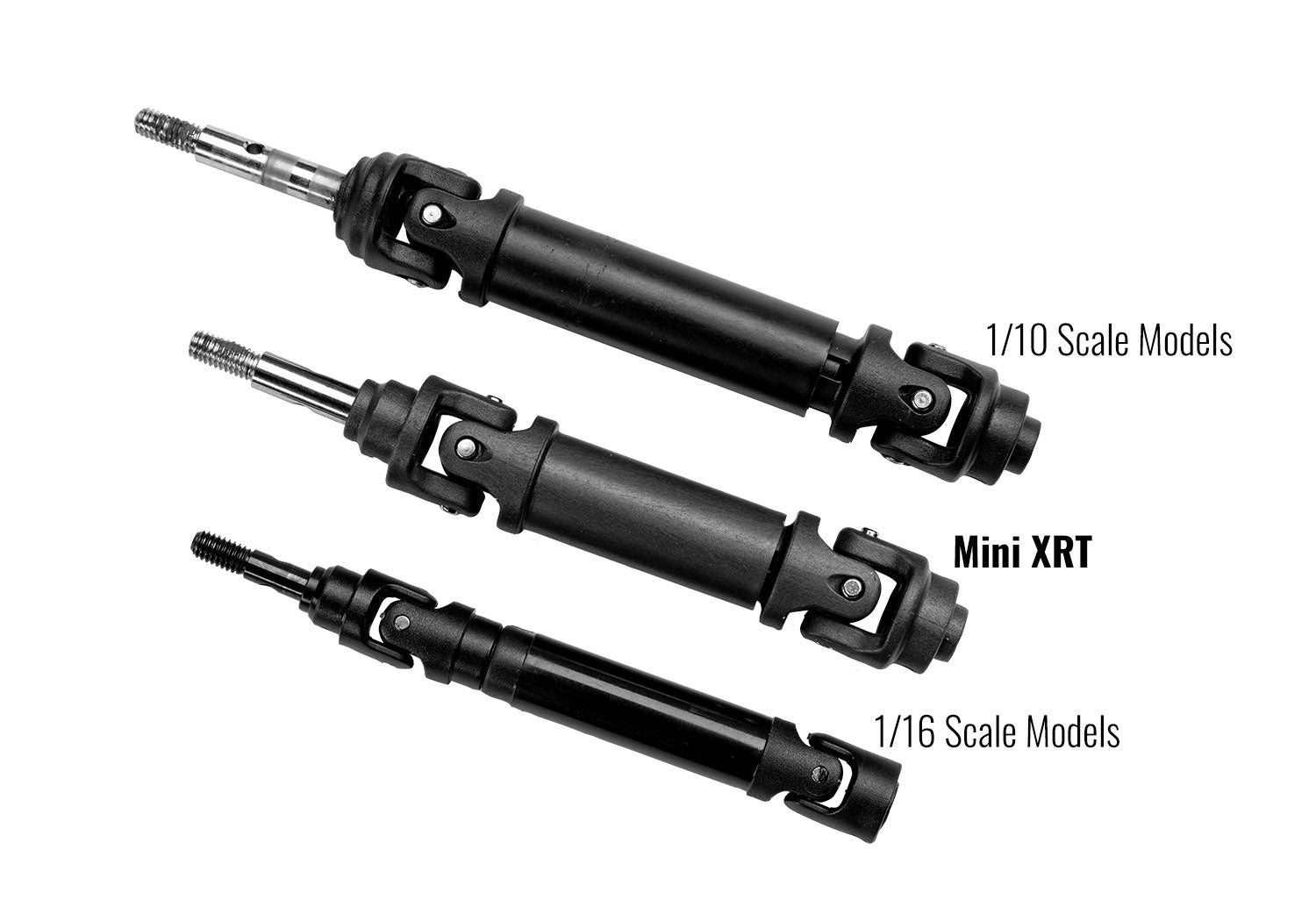

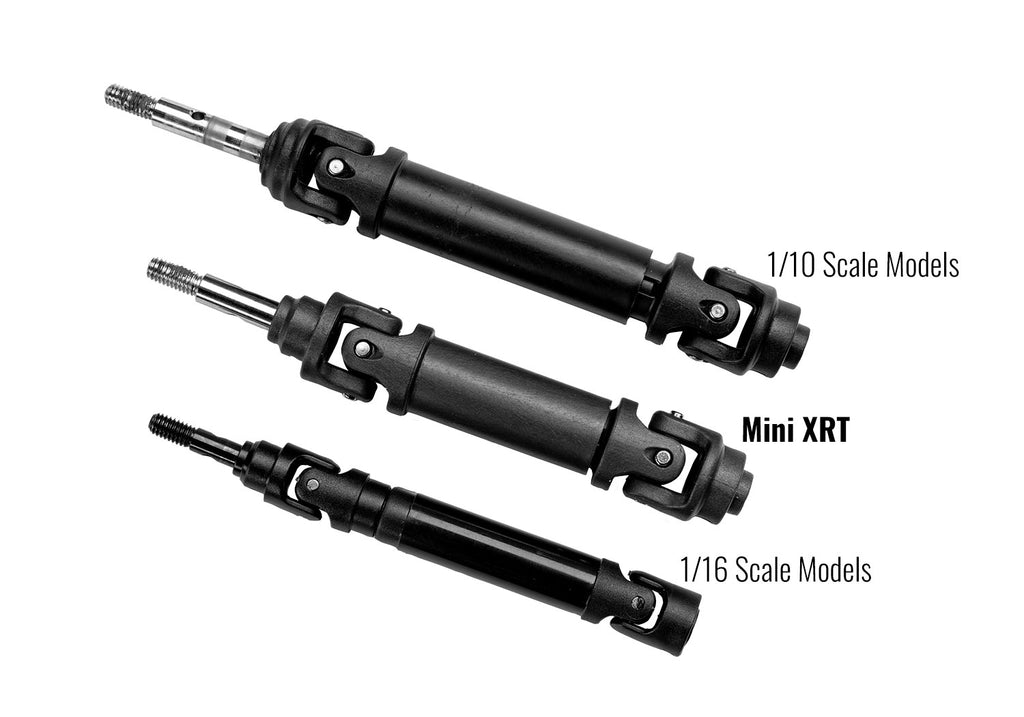

- 1/10 Scale 4X4 Driveline - Adding 3s Velineon power to a compact platform requires bold engineering. Mini XRT comes outfitted with the proven driveline components of Traxxas’ toughest 1/10 scale 4X4 trucks. Front, center, and rear steel-gear differentials, along with 32-pitch gearing and HD driveshafts, far exceed requirements for strength and long life.

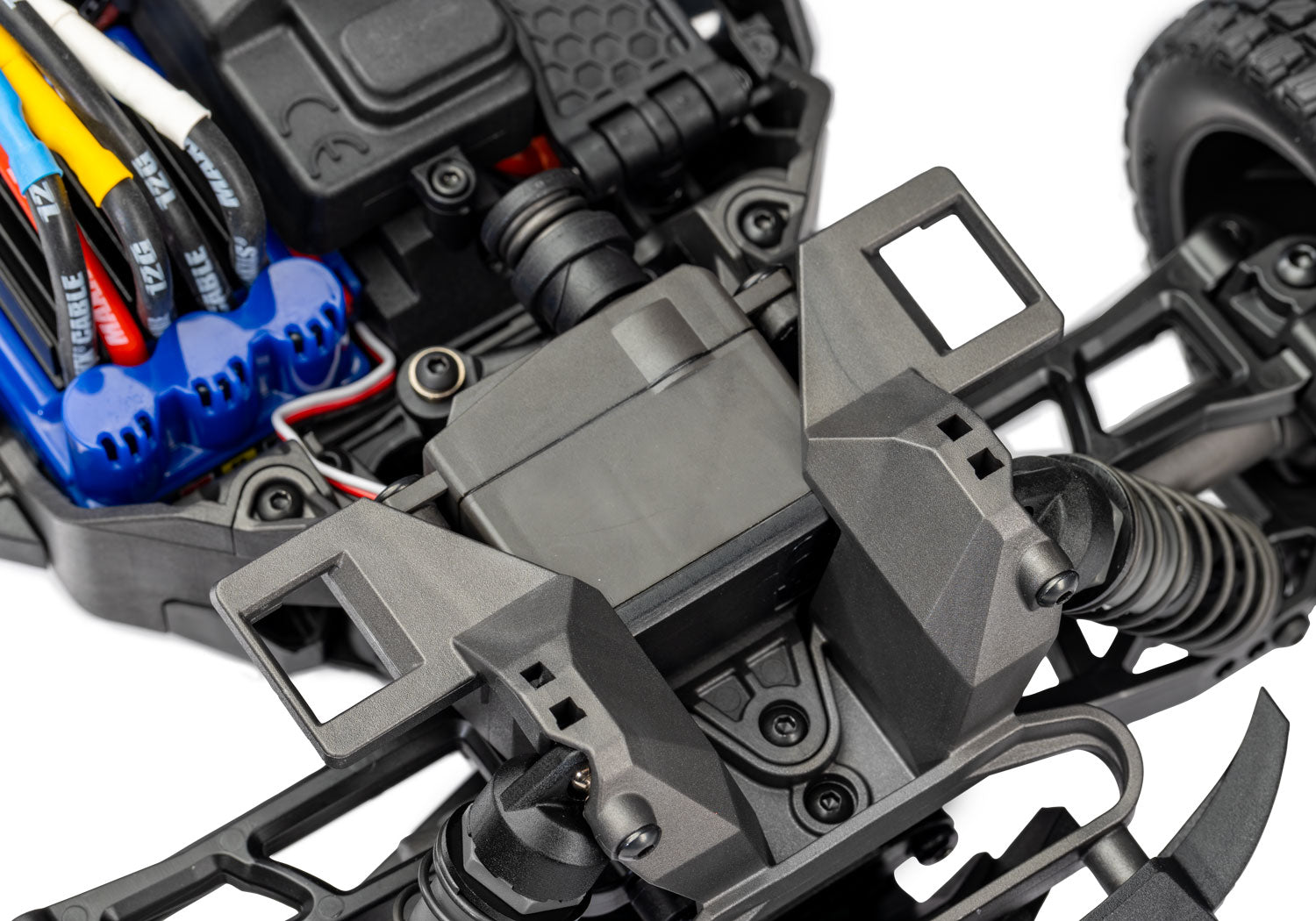

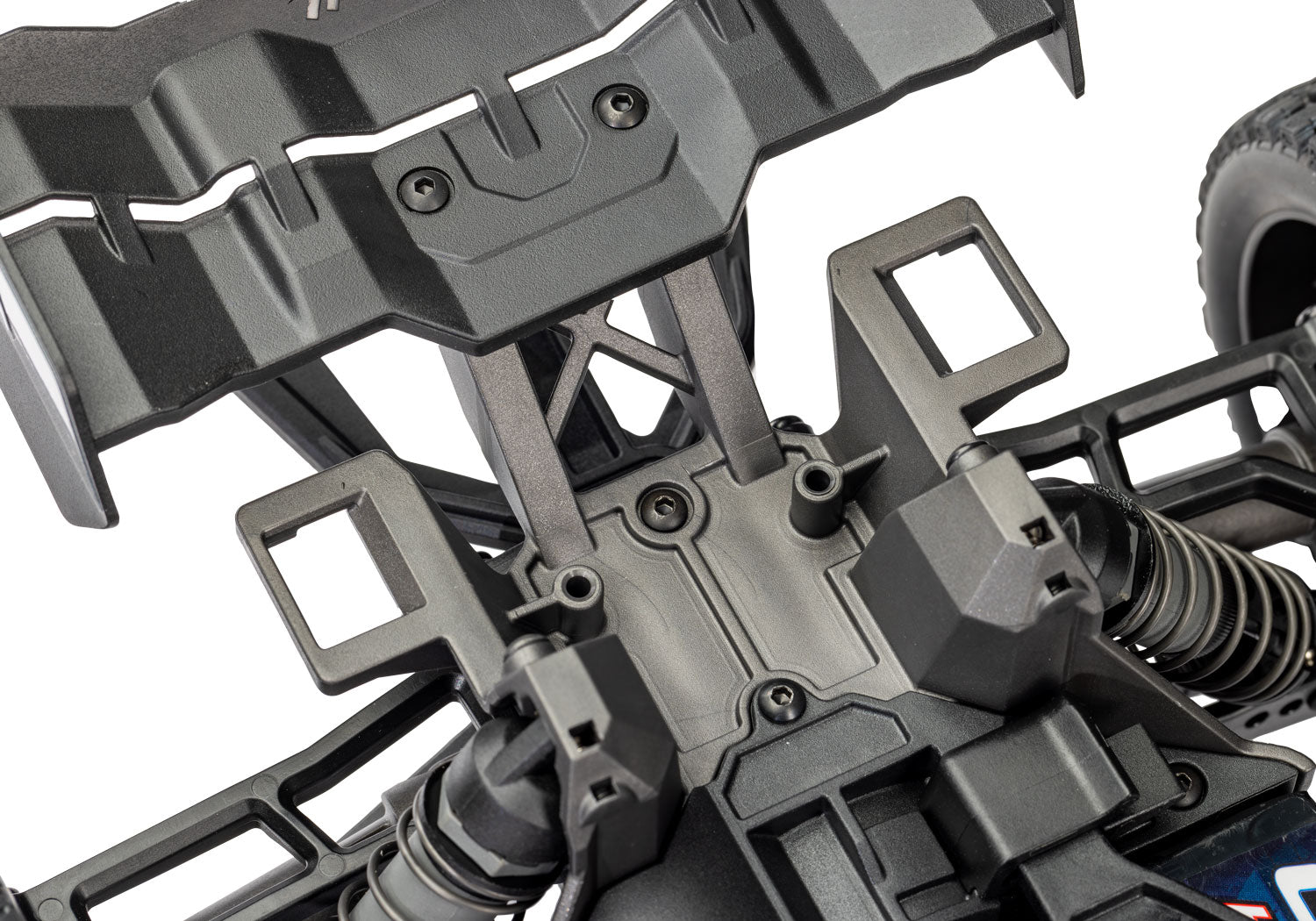

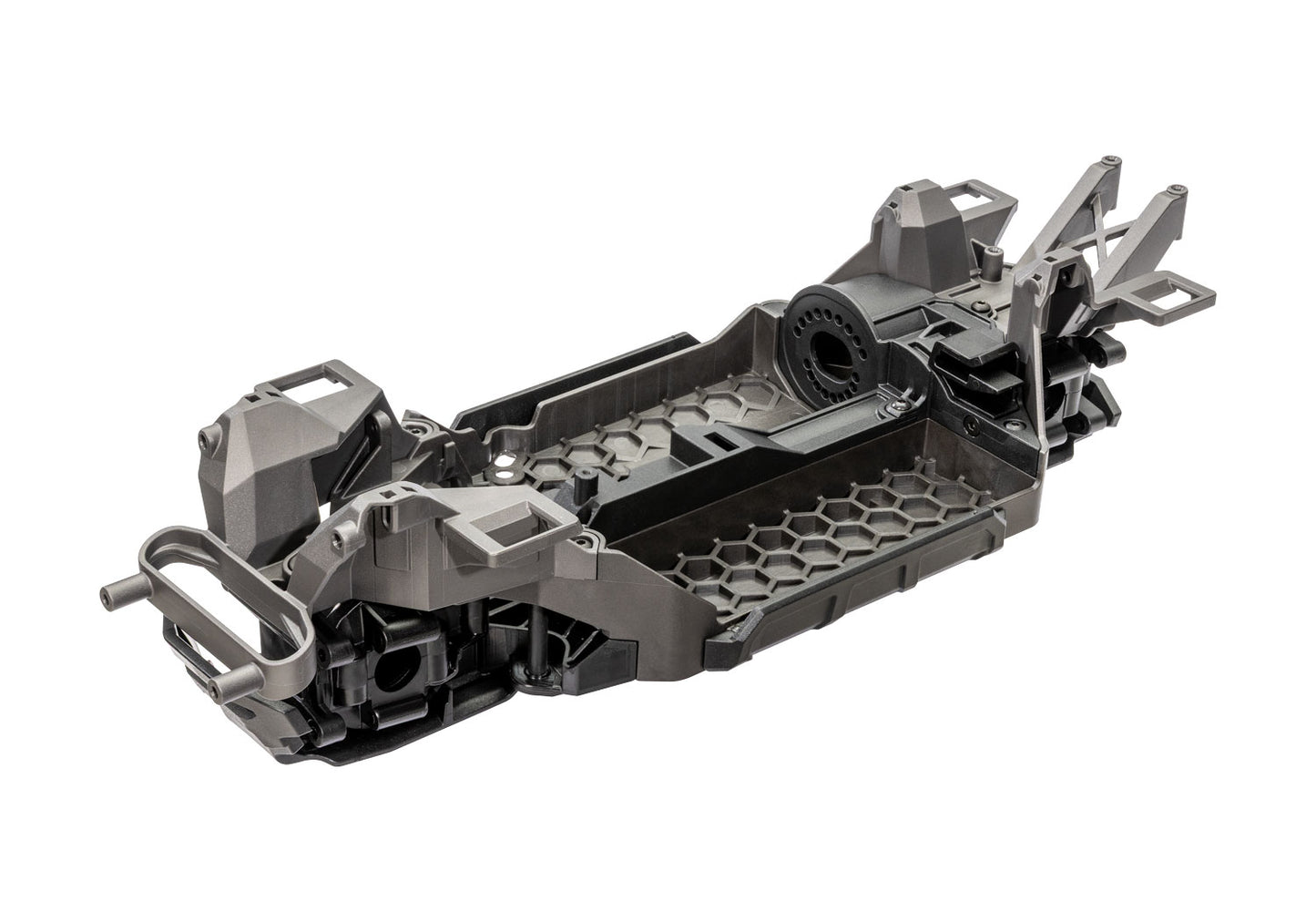

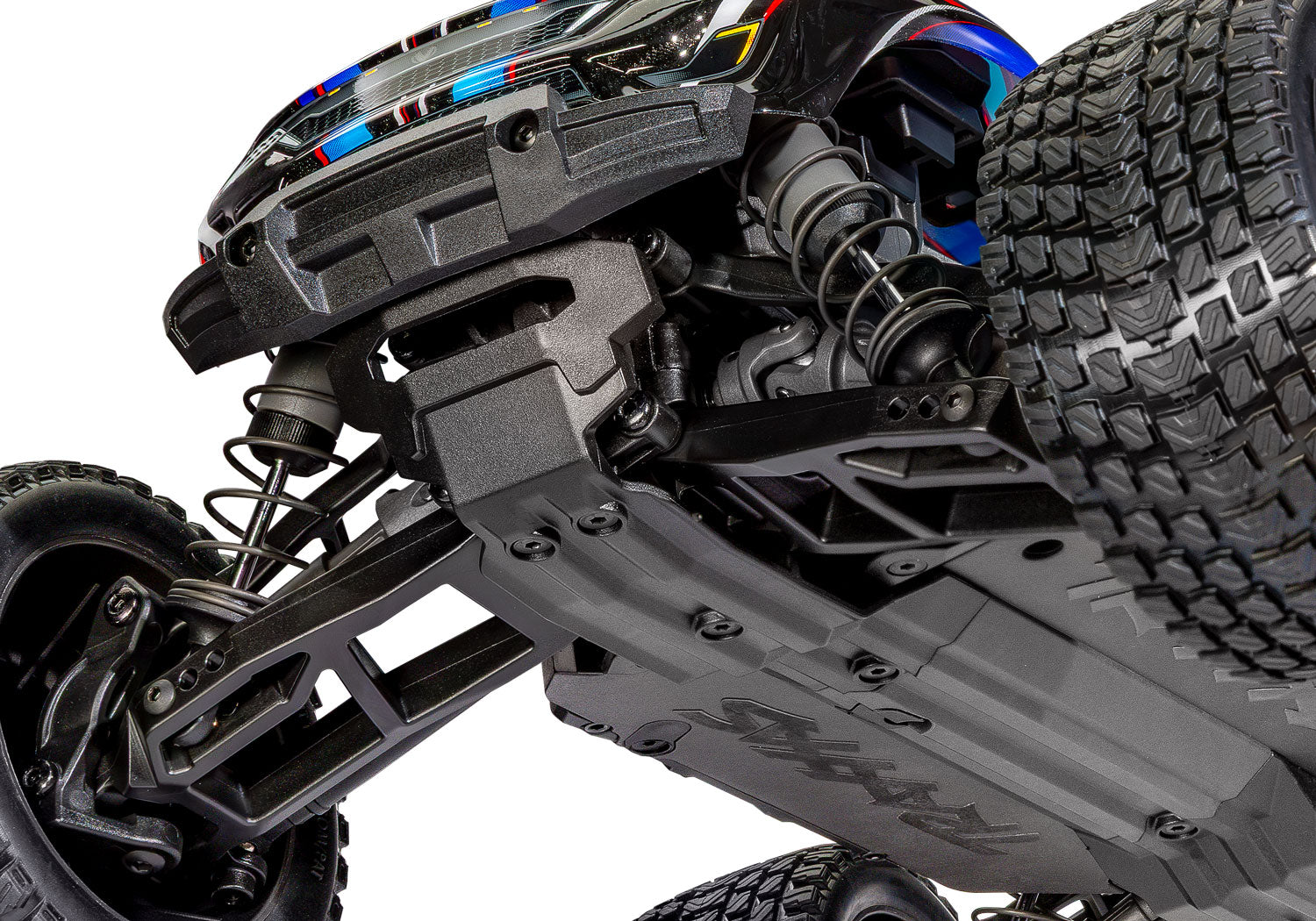

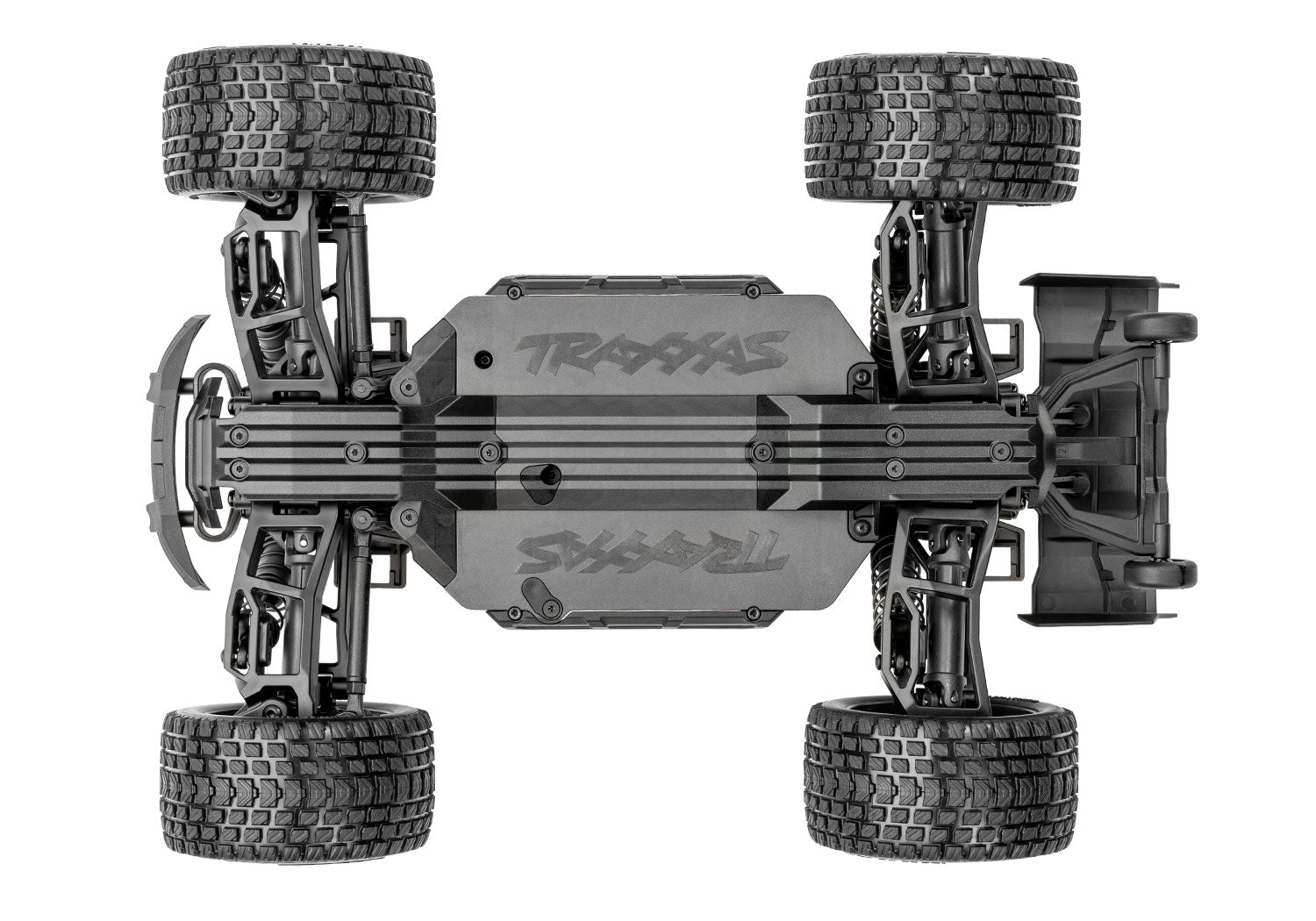

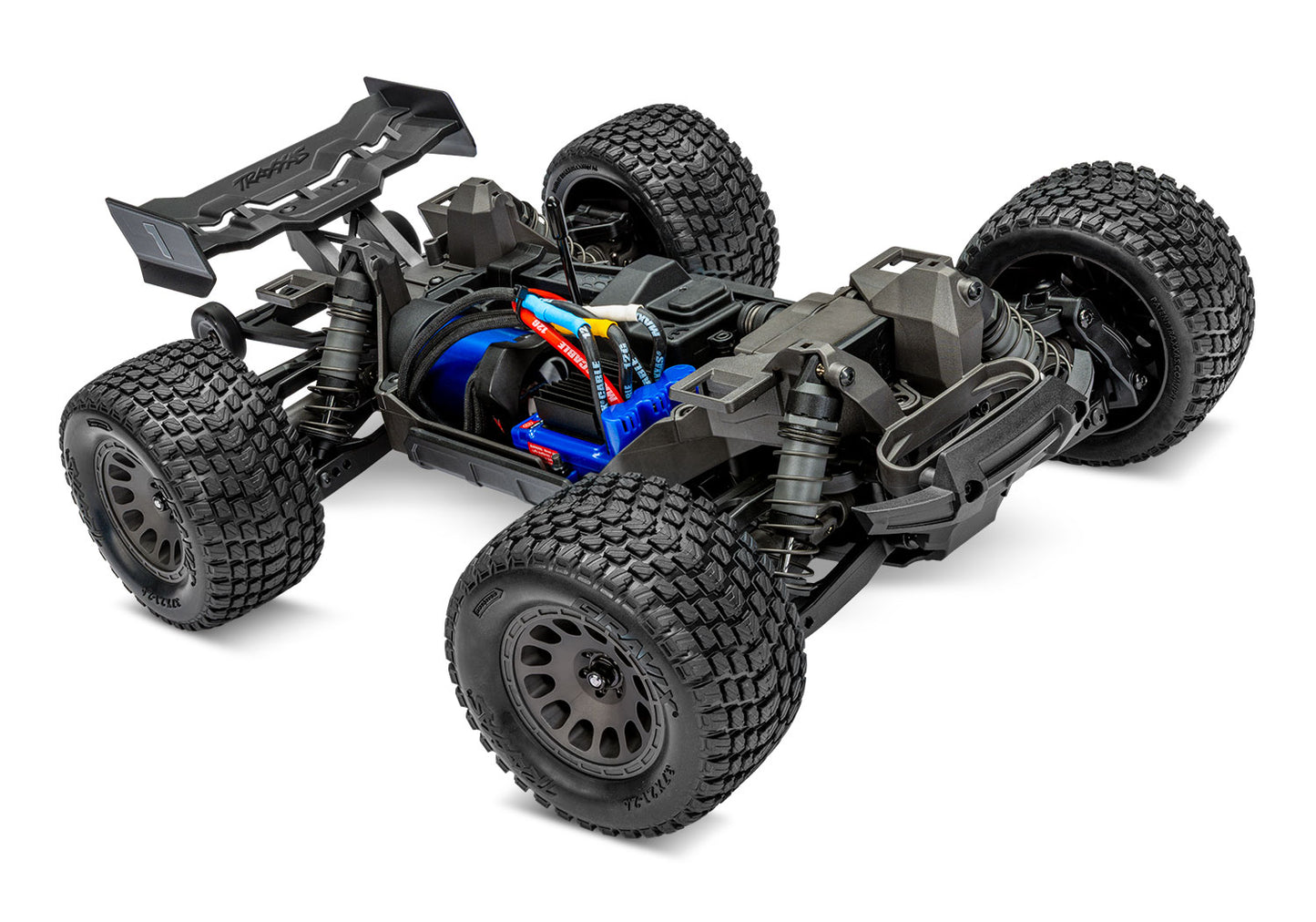

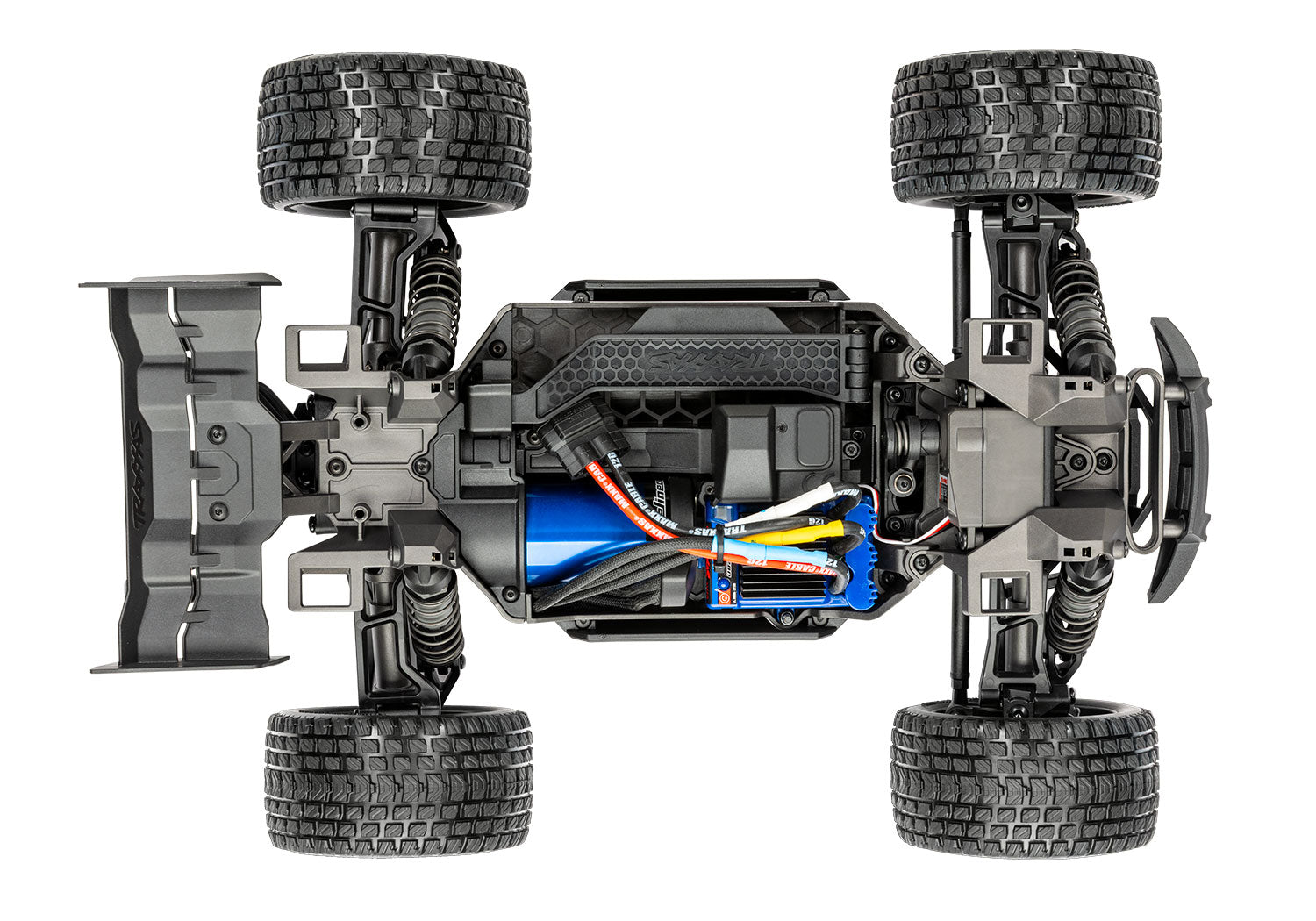

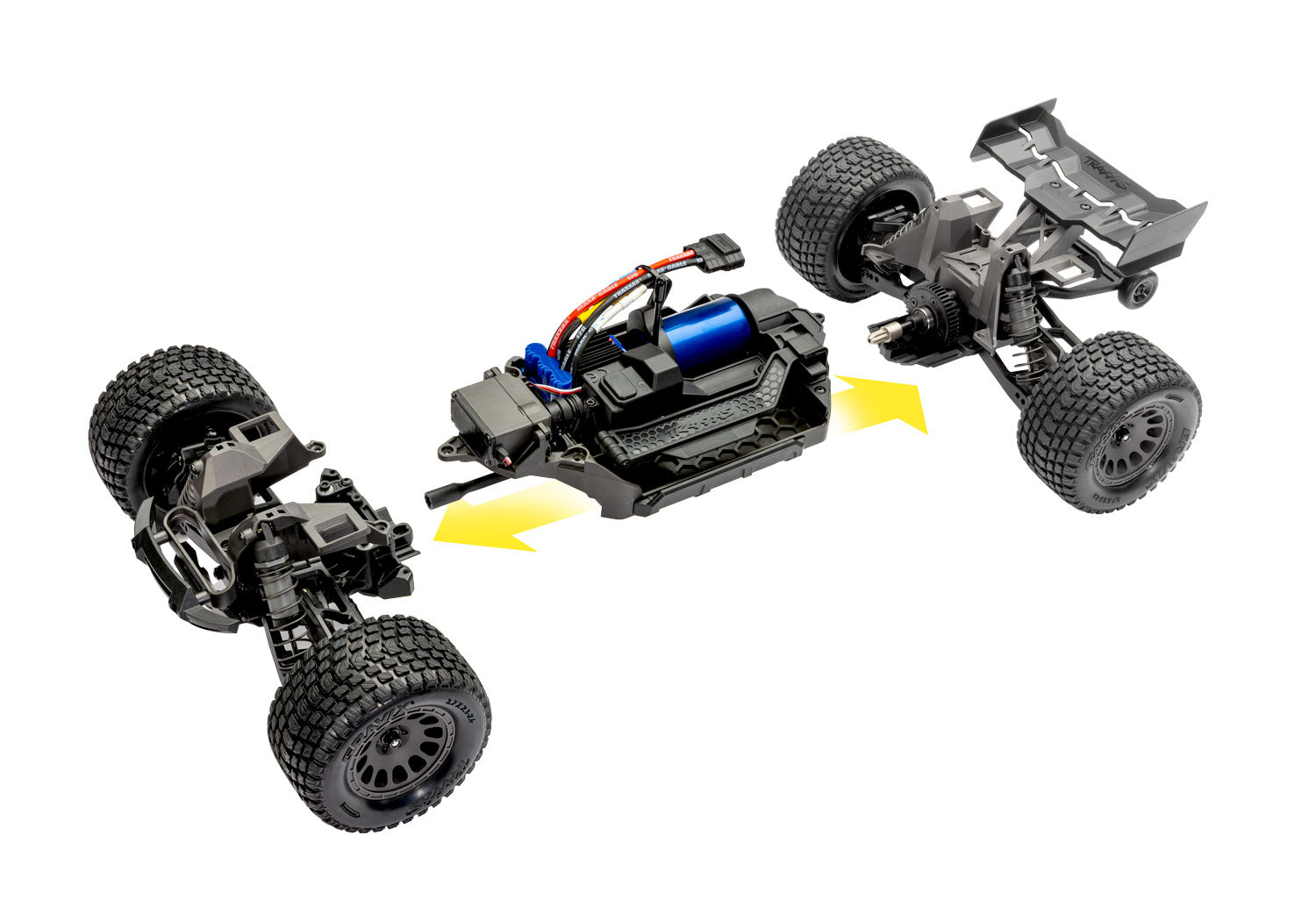

- Maxx Chassis Technology - Mini XRT is the newest truck to use the revolutionary chassis design pioneered in Mini Maxx®. Perfectly sized to fit into a backpack, Mini XRT transforms full-scale performance and durability into a supremely compact chassis. Just one look at the rigid, unified structure and you know it’s built Maxx tough.

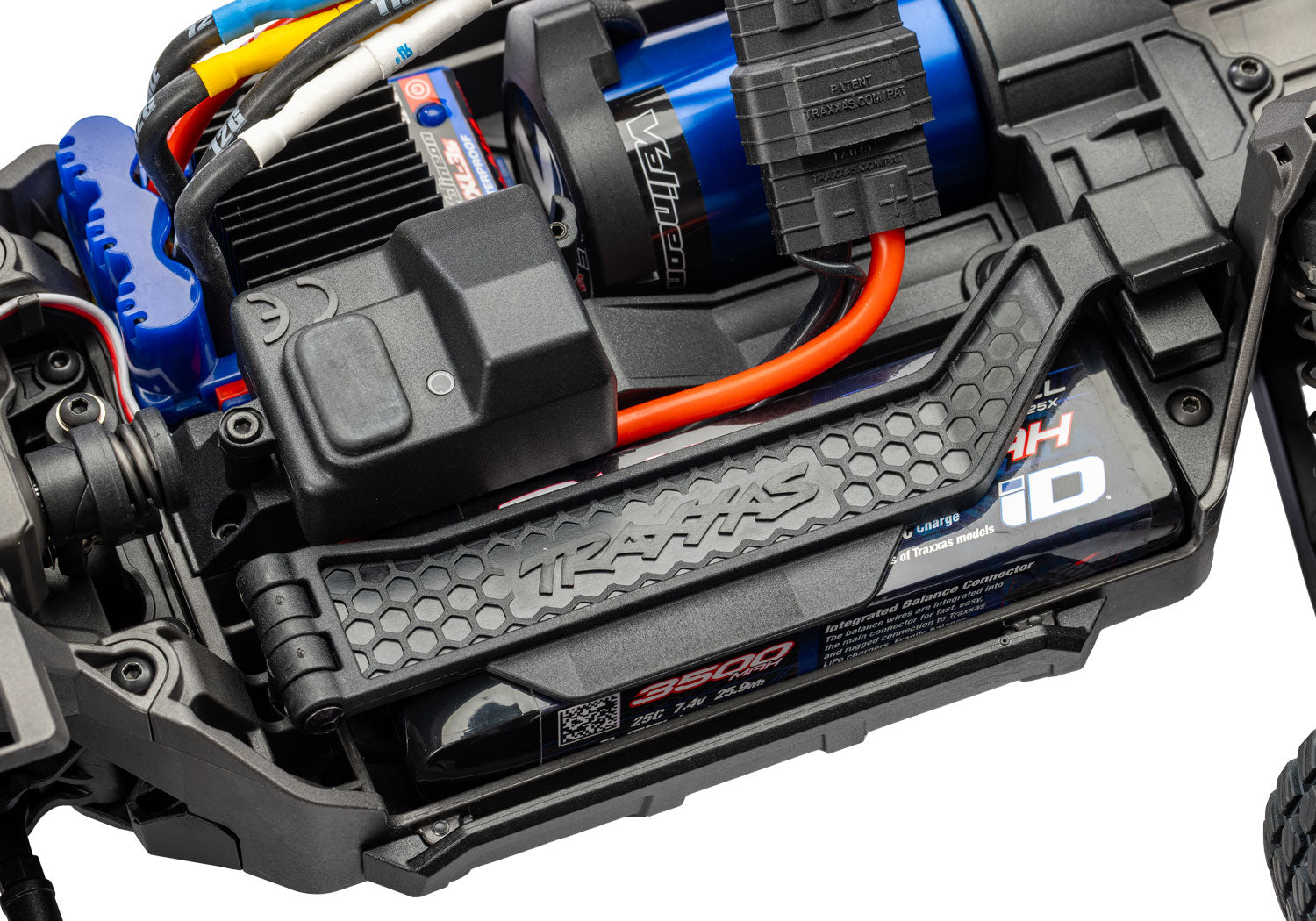

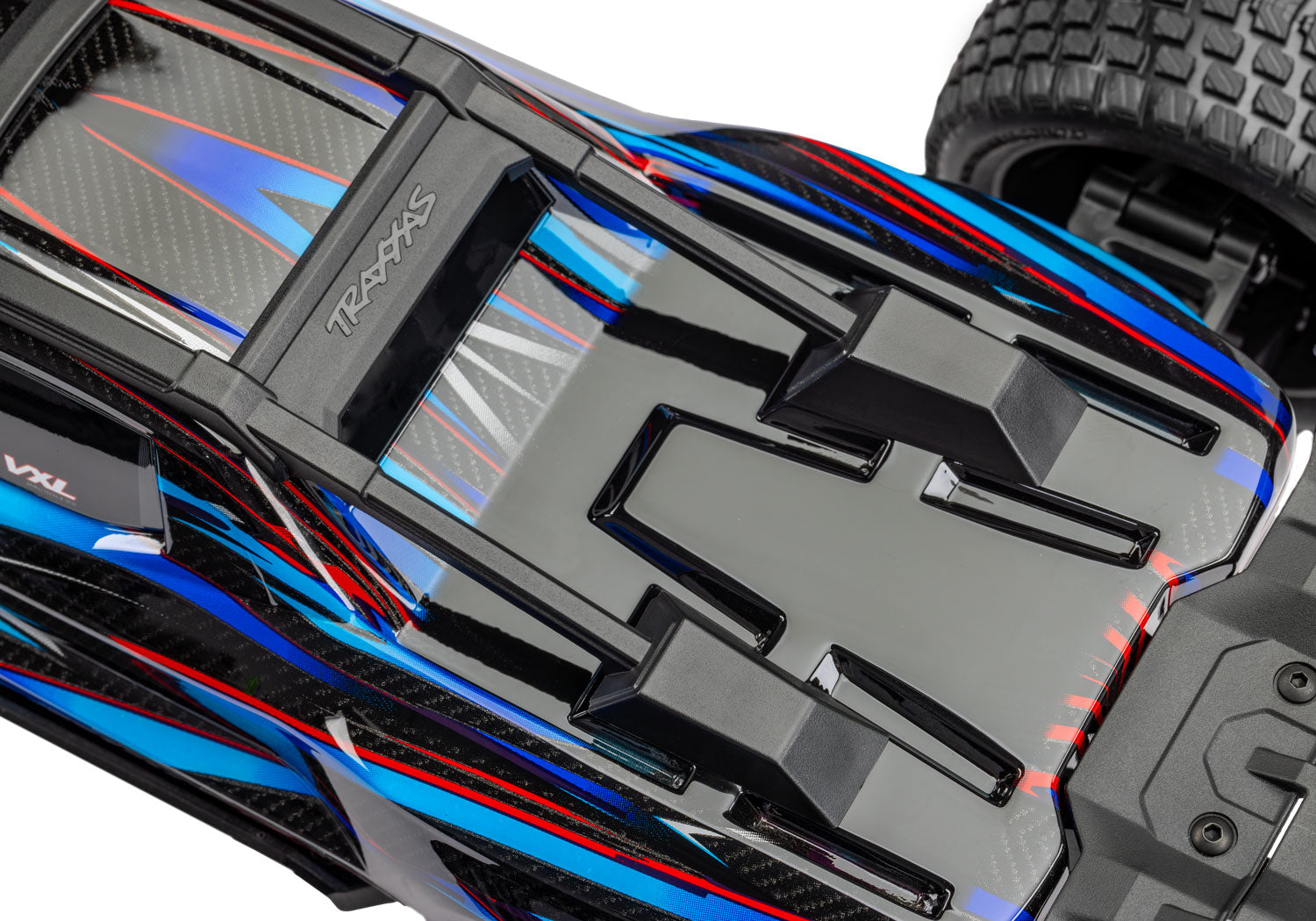

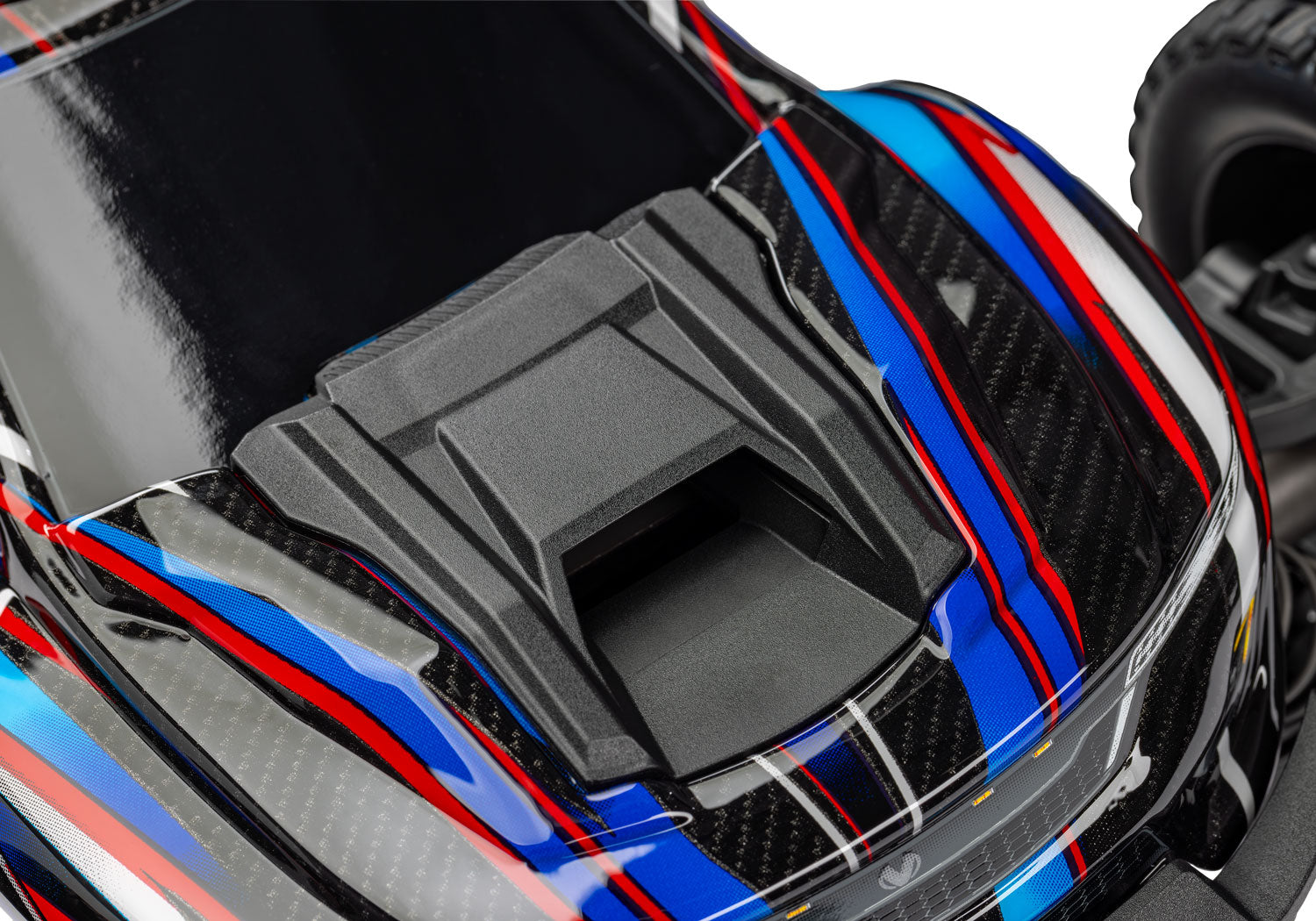

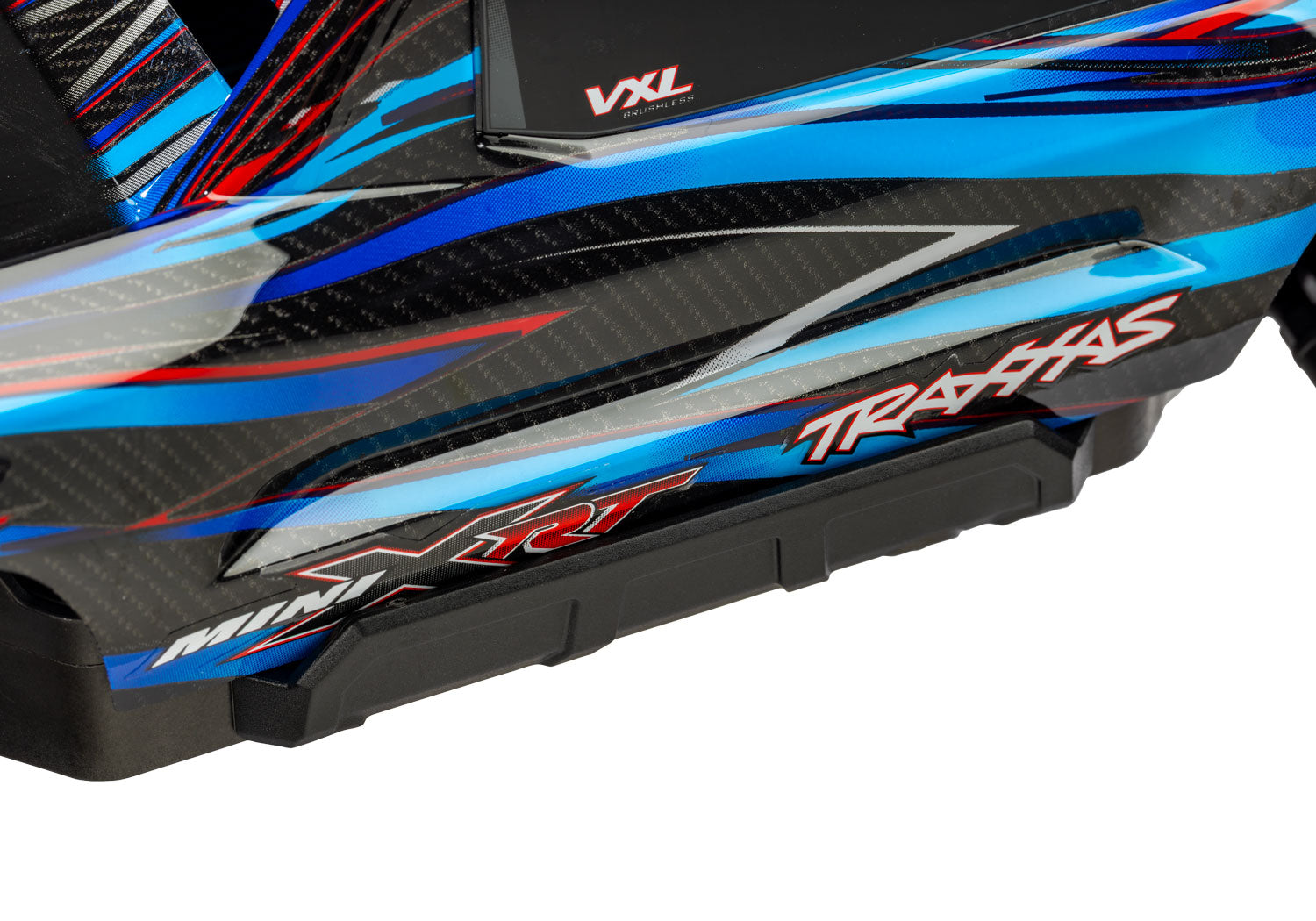

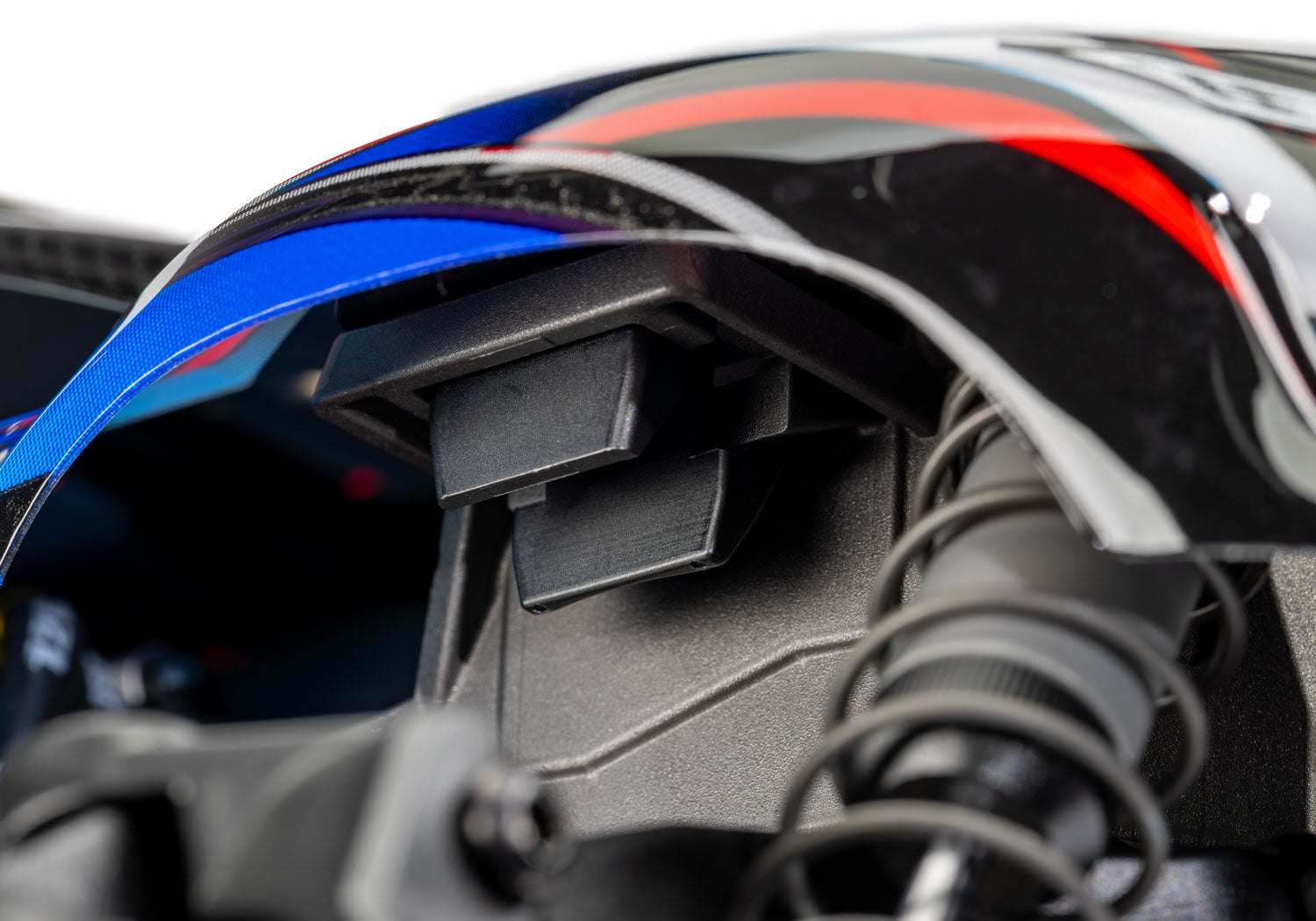

- Clipless Body - Mini XRT’s innovative clipless body is rock solid and easy to use. Just drop the body onto the chassis and snap it into place for a secure hold. When it’s time to change the battery, depress the tabs under the wheel wells and lift to access the chassis. Nothing else is faster or latches more securely.

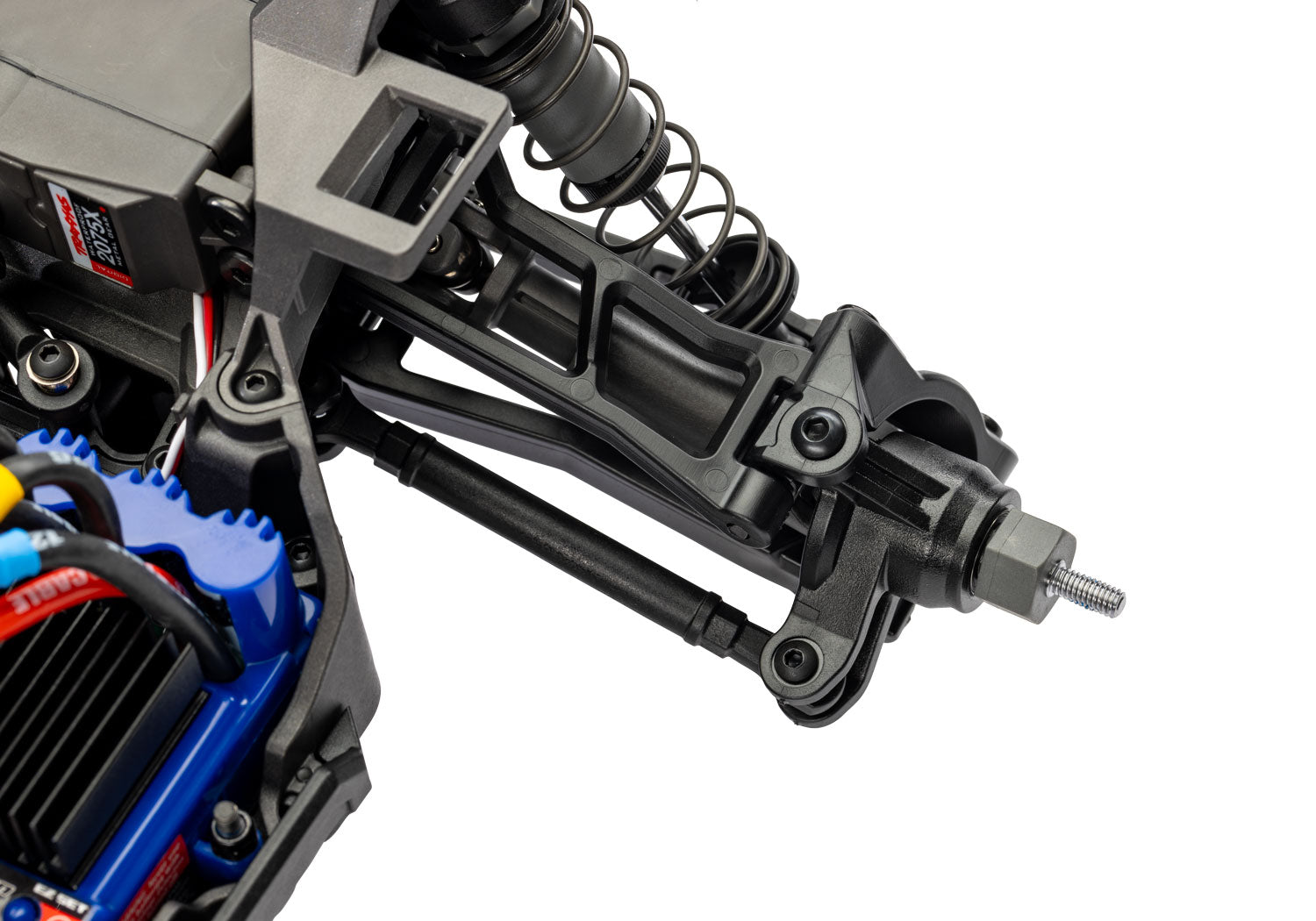

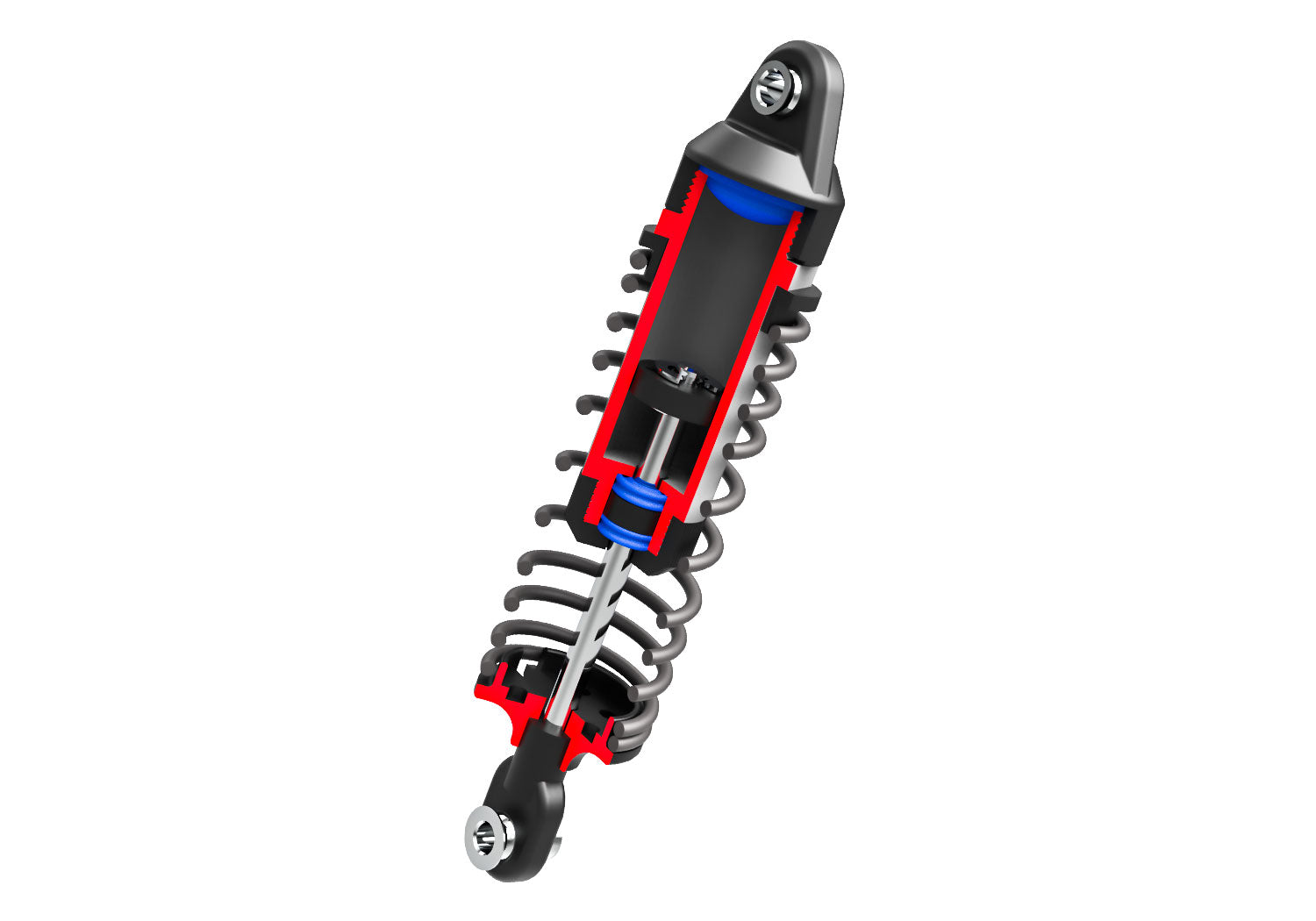

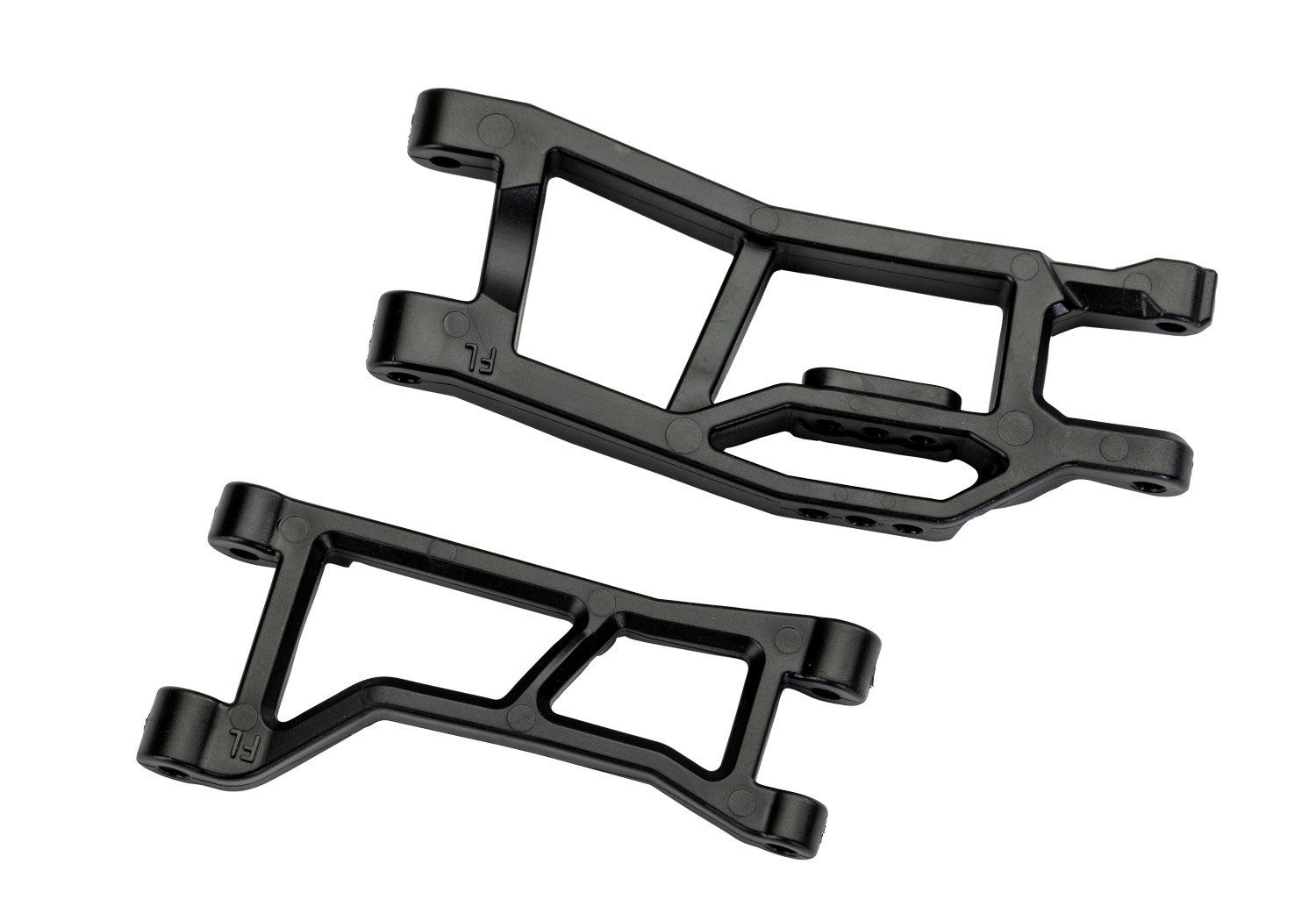

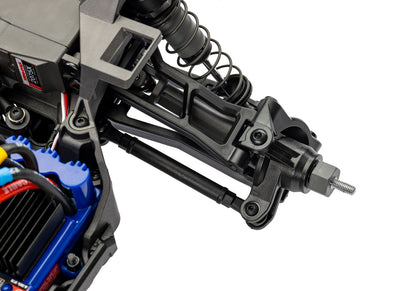

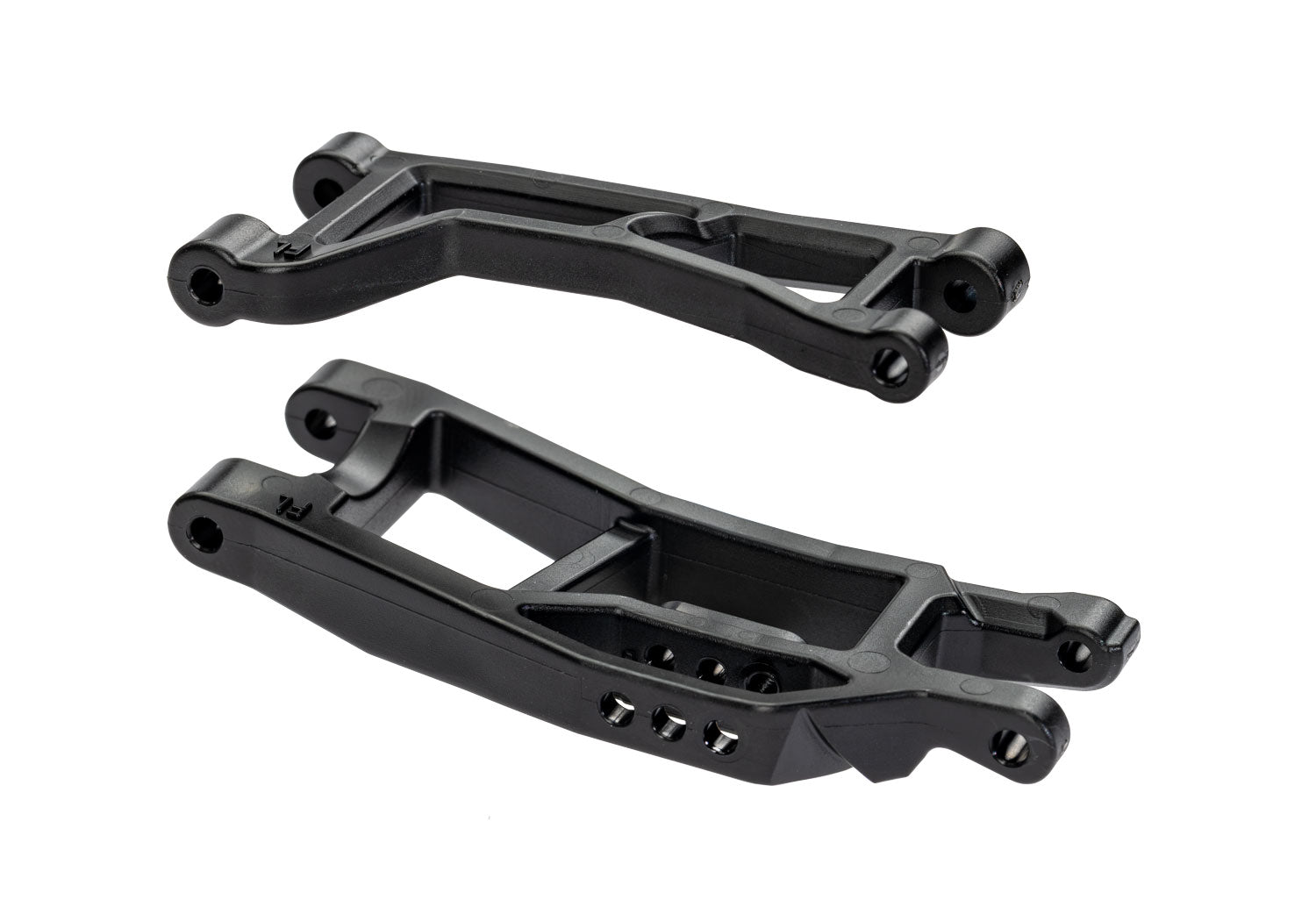

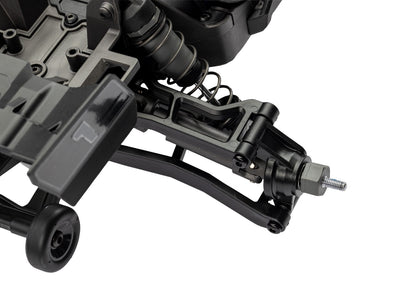

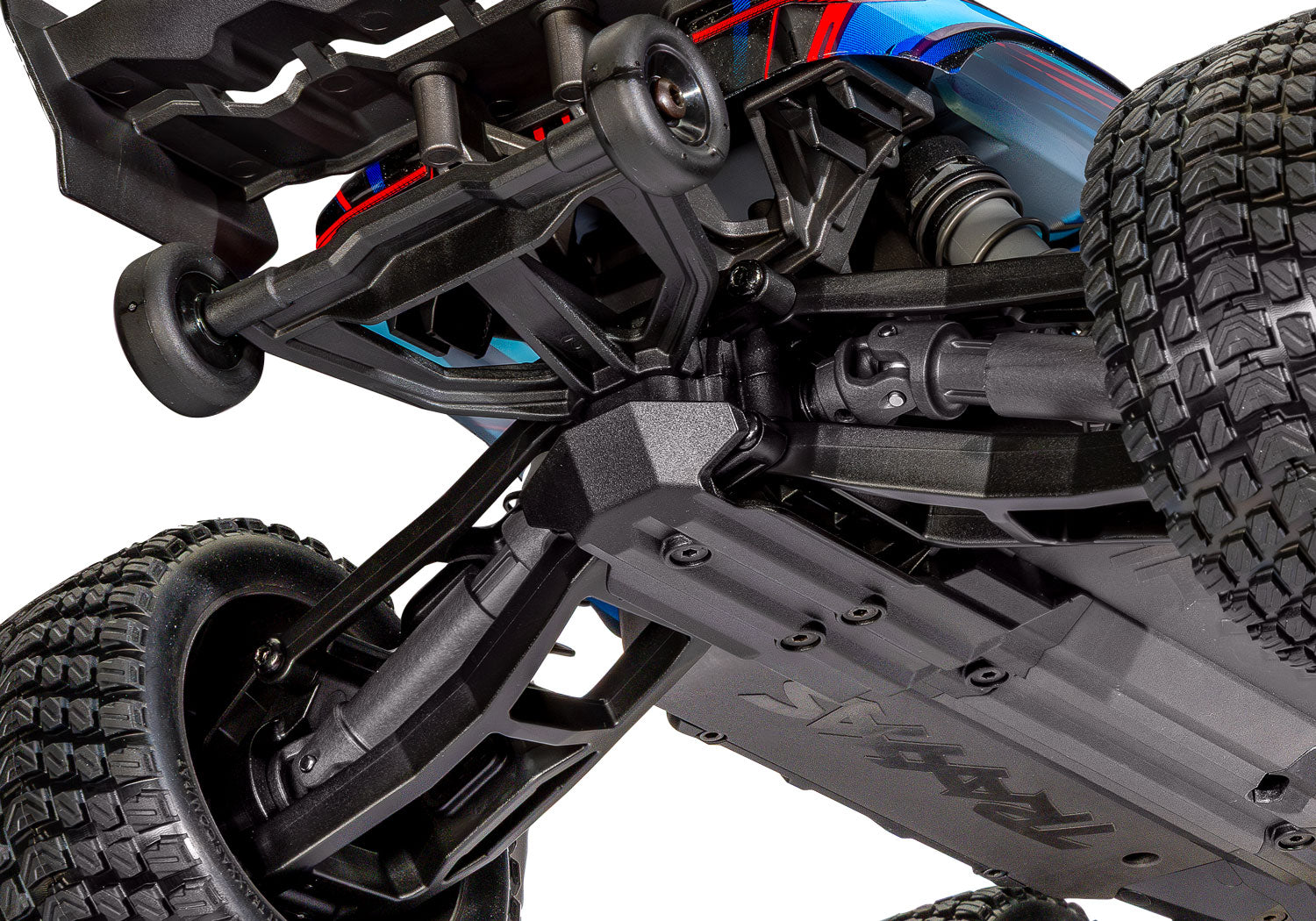

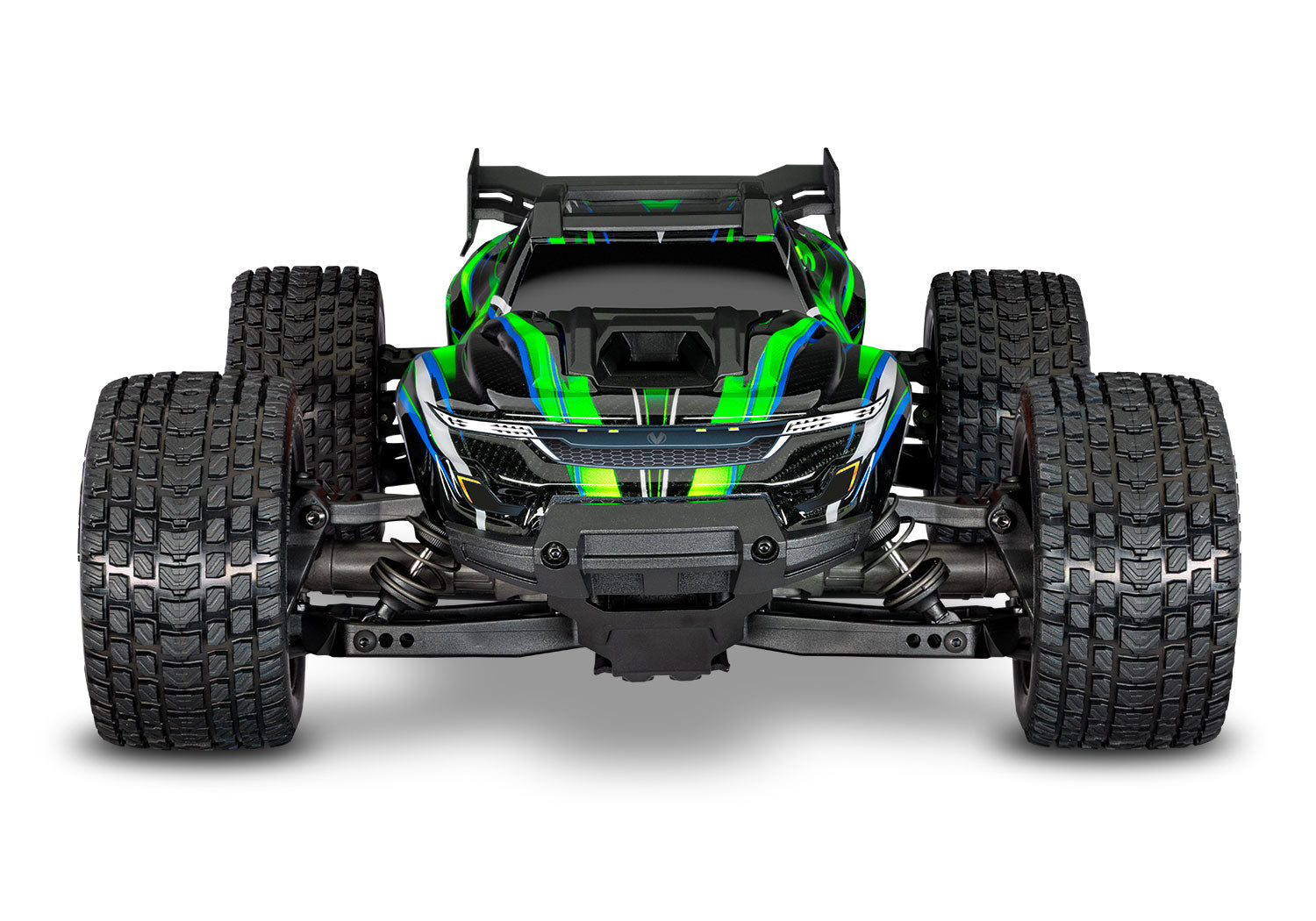

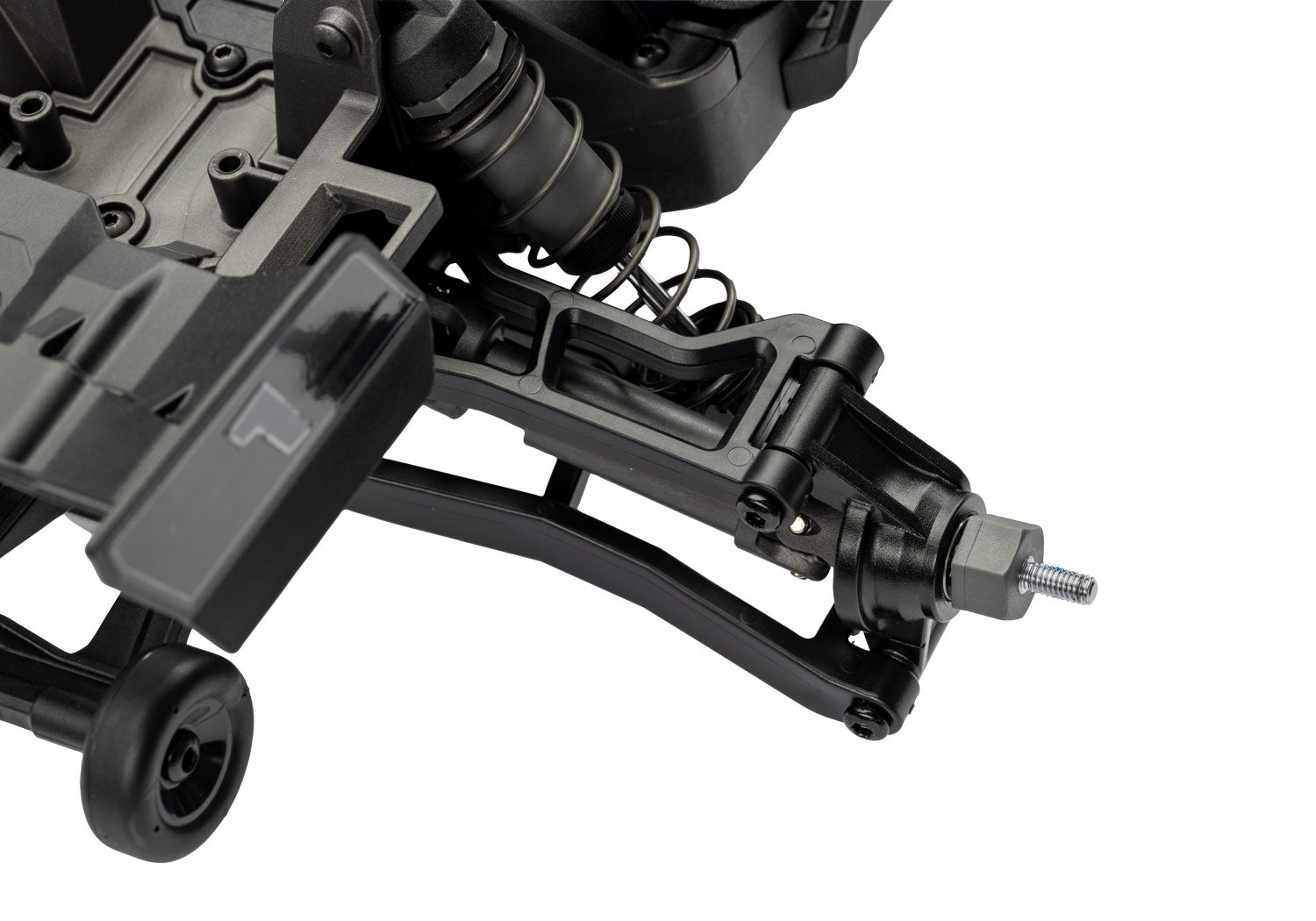

- WideMaxx Suspension - Mini XRT relies on proven WideMaxx® suspension design to deliver sure-footed grip and laser-focused handling. Mini XRT sits low and wide for hard cornering and maximum stability at speed. The long-travel suspension delivers refined damping control to maintain composure over the roughest terrain.
Truck Specs | |
Length: | 14.8 inches (376 mm) |
Front Track: | 11 inches (279 mm) |
Rear Track: | 11 inches (279 mm) |
Ground Clearance: | 1.06 inches (27 mm) |
Weight: | 3.99 pounds (1.81 kg) |
Height: | 5 inches (127 mm) |
Wheelbase: | 8.66 inches (220 mm) |
Shock Length: | 3.45 inches (88 mm) |
Tire Diameter: | 3.7 inches (94 mm) |
Wheel Diameter: | 2.1" (53 mm) outer, 2.6" (66 mm) inner |
Speed Control: | VXL-3s brushless ESC |
Motor (electric): | Velineon 3500 (3500 Kv) |
Transmission: | Direct-drive with center differential |
Overall Drive Ratio: | 7.36:1 |
Differential Type: | Planetary, steel gear |
Gear Pitch: | 32 |
Chassis Structure/Material: | Composite modular tub |
Brake Type: | Electronic |
Drive System: | Shaft-driven 4WD |

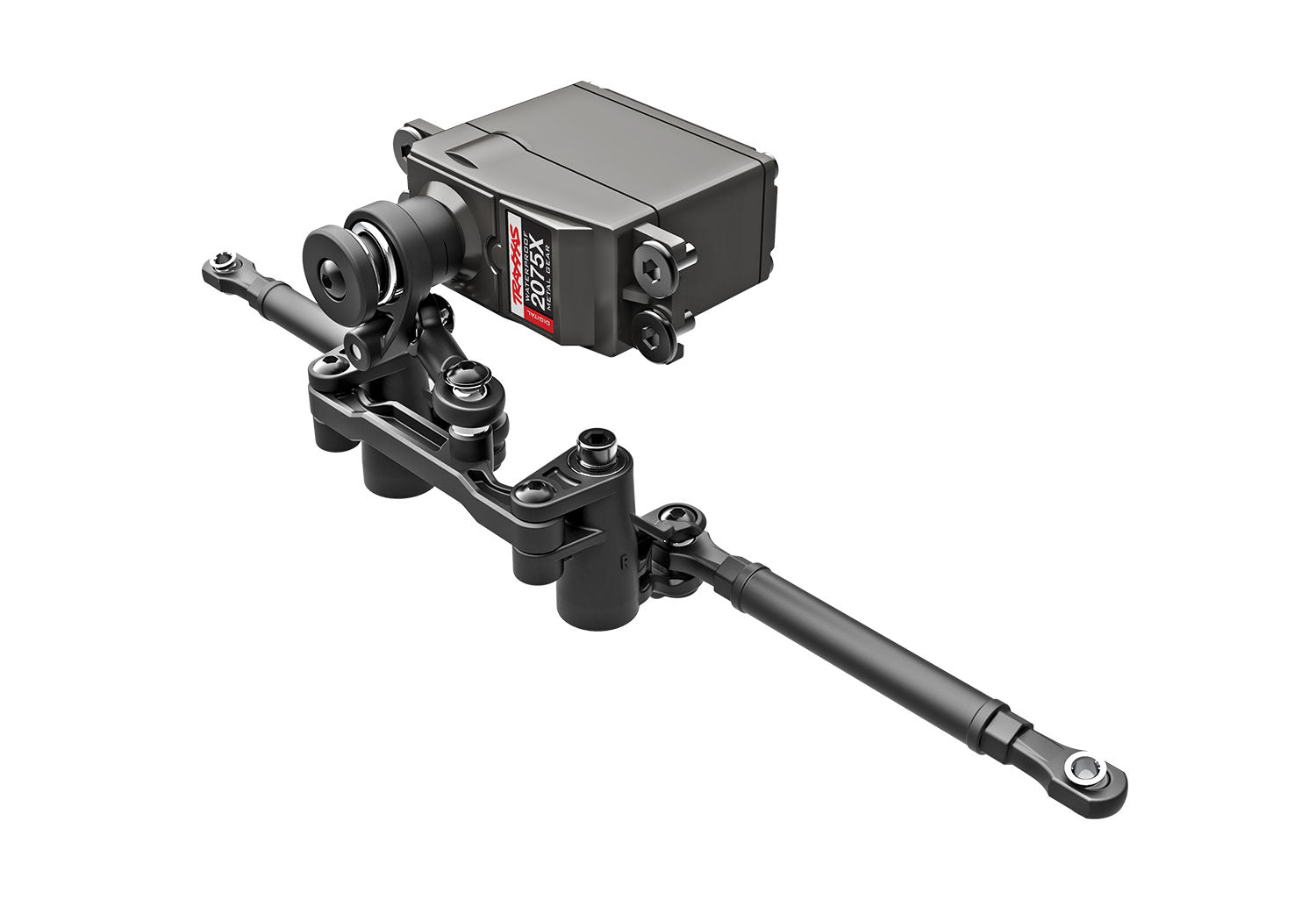

Steering: | Double-shear bellcrank |

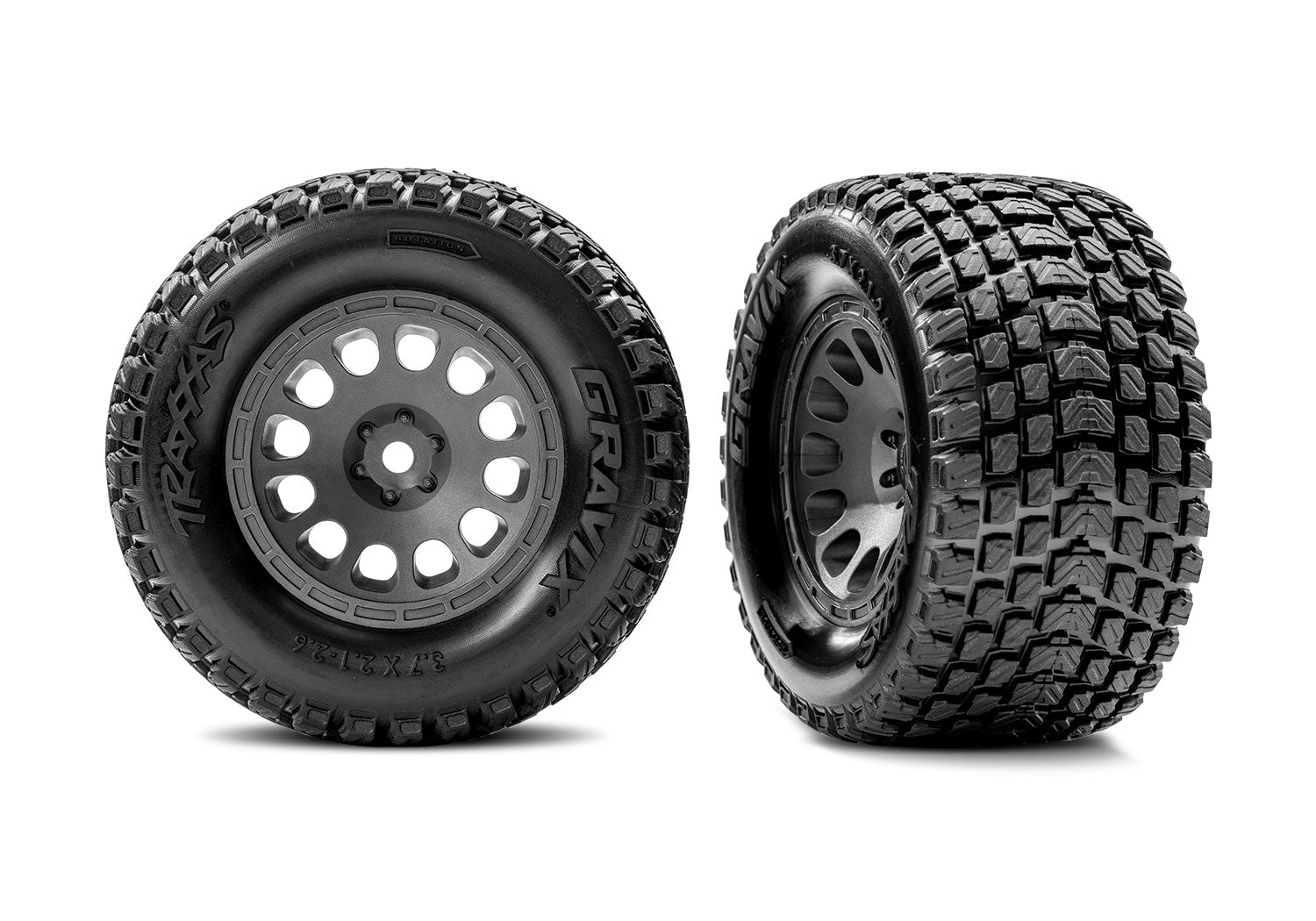

Wheels & Tires: | Black dual-profile XRT wheels with pre-glued 4" Gravix tires |

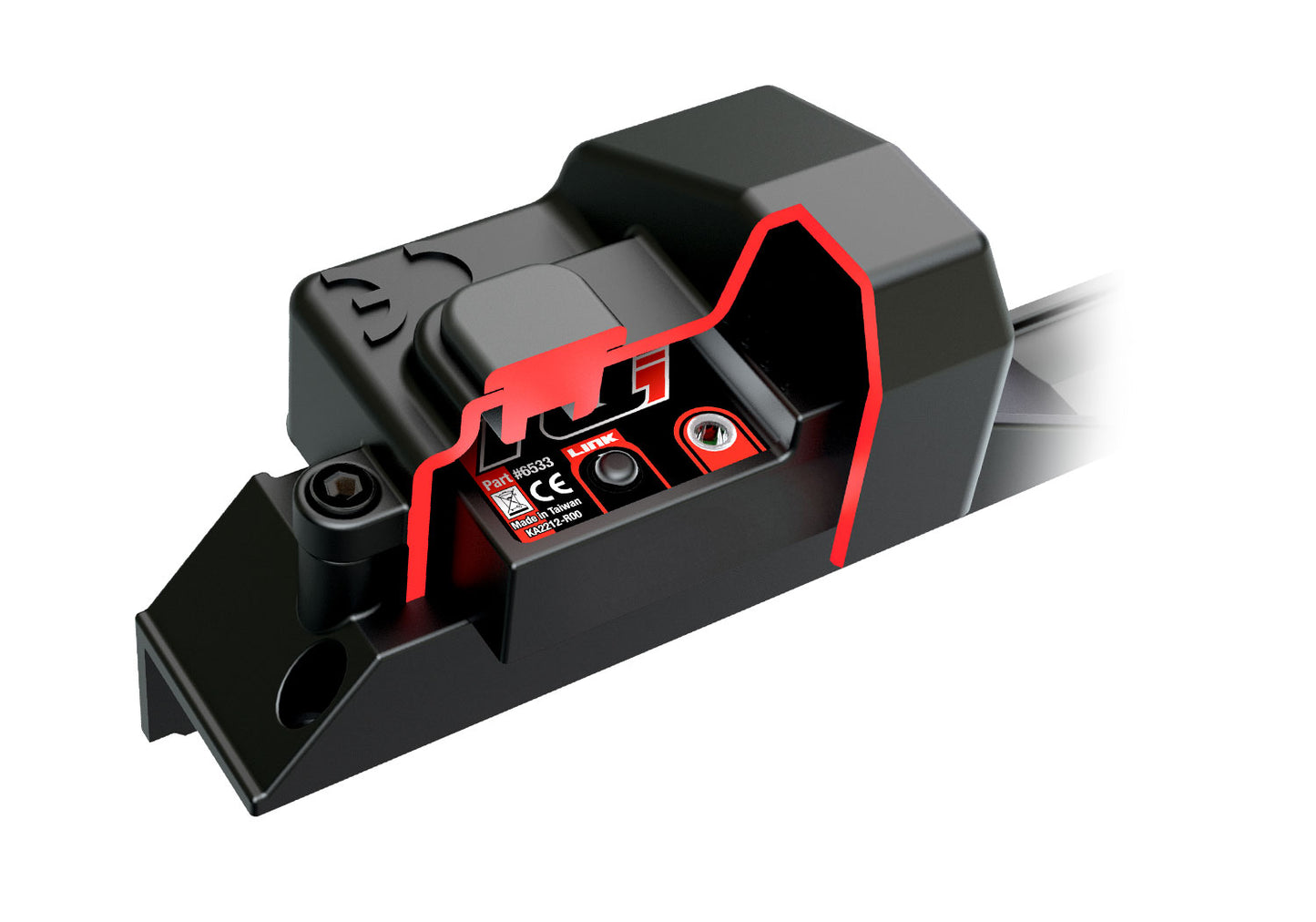

Radio System: | TQi 2.4 GHz high output(2-channel) w/ TSM |

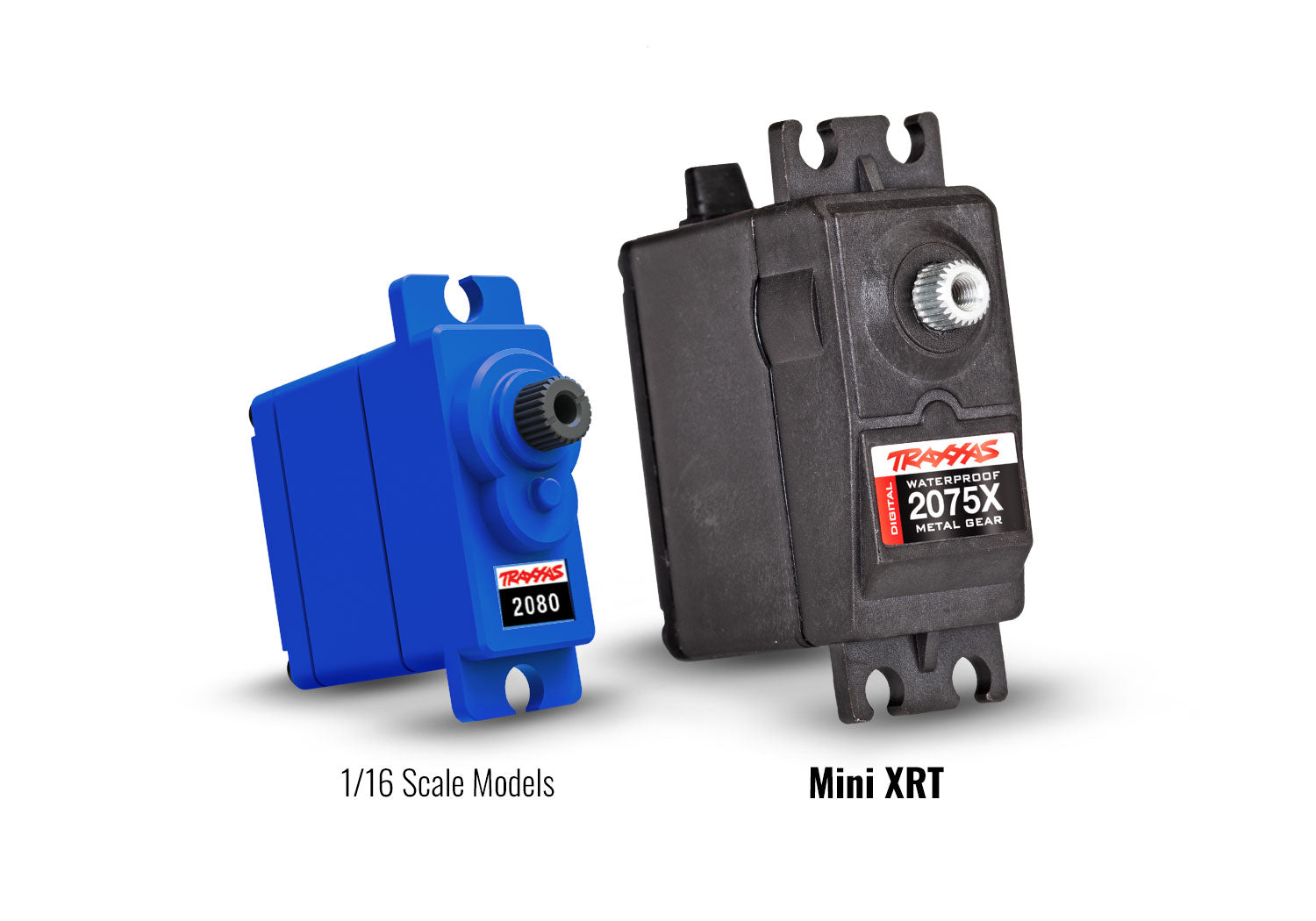

Servo: | Waterproof high-torque, metal-gear 2075X |
Top Speed: | 55+ mph |
Skill Level: | 1 |
Battery Tray: | 113 mm L x 41 mm W x 22 mm H |
Required Batteries: | 4 “AA” (transmitter) |
Motor Specs | |
Type: | Velineon 3500 Kv sensorless brushless |
Weight: | 9.24 ounces (262 g) |
Length: | 3.03 inches (77 mm) |
Diameter: | 1.41 inches (36 mm) |
Connector Type: | 3.5 mm bullet |
ESC Specs | |
Input Voltage (cells): | 7.4 – 11.1 volts, 2s–3s LiPo |
Case Size: | 2.19" (56 mm) x 1.54" (39 mm) x 1.3" (33 mm) |
Weight: | 3.84 ounces (109 g) |
BEC Voltage: | 6.0 volts |
Reverse Delay: | Yes, with lockout |
Thermal Protection: | Two-stage thermal shutdown |
Ports: | Auxiliary fan |
