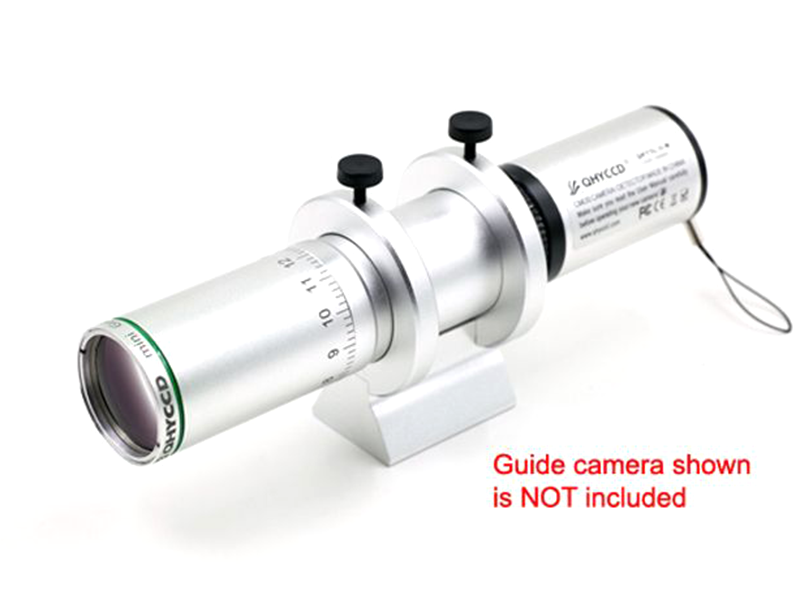

QHYCCD miniGuideScope with Mount (miniguide+Mount)
$129.00
Skip to product information
QHYCCD miniGuideScope with Mount (miniguide+Mount)
$129.00
130mm Focal Length
Compact high resolution guide scope
30mm Objective Aperture
Sharp broadband coated achromatic lens
Ultra Lightweight Design
Weighs only 111 grams total
Precision Threaded Focuser
Front ring with position lock
C CS Mount
Includes C to CS adapter
Broad Camera Compatibility
Fits QHY5 II III cameras
Compact Star GuidingHigh performance optics for modern cameras
The QHYCCD 30mm f/4.3 Mini Guidescope is engineered for high-sensitivity, small-pixel astrophotography setups requiring accurate tracking. Paired with a compatible QHY5-II or QHY5-III guide camera, this lightweight astronomy guide scope delivers sharp star images and an expanded field of view without adding excessive weight to your telescope mount.
Engineered For Precision TrackingSharp optical performance in lightweight body
Designed to maximize tracking accuracy, the QHYCCD 30mm f/4.3 Mini Guidescope utilizes an achromatic lens with a broadband anti-reflection coating to render pin-point star images. Its 130mm focal length paired with a fast f/4.3 focal ratio produces a wide field of view, ensuring ample reference stars are available for modern high-density sensor autoguiding setups. Featuring a front-threaded focusing ring with scale markings and a secure locking screw, achieving precise focus for your telescope autoguider is fast and simple. Weighing only 111g, this ultra-compact guide scope includes an adjustable mounting bracket and CS-to-C mount extender for seamless connection to compatible QHYCCD camera systems.
Technical SpecificationsDetailed optical and physical dimensions
Focal Length
130mm
Aperture
30mm
Focal Ratio
F/4.3
Camera Interface
C/CS mount
OTA Diameter
31.6mm
Focuser
Rotational front portion with digit markings and locking mechanism
Focus Range
Infinity to 1.5m
Mounting Bracket
Included
Weight
111g (without bracket) (weight)
Optical Coating
Broadband anti-reflection coating
Key CapabilitiesOptimized features for astrophotography performance
Achromatic OpticsSharp star imaging with broadband anti-reflection coating
Threaded FocuserRotational front focus ring with engraved number scale
Locking MechanismSet screw secures focal position permanently against slipping
Ultra Light WeightWeighs just 111g to minimize total payload on the mount
Wide Field ViewShort focal length captures abundant reference stars
Mounting AdapterIncludes CS to C mount extender adapter
Dedicated BracketSupplied with a custom mini guide scope mounting bracket
Frequently Asked QuestionsEverything you need to know
What cameras are compatible with the QHYCCD 30mm f/4.3 Mini Guidescope with Mount?
The QHYCCD 30mm f/4.3 Mini Guidescope with Mount is compatible with QHY5-II and QHY5-III series cameras, including models like the QHY5L-II-M, QHY5L-II-C, QHY5R-II-C, QHY5P-II-C/M, and QHY5III series (224, 178, 185, 174, 290).
Does the QHYCCD 30mm f/4.3 Mini Guidescope with Mount include a guide camera?
No, a guide camera is not included with the QHYCCD 30mm f/4.3 Mini Guidescope with Mount and must be purchased separately.
How do you adjust focus on the QHYCCD 30mm f/4.3 Mini Guidescope with Mount?
Focusing the QHYCCD 30mm f/4.3 Mini Guidescope with Mount is achieved by rotating the front portion of the optical tube assembly, which features engraved digits for easy focus memory and a locking screw to lock the position in place.
What accessories are included with the QHYCCD 30mm f/4.3 Mini Guidescope with Mount?
The package includes the miniGuideScope optical tube assembly, the dedicated miniGuideScope mounting bracket, and a CS to C mount extender adapter.
