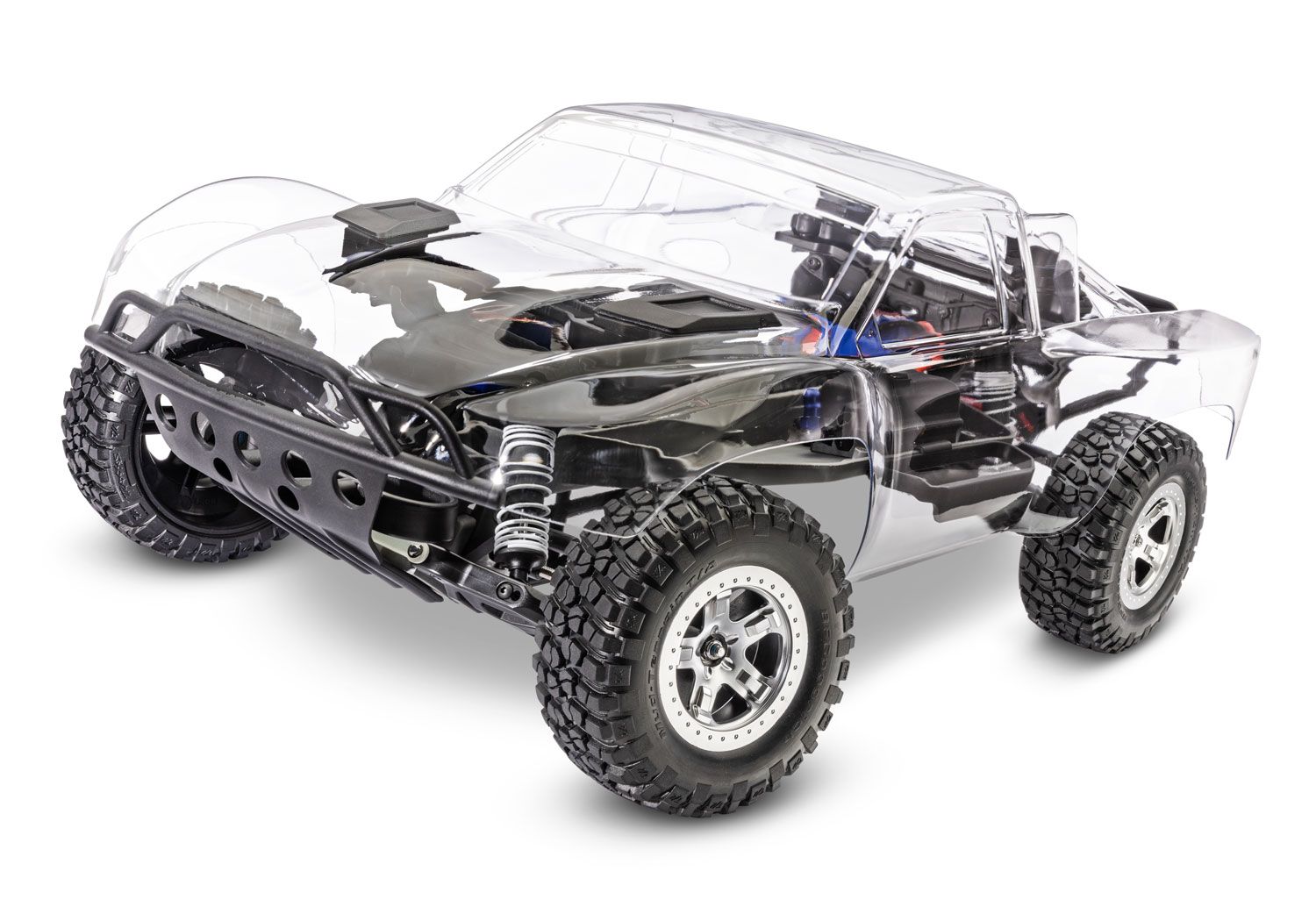

Slash 2WD Unassembled Kit

Overview:

Build your Slash from the ground up with all the required parts and electronics included in the box. You'll get the convenience of a TQ™ 2.4 GHz radio system, powerful Titan® electric motor, and waterproof XL-5™ electronic speed control. All the parts are organized neatly in labeled bags with a fully illustrated color manual to make building rewarding and fun. The Slash assembly kit is perfect for drivers of almost any age or skill level. Build one yourself and experience RC fun the Traxxas way—fast, fun, and easy to use!

Extreme HD Suspension Components:

The Slash unassembled kit comes outfitted with factory-installed Extreme Heavy-Duty suspension components for ultimate strength and durability. The rear axle carriers, C-hubs, and steering blocks are beefed up with more material and stronger construction.

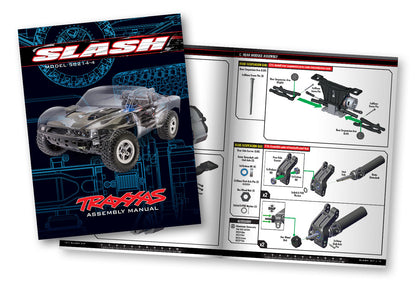

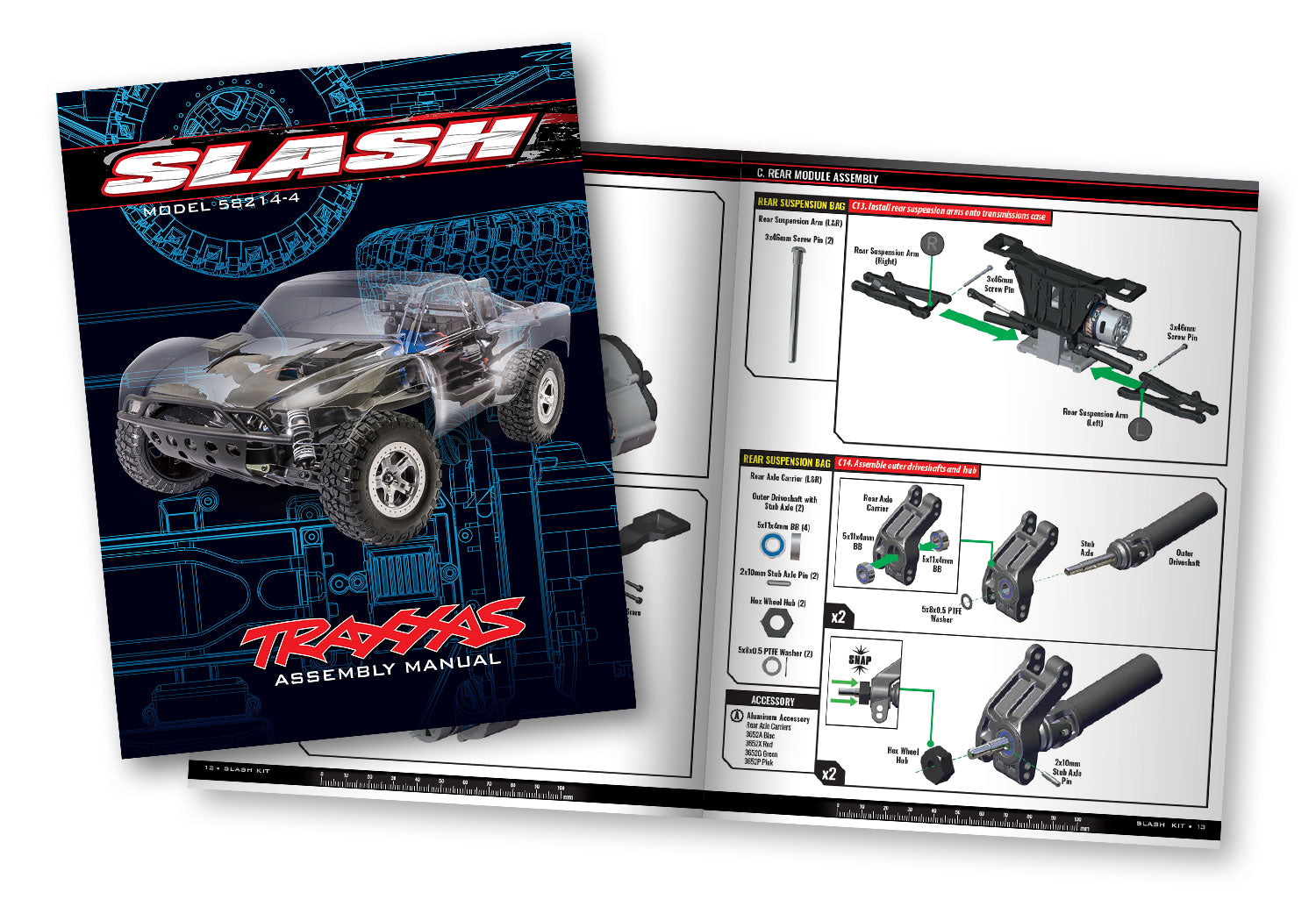

Easy-to-Follow Assembly Instructions:

The full-color instruction book is easy to follow and fun to use. Each section corresponds to a labeled bag with step-by-step instructions. True-to-scale illustrations and ruler charts make it easy to differentiate between different parts. Helpful assembly tips and clear illustrations take the frustration out of the assembly process.

Clipless Body Mounting:

Slash’s tough clipless body holds firm no matter how rough the action gets. Heavy-duty latches grip the body tightly, but release in just seconds to access the chassis. Slash’s hidden latching system replaces time-consuming and inconvenient body clips with large reinforced panels to resist pull-through damage.

Features:

  • Clear Clipless Short Course Body
  • Waterproof XL-5™ Electronic Speed Control
  • Powerful Titan 12T 550 modified motor with internal cooling fan
  • Extreme Heavy Duty Parts Installed
  • TQ™ 2.4 GHz 2-Channel Radio System
  • Easy Access Battery Compartment
  • Velineon®-ready Magnum 272™ metal-gear transmission

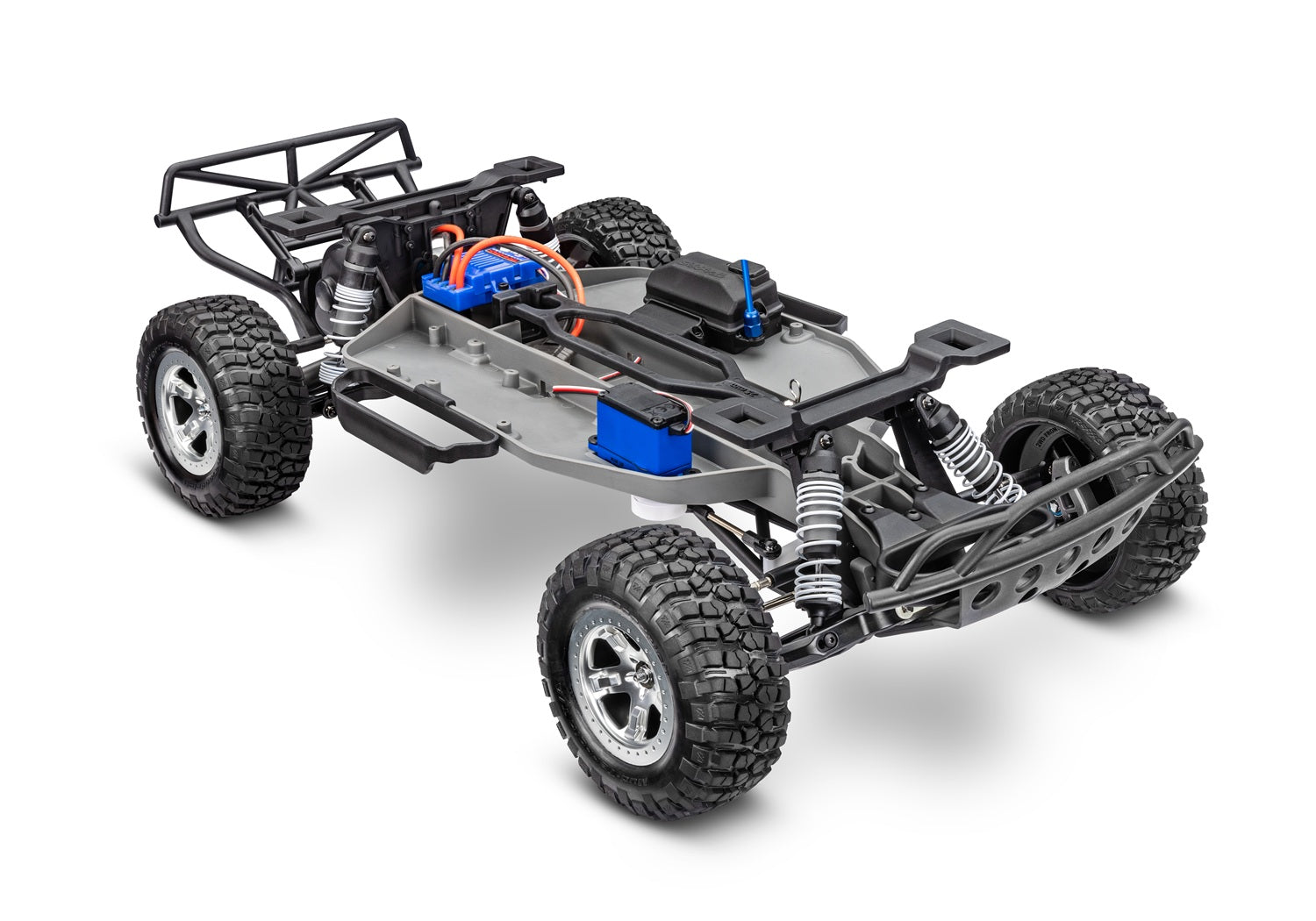

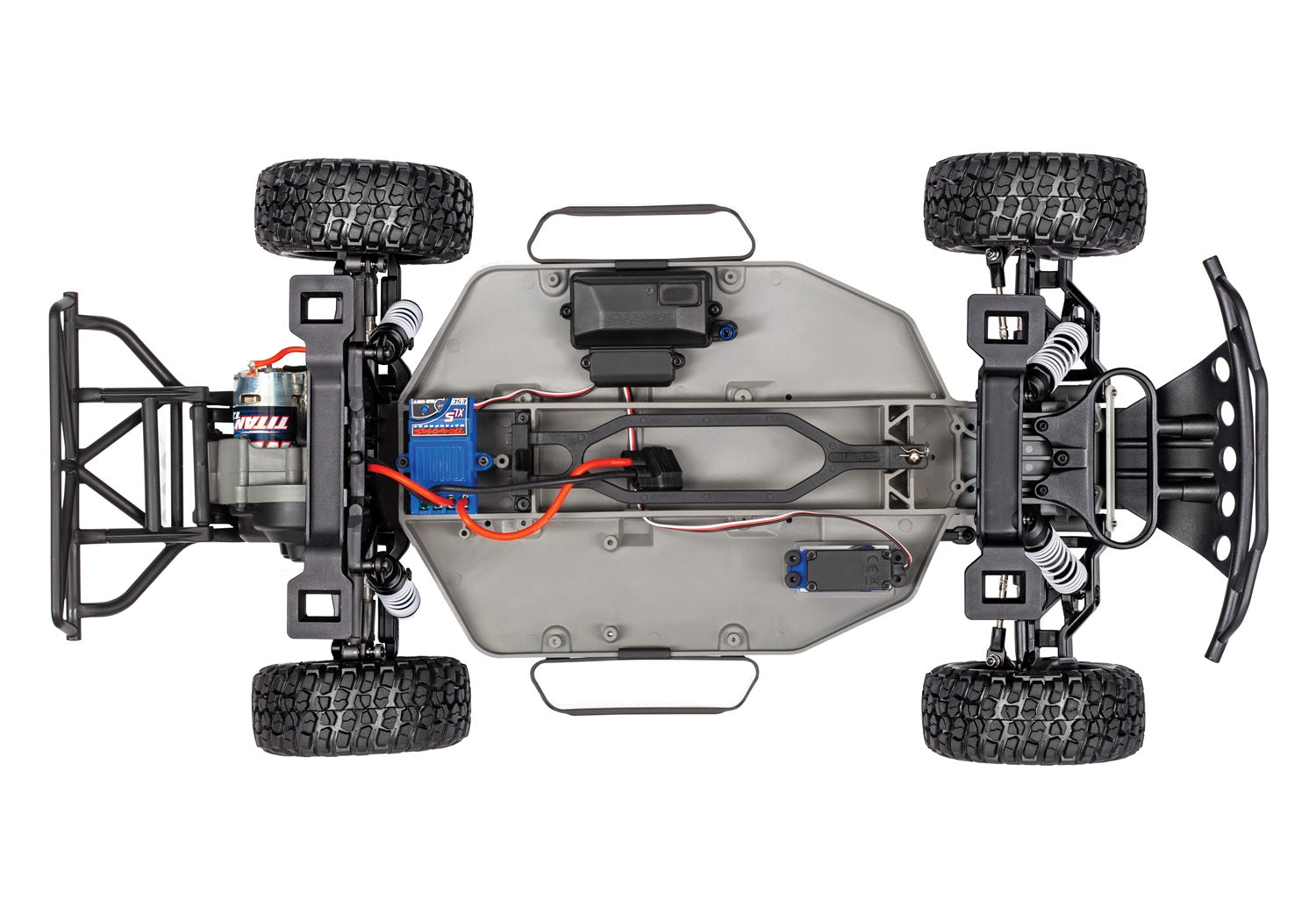

  • Tough Fiber-Composite Monocoque Chassis
  • Digital High-torque waterproof Traxxas 2075 steering servo
  • Adjustable steel turnbuckle suspension
  • Fully adjustable oil-filled Ultra Shocks™ with X-ring technology
  • Race-tuned progressive rate white powder-coated springs
  • Pre-glued BFGoodrich® Mud Terrain™ T/A® tires with performance foam inserts
  • 2" outer diameter, 3" inner diameter dual-profile SCT wheels
  • Includes Full-Color Step-By-Step Assembly Manual
  • Rubber-Sealed Ball Bearings
  • Precision Hex Hardware
  • Battery and Charger Sold Separately

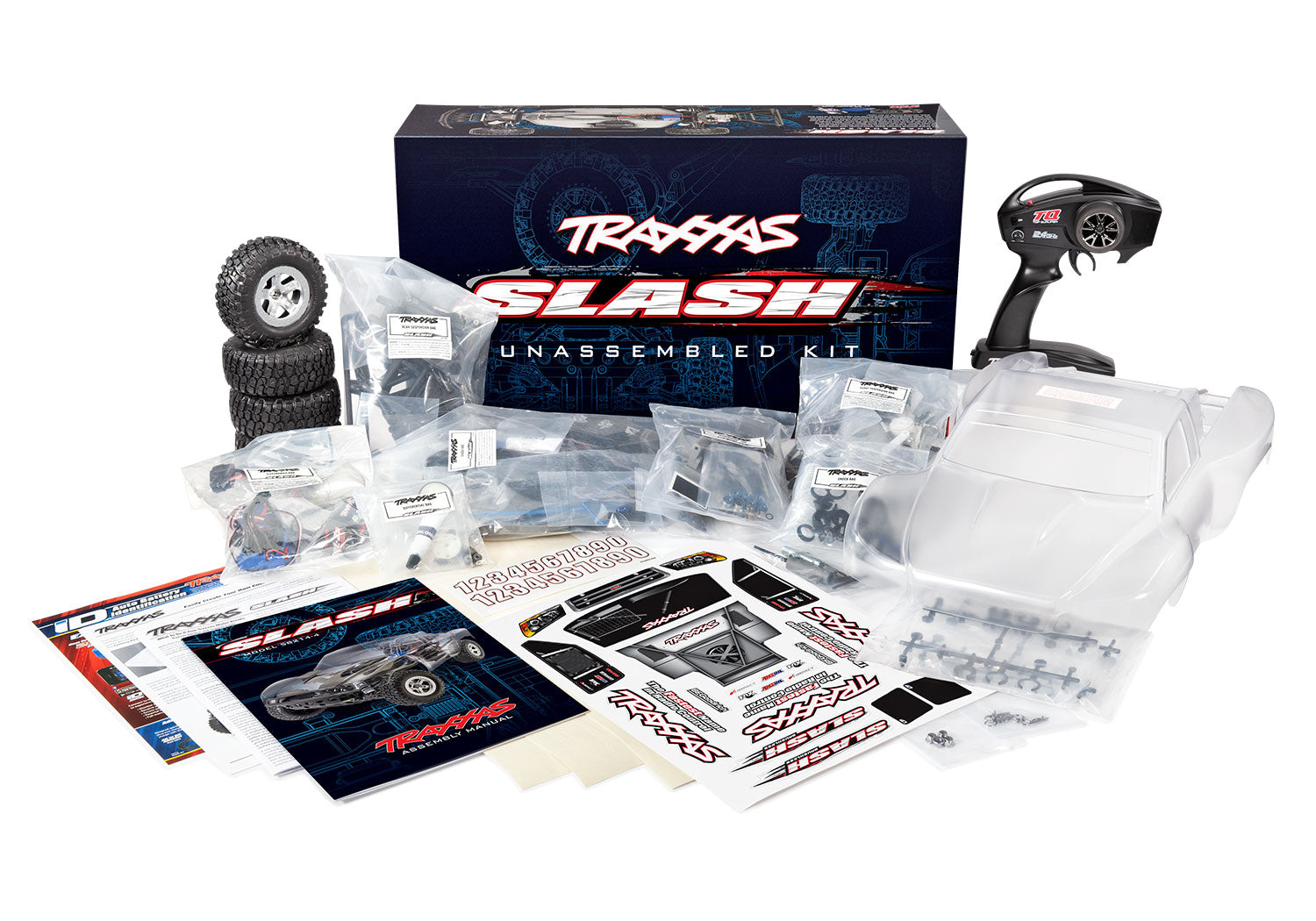

In The Box:

  • Slash 2WD short course truck assembly kit
  • XL-5 ESC and Titan® 550 Motor
  • Clipless clear body with window masking, decals, and custom masking decals
  • Full-color step-by-step assembly manual
  • TQ™ 2.4 GHz radio system
  • High quality maintenance tools

Needed to Complete:

  • Batteries: Slash requires a single NiMH or LiPo battery. See full list of batteries.
  • Charger: Traxxas EZ-Peak® charger (2970) is recommended for easy and fast charging performance.
  • AA Alkaline Batteries: Four AA alkaline batteries for the transmitter.
Truck Specs
Name: Slash 2WD XL-5 HD Kit
Type: Short Course Truck
Speed: 30+ mph with 7-cell NiMH battery
Skill Level: Level 1
Scale: 1/10
Weight: 4.81 pounds (2.18 kg)
Length: 22.8 inches (578 mm)
Width: 11.65 inches (296 mm)
Front and Rear Track: 11.65 inches (296 mm)
Height: 7.60 inches (193 mm)
Wheelbase: 13.2 inches (335 mm)
Center Ground Clearance: 3.5 inches (89 mm)
Driveline: 2WD
Transmission: Magnum 272™
Differential Type: Planetary steel gear
Gear Ratio (Internal): 2.72 (final drive: 9.05)
Gear Pitch: 48 pitch
Steering Servo: 2075 digital high-torque waterproof
Radio System: 2.4 GHz 2-channel radio
Battery Compartment Specs: 165 mm X 49.5 mm X 23 mm, 25 mm

Motor Specs
Name: Titan® 12T 550
Type: High-speed brushed motor
Weight: 8.47 ounces (240 g)
Length: 3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length
Diameter: 1.41 inches (36 mm)
Shaft Size: 3 mm
Connector Type: Bullet

ESC Specs
Name: Waterproof XL-5 ESC with low-voltage detection
Type: Brushed
Case Size: 1.23 inches (31 mm) / 2.18 inches (55 mm) / 1.04 inches (26 mm)
Weight: 2.44 ounces (69 g)
Motor Connectors: Bullet
Battery Connectors: Traxxas High-Current Connector
Power Wire: 14 gauge
