Park 250 Outrunner
Park 250 Outrunner
2200 Kv
$44.99
High Torque
Direct Drive Outrunner Design
Ultra Lightweight
Weighs Just 14 Grams
2200Kv Rating
Optimized Micro Airplane Power
55W Output
High Efficiency Brushless Performance
Versatile Mount
Firewall Or Carbon Tube
Prop Saver
Integrated Design Protects Props
Micro Aircraft ThrustHigh Efficiency Brushless Outrunner Motor

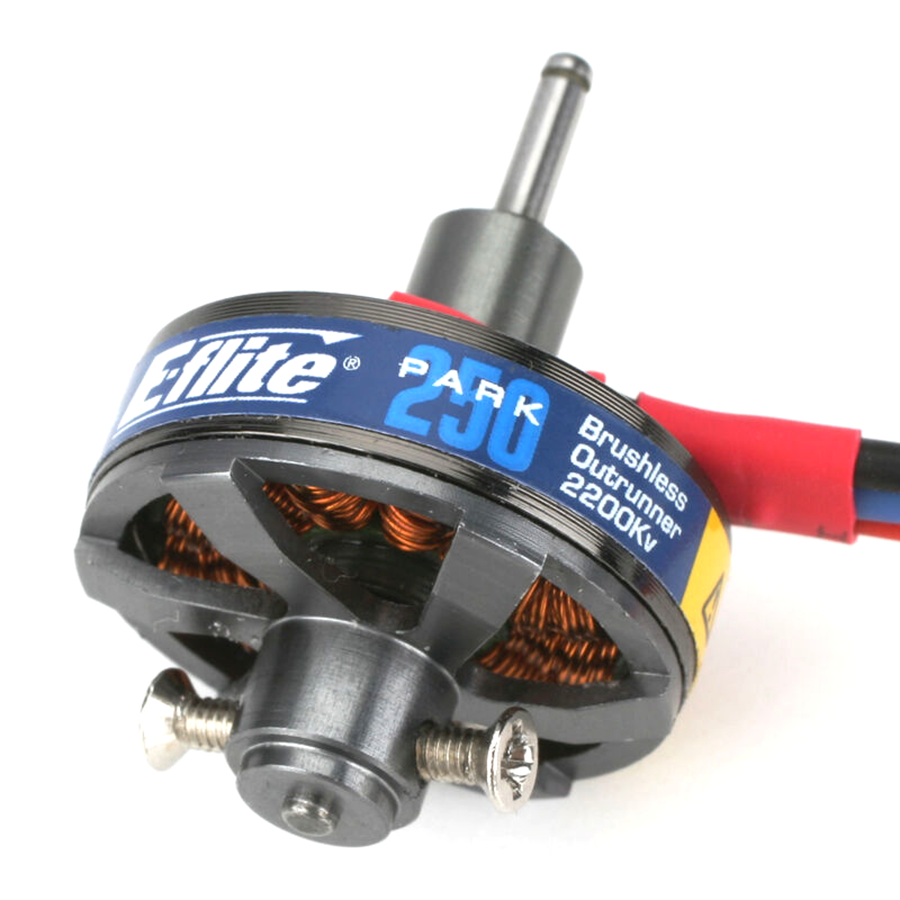

The Park 250 Brushless Outrunner Motor, 2200Kv delivers exceptional torque and performance for micro 3D aircraft and sport RC airplanes. Weighing only 14 grams, this ultra-lightweight power system produces up to 55 watts of continuous power. It serves as an ideal brushless motor upgrade for traditional indoor IPS and 180-size power setups.
Park-Flyer PerformancePrecision Power For Micro RC Models
Engineered specifically for indoor micro foamies, 3D acrobatic models, and lightweight scale park flyers, the Park 250 Brushless Outrunner Motor, 2200Kv offers smooth direct-drive authority without the need for heavy gearboxes. Built with dual ball bearings, a hardened steel motor shaft, and a built-in prop saver design, this brushless motor is crafted to withstand routine micro plane landings. Flexible mounting configurations allow easy attachment via firewall or carbon tube, making it the perfect upgrade for hobbyists seeking reliable, whisper-quiet flight power.
Technical SpecificationsDetailed Engineering and Dimension Data
Motor Type
Brushless Outrunner
RPM/Volt (Kv)
2200Kv
Max Power
Up to 55 Watts
Weight
0.5 oz (14 g) (scale)
Outer Diameter
0.85 in (21.59mm) (ruler)
Shaft Diameter
3.17mm (1/8 in) (ruler)
Voltage Range
6V – 8.4V
Idle Current (Io)
0.45A @ 10V
Connector Type
2mm Bullet
Bushing Or Bearing
Bearing
Recommended Prop Range
5.5 x 4.5 to 8 x 6 Slow Flyer
Recommended Speed Control
6–10A Brushless ESC
Recommended Battery
2S Li-Po or 5–7 cell Ni-Cd/Ni-MH
Key CapabilitiesAdvanced Features for Micro RC Aircraft
Power OutputProvides up to 55 watts of reliable power
Lightweight DesignWeighs just 0.5 ounces (14 grams) for optimal flight times (scale)

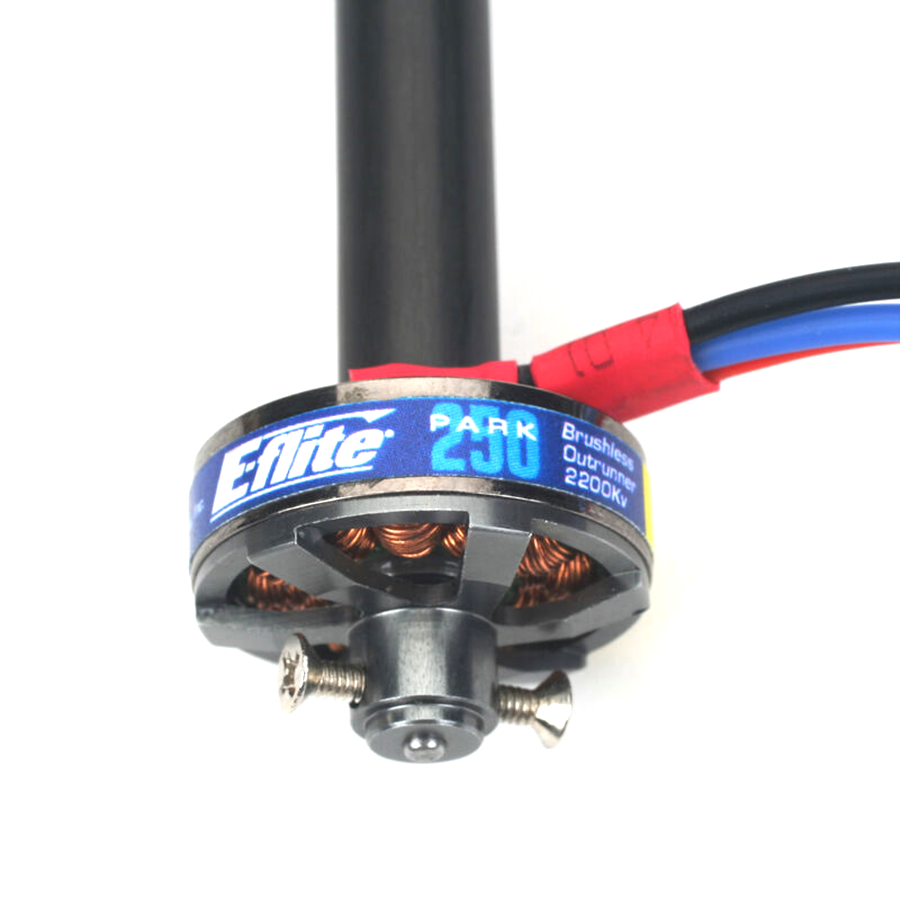

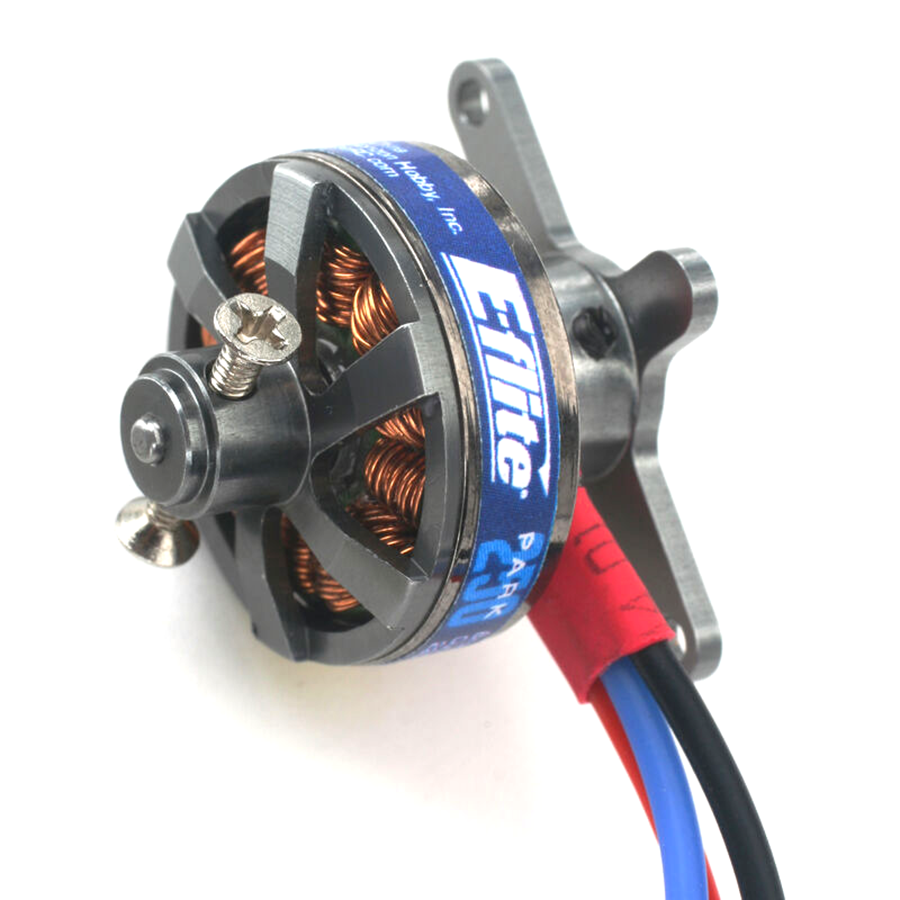

Dual Mounting OptionsEngineered for firewall mount or carbon tube mount

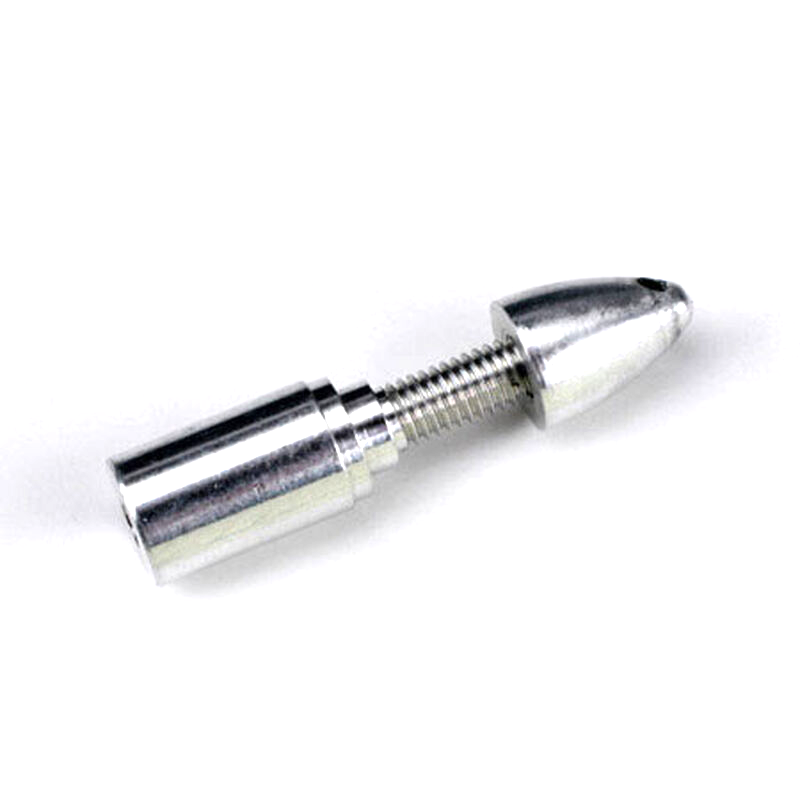

Propeller ProtectionFeatures an integrated prop saver design
Superior ConstructionBuilt with quality ball bearings and a hardened steel shaft
Direct-Drive UpgradeHigh-torque brushless alternative to brushed 180 motors

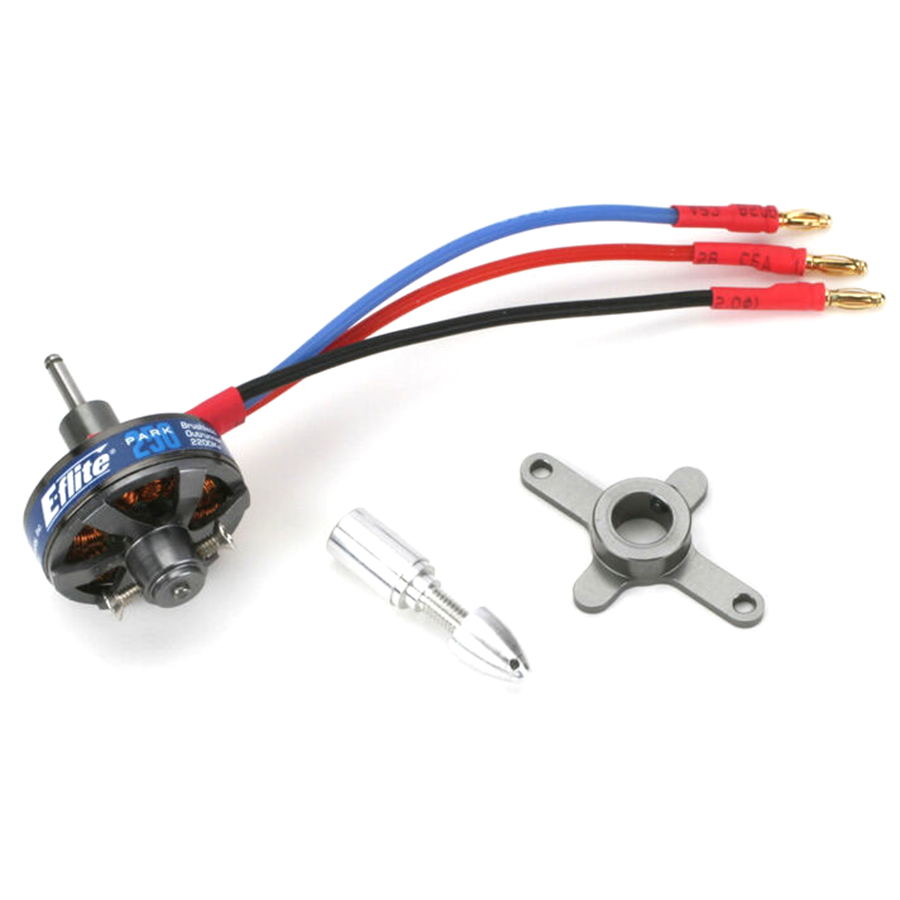

Included HardwareComes complete with motor mount and 2mm gold bullet connectors
Frequently Asked QuestionsEverything you need to know
What size RC aircraft is the Park 250 Brushless Outrunner Motor, 2200Kv designed for?
The Park 250 Brushless Outrunner Motor, 2200Kv is ideal for 3D micro models weighing 4–6 oz (115–170 g) and sport or scale planes weighing 6–12 oz (170–340 g).
What electronic speed controller (ESC) is recommended for the Park 250 Brushless Outrunner Motor, 2200Kv?
A 6A to 10A brushless ESC is recommended to properly power and control the Park 250 Brushless Outrunner Motor, 2200Kv.
What battery pack should I use with the Park 250 Brushless Outrunner Motor, 2200Kv?
This motor operates efficiently on a 2S Li-Po battery or a 5- to 7-cell Ni-Cd/Ni-MH battery pack (6V–8.4V).
Does the Park 250 Brushless Outrunner Motor, 2200Kv come with mounting accessories?
Yes, the Park 250 Brushless Outrunner Motor, 2200Kv includes a mounting bracket, installation hardware, and pre-attached 2mm gold bullet connectors.
