Power 15 Brushless Outrunner Motor, 950Kv

Power 15 Brushless Outrunner Motor, 950Kv
Regular price
$64.98
Sale price
$64.98
Regular price
$0.00
Sold out
Unit price
per
Shipping calculated at checkout.
info icon $0.00 Tax Collected Outside GA

Availability: In stock available to ship within 24 hours.
SKU: 100004335
Part #: EFLM4015A
UPC: 605482774687
MFG: E-flite
rewards icon
You will earn 64 Electron Reward Points on this product!
Click to find out more about our points program and save big!

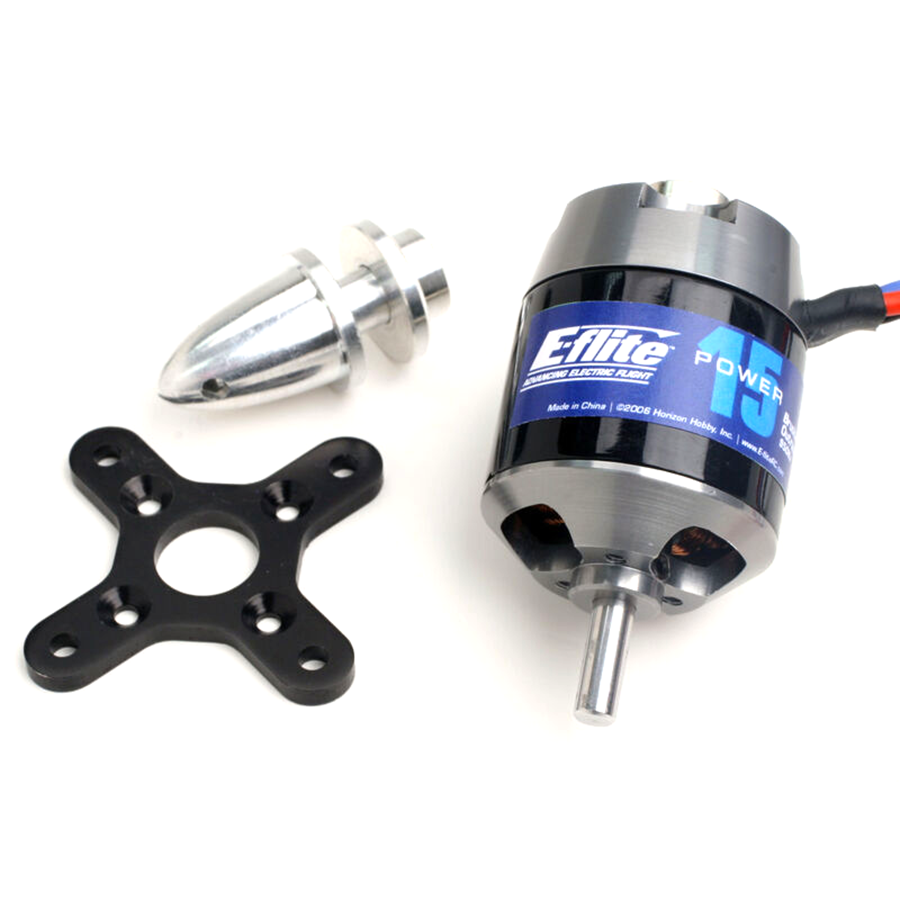

Power 15 Brushless Outrunner Motor, 950Kv

Key Features:
• Equivalent to a 15-size glow engine for sport and scale airplanes weighing 36–56 oz (1020–1590 g)
• Ideal for 3D airplanes weighing 32–40 oz (910–1135 g)
• Ideal for models requiring up to 575 watts of power
• High-torque, direct-drive alternative to inrunner brushless motors
• Includes mount, prop adapters and mounting hardware
• External rotor design—5mm shaft can easily be reversed for alternative motor installations
• Slotted 12-pole outrunner design
• High-quality construction with ball bearings and hardened steel shaft
• Quiet, lightweight operation

Overview:
The Power 15 is designed to deliver clean and quiet power for 15-size sport and scale airplanes weighing 36 to 56 ounces (1020 to 1590 grams), 3D airplanes weighing 32 to 40 ounces (910 to 1135 grams), or models requiring up to 575 watts of power.

Needed to Complete:
40A–45A brushless ESC
8-to 12-cells Ni-MH/Ni-Cd or 3–4S Li-Po
10x6 to 13x6.5 electric prop

Comparison of all E-flite Power Motors using a typical application
Motor
Poles
Kv
Weight
(oz.)
Max
Amps
Peak
Watts
Shaft
Diameter
LiPo
Cells
Prop
12
1100
4.3
42
450
5mm
3
12x6E
12
950
5.4
42
425
5mm
3
11x7E
12
870
6.7
44
600
5mm
3
12x8E
12
1250
6.4
58
850
5mm
3
10x10E
14
770
7.0
60
800
5mm
4
13x6.5E
12
670
10.0
55
800
6mm
4
13x8E
14
590
12.2
75
1650
6mm
5
14x7E
12
400
13.0
60
1200
6mm
6
15x10E
12
325
15.8
65
1800
6mm
8
16x8E
12
295
17.5
65
2000
8mm
8
19x8E
12
245
23.0
78
2700
8mm
10
20x10E
Type: Brushless outrunner motor
Size: 15-size
Bearings or Bushings: Ball bearings
Wire Gauge: 16
Recommended Prop Range: 10x6–13x6.5
Voltage: 7.4–14.4V
RPM/Volt (Kv): 950
Resistance (Ri): .03 ohms
Idle Current (Io): 2.00A @10V
Continuous Current: 34A
Maximum Burst Current: 42A (15 sec)
Cells: 8–12 Ni-MH/Ni-Cd or 3-4S Li-Po
Speed Control: 40–45A brushless
Weight: 152 g (5.4 oz)
Overall Diameter: 35mm (1.40 in)
Shaft Diameter: 5mm (.20 in)
Overall Length: 50mm (1.90 in)
