Power 46 Outrunner
Only 4 Left!
Power 46 Outrunner
670 Kv
$124.99
Brushless Motor
Outrunner High Torque Design
670Kv Rating
High Output Efficiency Tuning
Power Output
Delivers Up To 925W
Glow Equivalent
Fits 40 To 46 Size
Reversible Shaft
6mm Hardened Steel Construction
3.5mm Bullet
Pre Installed Factory Connectors
In Stock
Electric Powerhouse PerformanceClean Efficient Power For Sport Planes
The Power 46 Brushless Outrunner Motor, 670Kv is designed to deliver clean, quiet power for .40 to .46-size sport and scale RC airplanes weighing 4 to 7 pounds. Engineered as a high-torque direct-drive alternative to glow engines, this high-performance brushless motor generates up to 925 watts of continuous power for 3D models and scale aircraft.
Expert Motor EngineeringHigh Torque Outrunner Power and Precision
Built for demanding hobbyists, the Power 46 Brushless Outrunner Motor, 670Kv features a slotted 14-pole outrunner design that delivers exceptional torque and smooth throttle response without gearboxes. Constructed with top-tier ball bearings and a 6mm hardened steel shaft that easily reverses for custom installations, this outrunner brushless motor provides an outstanding power-to-weight ratio for popular models like the Ultra Stick 40, T-34 Mentor 40, and Twist 40. Paired with a 60A ESC and a 4S to 5S LiPo battery, it provides efficient, high-thrust electric performance for intermediate and advanced RC pilots.
Technical SpecificationsDetailed Specs and Compatibility
Motor Type
Brushless Outrunner
RPM/Volt (Kv)
670Kv
Outer Diameter
2.0 in (50mm) (ruler)
Shaft Diameter
6mm (.24 in) (gear)
Idle Current (Io)
3.90A @ 10V
Voltage
14.4V - 19.2V
Connector Type
3.5mm Bullet
Bushing Or Bearing
Bearing
Recommended Prop Range
12x8 to 14x10
Recommended Speed Control
60A Brushless ESC
Recommended Battery
4S–5S Li-Po or 12–16 cell Ni-MH
Key FeaturesAdvanced Outrunner Technology Features
Glow Engine EquivalentFits .40 to .46 size glow airplane replacements
Power CapabilityIdeal for aircraft requiring up to 925 watts
Outrunner DesignSlotted 14-pole motor design for superior torque
Reversible Shaft6mm hardened steel shaft reverses for custom mounts

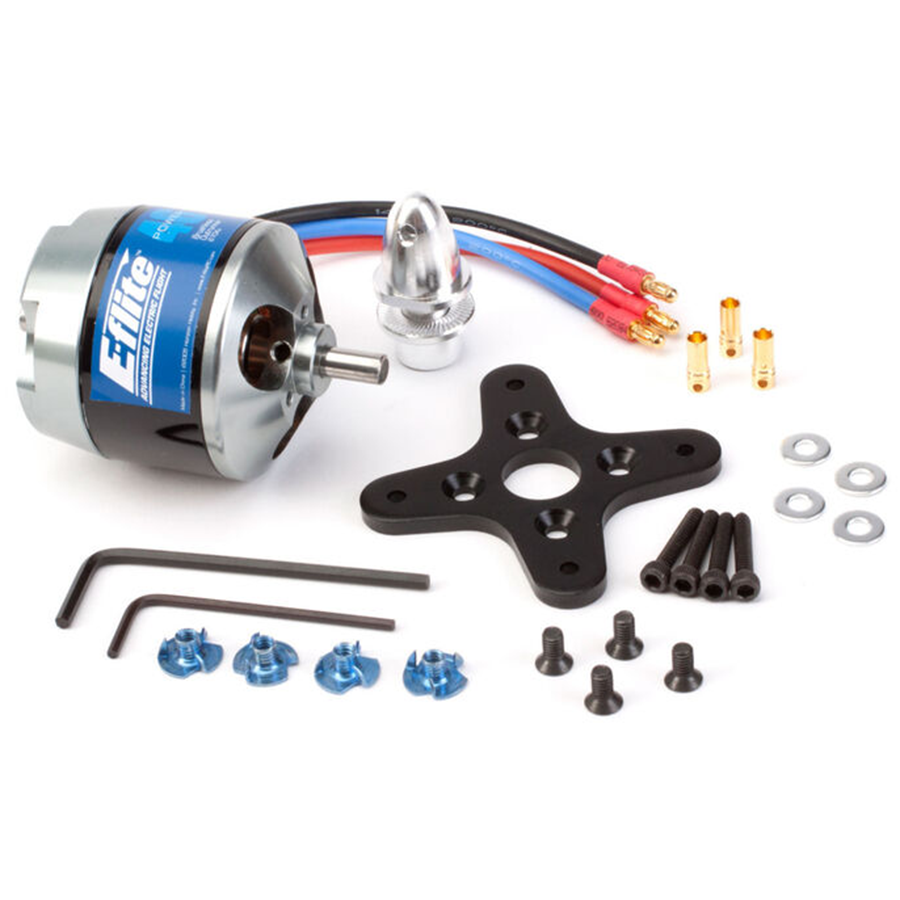

Complete Hardware PackageIncludes motor mount, prop adapters, and hardware
Quiet EfficiencyProvides smooth, lightweight, and low-noise operation
Aerobatic TuningOptimized for 25- to 40-size 3D planes up to 5 lbs (3d)
Frequently Asked QuestionsEverything you need to know
What size RC airplanes is the Power 46 Brushless Outrunner Motor, 670Kv suitable for?
The Power 46 Brushless Outrunner Motor, 670Kv is ideal for .40 to .46-size sport and scale RC airplanes weighing 4 to 7 pounds, as well as 25- to 40-size 3D airplanes weighing up to 5 pounds.
What battery and ESC are recommended for the Power 46 Brushless Outrunner Motor, 670Kv?
We recommend using a 60A brushless ESC along with a 4S to 5S LiPo battery pack (or a 12- to 16-cell Ni-MH/Ni-Cd battery pack) to power the Power 46 Brushless Outrunner Motor, 670Kv.
What propeller size should I use with the Power 46 Brushless Outrunner Motor, 670Kv?
The recommended propeller range for the Power 46 Brushless Outrunner Motor, 670Kv is 12x8 to 14x10 depending on your plane setup and desired performance.
Can the drive shaft on the Power 46 Brushless Outrunner Motor, 670Kv be reversed?
Yes, the 6mm hardened steel shaft on the Power 46 Brushless Outrunner Motor, 670Kv can be easily reversed for alternative motor installations and firewall mounting setups.
