Power 60 Outrunner<br>400 Kv Motor
$143.99
Skip to product information
Power 60 Outrunner
Power 60 Outrunner
400 Kv Motor
$143.99
400Kv Brushless Motor
High Torque Direct Drive Outrunner
1200W Power Output
Equivalent To 60 Glow Engines
6mm Reversible Shaft
Flexible Custom Engine Mount Options
3.5mm Bullet Plugs
Factory Installed Gold Bullet Connectors
14 Pole Rotor
Smooth High Torque Outrunner Performance
60 Size Aircraft
Ideal For 6 To 10 Pound Models
High Efficiency Electric FlightQuiet Reliable Brushless Power Delivery Matrix

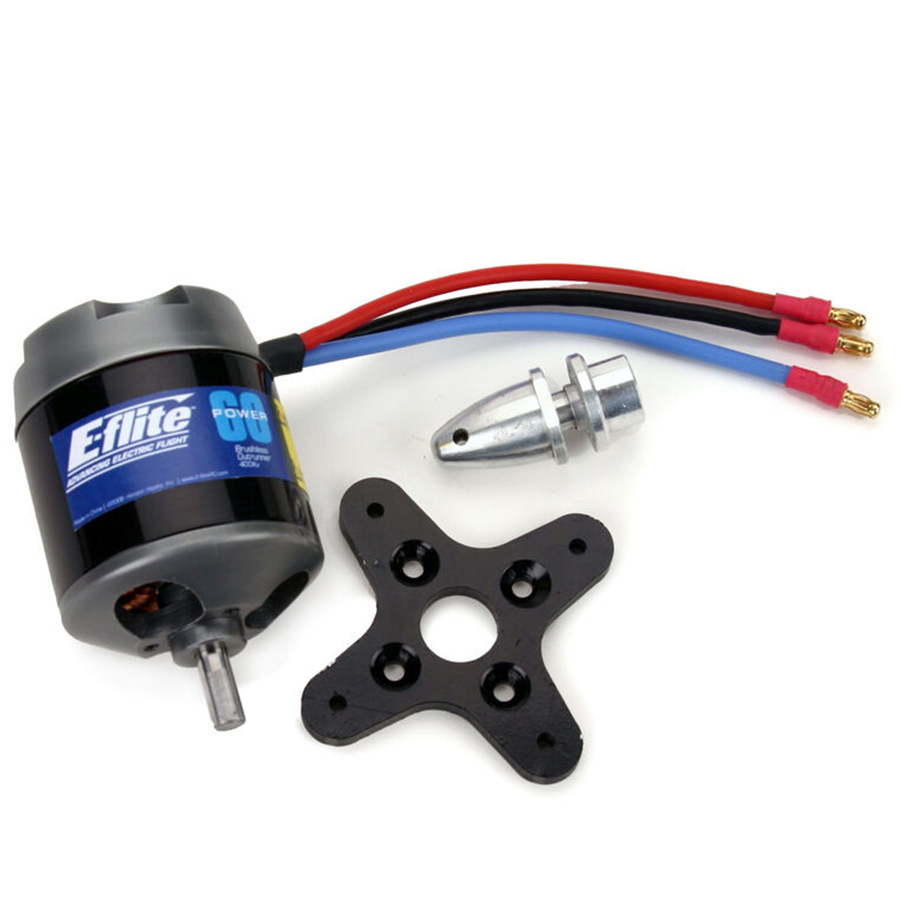

The Power 60 Brushless Outrunner Motor, 400Kv delivers clean and quiet electric power engineered to directly match 60-size glow engines for RC airplanes. Designed for sport models weighing 6 to 10 pounds and 3D aerobatic aircraft up to 7 pounds, this high-performance brushless motor handles continuous output up to 1200 watts. Upgrade your scale aircraft with smooth direct-drive torque and reliable RC airplane motor efficiency.
Engineered For Scale PerformanceNitro Glow Power Equivalent For Fixed Wing Aircraft
Tailored specifically for scale models and warbirds like Hangar 9 .60-size Mustangs and Corsairs, the Power 60 Brushless Outrunner Motor, 400Kv offers superior power without the mess or maintenance of glow fuel. Built around a slotted 14-pole external rotor design, this outrunner brushless motor features dual high-quality ball bearings and a hardened 6mm output shaft. The shaft can be reversed easily to suit front or rear firewall installations across diverse airframes. Complete with prop adapters, mounting cross plate, and pre-installed 3.5mm bullet connectors, the Power 60 Brushless Outrunner Motor, 400Kv provides a seamless drop-in electric power conversion.
Precision Bench MetricsFactory Specifications And Compatibility Guide
Part Type
Brushless Outrunner Motor
Compatible Vehicles
60-size scale models & .46-size 3D RC Airplanes
Motor Type
Brushless Outrunner
RPM/Volt (Kv)
400Kv
Voltage Range
18.5V to 28.8V
Recommended Battery
5S–7S LiPo or 16–24 cell NiMH/NiCd
Max Power Output
Up to 1200W
Recommended Speed Control
60A Brushless ESC
Recommended Prop Range
14x8 to 16x10
Shaft Diameter
6mm (.24 in) (ruler)
Outer Diameter
2.0 in (50mm) (ruler)
Connector Type
3.5mm Bullet
Idle Current (Io)
2.70A @ 10V
Bushing Or Bearing
Bearing
Advanced Motor ArchitectureHeavy Duty Construction And Premium Componentry
Glow Engine EquivalentDelivers power equal to a .60-size nitro engine
Aircraft Scale MatchDesigned for 6–10 lb sport models and 3D planes up to 7 lb
High Torque Direct DriveSlotted 14-pole outrunner structure for maximum torque
Reversible Output Shaft6mm hardened shaft easily reverses for custom mounting
Pre-Installed PlugsFactory fitted with 3.5mm gold bullet connectors
Complete Hardware PackIncludes radial mount, prop adapter, and mounting screws
Durable ConstructionBuilt with high-grade dual ball bearings and steel shaft
Clean & Quiet OperationProvides high wattage performance without fuel noise or mess
Frequently Asked QuestionsEverything you need to know
What ESC is recommended for the Power 60 Brushless Outrunner Motor, 400Kv?
A 60A electronic speed control (ESC) is recommended for optimal operation. Please note that it is not recommended to use the E-flite 80-Amp Pro Switch-Mode ESC (EFLA1080B) with the Power 60 Brushless Outrunner Motor, 400Kv.
What battery pack should I use with the Power 60 Brushless Outrunner Motor, 400Kv?
The Power 60 Brushless Outrunner Motor, 400Kv performs best when powered by a 5S–7S LiPo battery (18.5V to 28.8V) or a 16- to 24-cell Ni-MH/Ni-Cd battery pack.
What propeller size works best with the Power 60 Brushless Outrunner Motor, 400Kv?
The recommended propeller range for the Power 60 Brushless Outrunner Motor, 400Kv is 14x8 to 16x10, depending on your airframe weight and battery voltage setup.
Can I reverse the shaft direction on the Power 60 Brushless Outrunner Motor, 400Kv?
Yes, the 6mm output shaft on the Power 60 Brushless Outrunner Motor, 400Kv can easily be reversed to support front or back firewall motor mounting configurations.
