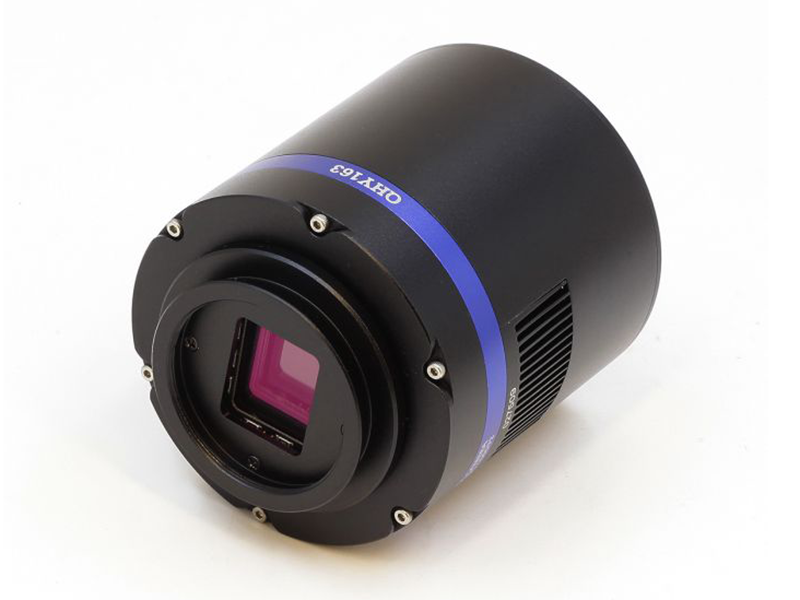

QHYCCD QHY163M Mono Camera 4/3" 16 Megapixels
$1,199.00
16MP CMOS Sensor
High Resolution 4/3 Format
Two-Stage TEC
Cools 45C Below Ambient
Ultra-Low Noise
Readout Noise Down To 1e
128MB DDRII Buffer
Prevents Lost Transfer Frames
Anti-Dew Protection
Heated Window Keeps Chamber Clear
Reduced Amp Glow
Optimized For Long Exposures
Deep-Sky Astrophotography PrecisionHigh Performance Cooled Astronomy Camera
The QHY163M Cooled Monochrome Astronomy Camera features a high-resolution 16-megapixel 4/3-inch CMOS sensor engineered specifically for serious deep-sky imaging. Delivering high-speed 4K frame output, exceptionally low readout noise, and advanced two-stage TEC cooling, this astrophotography camera captures pristine detail in faint space targets. Upgrade your telescope setup with the QHY163M monochrome camera for unmatched sensitivity and reliable long-exposure imaging performance.
Advanced CMOS Astrophotography EngineState Of The Art Sensor Engineering
Designed for demanding astro-imagers, the QHY163M Cooled Monochrome Astronomy Camera utilizes a 4/3" CMOS sensor with a 4656x3522 pixel array at 3.8µm, making it an ideal match for medium-to-short focal length refractors and reflectors. Featuring an integrated 128MB DDRII image buffer, the QHY163M caches raw data seamlessly to eliminate lost frames over USB transfers and supports multi-camera imaging setups. With built-in anti-dew technology, active sensor chamber heating, and advanced amplifier glow reduction control, this cooled CMOS astrophotography camera performs flawlessly even during long exposures in high-humidity night skies.
Technical SpecificationsComplete Hardware And Performance Data
Sensor Type
Monochrome CMOS
Sensor Size
4/3 inch Format (dimensions)
Resolution
16 Megapixels / 4656 x 3522 Array (resolution)
Pixel Size
3.8um x 3.8um
Readout Noise
1e- to 2.4e-
Full Well Capacity
18k to 20k e-
Cooling System
Two-Stage TEC (-45C below ambient) (snowflake)
Data Buffer
128MB DDRII Buffer
Video Output
4K @ 30fps / Full Res @ 22.5fps
Anti-Dew Protection
Sealed chamber with socket and heater
Interface
USB 3.0
Power Requirements
+12VDC Input
Key Camera CapabilitiesEngineered For Faint Deep-Space Targets
16MP Monochrome SensorHigh-resolution 4/3-inch CMOS format for deep-sky target detail
Advanced TEC CoolingTwo-stage thermoelectric cooling drops temperature up to 45C below ambient
High-Speed Data BufferIntegrated 128MB DDRII buffer prevents dropped frames over USB
Low Readout NoiseUltra-low readout noise as low as 1e- captures weak light signals
Anti-Glow CircuitryAdvanced circuit control significantly reduces amplifier glow during long exposures
Anti-Dew TechnologyHeated sensor window and sealed chamber maintain dry conditions
Fast Frame RatesCapable of 4K video at 30fps and full resolution output at 22.5fps
Frequently Asked QuestionsEverything you need to know
What power supply is required to operate the QHY163M Cooled Monochrome Astronomy Camera?
The QHY163M camera requires an external +12VDC power input (sold separately) to run the two-stage TEC cooling system and the internal anti-dew window heater.
Does the QHY163M Cooled Monochrome Astronomy Camera support high-speed video recording?
Yes, the QHY163M camera supports 4K video recording at 30 frames per second and full-resolution 16-megapixel output at up to 22.5 frames per second.
How does the QHY163M Cooled Monochrome Astronomy Camera prevent condensation on the sensor window?
The QHY163M features a fully sealed sensor chamber with an integrated silicone gel tube socket, desiccant drying tube, and a built-in sensor window heater to eliminate dew and fogging.
What is the advantage of the 128MB DDRII buffer in the QHY163M Cooled Monochrome Astronomy Camera?
The 128MB DDRII buffer caches image data locally before transferring it to your computer. This eliminates lost or corrupted frames, reduces USB transfer errors, and allows smooth operation on older USB 2.0 computers or multi-camera setups.
