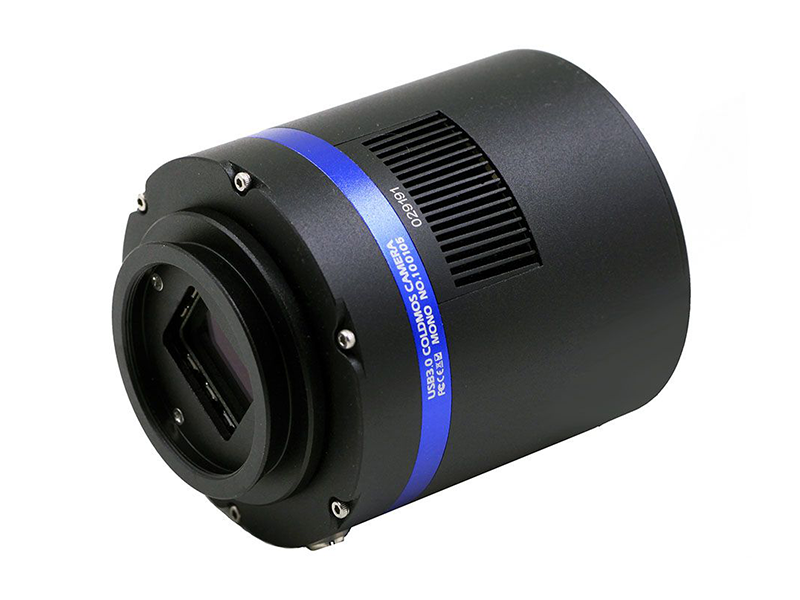

QHYCCD QHY183M Mono Portable Camera for Astrophotography Outside of Observatories
$999.00
Skip to product information
QHYCCD QHY183M Mono Portable Camera for Astrophotography Outside of Observatories
$999.00
20MP CMOS Sensor
Sony STARVIS IMX183 Back Illuminated
Advanced Cooling
Two Stage TEC Ambient Cooling
84% Peak QE
Exceptional Sensitivity Deep Sky Imaging
128MB Image Buffer
DDRII Memory Prevents Frame Drops
Anti-Glow Technology
Significantly Reduces Amplifier Glow Noise
4K High Speed
31FPS Video 19FPS Full Resolution
Deep-Sky Imaging ExcellenceHigh Sensitivity Monochrome CMOS Performance
The QHY 183M Cooled Monochrome Astronomy Camera features a high-resolution 20-megapixel back-illuminated Sony IMX183 sensor engineered specifically for serious deep-sky astrophotography. Boasting an impressive 84% quantum efficiency and ultra-low readout noise down to 1e-, this astrophotography camera delivers crisp, detailed images of faint nebulae and distant galaxies. With integrated two-stage TEC cooling that drops temperatures up to -45°C below ambient, the QHY 183M camera ensures ultra-clean exposures even during warm summer observing sessions.
Unmatched Sensitivity and ControlEngineered for Faint Deep Space Targets
Designed for astrophotographers who demand uncompromising performance, the QHY 183M Cooled Monochrome Astronomy Camera combines cutting-edge sensor technology with advanced thermal management. Its 1-inch monochrome sensor packs 5,544x3,694 pixels at 2.4µm size, making it ideal for capturing high-resolution fine details through short-to-medium focal length telescopes. To combat dew and thermal noise, QHY incorporates a sealed chamber with an anti-dew window heater and dual-stage TEC cooling. Furthermore, the onboard 128MB DDRII image buffer eliminates dropped frames during high-speed transfers over USB 3.0, while specialized anti-amp glow circuitry keeps long-exposure astrophotography images clean and free of sensor artifacts.
Complete Hardware SpecificationsDetailed Technical Data and Dimensions
Sensor
SONY IMX183 Back-Illuminated CMOS
Pixel Size
2.4µm x 2.4µm
Effective Pixels
20 Megapixels (5544 x 3694) (layers)
Effective Image Area
13.3mm x 8.87mm
Full Well Capacity
15.5ke-
Peak Quantum Efficiency
84% Monochrome
AD Sample Depth
12-bit (output as 16-bit and 8-bit) (cpu)
Sensor Size
1-inch typical
Full Frame Rate
19 FPS at full resolution
ROI Frame Rate
31 FPS at 4K HD Video (4096 x 2160) (video)
Readout Noise
1.0e- @ high gain / 2.7e- @ lowest gain
Dark Current
0.0024e-/pixel/sec @ -15°C
Exposure Time Range
50µs to 3600sec
Anti-Glow Control
Yes
Shutter Type
Electric Rolling Shutter
Computer Interface
USB 3.0
Image Buffer
128MB DDR2 Memory
Cooling System
Dual Stage TEC Cooler (-40°C to -45°C below ambient) (snowflake)
Anti-Dew Heater
Yes
Telescope Interface
M42/0.75
Optic Window Type
AR+AR Multi-Layer Coating
Weight
650g
Key Technical InnovationsAdvanced Hardware Built for Astrophotography
Sensor TypeSony STARVIS Exmor-R IMX183 Back-Illuminated Monochrome CMOS
Resolution20 Megapixels with 5544x3694 array and 2.4µm pixel size
Cooling SystemDual-stage TEC cooling down to -45°C below ambient
Onboard Buffer128MB DDRII memory for reliable USB 3.0 data transfer
Anti-Glow CircuitryIntegrated hardware control to suppress amplifier glow
High-Speed Capture19 FPS full resolution and 31 FPS in 4K HD mode
Anti-Dew ProtectionSealed chamber with built-in optic window heater
Frequently Asked QuestionsEverything you need to know
What power supply is required for cooling the QHY 183M Cooled Monochrome Astronomy Camera?
The cooling system on the QHY 183M Cooled Monochrome Astronomy Camera requires an external +12V DC power supply (sold separately) to operate the two-stage TEC cooler.
How does the 128MB DDRII image buffer benefit the QHY 183M Cooled Monochrome Astronomy Camera?
The onboard 128MB DDRII memory caches frames before transmission, preventing data loss, eliminating frame dropouts, and allowing smooth transfers over USB 3.0 or USB 2.0 connections.
Is the QHY 183M Cooled Monochrome Astronomy Camera suitable for deep-sky astrophotography?
Yes, the QHY 183M Cooled Monochrome Astronomy Camera is specifically designed for deep-sky imaging, featuring 84% quantum efficiency, high resolution, low read noise, and active TEC cooling.
How does the QHY 183M Cooled Monochrome Astronomy Camera prevent window dew?
The QHY 183M Cooled Monochrome Astronomy Camera utilizes a sealed sensor chamber equipped with a silicone gel tube socket and an integrated optical window heater to prevent condensation.
