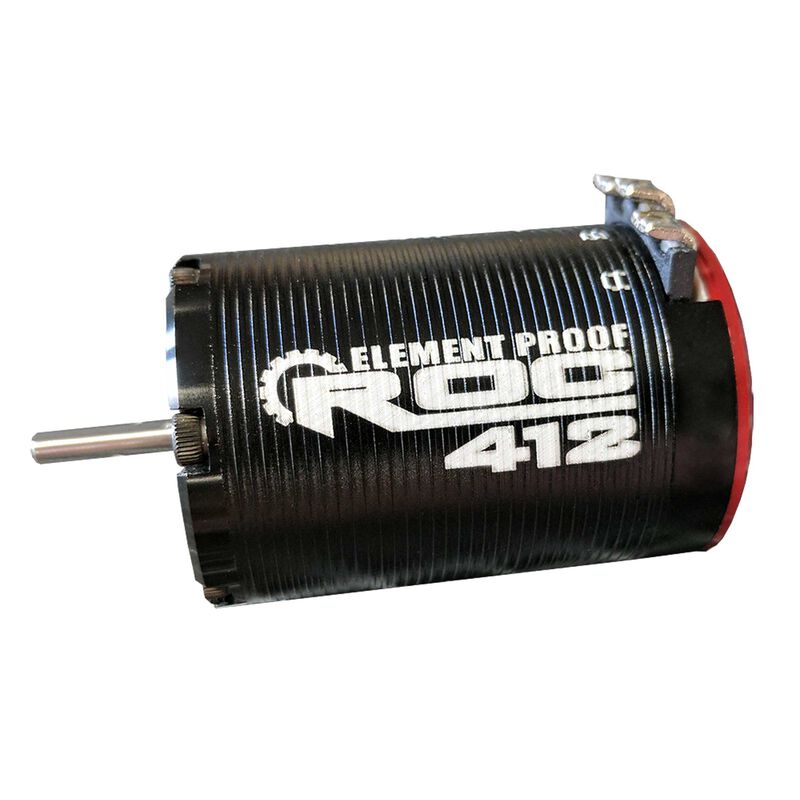

ROC412EP BL Crawler Motor 2300kv
$129.99
Skip to product information
ROC412EP BL Crawler Motor 2300kv
$129.99
4-Pole Motor
Maximum Low End Torque
Element Proof
Weather Resistant Trail Design
2300kV Power
Smooth Sensored Brushless Output
18.5mm Rotor
Superior Hill Hold Braking
CNC Aluminum
Heat Dissipating Billet Can
Rebuildable
Simple Maintenance and Service
Unstoppable Trail PowerNext Generation Sensored Crawler Performance
Engineered specifically for extreme rock crawling and scale trailing, the Tekin ROC412 Element Proof 4S Sensored Crawler Brushless Motor, 2300kv delivers unmatched low-end control and high-torque performance. Featuring an advanced 4-pole 12-slot internal design and precision sensored feedback, this RC crawler motor delivers butter-smooth throttle response across all RPM ranges. Conquer water, mud, and snow confidently with Tekin's legendary element-proof engineering.
Master Technical TerrainPrecision Engineering For Extreme Crawlers
The Tekin ROC412 Element Proof 4S Sensored Crawler Brushless Motor, 2300kv is purpose-built to give 1/10 scale rock crawlers, rock racers, and trail rigs absolute power modulation. Equipped with an oversized 18.5mm sintered neodymium rotor encased in a CNC-machined 6061-T6 billet aluminum heatsink can, this brushless motor provides incredible drag brake force to hold heavy rigs on steep inclines. Utilizing high-purity copper windings, oversized ABEC5 bearings, and a flexible dual-plug sensor harness, the Tekin ROC412 2300kv motor combines extreme efficiency with rugged durability for technical trail drives and competitive rock crawling.
Technical SpecificationsPrecision Hardware Built To Perform
Part Type
Brushless Motor
Compatible Vehicles
1/10 Scale Rock Crawlers, Rock Racers, Trail Rigs
Motor Type
4-Pole 12-Slot Sensored Brushless
Motor KV
2300kV
Input Voltage
Up to 4S LiPo
Weight
6.3 oz / 180g
Motor Diameter
1.41in / 35.8mm
Motor Length
2.1in / 52.5mm
Shaft Dimensions
1/8in (3.2mm x 15.3mm) (pin)
Rotor Size
18.5mm
Bearing Type
High RPM ABEC5 Oversized (bearing)
Rebuildable
Yes
Dominant Trail FeaturesBuilt For Severe Off-Road Conditions
Element Proof DesignWeather resistant against water splashes, mud, and snow
High Torque Rotor18.5mm sintered neodymium rotor boosts drag braking power
4-Pole 12-Slot MotorDelivers high torque and linear throttle response
Billet Aluminum CanCNC machined 6061-T6 heatsink housing for optimal cooling
Dual-Plug HarnessFlexible sensor harness compatible with sensored and sensorless ESCs
ABEC5 BearingsOversized high-RPM bearings ensure long-lasting smooth rotation
Rebuildable ConstructionModular design allows straightforward maintenance and part updates
Frequently Asked QuestionsEverything you need to know
Is the Tekin ROC412 Element Proof 4S Sensored Crawler Brushless Motor, 2300kv fully waterproof?
The Tekin ROC412 Element Proof 4S Sensored Crawler Brushless Motor, 2300kv is weather-resistant against water splashes, mud, and snow, but it is not intended to be operated while fully submerged in liquid.
What battery voltage can I run with the Tekin ROC412 Element Proof 4S Sensored Crawler Brushless Motor, 2300kv?
The 2300kV version of the Tekin ROC412 Element Proof 4S Sensored Crawler Brushless Motor is rated to handle up to a 4S LiPo battery setup.
What maintenance is required after running the Tekin ROC412 Element Proof 4S Sensored Crawler Brushless Motor, 2300kv in wet conditions?
After exposure to water or mud, you should thoroughly clean and dry the Tekin ROC412 Element Proof 4S Sensored Crawler Brushless Motor, 2300kv, applying proper bearing oil to prevent corrosion and bearing failure.
