Savox- SV1261MG Servo
$102.29
High Voltage
Direct 7.4V LiPo capability
Extreme Torque
Up to 277 oz-in output
Aluminum Case
Maximum cooling and durability
Miniature Servo PowerhouseHigh voltage performance for demanding builds
The Savox SV1261MG Mini Digital High Voltage Servo packs elite actuation force into a compact mini chassis. Engineered for high-stress applications, this digital servo delivers an incredible 277 oz-in of torque when powered by a direct 7.4V LiPo setup. It is the ultimate upgrade for scale RC aircraft, specialty RC cars, and performance RC boats requiring precise control authority.
Precision Control UnlockedEngineered for aircraft cars and boats
Utilizing the same compact footprint as its predecessors, the Savox SV1261MG Mini Digital High Voltage Servo features an all-aluminum casing that works as a massive heat sink, keeping operating temperatures low during intense maneuvers. Inside, a high-efficiency coreless motor paired with a rugged metal gear train ensures lightning-fast transit times of 0.095 seconds and exceptional holding power. Designed for high-voltage operation, the Savox SV1261MG allows hobbyists to eliminate heavy external BECs and plug directly into standard 2S LiPo receiver batteries for maximum reliability and simplified wiring.
Technical SpecificationsDetailed engineering specs and measurements
Part Type
Mini Digital Servo
Motor Type
Coreless
Gear Material
Metal
Case Material
Full Aluminum
Torque @ 7.4V
20.0 kg-cm / 277.0 oz-in
Torque @ 6.0V
15.0 kg-cm / 208.0 oz-in
Speed @ 7.4V
0.095 sec/60°
Speed @ 6.0V
0.12 sec/60°

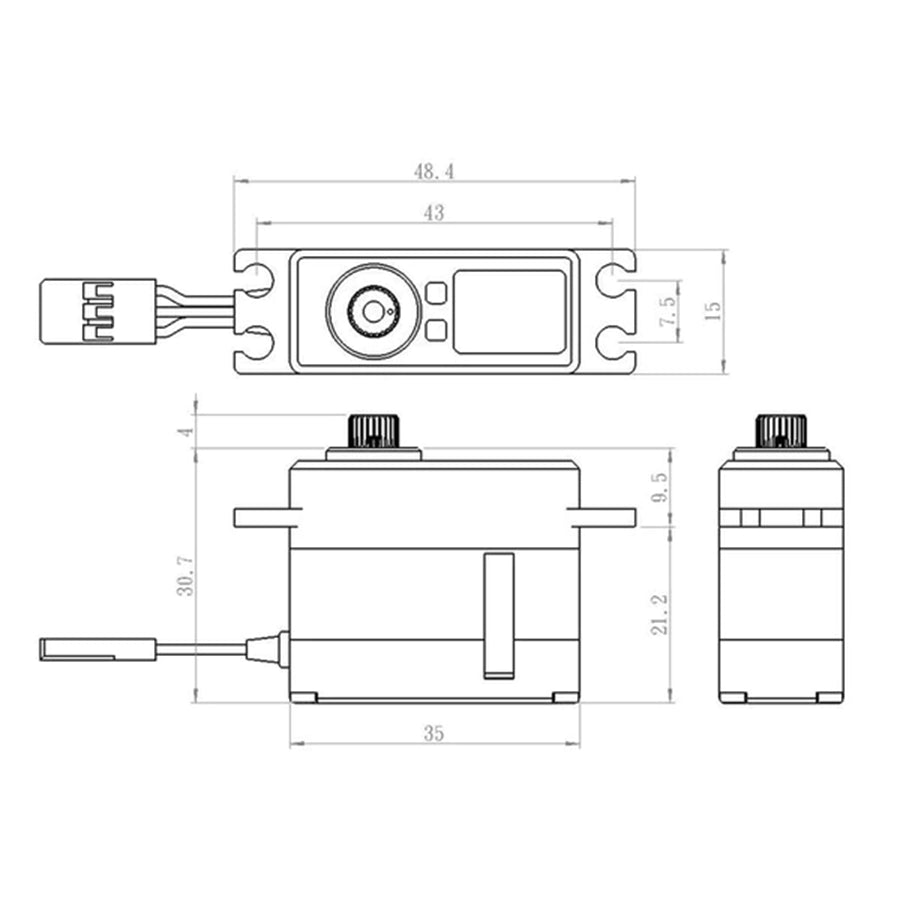

Dimensions
35.0 x 15.0 x 30.7 mm
Weight
40.0 g / 1.4 oz
Output Gear Spline
25 Tooth
Bearings
Dual Ball Bearings
Wire Length
250 ± 5mm
Refresh Rate
333 Hz
Operating Travel
100° (1000 to 2000 µs) (compass)
Maximum Travel
Approx 165° (800 to 2200 µs) (compass)
Operating Temperature
14° to 122°F / -10° to 50°C
Key Performance FeaturesBuilt for extreme torque and durability
High Voltage OperationDirect 2S 7.4V LiPo battery compatibility
All-Aluminum CaseEnsures rapid heat dissipation and structural rigidity
Metal Gear TrainHeavy-duty gears withstand extreme loads without stripping
Coreless Motor TechnologyDelivers rapid acceleration and smooth output
High Torque CapabilityProduces up to 277 oz-in of holding power
Dual Ball BearingsProvides smooth motion and precise centering
Frequently Asked QuestionsEverything you need to know
What power source is recommended for the Savox SV1261MG Mini Digital High Voltage Servo?
The Savox SV1261MG Mini Digital High Voltage Servo is specifically optimized for 2S 7.4V LiPo battery setups without requiring a regulator, but it can also run reliably on standard 6.0V receiver packs.
What RC applications are best suited for the Savox SV1261MG Mini Digital High Voltage Servo?
Although primarily intended for high-performance RC aircraft controls, the Savox SV1261MG Mini Digital High Voltage Servo is also ideal for custom scale RC cars, crawlers, trucks, and RC boats requiring extreme torque in a mini servo size.
What servo horn horn spline does the Savox SV1261MG Mini Digital High Voltage Servo use?
The Savox SV1261MG Mini Digital High Voltage Servo features a standard 25-tooth output spline, compatible with many aftermarket aluminum servo horns.
