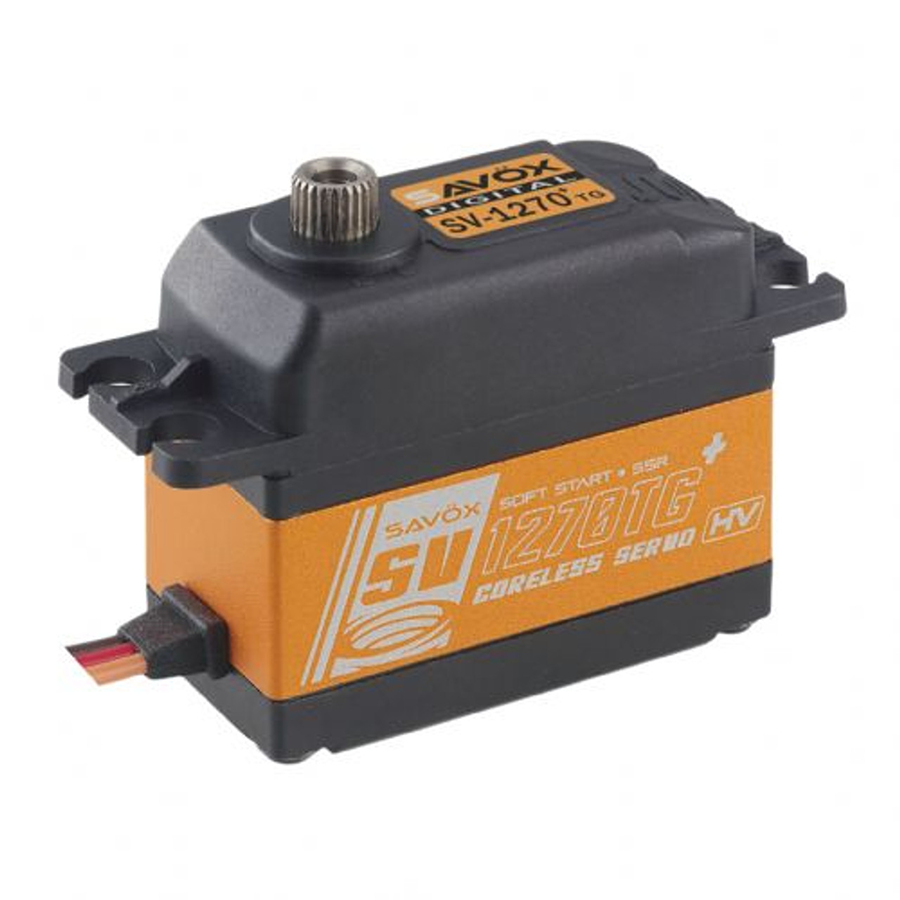

Savox- SV1270TGP Servo
$116.59
Skip to product information
Only 5 Left!
Savox- SV1270TGP Servo
$116.59
Monster Torque
Massive 624.9 oz in Output
Titanium Gears
Precision Built Metal Drivetrain
Soft Start Tech
Sanwa SSR Mode Compatible
In Stock
High Voltage Steering PowerNext Generation Servo Performance
The Savox SV-1270TGP High Voltage Monster Torque Titanium Gear Digital Servo delivers extreme steering control for demanding 1/8 scale RC vehicles and large scale aircraft. Featuring the new Plus series Soft Start technology and Sanwa SSR compatibility, this high-performance unit provides immediate response and rock-solid holding power under extreme operating conditions.
Engineered For Peak DemandMaximum Torque With Superior Durability
Designed specifically for high-stress applications, the Savox SV-1270TGP High Voltage Monster Torque Titanium Gear Digital Servo pushes up to 624.9 oz-in of torque with a rapid 0.10-second transit speed at 8.4V. Its full aluminum center case optimizes heat dissipation during intense driving sessions, while precision titanium gears ensure long-lasting durability against heavy shocks. Upgrade your 1/8 scale RC car, monster truck, or giant-scale airplane with the dependable control of the Savox SV-1270TGP digital servo.
Technical SpecificationsComplete Mechanical And Power Specs
Part Type
High Voltage Digital Servo
Compatible Vehicles
1/8 Scale RC Vehicles & Large Aircraft

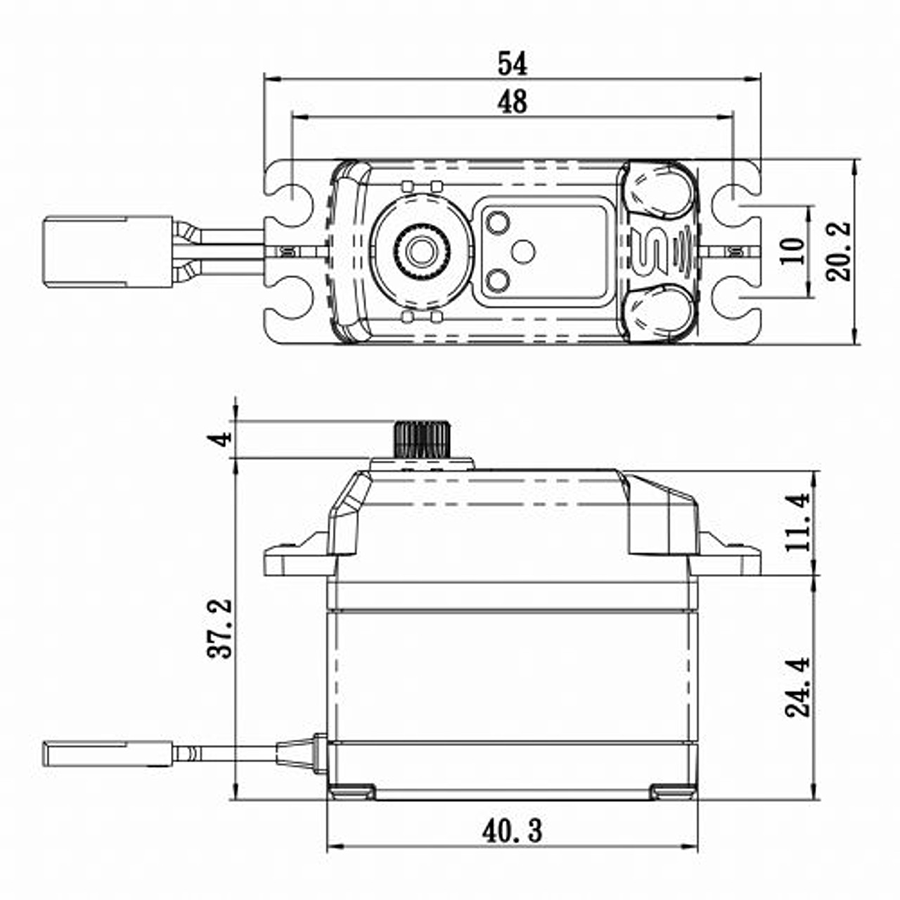

Dimensions
40.3 x 20.2 x 37.2 mm
Weight
56.0 g
Speed (@ 7.4V)
0.11 sec/60 deg
Torque (@ 7.4V)
40.0 kg-cm / 555.5 oz-in
Speed (@ 8.4V)
0.10 sec/60 deg
Torque (@ 8.4V)
45.0 kg-cm / 624.9 oz-in
Gear Material
Titanium & Aluminum
Bearing Type
Dual Ball Bearing (2BB) (circle)
Case Material
Aluminum Center Case
Key Performance FeaturesBuilt For Precision And Power
Gear TrainPrecision Titanium and Aluminum Gears
Soft Start TechProtects linkage during initial power-up
Sanwa SSR CompatibleDelivers ultra-fast signal response
High Voltage OperationNative support for 7.4V to 8.4V LiPo
Heat DissipationLightweight full aluminum center case
Heavy Duty UsageIdeal for 1/8 scale trucks and monster trucks
Frequently Asked QuestionsEverything you need to know
What operating voltage does the Savox SV-1270TGP High Voltage Digital Servo support?
The Savox SV-1270TGP High Voltage Digital Servo operates natively on 7.4V to 8.4V, allowing direct power from 2S LiPo receiver batteries without needing a separate BEC.
Is the Savox SV-1270TGP High Voltage Digital Servo suitable for 1/8 scale monster trucks?
Yes, with its 624.9 oz-in of torque and titanium gears, the Savox SV-1270TGP High Voltage Digital Servo is engineered specifically for heavy-duty 1/8 scale RC trucks, buggies, and monster trucks.
What benefit does Soft Start technology provide in the Savox SV-1270TGP High Voltage Digital Servo?
Soft Start technology gradually powers on the Savox SV-1270TGP High Voltage Digital Servo to prevent sudden jump movements and reduce mechanical shock on your steering linkages upon initialization.
